DAMIAO

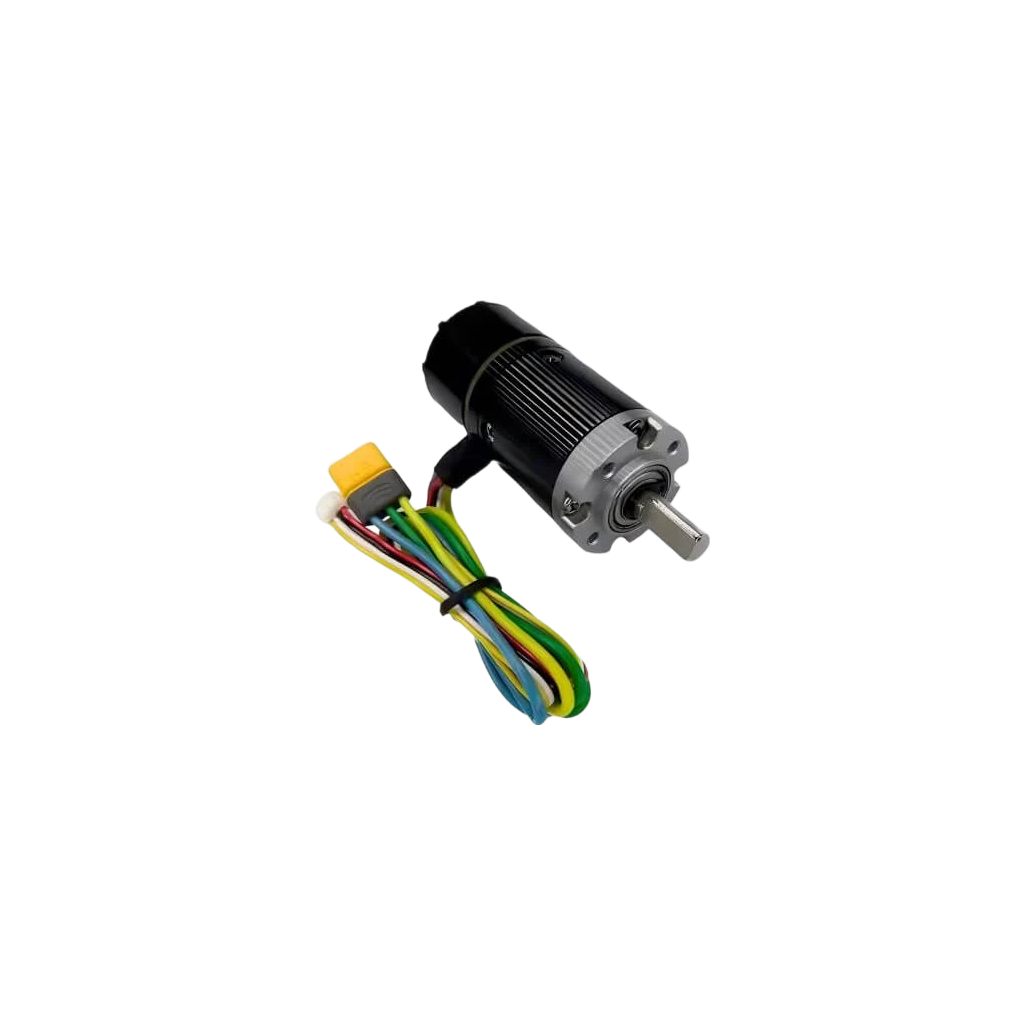

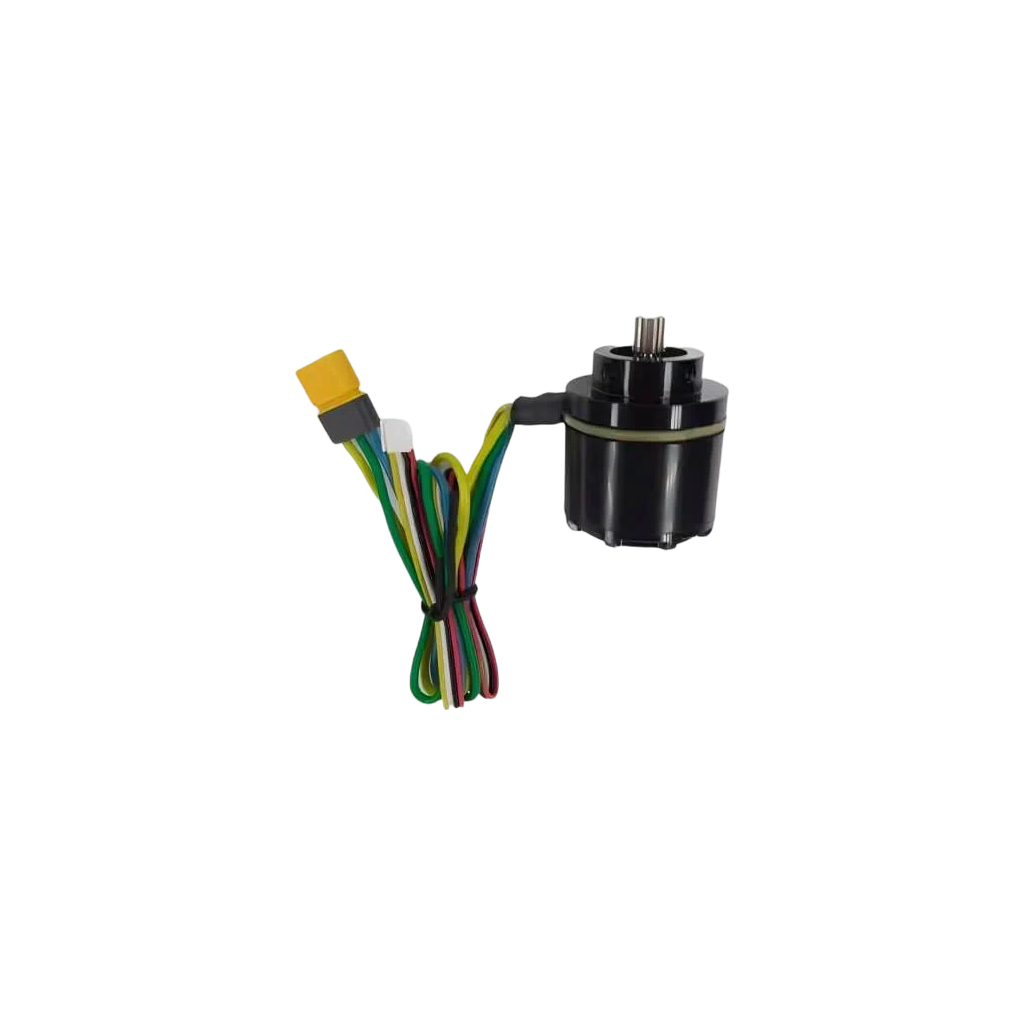

DAMIAO DM-2325 Servo Motor for Robot Applications

Model: DM-2325

$45
Version
Communication Module

Care information

Store in a dry, dust-free environment and avoid impact or excessive vibration during handling. Do not disassemble the motor or modify internal components, as this may affect performance and void warranty. Ensure proper voltage supply and secure mounting before operation.

Shipping

Free shipping. 12-Day delivery.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

Technical Specifications

Parameter Value
Model DM-2325
Nominal Voltage 24 V DC (Wide-voltage drive supporting 24 – 48 V DC power supply)
Nominal Current 5 A / 3.2 A
Peak Current 13 A / 7.5 A
Nominal Torque 5 N·m
Peak Torque 2 N·m
Nominal Speed 380 rpm
Maximum No-Load Speed 560 rpm
Reduction Ratio 1:25
Pole Pairs 7
Phase Inductance 75 µH
Phase Resistance 0.2915 Ω
Maximum Radial Load 395 N
Outer Diameter 28 mm
Height 77.6 mm
Motor Weight 172.2 g
Encoder Type Incremental Encoder
Control Interface CAN (Up to 1 Mbps), CAN FD (Up to 5 Mbps)
Configuration Interface UART (921600 bps)
Control Modes MIT Mode | Speed Mode | Position Mode
Protection Features Drive Over-Temperature Protection (120 °C shutdown); Motor Over-Temperature Protection (Recommended ≤100 °C); Overvoltage Protection (Recommended ≤60 V); Communication Loss Protection (CAN timeout exit enable mode); Motor Overcurrent Protection (Recommended ≤13 A); Under-Voltage Protection (Minimum supply ≥15 V)

Technical Documentation

PDF
DM-S2325-1EC_User_Manual-1.pdf
PDF
DM-S2325-1EC-Motor_Installation_Dimension_Drawing.pdf
STP
DM-S2325-1EC.stp
STP
dm-s2325-1ec_armature.stp
PDF
DM-S2325-1EC-armature-Motor_Installation_Dimension_Drawing.pdf
PDF
USB_to_CANFD_Module_User_Manual_V1.0.pdf
