OCServo

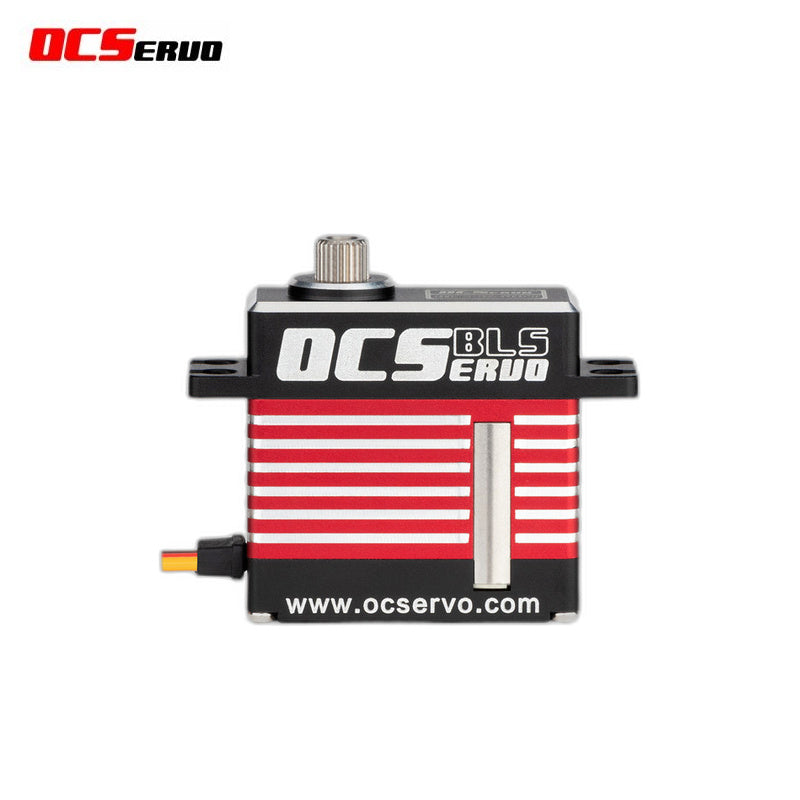

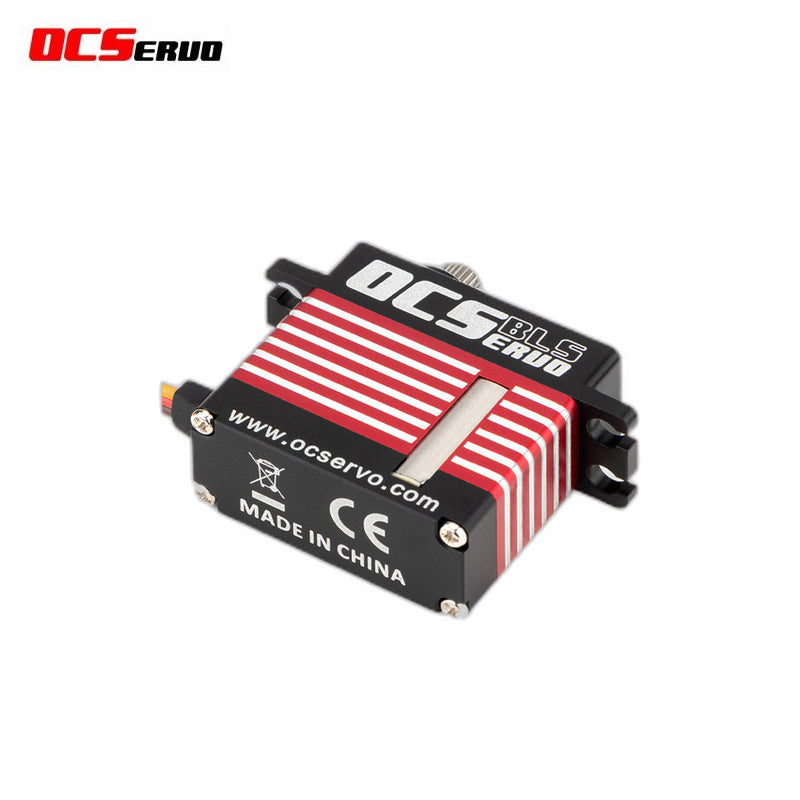

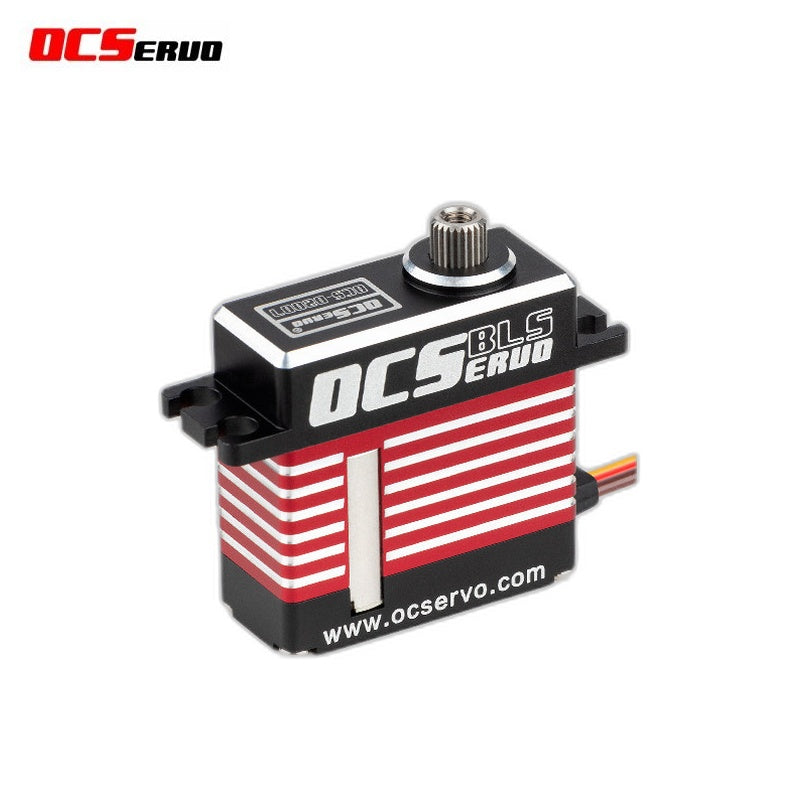

OCServo OCS-D2007 Servo Motor

  • Peak stall torque (kg·cm): 6V: 14; 7.4V: 18; 8.4V: 21
  • Operating Voltage: 6.0V / 7.4V / 8.4V
  • No load speed (sec/60°): 6V: 0.12; 7.4V: 0.09; 8.4V: 0.07
  • Motor Type: BLS motor
  • Gear Type: Stainless Steel
$80
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D2007 dimensional drawing.pdf ▶

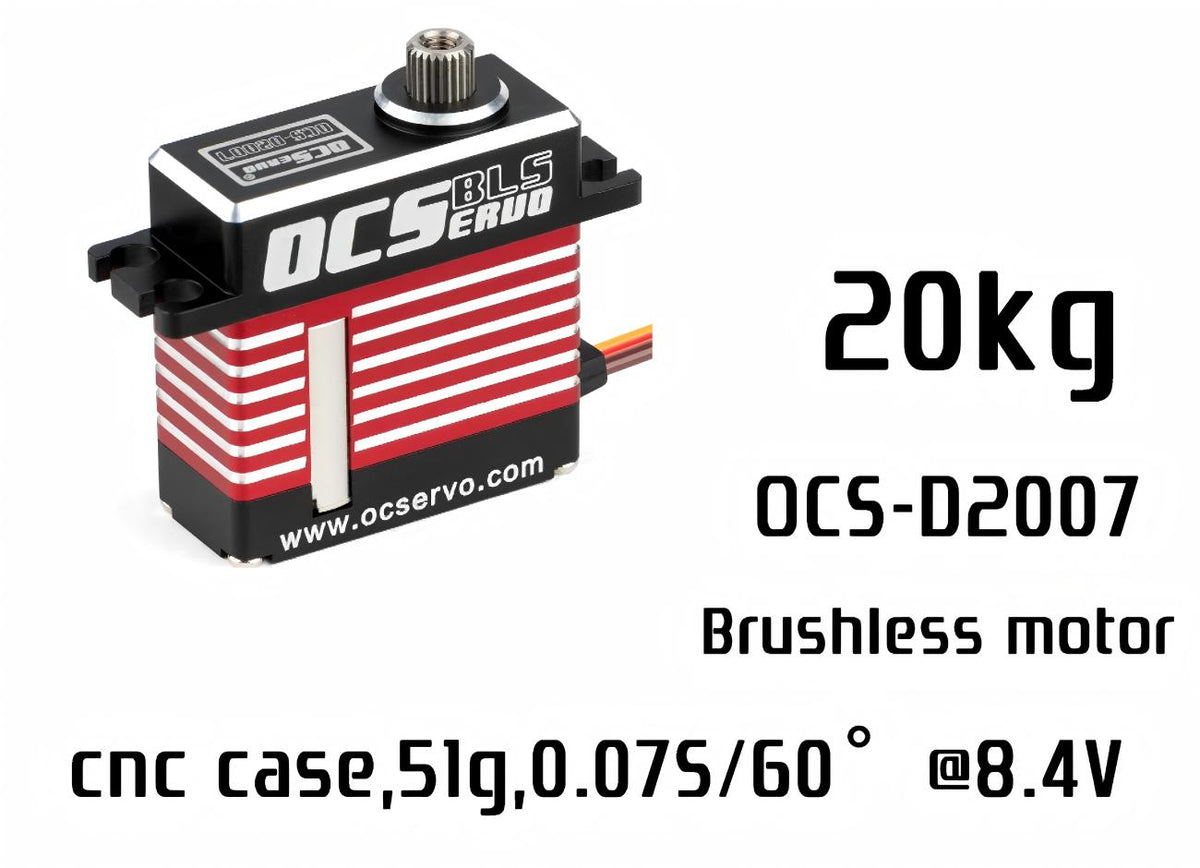

OCServo OCS-D2007 Servo Motor detail image
OCServo OCS-D2007 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
8.4V21kg-cm High Voltage BLS Servo
Item No.
OCS-D2007
Storage Temperature Range
-20°C ~ 70°C
Operating Temperature Range
-15°C ~ 65°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
15 × 35.8 × 35
Weight (g)
51 (excluding accessory)
Gear Type
Stainless Steel
Limit Angle
220°
Bearings
2 Ball bearings
Output Spline
25T - Φ5.96mm
Horn Type
Plastic POM
Case Material
Aluminium CNC
Connector Wire
300mm 3P
Motor Type
BLS motor
Waterproof Performance
No
Operating Voltage
6.0V / 7.4V / 8.4V
No load speed (sec/60°)
6V: 0.12; 7.4V: 0.09; 8.4V: 0.07
Running current (at no load) (mA)
6V: 170; 7.4V: 240; 8.4V: 300
Peak stall torque (kg·cm)
6V: 14; 7.4V: 18; 8.4V: 21
Stall current (A)
6V: 2.9; 7.4V: 3.5; 8.4V: 4.0
Command Signal
PWM
Amplifier Type
Digital Controller
Pulse Width Range
800 ~ 2200 μsec
Neutral Position
1500 μsec
Running Degree
96° (when 1000~2000 μsec)
Dead Band Width
2 μsec
Rotating Direction
CCW (when 1000~2000 μsec)
