Seyond

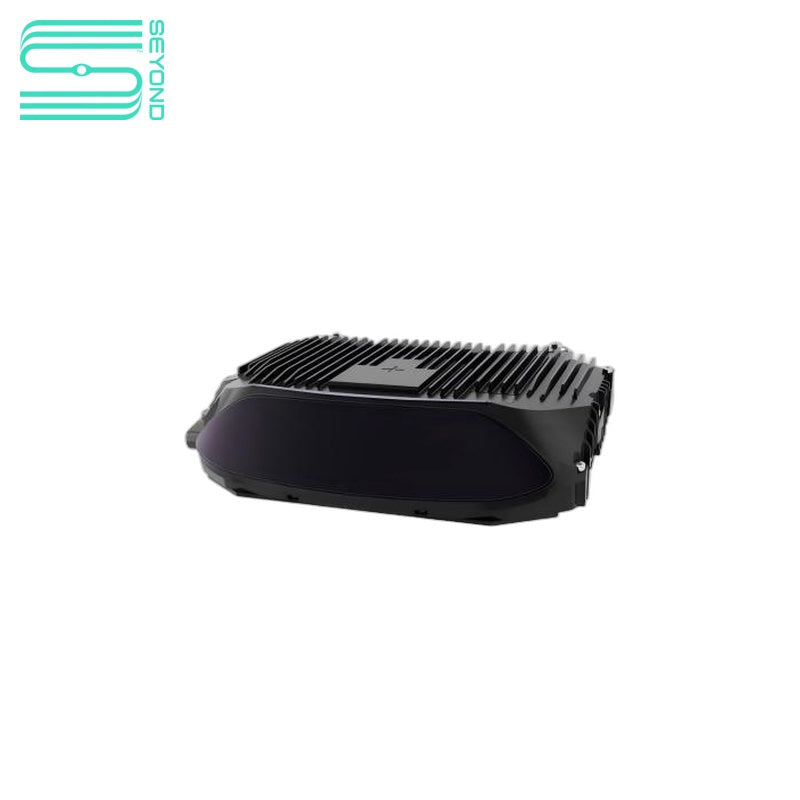

Seyond Falcon K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Range (Maximum): 500 m
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$9,400
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Seyond Falcon K1 LiDAR product documentation for robotics integration.pdf ▶ Seyond Falcon K1 LiDAR dimension drawing for installation reference.pdf ▶ Seyond Falcon K1 LiDAR CAD model for mechanical integration.stp ▶

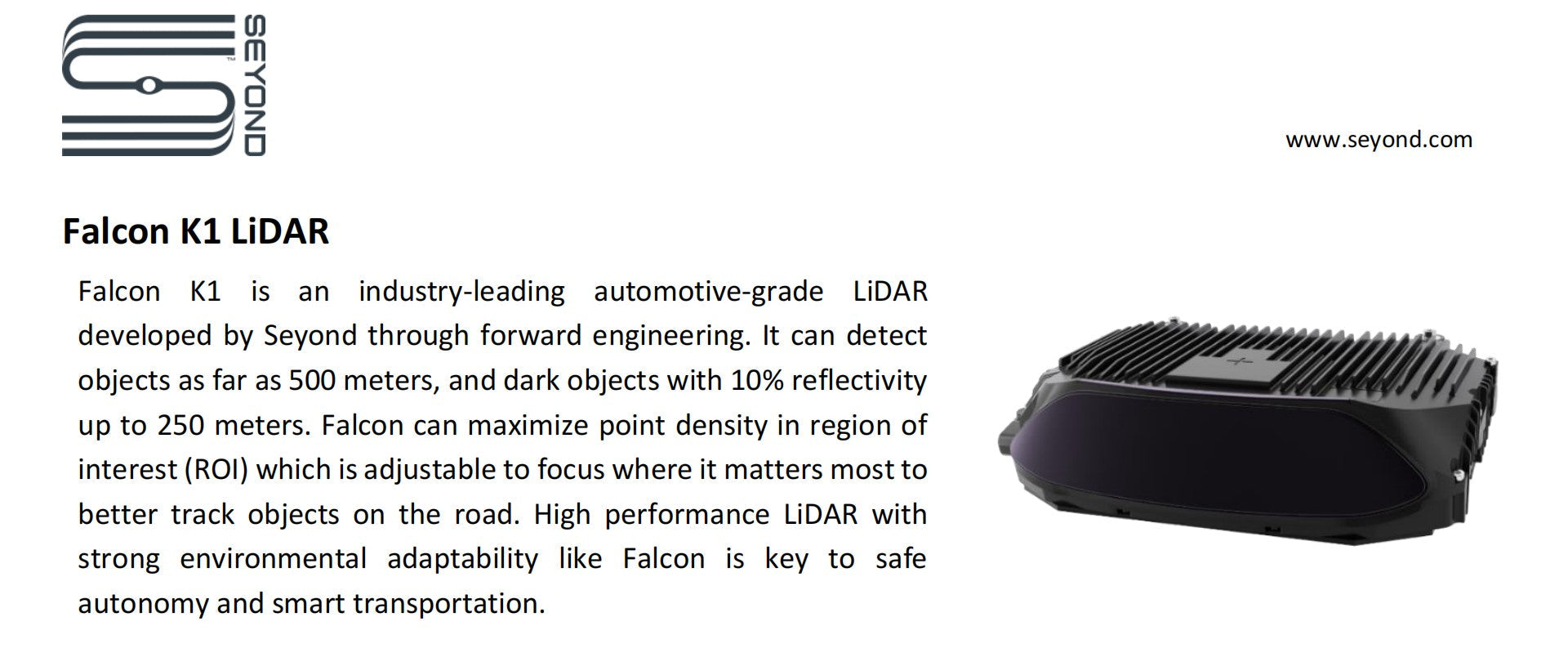

Seyond Falcon K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

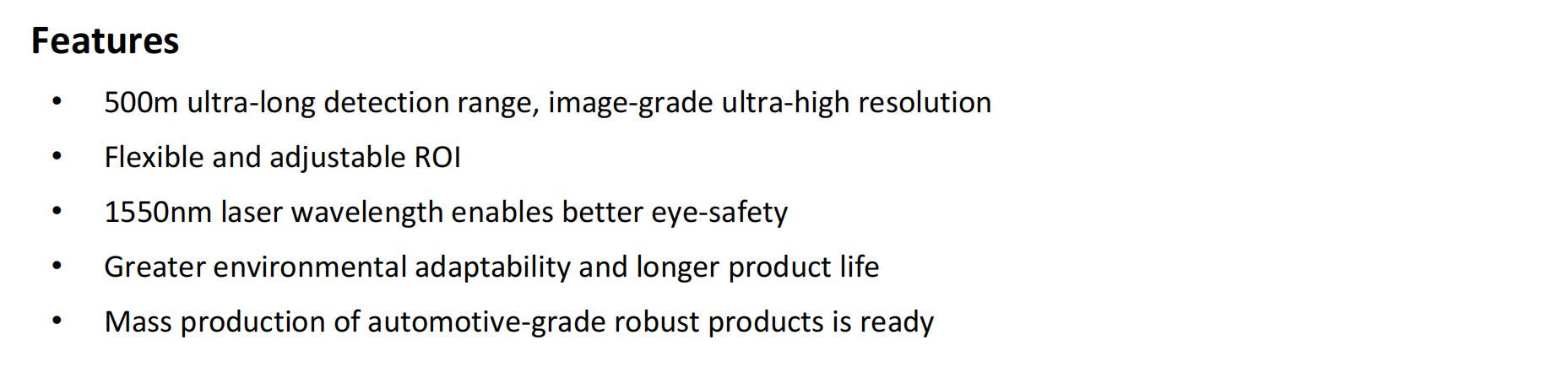

Seyond Falcon K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Seyond Falcon K1 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
▤ PARAMETER ⌃
Range (Maximum)
500 m
Range (Minimum)
1.5 m
Detection Range (10% Lambertian @10Hz)
250m @100klx sunlight, POD>90%
Detection Range Accuracy
±2cm
Accuracy Note
Based on average of 50 measurements on static target
Detection Range Precision
≤2cm (1 standard deviation)
Detection Range Resolution
0.5 cm
Vertical Scanning Lines
1500 lines/sec
FOV in non-ROI (H×V)
120° × 25°
FOV in ROI (H×V)
120° × 9.6°
Angular Resolution in non-ROI (H×V)
0.2° × 0.24°
Angular Resolution in ROI (H×V)
0.1°×0.15° (1st 4.8°), 0.1°×0.1° (2nd 4.8°)
Angular Accuracy
±0.1°
Frame Rate
10 FPS
False Positive Rate
< 0.01% @ 100 klx sunlight
Returns
Up to 2 returns
Laser Safety Class
Class 1 (IEC 60825-1:2014)
Laser Wavelength
1550 nm
Beam Divergence (Full Angle)
0.1°
Data Transmission
1000Base-T1 Ethernet (UDP, TCP/IP)
Points Per Second
1,370,000 pts/sec @1 return / 2,740,000 pts/sec @2 return
Data Rate
11.69MB/s @1 return / 17.45MB/s @2 return
Data Output
Radius, azimuth, reflectivity, timestamp, frame ID, return mode, working mode, fault state, CRC verification, etc.
Interface
TCP and HTTP APIs
Time Synchronization
IEEE1588 (PTP) <1µs / IEEE 802.1as (gPTP) <1µs / NTP
Power Consumption
30W
Operating Voltage
9 to 32V DC
Standard Voltage
12V DC
Connector
Proprietary pluggable (Power + Automotive Ethernet + CAN)
Dimensions (H×W×D)
58.9mm × 228mm × 149.6mm
Weight
1.7 kg
Mounting
4×M4×18 screws, located in bushings
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +105°C
Ingress Protection
IP67 (body), IP69K (window)
Shock
IEC 60068-2-27 (500m/s², 6ms, 10 shocks per axis)
Vibration
IEC 60068-2-64 (30.8 m/s², 3 axes, 8hr each)
Compliance
IEC60825-1 Class 1, RoHS (EU), CE Mark (EN IEC 61000-3-2:2019+A1:2021, EN 61000-3)
Optional Wire Harness
5m cable (power & Ethernet)
Optional Converter
Metadapter
Optional Mount
Metal bracket
Available Drivers
ROS / ROS2
