ASTRALL

ASTRALL A01 Robot | Quadruped Robot Platform for Robotics Research

  • ASTRALL quadruped robot platform for robotics research, embodied AI development, and education labs.
  • Suitable for teams building robot locomotion, autonomous behavior, perception, and field robotics workflows.
  • Designed for robotics developers, universities, and engineering teams evaluating quadruped robot applications.
  • Supports practical robot platform development for prototyping, demonstrations, automation, and lab experiments.
$86,800
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

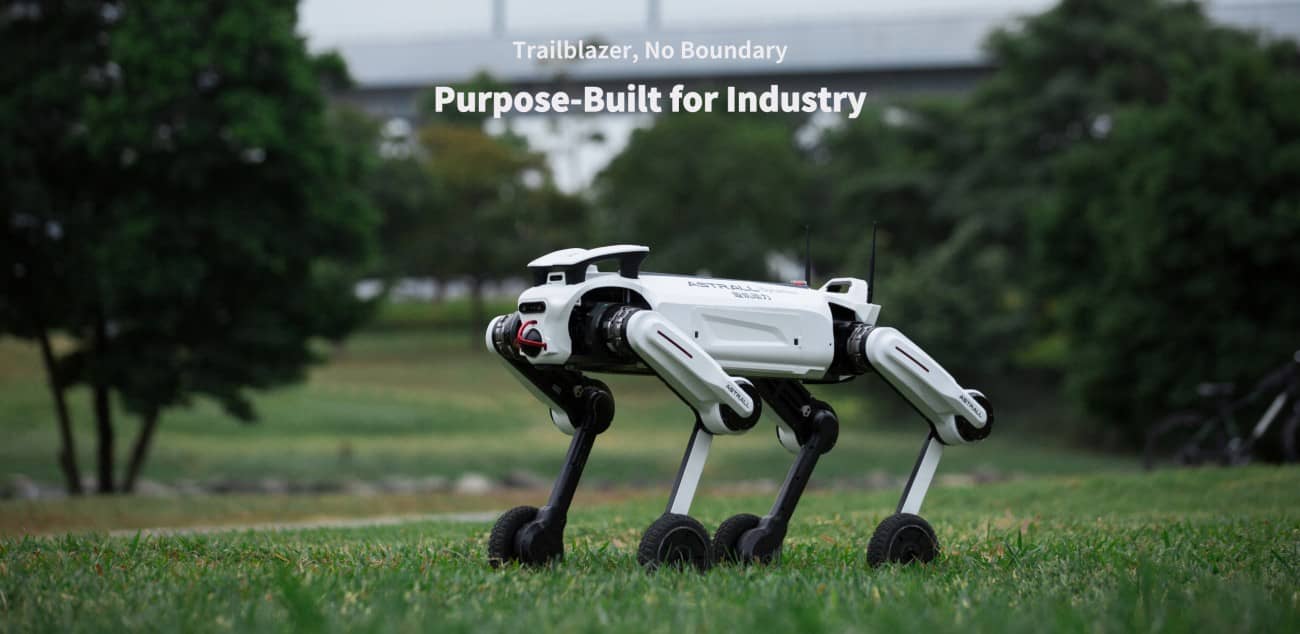

ASTRALL A01 Robot | Quadruped Robot Platform for Robotics Research detail image 1

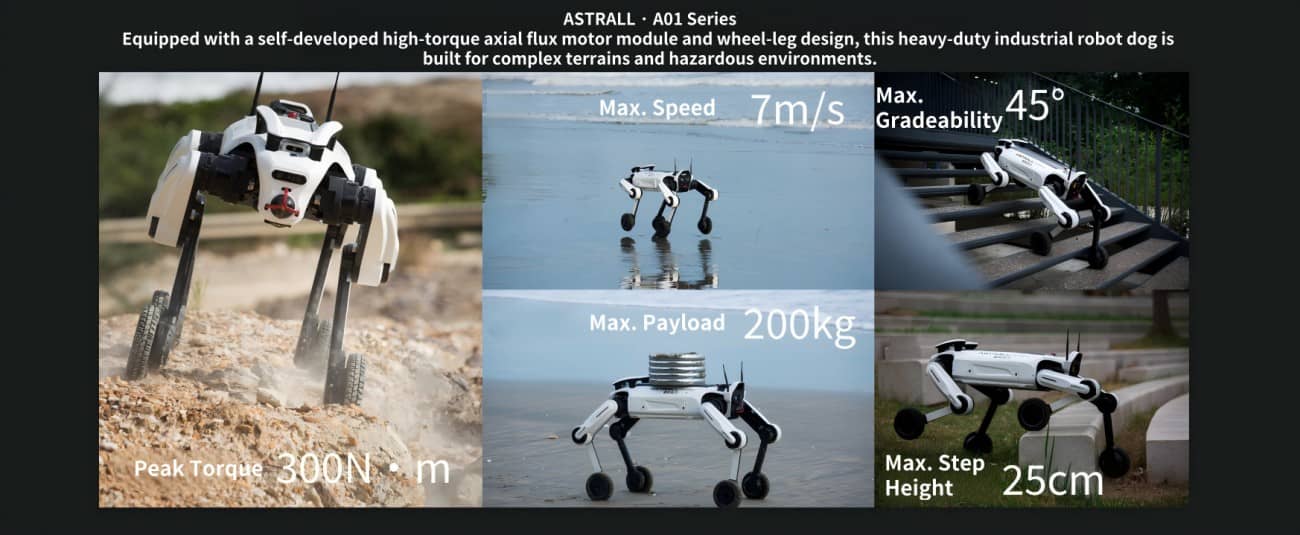

ASTRALL A01 Robot | Quadruped Robot Platform for Robotics Research detail image 2

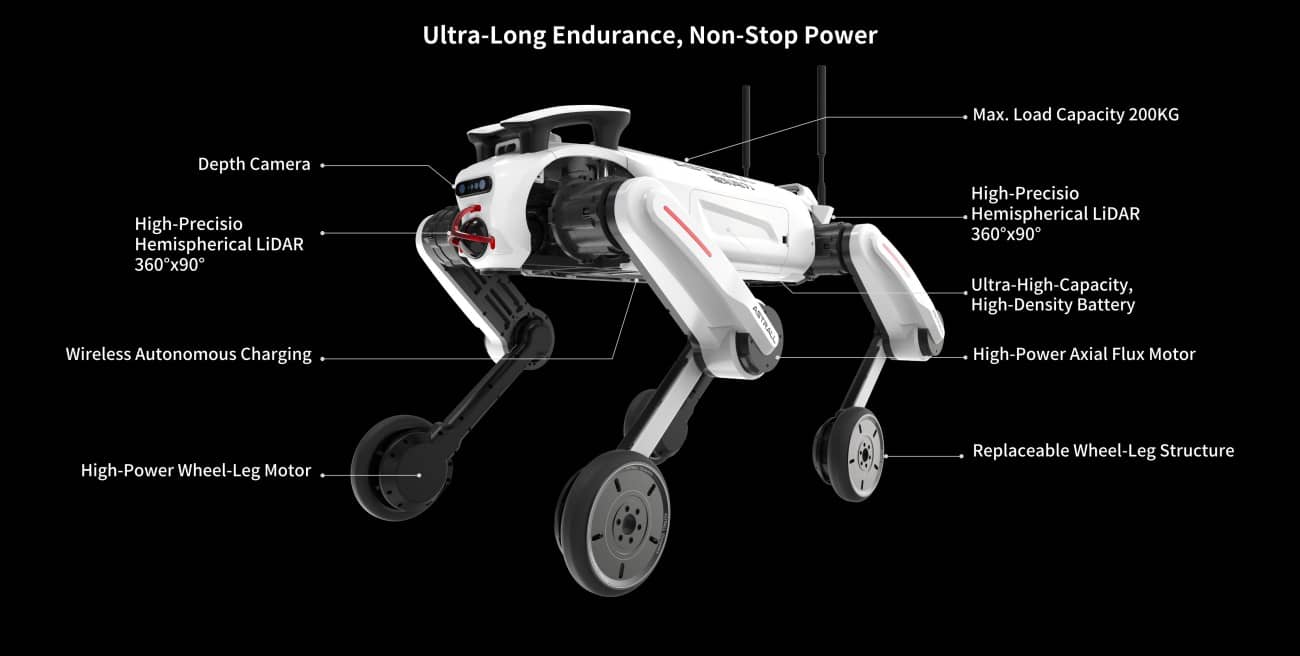

ASTRALL A01 Robot | Quadruped Robot Platform for Robotics Research detail image 3

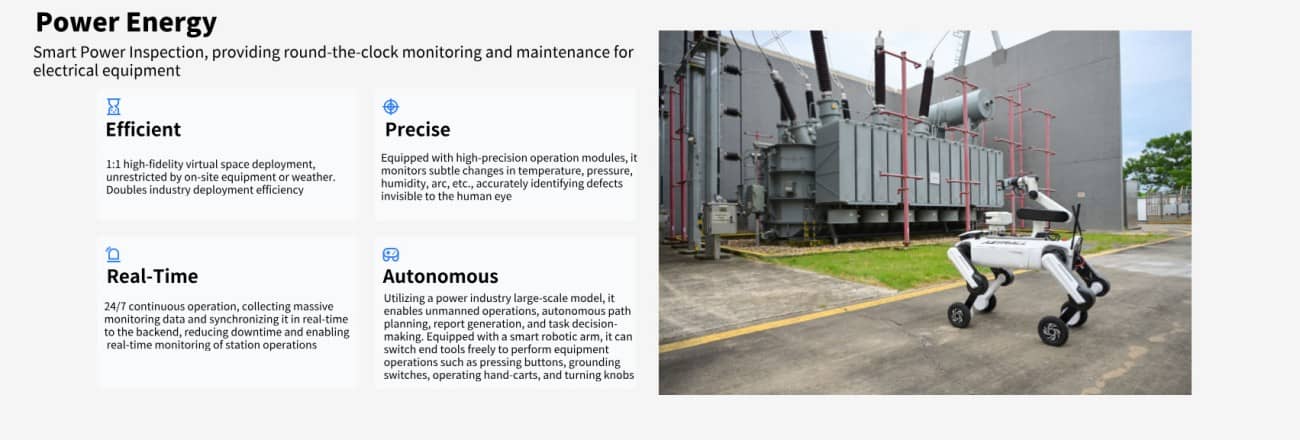

ASTRALL A01 Robot | Quadruped Robot Platform for Robotics Research detail image 4

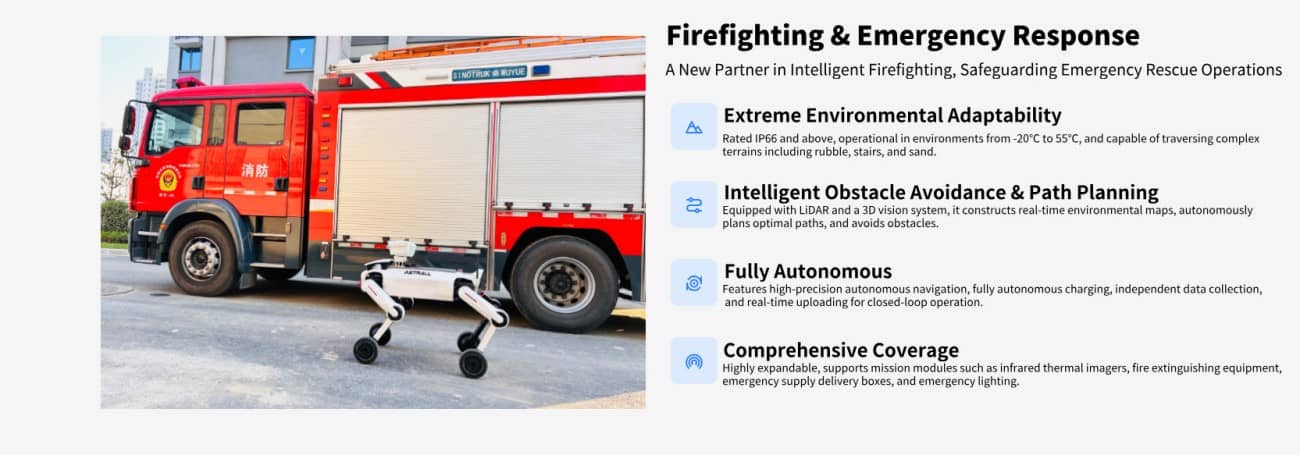

ASTRALL A01 Robot | Quadruped Robot Platform for Robotics Research detail image 5

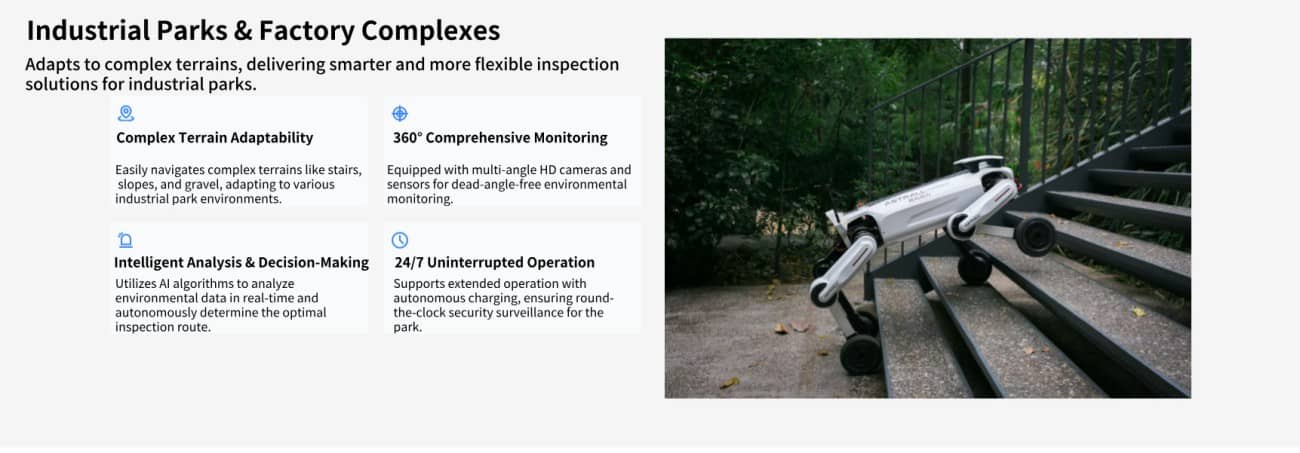

ASTRALL A01 Robot | Quadruped Robot Platform for Robotics Research detail image 6
▤ PARAMETER ⌃
Standing Dimensions
ASTRALL · A01: 1110mm × 610mm × 745mm
Crouching Dimensions
ASTRALL · A01: 1130mm × 755mm × 320mm
Weight
ASTRALL · A01: 82kg (including battery)
Shell Material
ASTRALL · A01: Engineering Plastic
Leg Structure Material
ASTRALL · A01: Aerospace-Grade Metal
Battery System
ASTRALL · A01: Ternary Lithium, 10.2kg, 66.6V, 30Ah
Charger
ASTRALL · A01: Input: 220V AC, 50Hz; Output: 75.6V, 15A
Encoder
ASTRALL · A01: Dual Encoder
Rated/Max Torque
ASTRALL · A01: 50 N·m / 300 N·m
Working Payload
ASTRALL · A01: ≤80kg
Max Standing Load
ASTRALL · A01: 200kg
Battery Life
ASTRALL · A01: 4~8 hours (loaded/unloaded)
Max Speed
ASTRALL · A01: 7 m/s
Max Obstacle Crossing Angle
ASTRALL · A01: 45°
Continuous Stair Climbing Height
ASTRALL · A01: 20~25 cm
Max Obstacle Climbing Height
ASTRALL · A01: 90cm
Protection Rating
ASTRALL · A01: IP66
Operating Temperature
ASTRALL · A01: -20℃ ~ 55℃
Storage Temperature
ASTRALL · A01: -20℃ ~ 60℃
Quantity / Detection Range
ASTRALL · A01: 2 units / 30m ± 10%
Scanning Lines / Point Cloud Density
ASTRALL · A01: 192 lines / 1,720,000 pts/s (dual-echo mode), 860,000 pts/s (single-echo mode)
FOV / Frame Rate
ASTRALL · A01: 360°×90° / 10 Hz
Quantity / Size
ASTRALL · A01: 1 unit / 90×25×25 mm
Resolution / Frame Rate
ASTRALL · A01: 1280×800 / 30 fps
Operating Range
ASTRALL · A01: 0.01-20m
RTK / GPS / 4G
ASTRALL · A01: Optional
WIFI / Bluetooth / IMU Attitude Sensor
ASTRALL · A01: Standard
Microphone & Speaker
ASTRALL · A01: Optional
Work Light
ASTRALL · A01: Standard
Software SDK for Secondary Development
ASTRALL · A01: Supported
External Communication
ASTRALL · A01: RS485×2, CAN×2, Ethernet Port×2
Power Interface 1
ASTRALL · A01: 12V, ≤20A, ≤240W
Power Interface 2
ASTRALL · A01: 20V-48V, ≤10A, ≤480W
