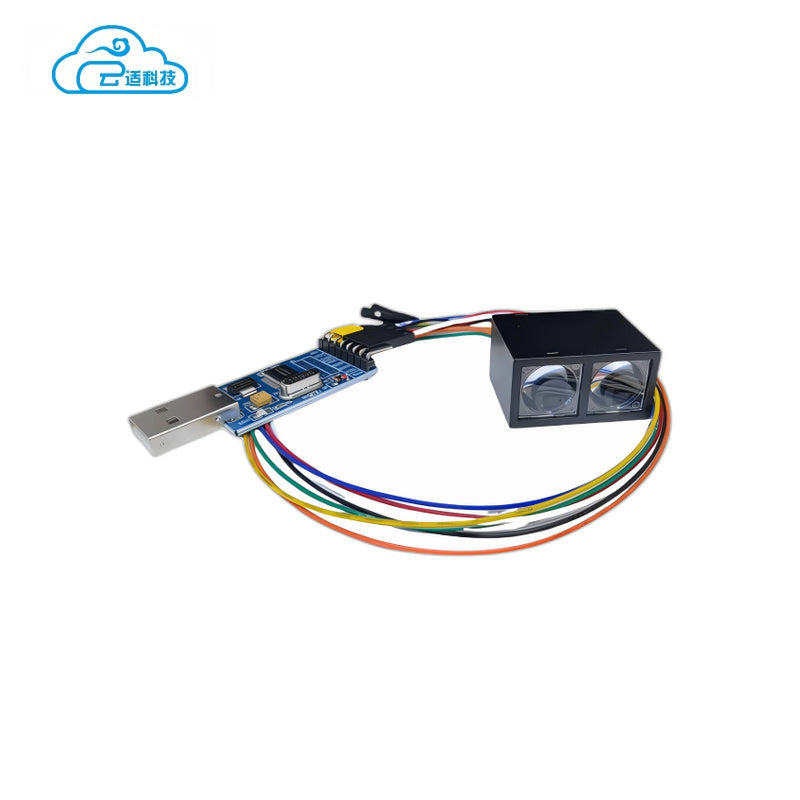

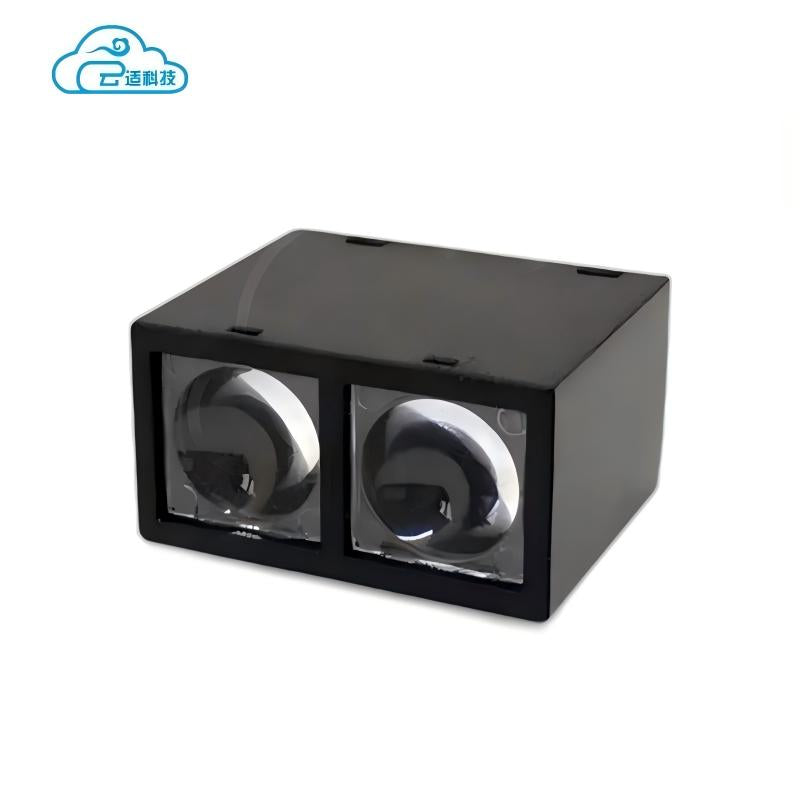

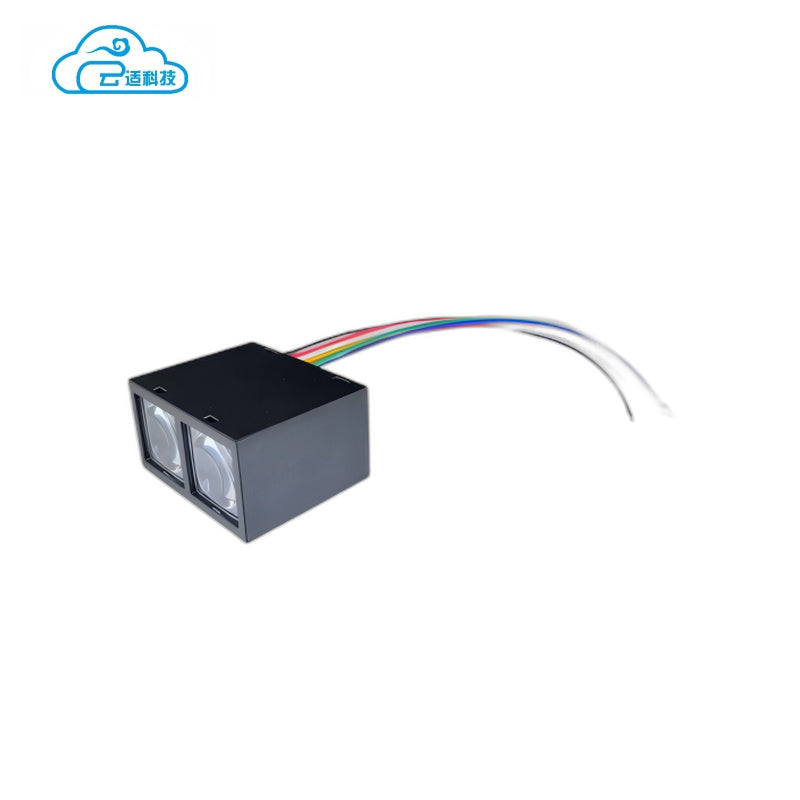

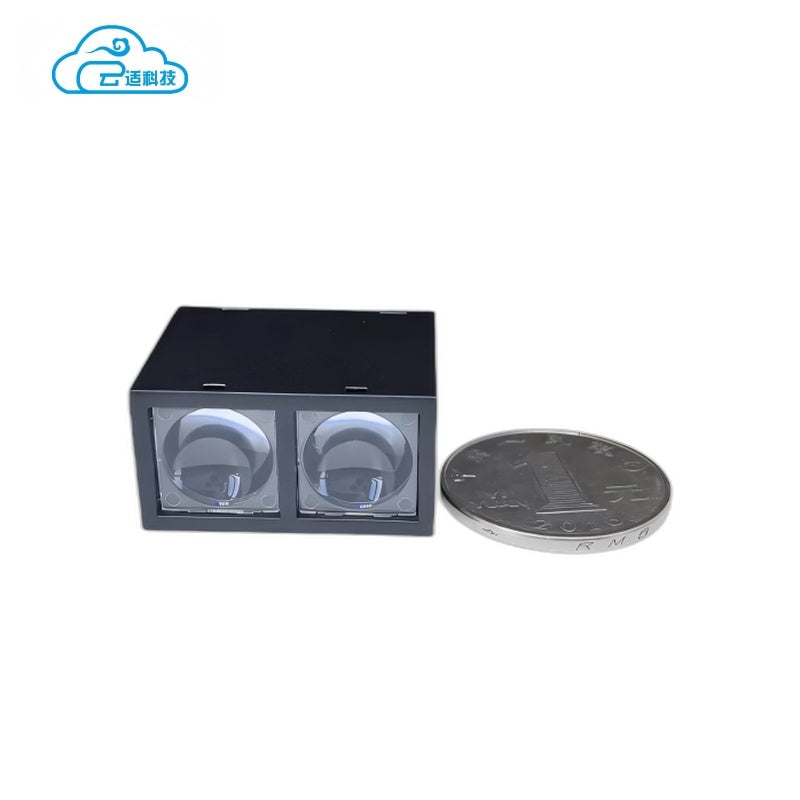

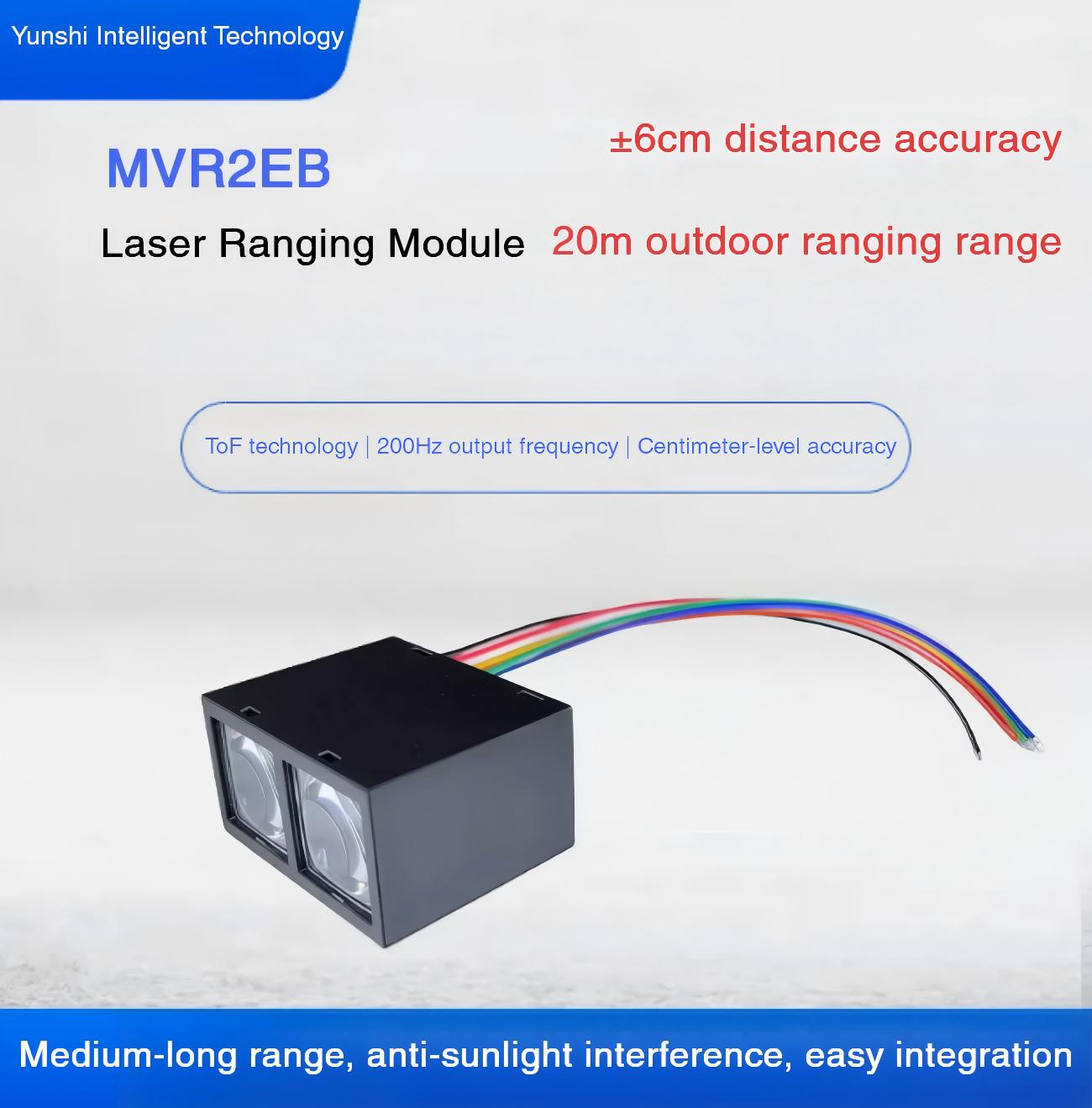

Yunshis MVR2EB Laser Ranging Module | Laser Ranging Module for Robotics & Automation

  • Laser Ranging Module designed for robotics sensing and automation projects
  • Supports robot distance measurement, obstacle awareness, and embedded perception workflows
  • Suitable for robotics developers, research labs, education projects, and automation prototypes
  • Technical specifications and downloadable support files are preserved from the reference source when available
  • Draft Shopify listing prepared for the Yunshis laser ranging module product line
$55
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

<h2>Yunshis MVR2EB Laser Ranging Module</h2><p>Yunshis MVR2EB Laser Ranging Module is a Yunshis laser ranging module for robotics sensing, distance measurement, automation, and embedded development workflows.</p><h3>Features</h3><ul><li>Laser Ranging Module for robot perception and ranging applications</li><li>Designed for robotics developers, education labs, automation teams, and embedded system integrators</li><li>Supports distance sensing use cases such as obstacle detection, positioning, and environment awareness</li><li>Product media, specifications, and downloadable support files are mapped from the reference page when available</li></ul>

Developer Support

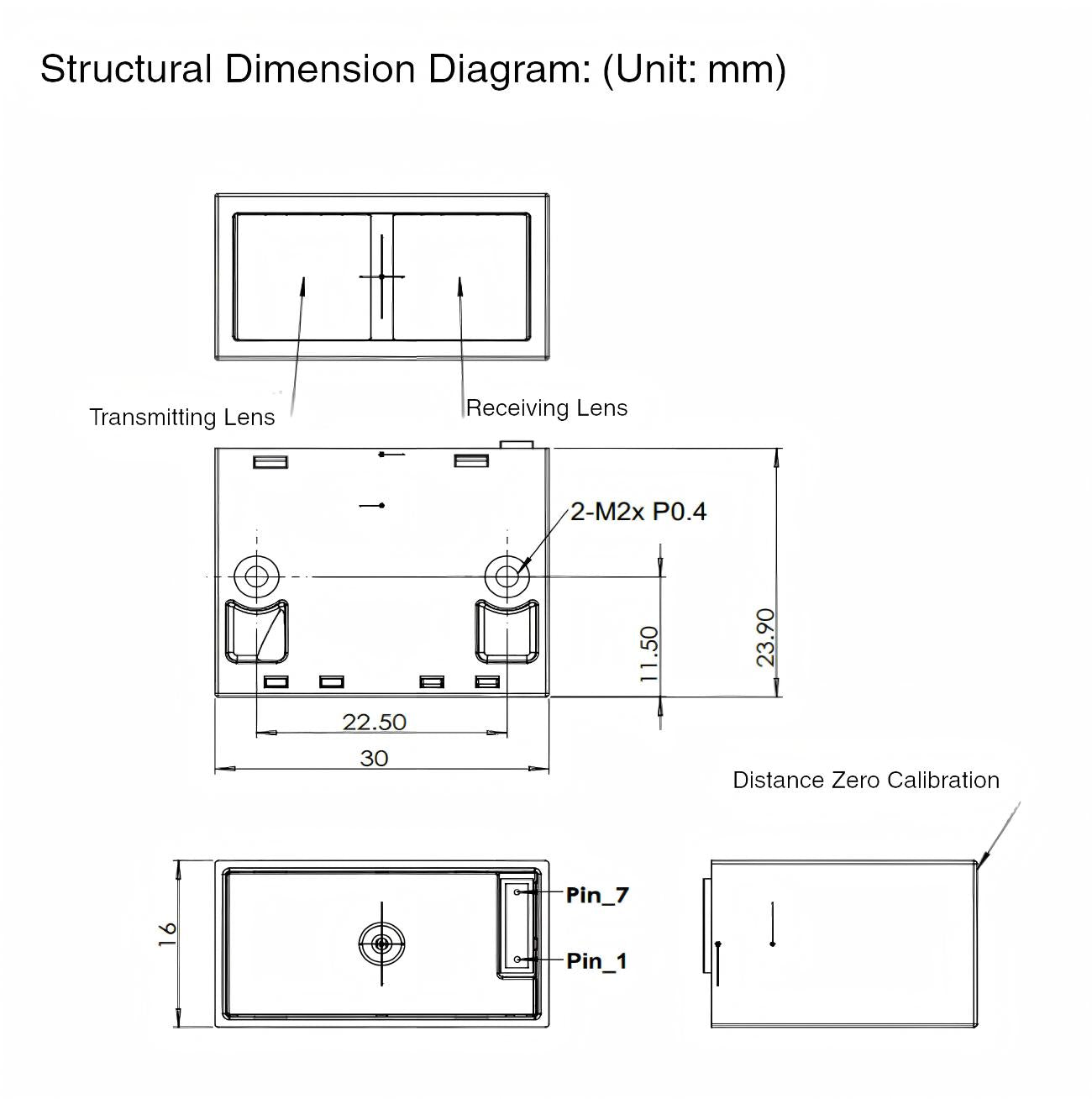

Yunshis MVR2EB Laser Ranging Module drawing document for mechanical reference and product dimensions. ▶
Yunshis MVR2EB Laser Ranging Module | Laser Ranging Module for Robotics & Automation Yunshis MVR2EB Laser Ranging Module | Laser Ranging Module for Robotics & Automation Yunshis MVR2EB Laser Ranging Module | Laser Ranging Module for Robotics & Automation Yunshis MVR2EB Laser Ranging Module | Laser Ranging Module for Robotics & Automation Yunshis MVR2EB Laser Ranging Module | Laser Ranging Module for Robotics & Automation

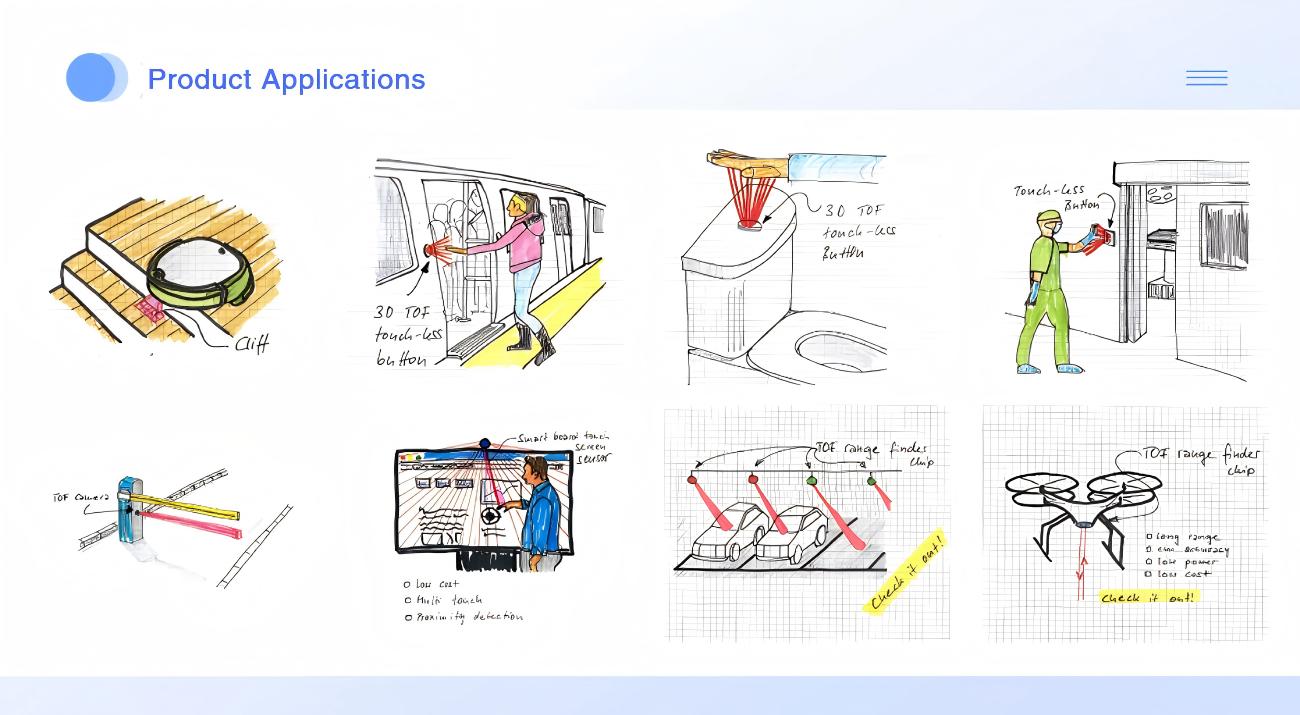

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ Technical Specifications ⌃
Parameter
Description
Min.
Typical
Max.
Unit
Remarks
VDD
Operating Voltage
4.75
5
5.25
V
IDD
Operating Current
40
200
mA
WL
Operating Wavelength
940
nm
IR VCSEL
D
Measurement Range
0.3
20
m
Max range in indoor environment, 90% reflective whiteboard
F
Measurement Frequency
10
50
200
Hz
Adjustable at 10/20/50/100/200 Hz (automatic measurement)
FOV
Field of View
0.7
°
DSPOT
Measured Spot Area (D = 1.0m)
1.2×1.2
cm
Measurement accuracy will be affected if target is smaller than this area. Refer to Note 7.
Measured Spot Area (D = 5.0m)
6×6
cm
Measurement accuracy will be affected if target is smaller than this area. Refer to Note 7.
Measured Spot Area (D = 7.0m)
8.5×8.5
cm
Measurement accuracy will be affected if target is smaller than this area. Refer to Note 7.
Acc
Accuracy
±6
cm
R
Resolution
10
mm
tINT
Selectable Integration Time
10
205
1600
µs
Default: 205µs
ESD
ESD Protection Level
2
kV
Human body model
TA
Operating Temperature Range
-10
50
°C
TSTO
Storage Temperature
-20
65
°C
RH
Relative Humidity
15
90
%
Non-condensing environment
W
Weight
9
g
