DJI

DJI RoboMaster Snail 2305 Motor & C615 Speed Controller

  • Suitable for education labs, robotics teams, automation prototypes, and engineering builds.
  • Designed for integration into RoboMaster-style robot platforms and motion systems.
  • Supports compact robotics projects where reliable motor or actuator components are required.
$40
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

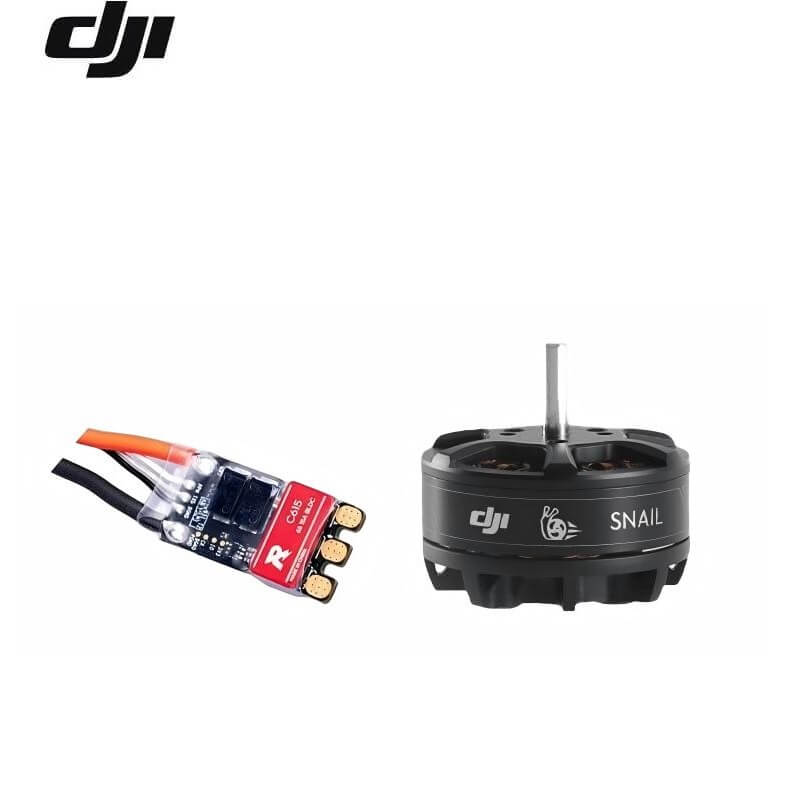

DJI RoboMaster Snail 2305 Motor & C615 Speed Controller

The DJI RoboMaster Snail 2305 Motor & C615 Speed Controller is a DJI RoboMaster robot motor and speed controller for robotics development, robot hardware integration, education labs, and automation prototypes. It is intended for builders and engineering teams working with compact robotic motion systems.

Features

  • **RoboMaster platform component:** Suitable for DJI RoboMaster-style robot builds and hardware integration.
  • **Robotics development:** Supports education, research, prototyping, and automation projects.
  • **Engineering integration:** Useful for robot motor, actuator, or controller assemblies where source specifications match the target design.
  • **Developer support:** Compatible documentation and downloadable resources are attached when provided by the reference page.

Developer Support

RoboMaster_C615_Brushless_DC_Motor_Speed_Controller_User_Guide.pdf: DJI RoboMaster Snail 2305 Motor & C615 Speed Controller product documentation with specifications and integration reference. ▶ RoboMaster_Snail_2305_User_Guide.pdf: DJI RoboMaster Snail 2305 Motor & C615 Speed Controller product documentation with specifications and integration reference. ▶ RoboMaster_Snail_2305.stp: DJI RoboMaster Snail 2305 Motor & C615 Speed Controller CAD or 3D model resource for mechanical integration reference. ▶
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃

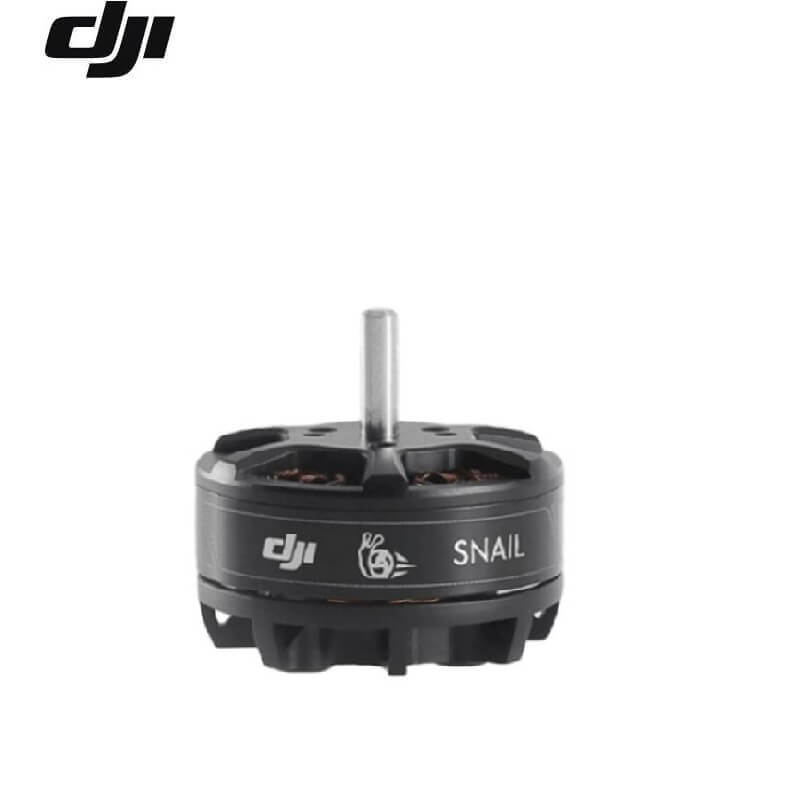

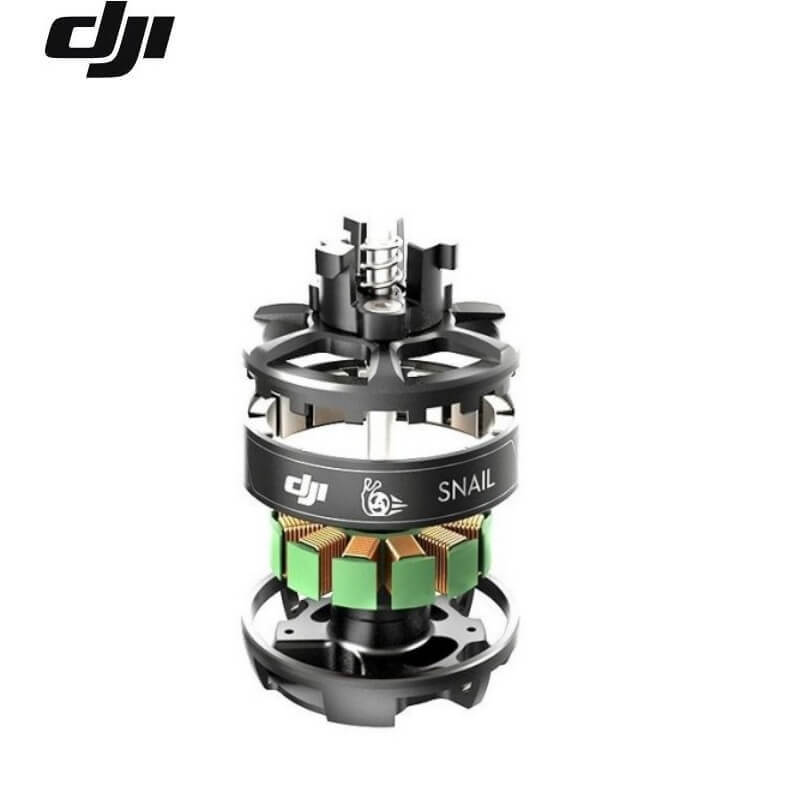

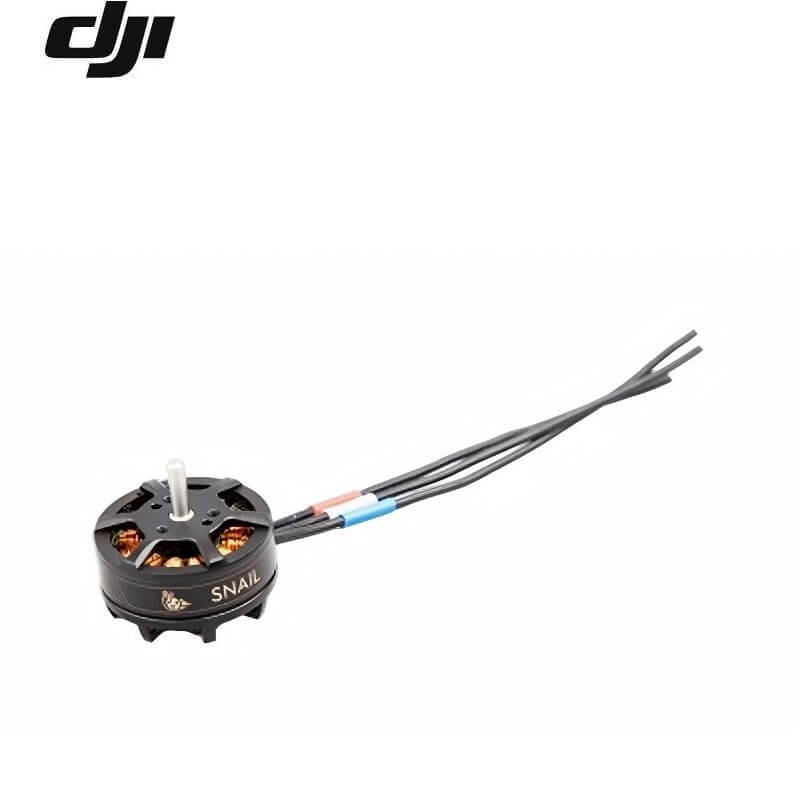

Snail 2305 Motor
Motor Outer Diameter
29 mm
Output Shaft Diameter
2.95 mm
Weight (excluding wires)
27.8 g
KV Rating
2400 rpm/V
Stator Size
23×5 mm
Rated Voltage
DC 24 V
Speed Constant
875 rpm/V
Torque Constant
10.9 mN · m/A
No-load Speed
21000 rpm
No-load Current
0.4 A
Mechanical Time Constant
150 ms
Rotor Moment of Inertia (approx. translation*)
1.84 kg · mm²
Phase Inductance
25.9 μH
Phase Resistance
181.5 mΩ

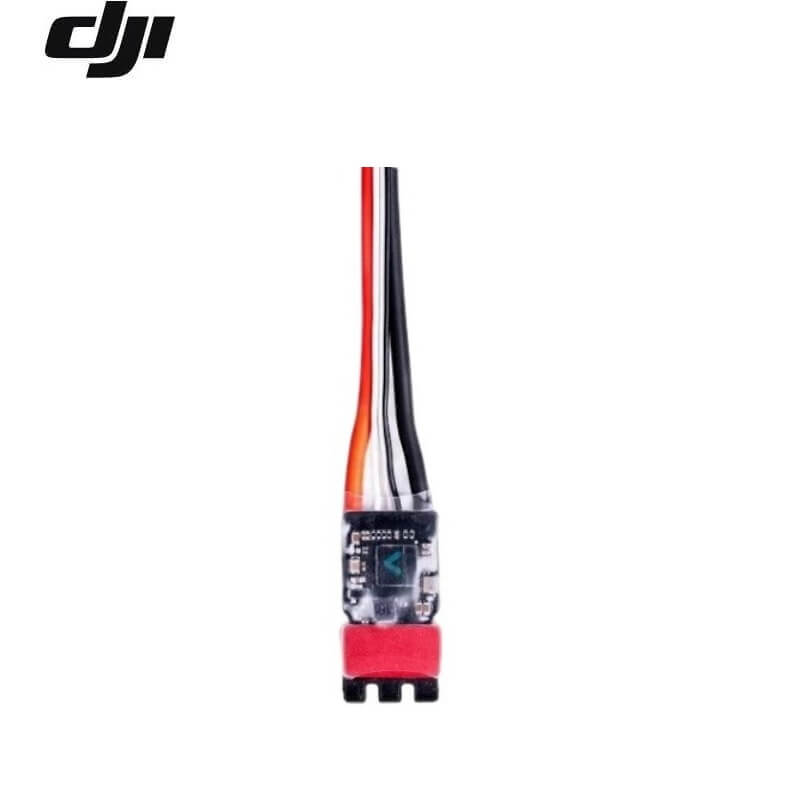

C615 Speed Controller
Rated Voltage
DC 24 V
Maximum Allowable Voltage
DC 26 V MAX
Maximum Continuous Current
15A MAX
Maximum Peak Current (3 seconds)
20A MAX
Compatible Control Signal Frequency
500 Hz MAX
Supported Battery
35 - 65 LiPo (Likely meaning 3S-6S LiPo)
Weight
9.7 g
Operating Temperature
-10 to 40 ℃
Compatible Motor Models
Shail 2305, etc. (Note: likely typo for Snail)

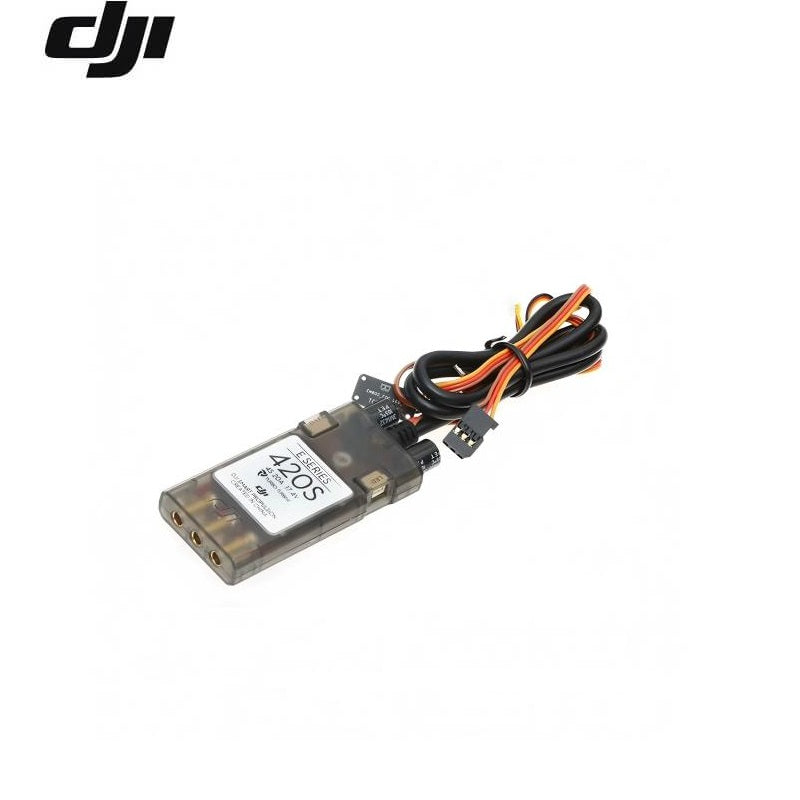

420S Speed Controller
Allowable Voltage
17.4V MAX
Allowable Current (Continuous)
20A MAX
Allowable Peak Current (3 seconds)
30A MAX
Compatible Signal Frequency
30Hz ~ 450Hz
Supported Battery
2S-4S LiPo
Dimensions
74 x 32 x 10 mm
Weight (with wires)
43g
Wire Length
420mm
