HONPINE

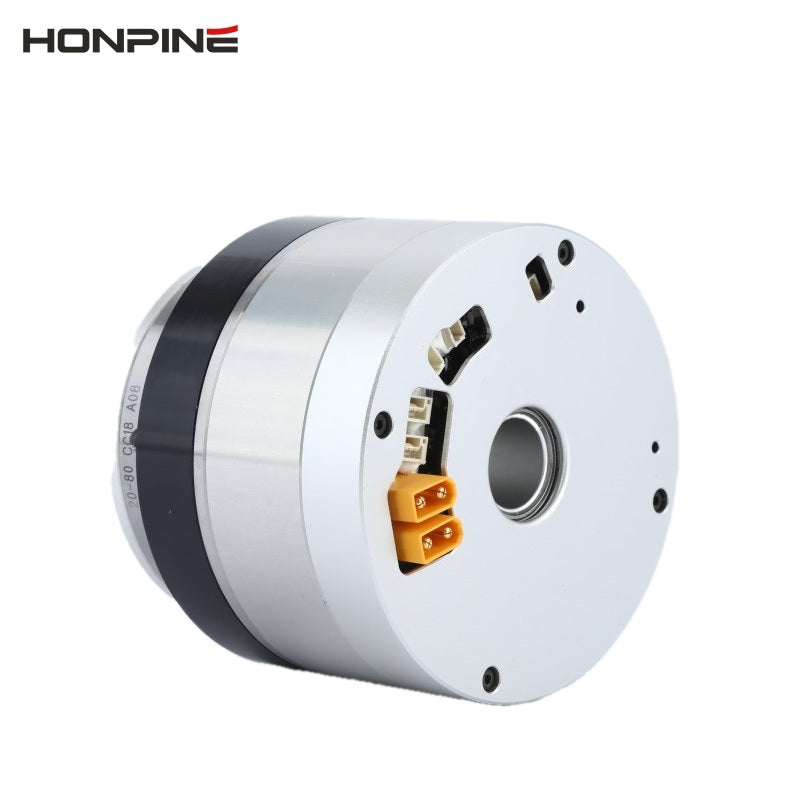

HONPINE HPJM-RE70-80-PRO Motor | Robot Actuator Motor for Precision Robotics

  • HONPINE robot actuator motor for precision robotics and automation systems.
  • Designed for robotic joints, compact motion modules, and actuator assemblies.
  • Suitable for humanoid robotics, robot hardware development, and research labs.
$2,285
Version
Reduction Ratio
Brake

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

HONPINE HPJM-RE70-80-PRO Motor CAD model archive for 3D mechanical integration reference. ▶ HONPINE HPJM-RE70-80-PRO Motor product structure diagram and mechanical reference drawing. ▶ HONPINE HPJM-RE70-80-PRO Motor product manual with specifications and integration reference. ▶

HONPINE HPJM-RE70-80-PRO Motor

The HONPINE HPJM-RE70-80-PRO Motor is a HONPINE robot actuator motor for robotic joints, precision motion systems, humanoid robotics, and automation equipment. It is suitable for engineering teams, robotics developers, research labs, and automation builders integrating compact actuator modules.

Features

  • **Precision actuator platform:** Designed for robotic joints and automation hardware.
  • **Robotics integration:** Suitable for humanoid robotics, robot hardware, and compact motion modules.
  • **Developer-focused:** Built for research, prototyping, and industrial automation builders.
  • **Source-backed listing:** Product data is extracted from the reference product page.

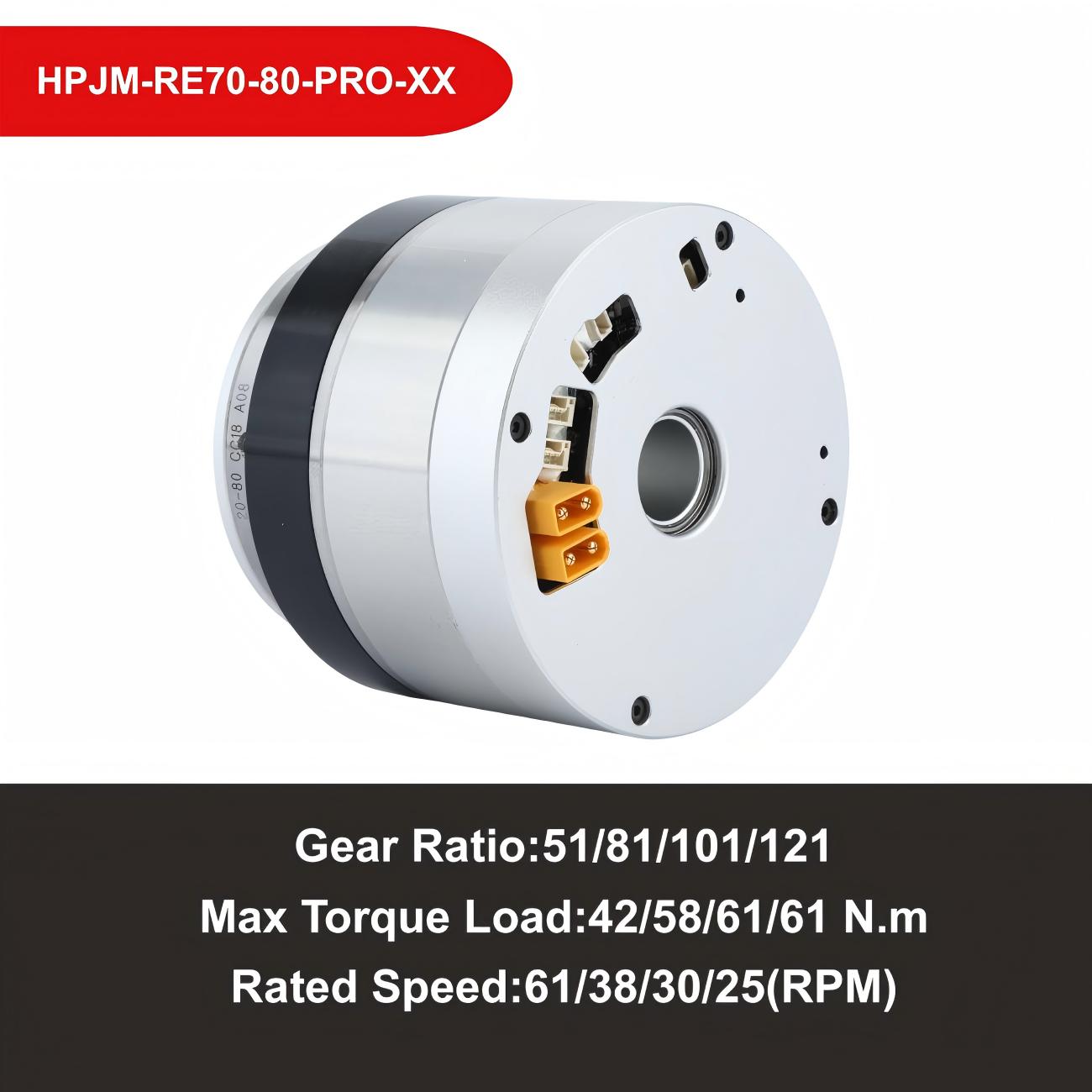

HONPINE HPJM-RE70-80-PRO Motor detail image 1
▤ Technical Specifications ⌃
Parameter Value Value Value Value
Reduction Ratio 1:51 1:81 1:101 1:121
Peak Torque (start/stop) 69N.M 91N.M 102N.M 108N.M
Max. Allowable Average Load Torque 42N.M 58N.M 61N.M 61N.M
Rated Torque 32N.M 42N.M 50N.M 50N.M
Peak Speed 77RPM 48RPM 40RPM 30RPM
Rated Speed 61RPM 38RPM 30RPM 25RPM
Backlash 20Arcsec 20Arcsec 10Arcsec 10Arcsec
Motor Power 500W 500W 500W 500W
Max. Continuous Current 8.4A 8.4A 8.4A 8.4A
Rated Current 6.1A 6.1A 6.1A 6.1A
Motor Torque Constant 0.118 N·m/A 0.118 N·m/A 0.118 N·m/A 0.118 N·m/A
Encoder Type Hollow Shaft Absolute Multi-turn Encoder Hollow Shaft Absolute Multi-turn Encoder Hollow Shaft Absolute Multi-turn Encoder Hollow Shaft Absolute Multi-turn Encoder
Encoder Resolution (per motor rev) 17bit 17bit 17bit 17bit
Multi-turn Counter 2¹⁶ (65,536) 2¹⁶ (65,536) 2¹⁶ (65,536) 2¹⁶ (65,536)
Weight (without brake) 0.8kg 0.8kg 0.8kg 0.8kg
Length (without brake) 70.6mm 70.6mm 70.6mm 70.6mm
Weight (with brake) 1.0kg 1.0kg 1.0kg 1.0kg
Length (with brake) 95.9mm 95.9mm 95.9mm 95.9mm
Supply Voltage 24-48V 24-48V 24-48V 24-48V
Communication Bus CAN CAN CAN CAN
Through Hole ø (with Single Encoder CAN/CANopen) 18mm 18mm 18mm 18mm
Rotor Inertia (with Single Encoder CAN/CANopen) 596.4g * c㎡ 596.4g * c㎡ 596.4g * c㎡ 596.4g * c㎡
Rotor Inertia with brake (with Single Encoder CAN/CANopen) 746.7g * c㎡ 746.7g * c㎡ 746.7g * c㎡ 746.7g * c㎡
Through Hole ø (with Dual Encoders CAN/Ethercat) 18mm 18mm 18mm 18mm
Rotor Inertia (with Dual Encoders CAN/Ethercat) 624.19g * c㎡ 624.19g * c㎡ 624.19g * c㎡ 624.19g * c㎡
Rotor Inertia with brake (with Dual Encoders CAN/Ethercat) 784.5g * c㎡ 784.5g * c㎡ 784.5g * c㎡ 784.5g * c㎡
