TTBOT

TTBOT WP6 Motor | Robot Servo Motor for Robotics Development

  • TTBOT robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$875
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

TTBOT WP6 Motor dimension drawing for installation reference.pdf ▶ TTBOT WP6 Motor CAD model for mechanical integration.stp ▶

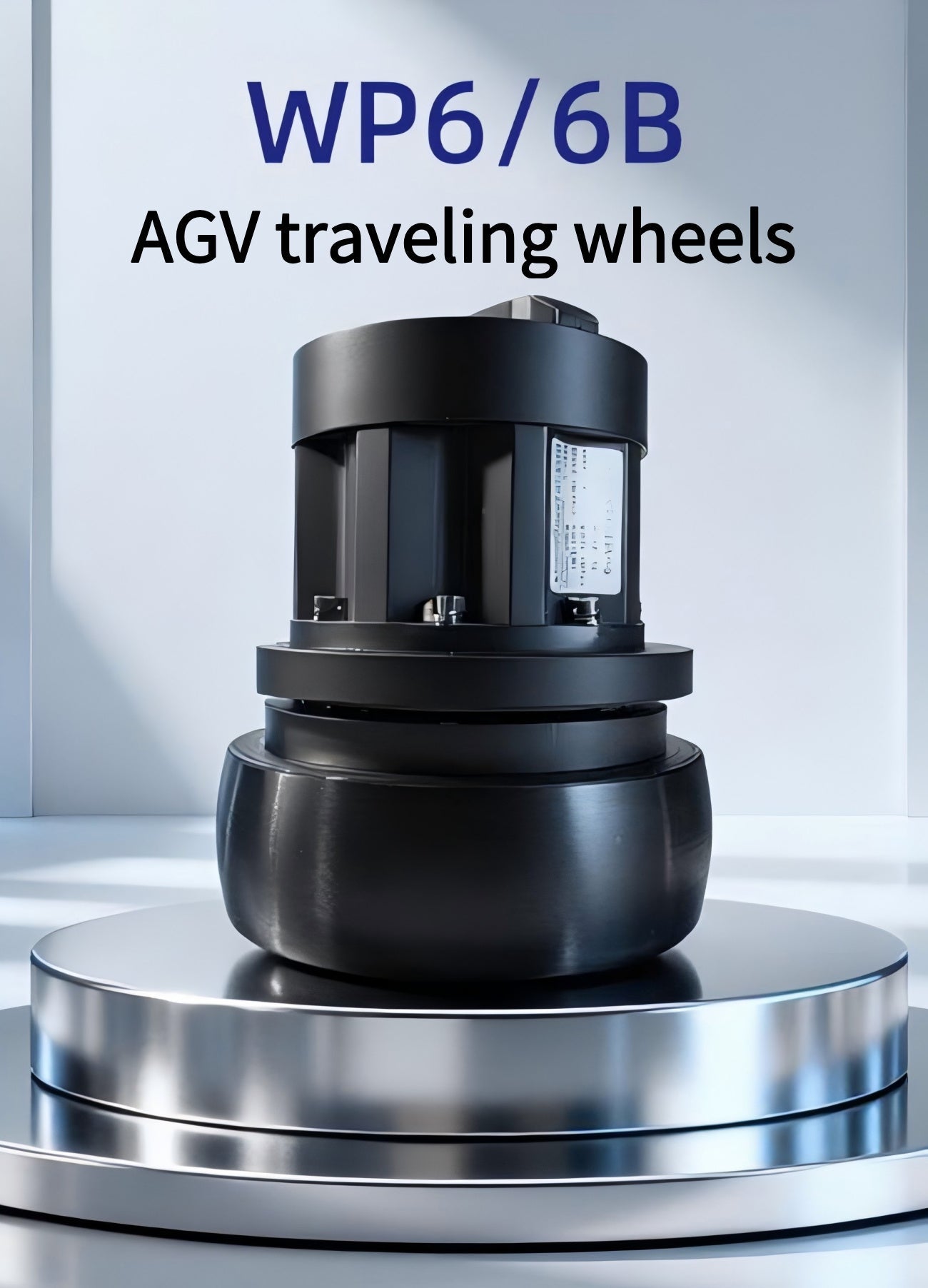

TTBOT WP6 Motor | Robot Servo Motor for Robotics Development detail image 1

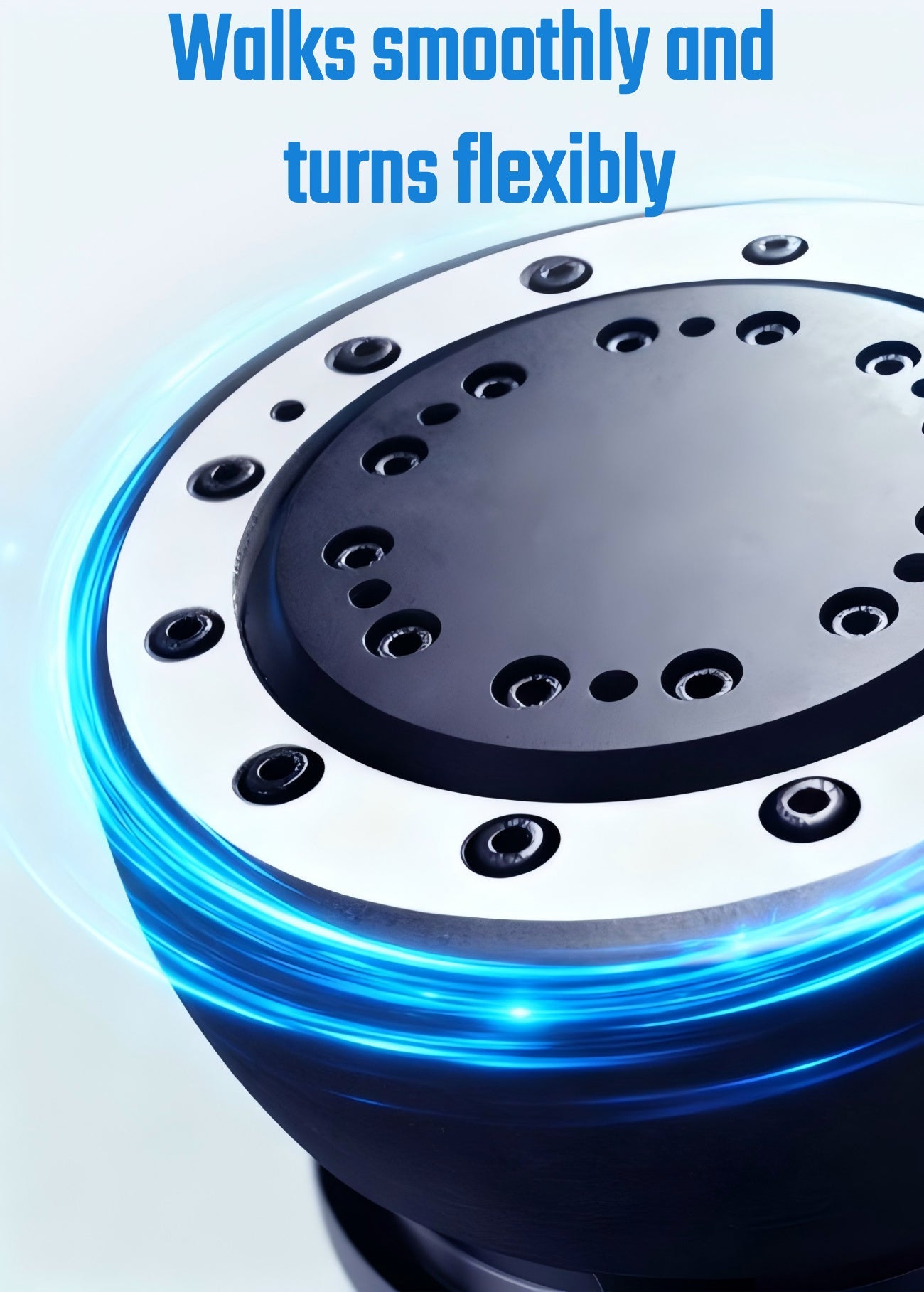

TTBOT WP6 Motor | Robot Servo Motor for Robotics Development detail image 2

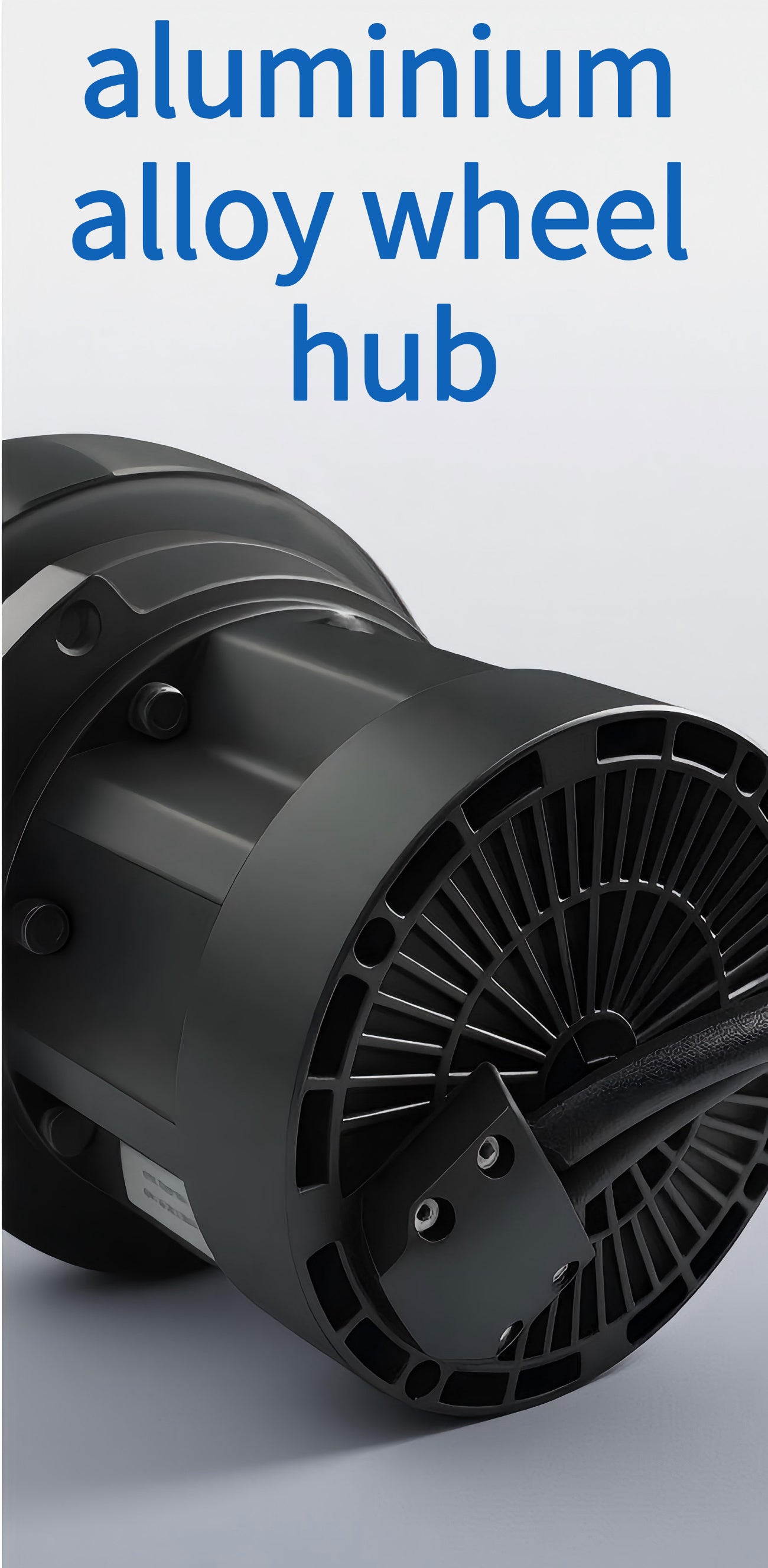

TTBOT WP6 Motor | Robot Servo Motor for Robotics Development detail image 3

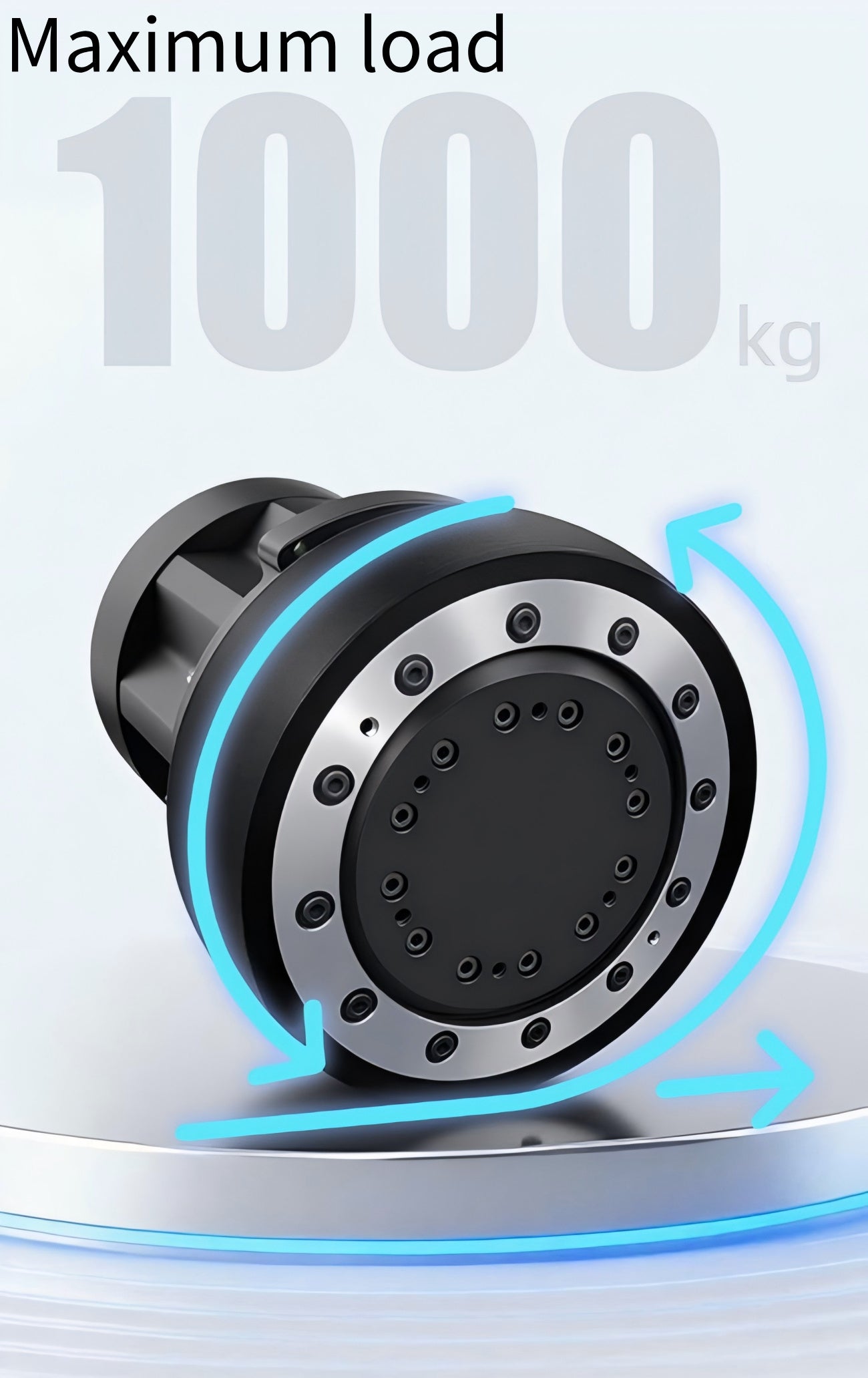

TTBOT WP6 Motor | Robot Servo Motor for Robotics Development detail image 4

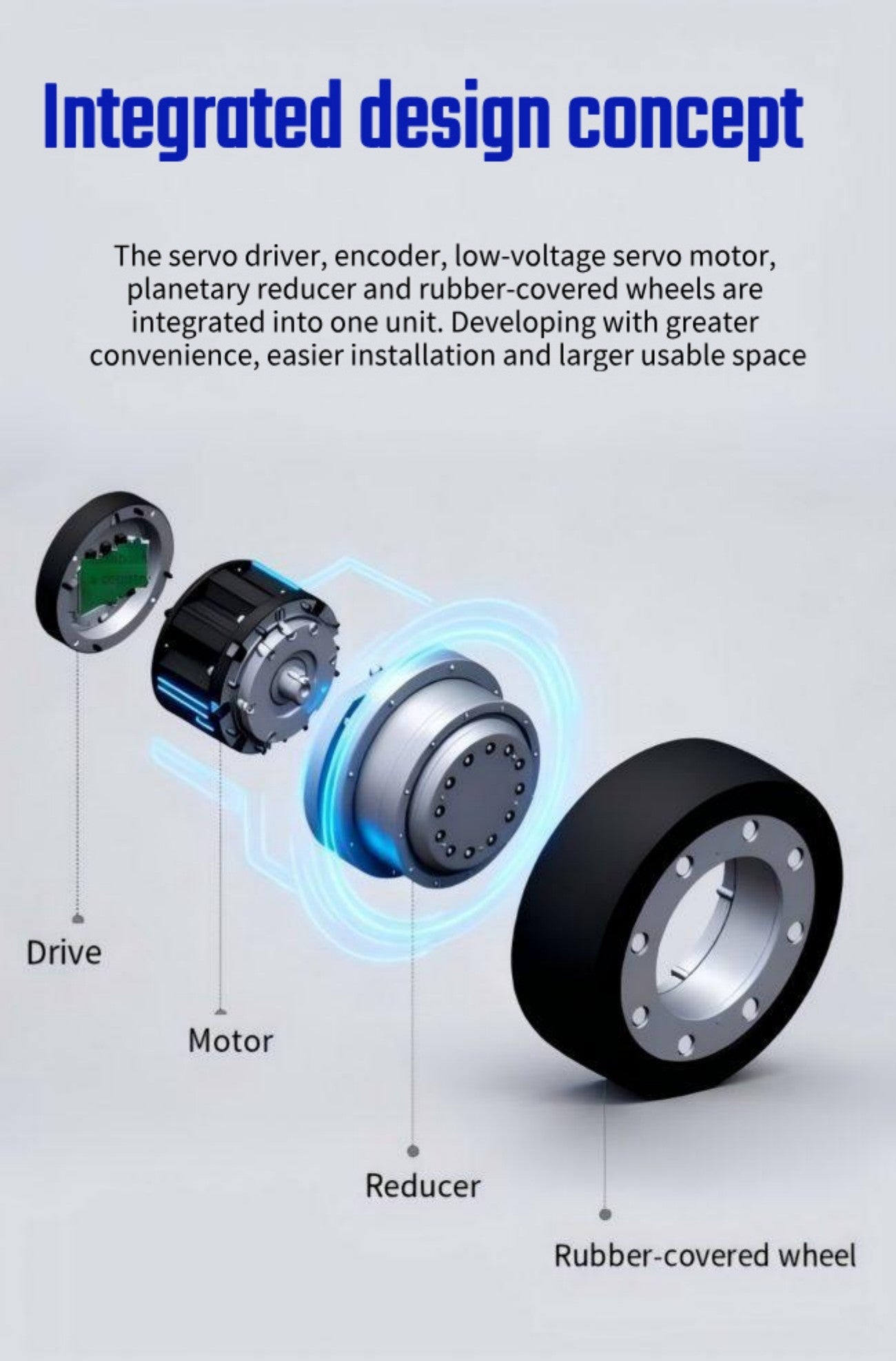

TTBOT WP6 Motor | Robot Servo Motor for Robotics Development detail image 5
▤ Technical Specifications ⌃
Parameter WP6B WP6
Module Model WP6B WP6
Supply Voltage 48VDC 48VDC
Rated Torque 30N.m 30N.m
Peak Torque 70N.m 70N.m
Rated Speed (Linear Speed) 187rpm(1.4m/s) 187rpm(1.4m/s)
Peak Speed (Linear Speed) 237rpm(1.8m/s) 237rpm(1.8m/s)
Communication CAN CAN
Encoder 15-bit single-turn absolute 15-bit single-turn absolute
Protection Grade IP6X IP6X
Noise ≤65dBA(@1m 187rpm) ≤65dBA(@1m 187rpm)
Weight 9.1kg 8.8kg
Operating Temperature 0~40℃ 0~40℃
Rated Current 15Arms 15Arms
Peak Current 37.5Arms 37.5Arms
Reduction Ratio 1:16 1:16
Allowable Radial Load 8000N 8000N
Allowable Axial Load 2500N 2500N
Backlash ≤20arcmin ≤20arcmin
Brake Type Electromagnetic friction disc Electromagnetic friction disc
Brake Holding Torque ≥3.6N.m ≥3.6N.m
External Brake Release Voltage 48VDC(Max.5min) 48VDC(Max.5min)
Material Polyurethane (Black) Polyurethane (Black)
Wheel Diameter 152mm 152mm
Wheel Width 50mm 50mm
Antistatic Resistance 10^7~10^9 Ω 10^7~10^9 Ω
Cover Rubber Hardness Shore A 85±3 Shore A 85±3
