Benewake

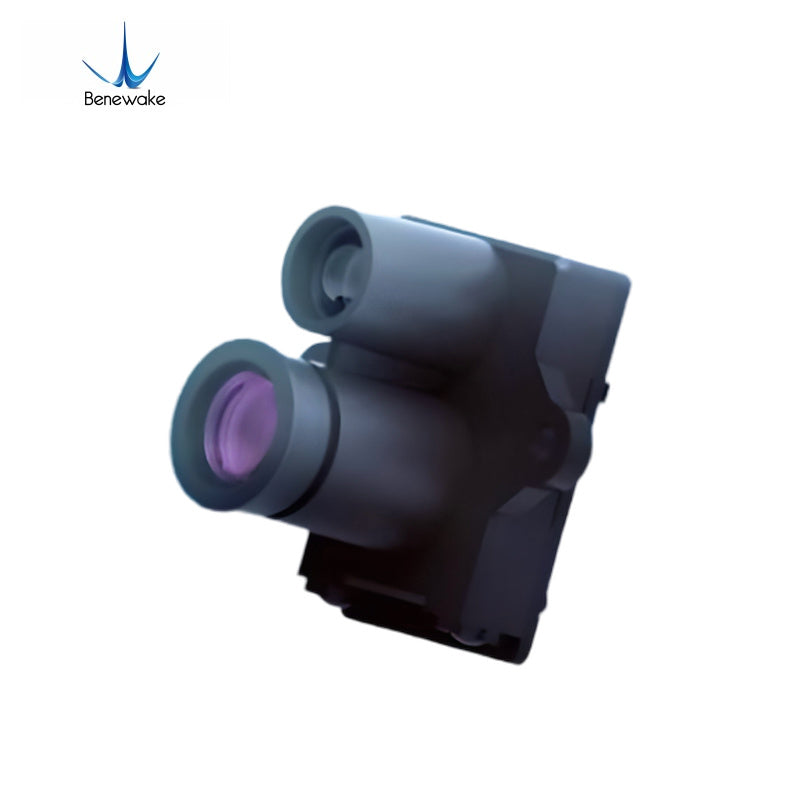

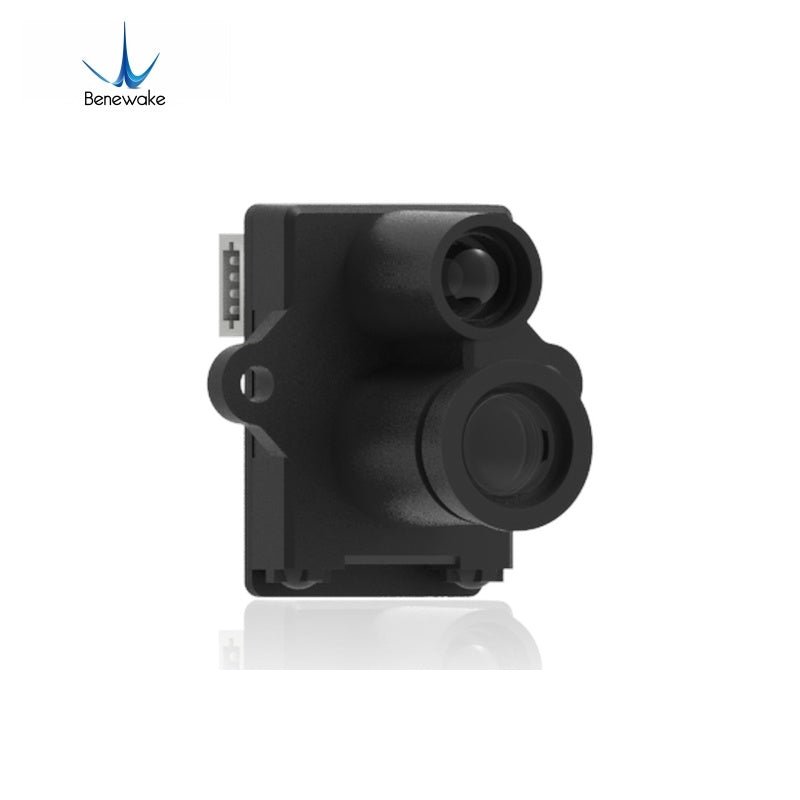

Benewake TF-UW500 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection range under water: >5 m Indoor, NTU<0.5, 30% reflectivity, the light beam is perpendicular to the target surface
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$65
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TF-UW500 LiDAR datasheet with technical specifications.pdf ▶ Benewake TF-UW500 LiDAR user manual for setup and integration.pdf ▶ Benewake TF-UW500 LiDAR dimension drawing for installation reference.pdf ▶
Benewake TF-UW500 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
Benewake TF-UW500 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Benewake TF-UW500 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
Benewake TF-UW500 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
▤ PARAMETER ⌃
Detection range under water
>5 m Indoor, NTU<0.5, 30% reflectivity, the light beam is perpendicular to the target surface
Blind zone
≤ 0.1 m
Accuracy
< 3 cm (0.1 ~ 2m)
Repeatability
< 1 cm @ 1σ (0.1 ~ 2m)
Distance resolution
1 mm
Default frame rate
Default 20 Hz
Ambient light resistance
100 KLux
Light source
Laser
Central wavelength
Red
Field of View (FoV)
< 0.5°
Eye safety
Class 1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021)
Average power consumption
< 5V × 100mA
Peak current at start up
< 700mA
Power supply
DC 5 ± 0.2 V
Logical voltage
3.3 V TTL
Connector
1.0mm-4P, model is HC-1.0-4PWT
Operating temperature
0 ℃ ~ +50 ℃
Storage temperature
-20 ℃ ~ +70 ℃
Protection level
NA
Typ. Dimensions
24.0 mm × 16.0 mm × 20.4 mm
Typ. Weight (excluding cables)
< 5 g
Communication Interface
UART / I2C (Can be switched by command)
Baud rate
Default 115200 (Configurable)
Data bit
8
Stop bit
1
Parity
None
