ChangingTek Robotics

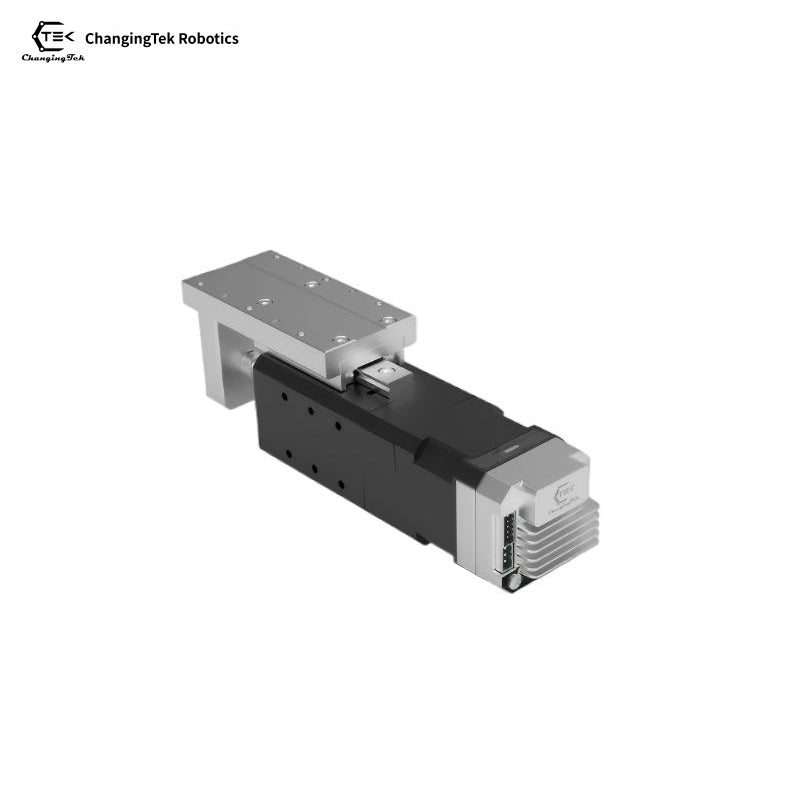

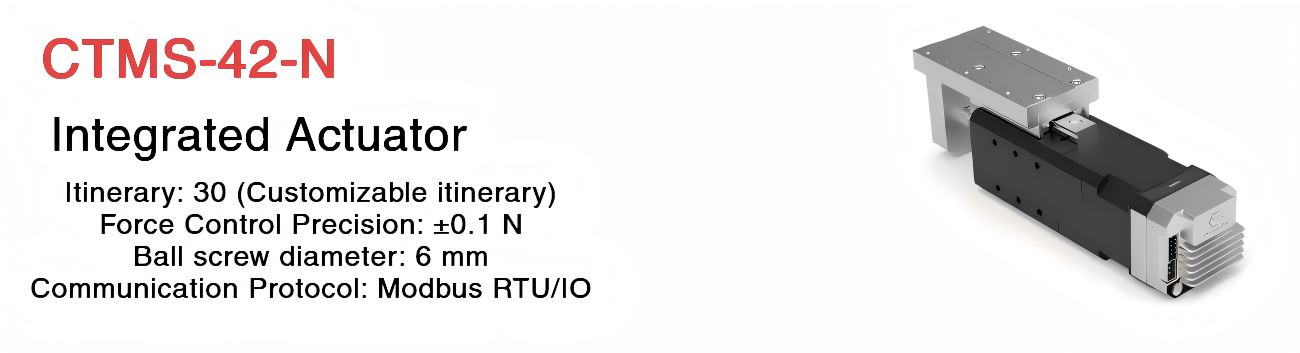

ChangingTek Robotics CTMS-42-N Integrated Actuator

  • ChangingTek Robotics CTMS-42-N Integrated Actuator for robotics, actuator integration, and motion-control development.
  • Suitable for robotics developers, education labs, automation prototypes, and compact hardware projects.
  • Designed for practical integration in robot joints, end effectors, and embedded motion-control workflows.
  • Useful for engineering teams building robot platforms, test rigs, and applied automation systems.
$1,250
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ChangingTek Robotics CTMS-42-N Integrated Actuator dimension drawing for installation reference.pdf ▶

ChangingTek Robotics CTMS-42-N Integrated Actuator

The ChangingTek Robotics CTMS-42-N Integrated Actuator is a ChangingTek Robotics component for robotics development, automation hardware, education labs, and motion-control prototypes.

Features

  • **Robot hardware integration:** Suitable for robot joints, compact mechanisms, and actuator assemblies.
  • **Robotics development:** Useful for engineering teams, education labs, prototypes, and automation projects.
  • **Motion-control component:** Supports practical component selection for robot platforms and embedded builds.
  • **Integration-focused design:** Built for applied robotics, actuator testing, and mechatronic development.
ChangingTek Robotics CTMS-42-N Integrated Actuator
▤ PARAMETER ⌃
Parameter
Value
Sliding Table Model
CTMS-42-N
Stroke
30mm (Customizable Stroke)
Guiding Mode
Linear Guide Rail
Optional Screw Lead
1mm, 2mm
Maximum Speed
50mm/s (1mm Lead); 100mm/s (2mm Lead)
Maximum Thrust
130N (1mm Lead); 80N (2mm Lead)
Screw Lead Accuracy
Rolled +/-0.05mm, Ground +/-0.02mm
Force Control Accuracy
+/-0.1N
Ball Screw Diameter
6mm
Rated Voltage
24V
Sensor Configuration
Without Sensor
Communication Protocol
Modbus RTU / Optional I/O
Feedbackable Parameters
Position, Dimension, Current
Programmable Parameters
Position, Speed, Force
