OCServo

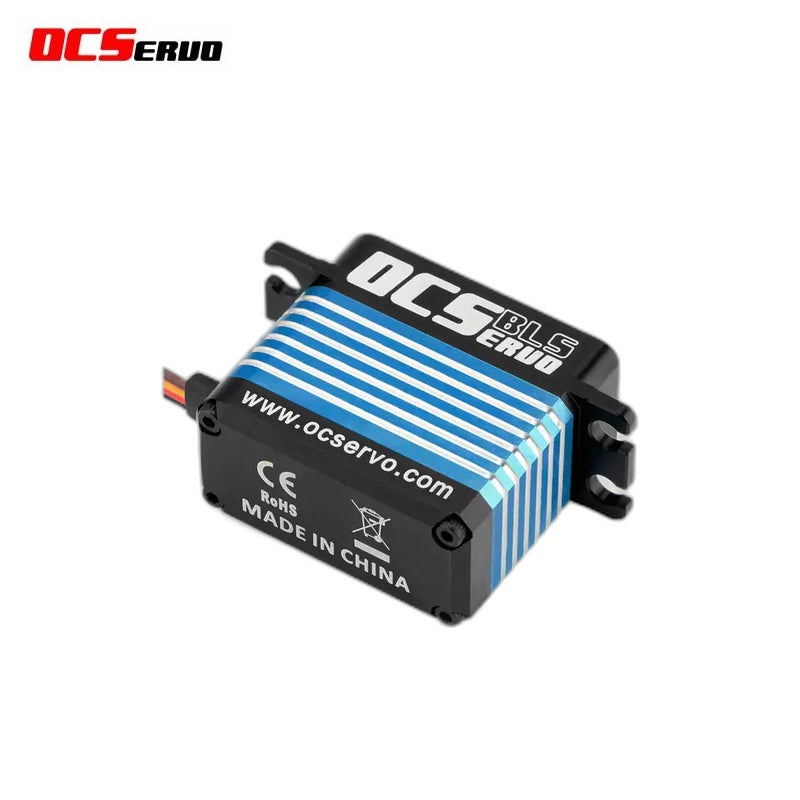

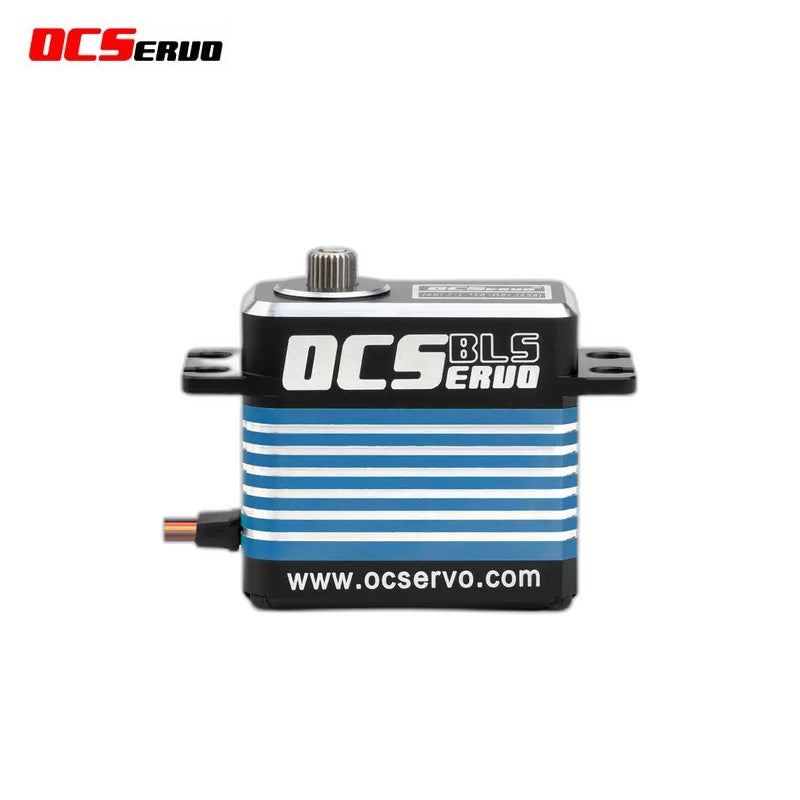

OCServo OCS-202BL Servo Motor

  • Peak stall torque (kg·cm): 6.0V: 11; 7.2V: 15; 8.4V: 20; 7.4V: 12.5; 8.4V: 15; 12.6V: 20
  • Operating Voltage: 6.0V / 7.2V / 8.4V / 7.4V / 12.6V
  • No load speed (sec/60°): 6.0V: 0.056; 7.2V: 0.045; 8.4V: 0.035; 7.4V: 0.053; 8.4V: 0.044; 12.6V: 0.032
  • Motor Type: Brushless motor
  • Gear Type: Stainless Steel
$95
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-202BL dimensional drawing.pdf ▶ OCServo OCS-202BL dimensional drawing.pdf ▶

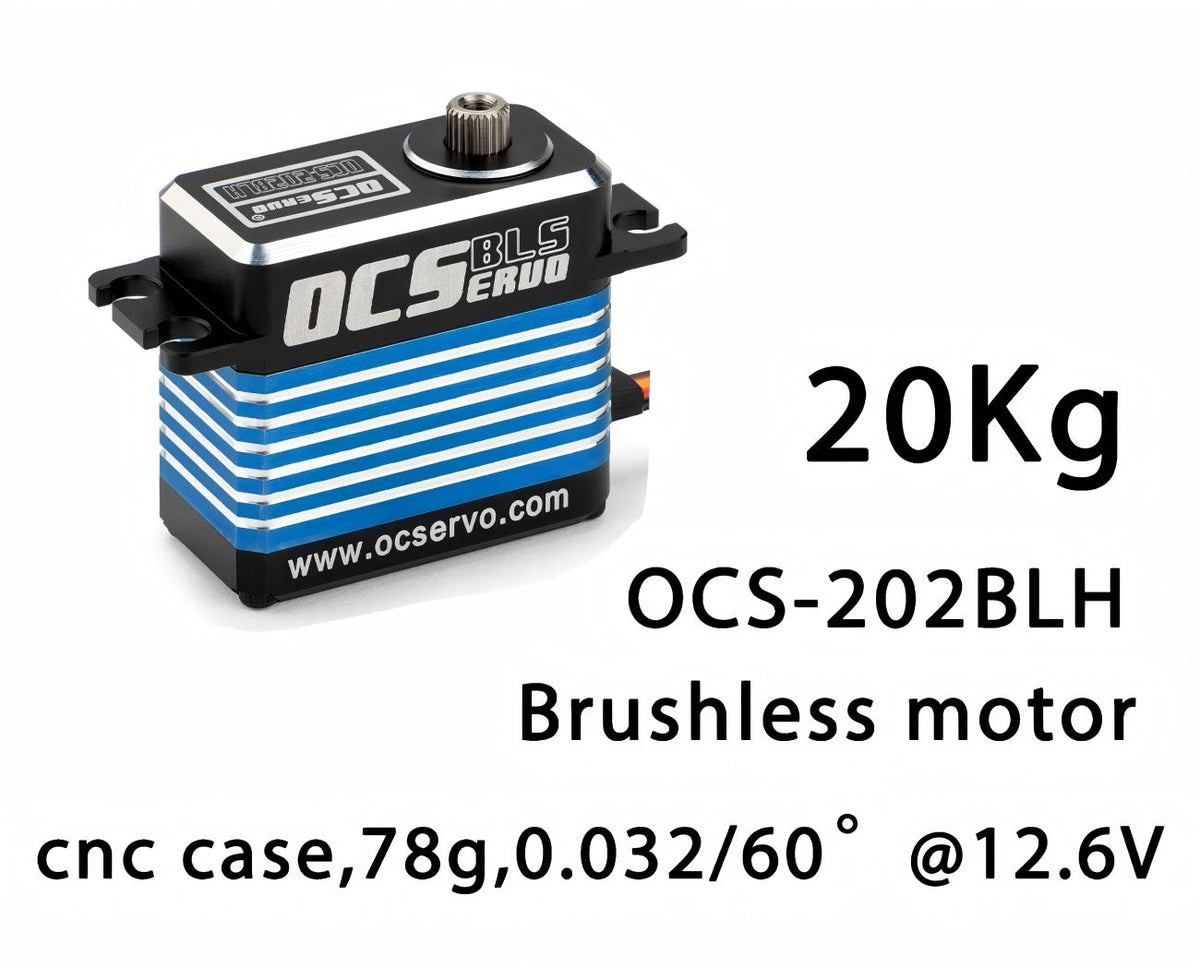

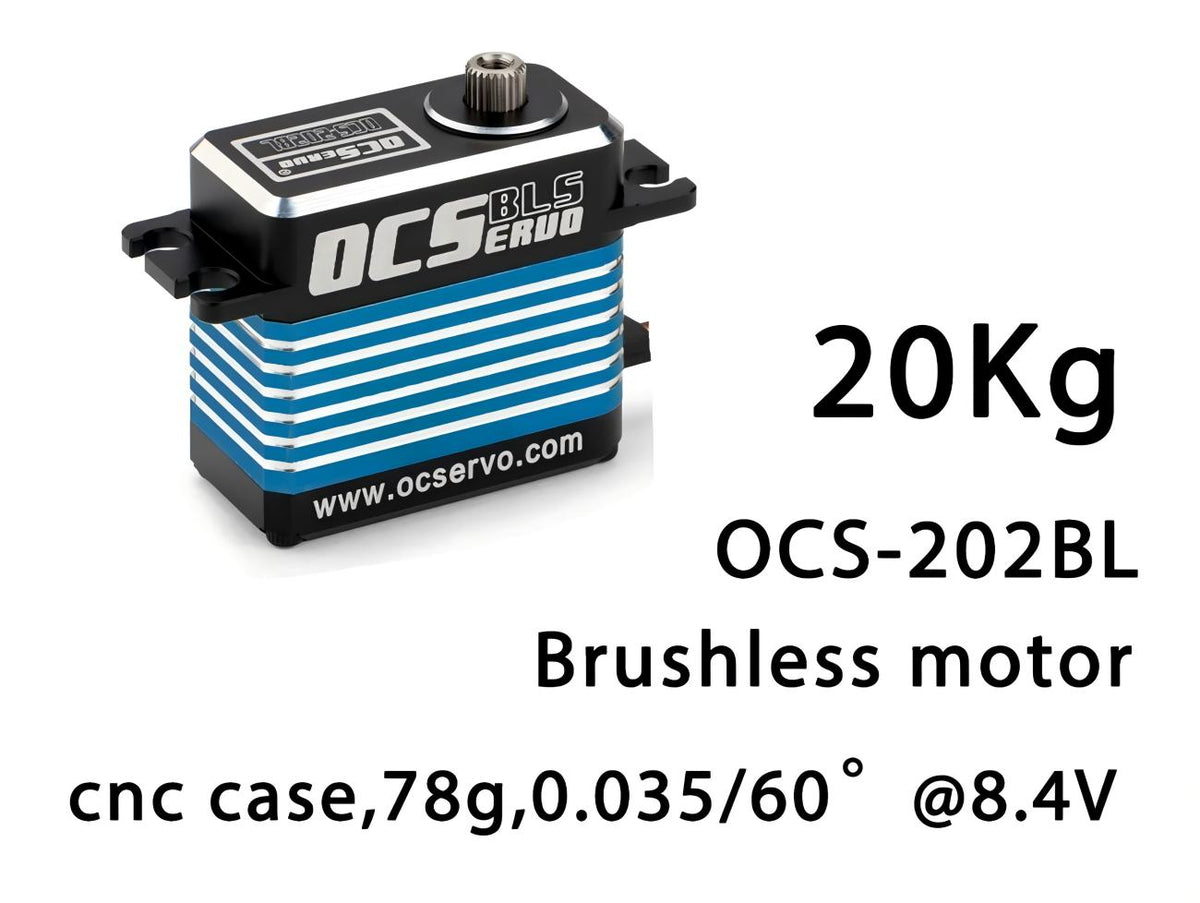

OCServo OCS-202BL Servo Motor detail image
OCServo OCS-202BL Servo Motor detail image
OCServo OCS-202BL Servo Motor detail image
▤ Technical Specifications ⌃
Parameter OCS-202BL OCS-202BL OCS-202BL OCS-202BLH OCS-202BLH OCS-202BLH
Product Name 8.4V 20kg-cm High Voltage BLS Tail Servo (Tail Narrow Band) 8.4V 20kg-cm High Voltage BLS Tail Servo (Tail Narrow Band)
Item No. OCS-202BL OCS-202BLH
Storage Temperature Range -20°C ~ 70°C -20°C ~ 70°C
Operating Temperature Range -15°C ~ 65°C -15°C ~ 65°C
Test Temperature 25°C ± 5°C 25°C ± 5°C
Test Humidity 65% ± 10% 65% ± 10%
Size (mm) 20 × 40 × 38 20 × 40 × 38
Weight (g) 78 (excluding accessory) 78 (excluding accessory)
Gear Type Stainless Steel Stainless Steel
Limit Angle - -
Bearings 2 Ball bearings 2 Ball bearings
Output Spline 25T - Φ5.96mm 25T - Φ5.96mm
Horn Type Plastic POM Plastic POM
Case Material Aluminium CNC Aluminium CNC
Connector Wire 300mm 22AWG 300mm 22AWG
Motor Type Brushless motor Brushless motor
Waterproof Performance Yes Yes
Operating Voltage 6.0V 7.2V 8.4V 7.4V 8.4V 12.6V
No load speed (sec/60°) 0.056 0.045 0.035 0.053 0.044 0.032
Running current (at no load) (mA) 320 370 440 320 370 440
Peak stall torque (kg·cm) 11 15 20 12.5 15 20
Stall current (A) 2.8 3.5 4.0 2.8 3.5 4.0
Command Signal PWM (650~720Hz) PWM (650~720Hz)
Amplifier Type Digital Controller Digital Controller
Pulse Width Range 500~1000 μsec 510~1010 μsec
Neutral Position 750 μsec 760 μsec
Running Degree 90° (when 510~1010 μsec) 90° (when 510~1010 μsec)
Dead Band Width 2 μsec 2 μsec
Rotating Direction CCW (when 510~1010 μsec) CCW (when 510~1010 μsec)
