Yunshis

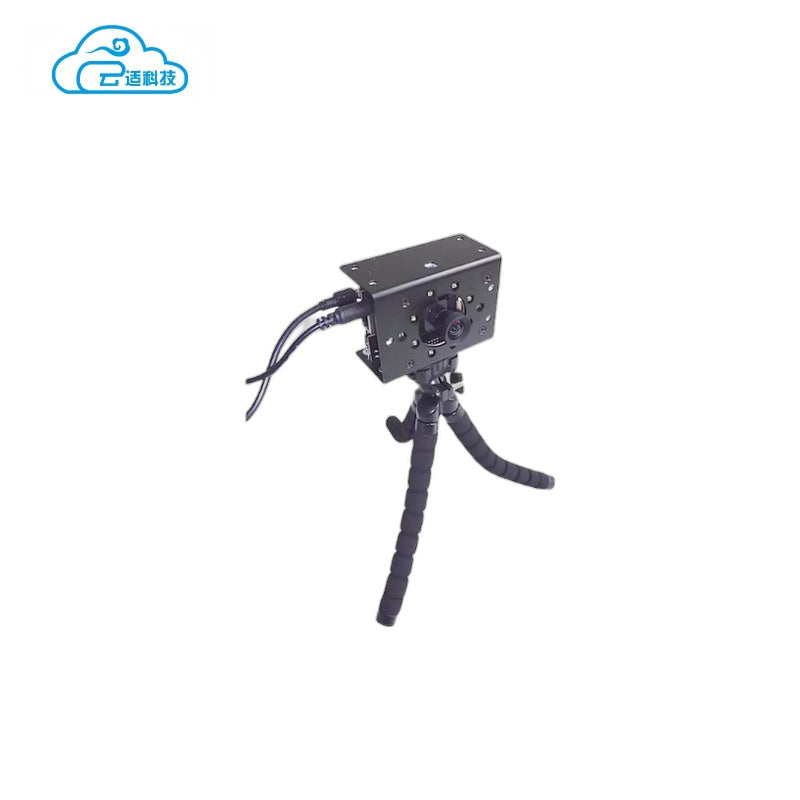

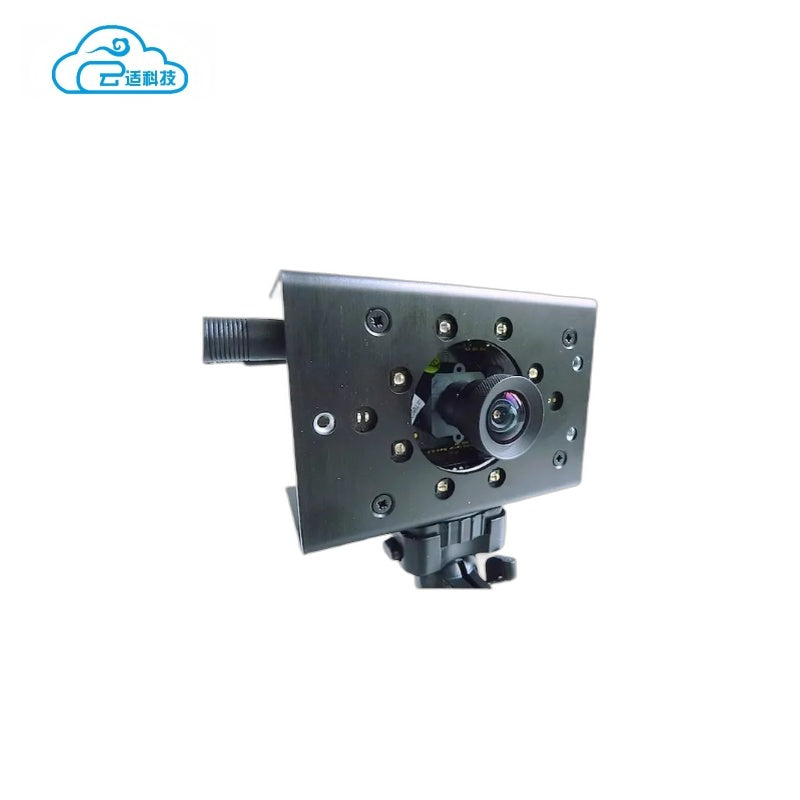

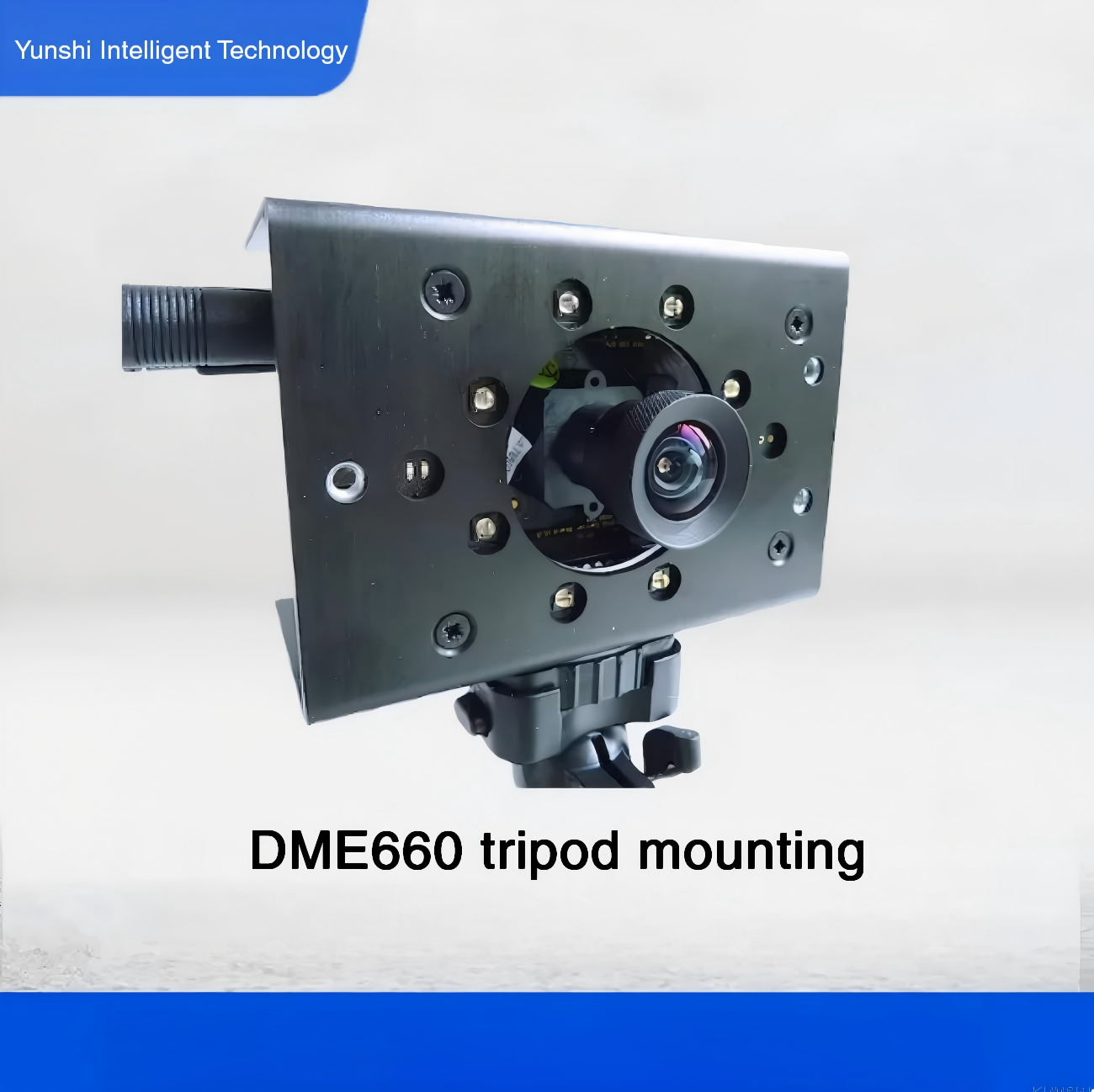

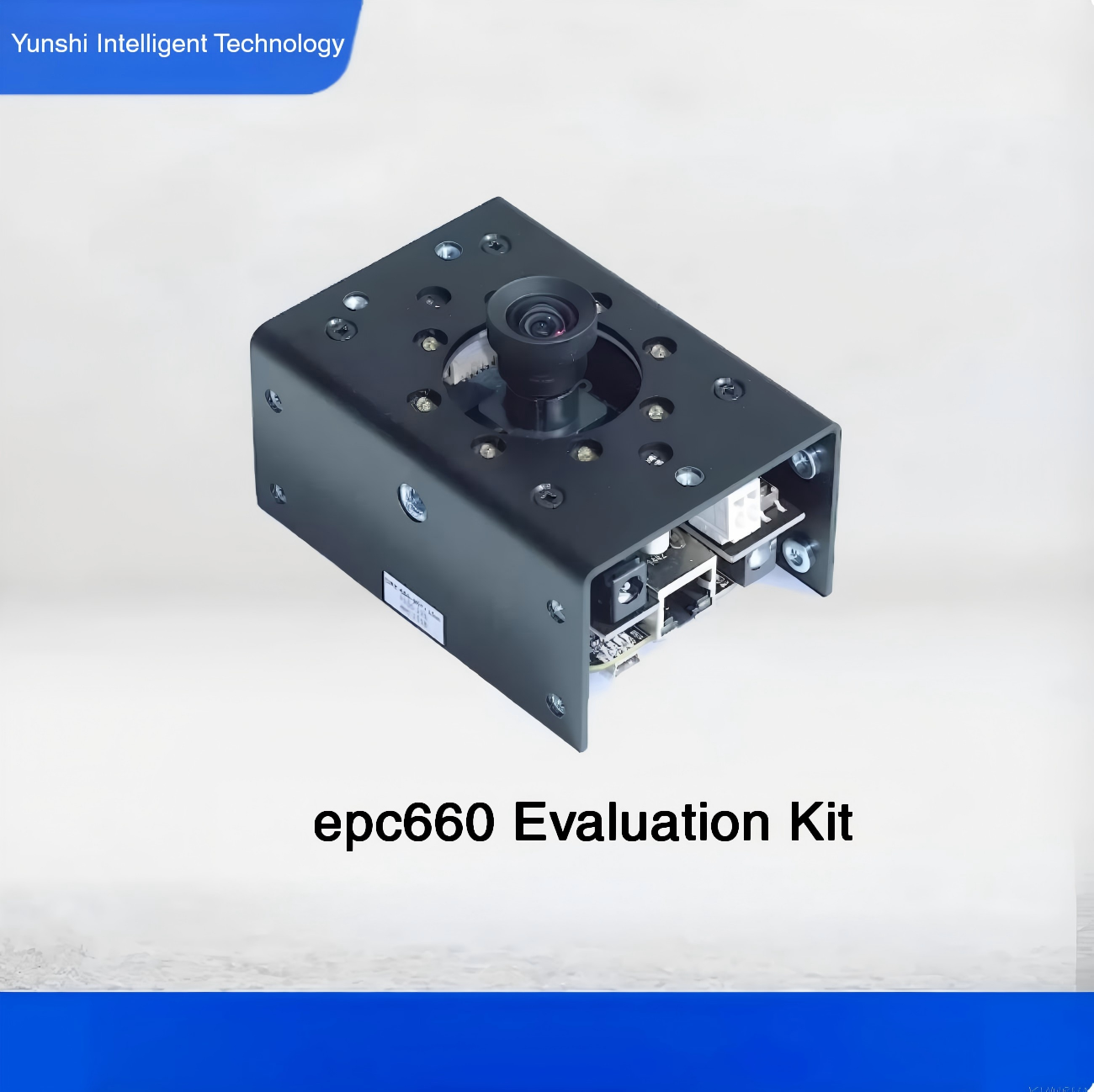

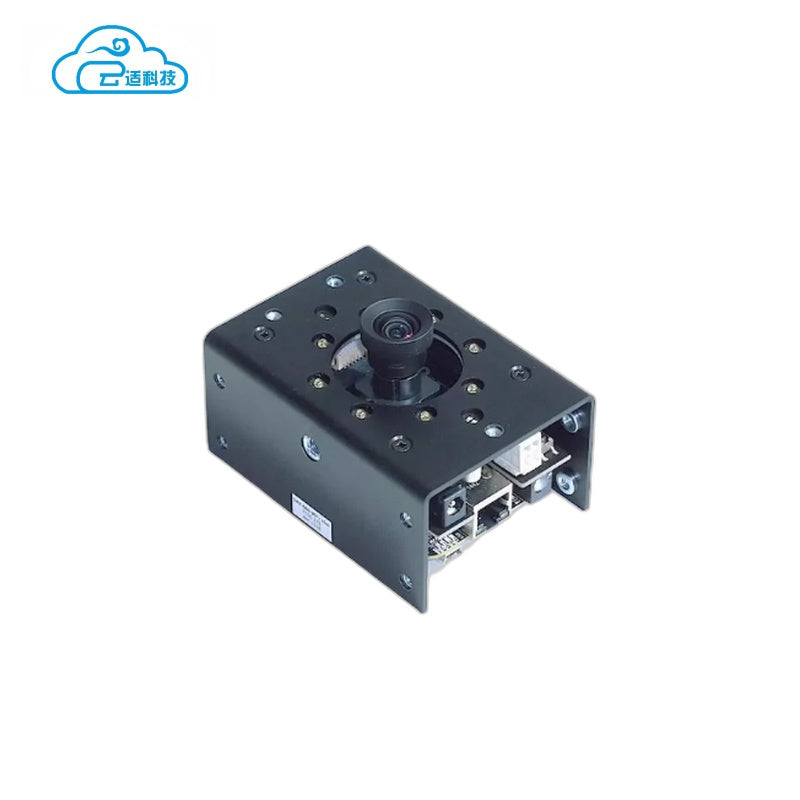

Yunshis DME660 Camera | Robot Camera for Robotics & AI Vision

  • Field of view: Field of view H108 x V77 H108 x V77 H108 x V77 ° with lens P/N 100 506
  • Designed for robot vision, AI perception, automation, and robotics development
  • Yunshis DME660 Camera for research labs, education projects, and embedded vision workflows
$3,150
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

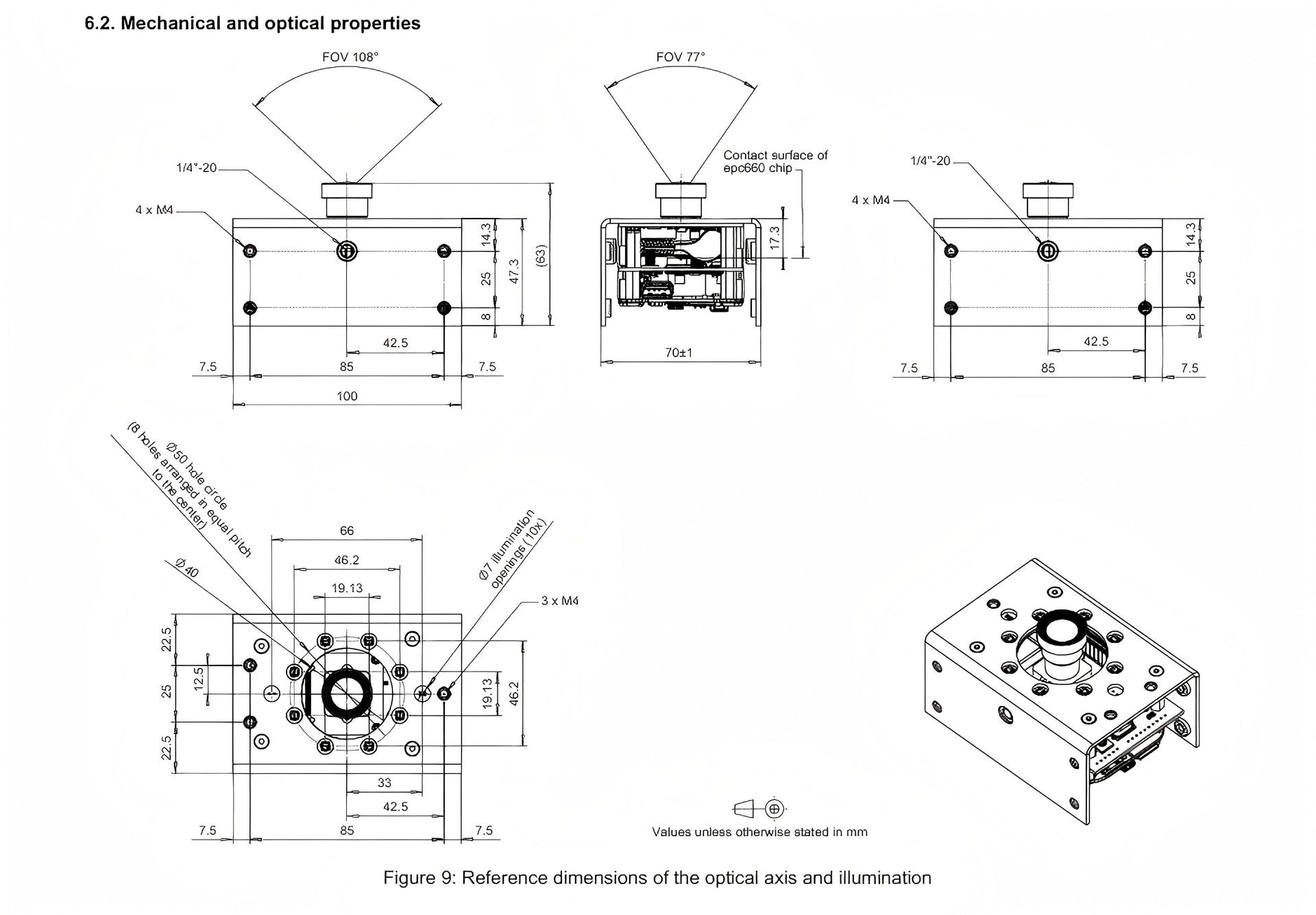

Yunshis DME660 Camera drawing: mechanical dimensions and installation reference ▶ Yunshis DME660 Camera product manual: setup, specifications, and technical information ▶
Yunshis DME660 Camera | Robot Camera for Robotics & AI Vision Yunshis DME660 Camera | Robot Camera for Robotics & AI Vision Yunshis DME660 Camera | Robot Camera for Robotics & AI Vision Yunshis DME660 Camera | Robot Camera for Robotics & AI Vision Yunshis DME660 Camera | Robot Camera for Robotics & AI Vision Yunshis DME660 Camera | Robot Camera for Robotics & AI Vision
▤ Technical Specifications ⌃
Parameter
Value
Supply Voltage
Min. 21.6 VDC; Typ. 24 VDC; Max. 26.4 VDC
Supply Voltage Ripple
Max. 0.25 VPP. Peak voltage must remain within the minimum and maximum supply voltage limits.
Supply Current – Idle
Typ. 0.10 A after power-up
Supply Current – Grayscale Imaging
Typ. 0.10 A at 100 fps
Supply Current – 3D ToF Imaging
Typ. 0.25 A at 25 fps, tINT = 1 ms
Image Resolution
320 × 240 pixels
Field of View
108° horizontal × 77° vertical, with lens P/N 100 506
Operating Wavelength
850 nm
Internal Modulation Frequency
0.675, 1.25, 2.5, 5, 10, or 20 MHz; software controllable
External Modulation Input
1–80 MHz
Operating Range
0–10 m. Range depends on integration time, object reflectivity, and target size relative to the image pixel.
Distance Output Word
12-bit
Distance Resolution
Typ. 0.5 cm/LSB at 10 MHz modulation frequency
Measurement Output
0–2,000 LSB at 10 MHz modulation frequency; corresponds to approximately 0–10 m depending on object reflectivity
Calibration Distance
Typ. 0.8 m; output at 0.8 m is approximately 900 LSB
Amplitude Range
50–2,000 LSB
Ambient Light Suppression
0–130,000 lux; dependent on integration time and object distance with ABS enabled
Data Interface
USB 2.0 Full Speed or Ethernet
Operating Temperature Range
0–60°C
