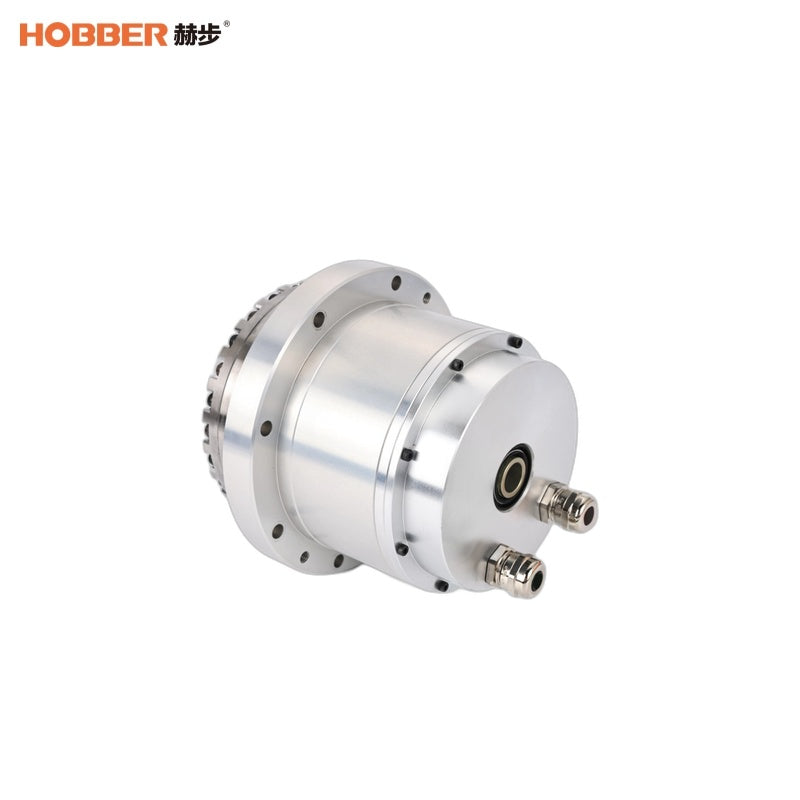

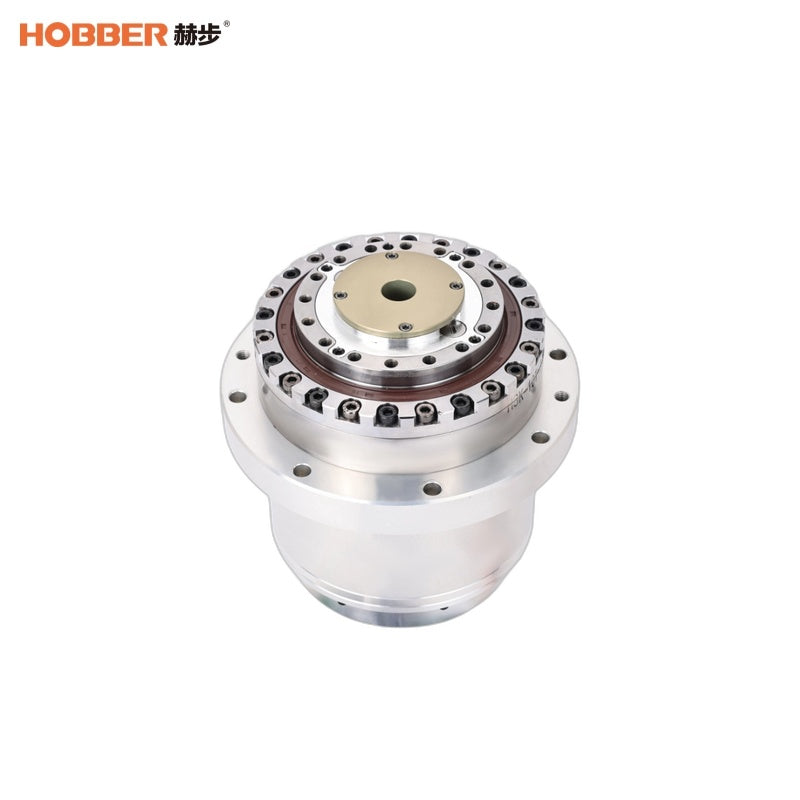

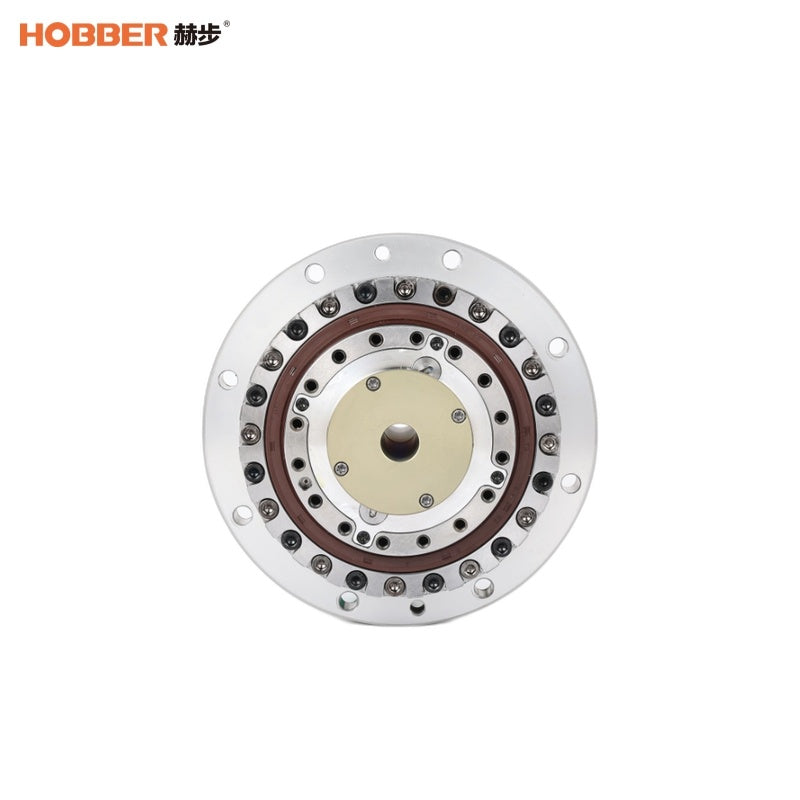

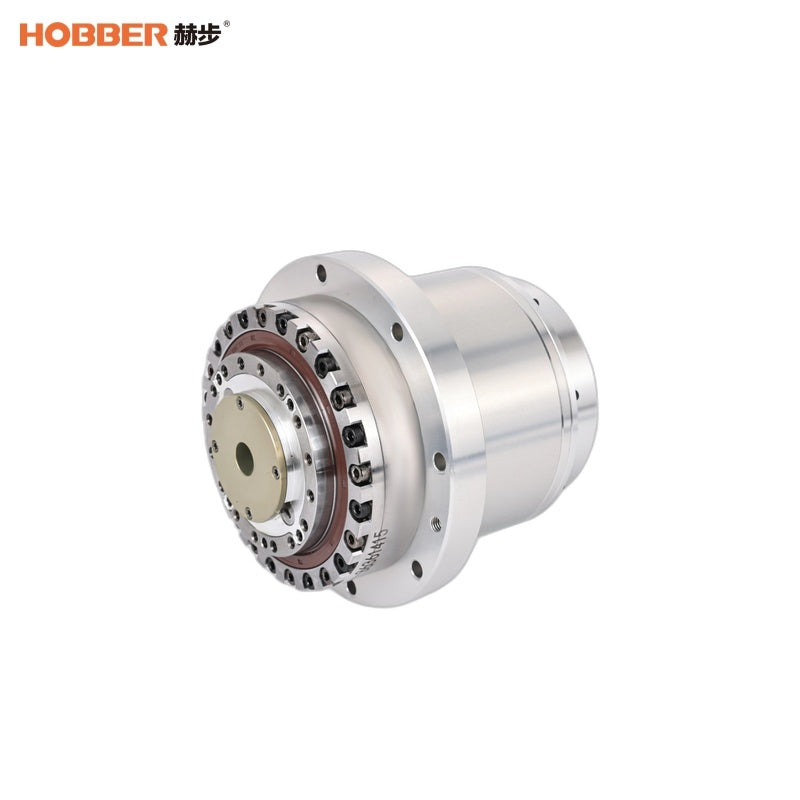

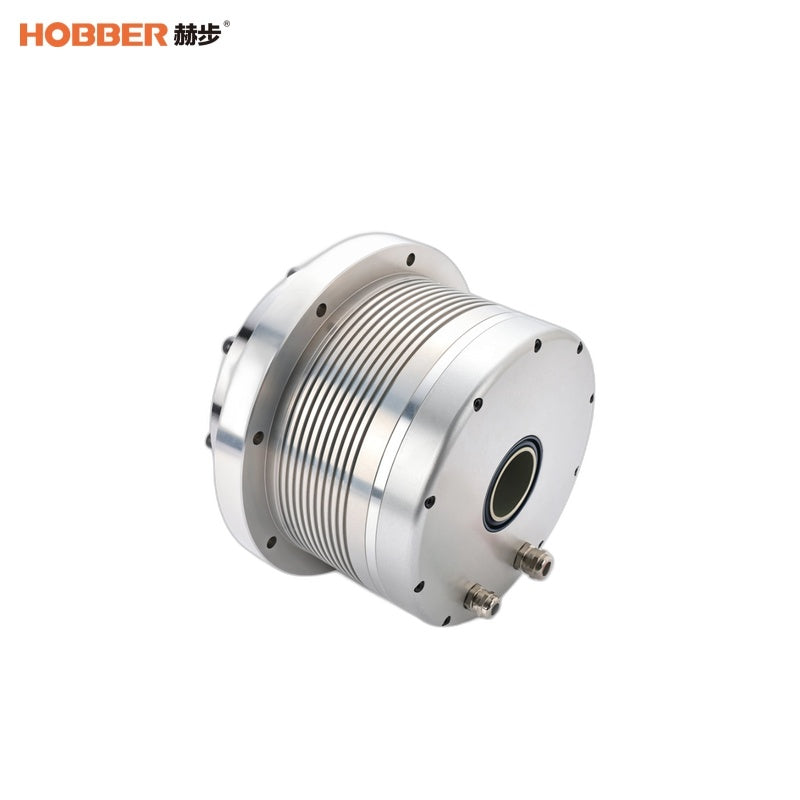

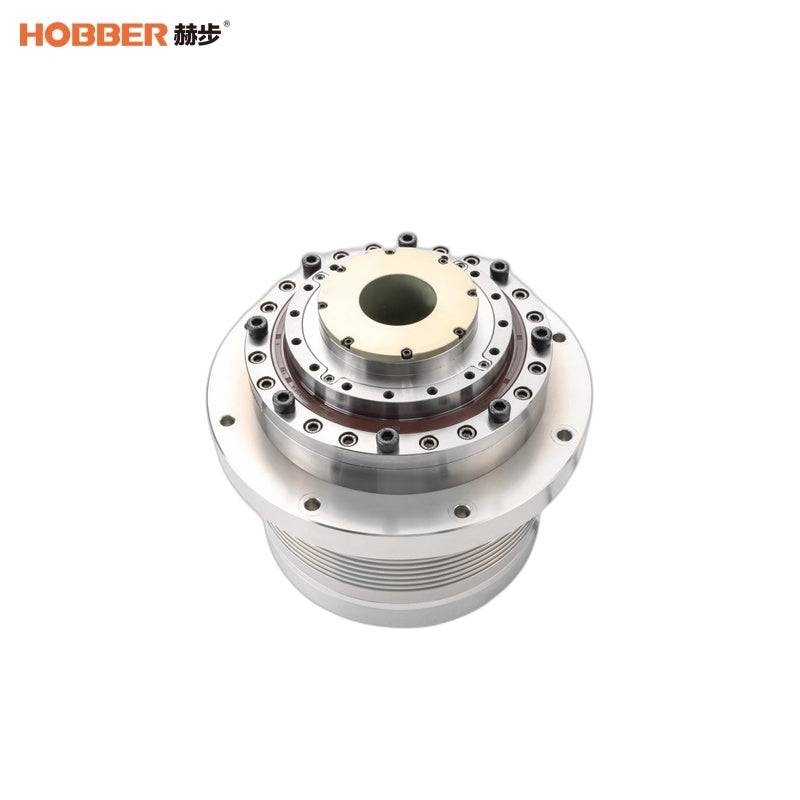

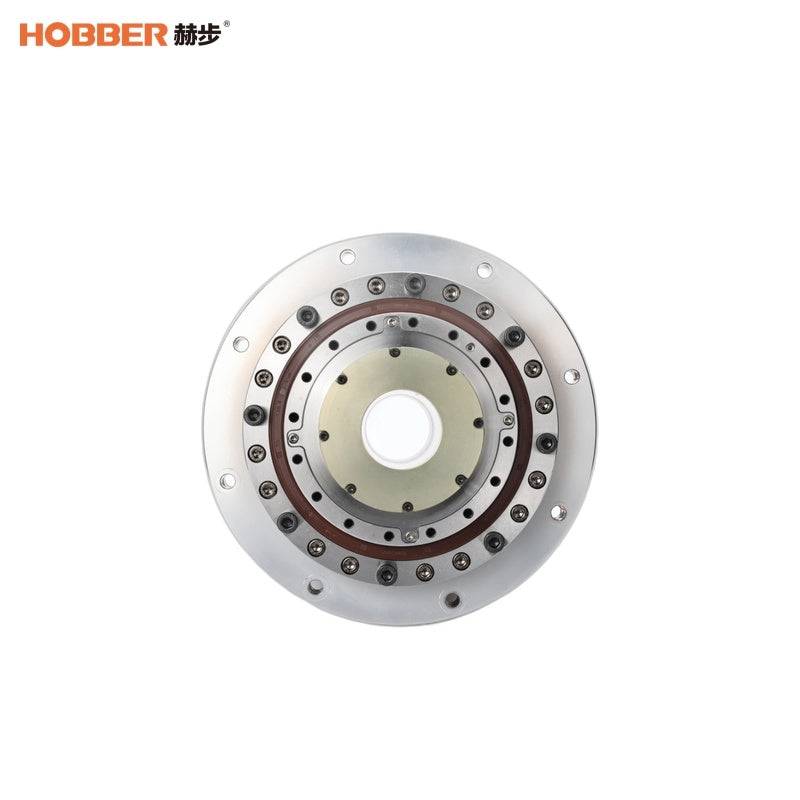

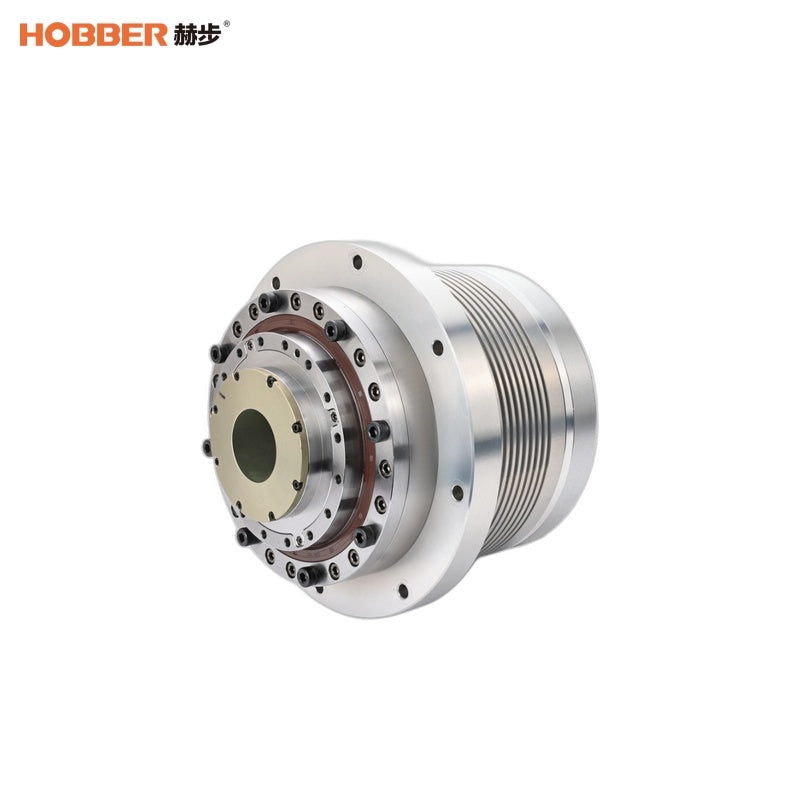

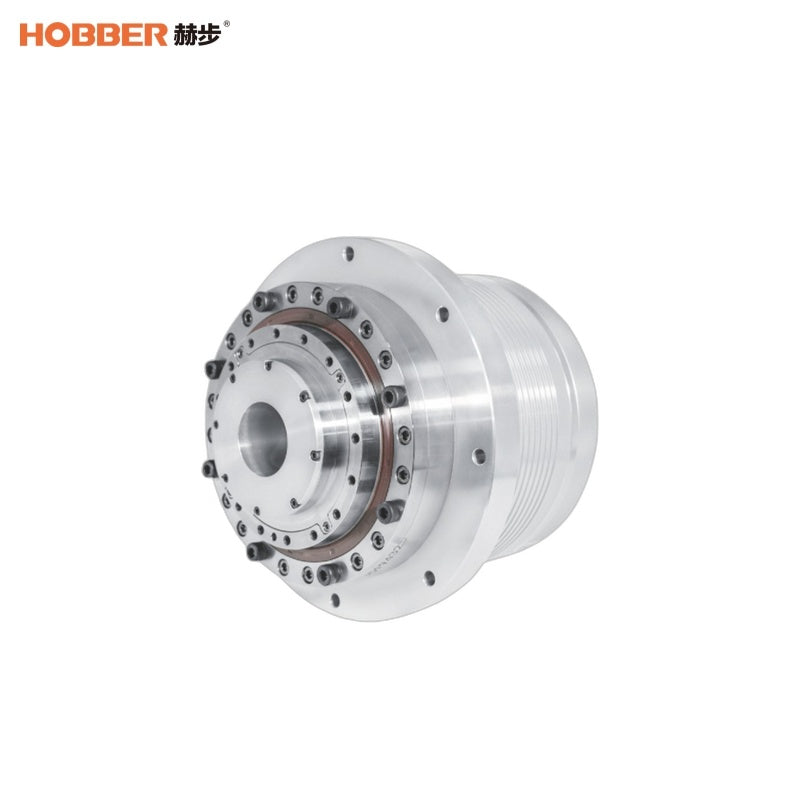

Hobber HPG-20T Actuator | Robot Actuator for Robotics Development

  • Hobber robot actuator for robot joints, actuator builds, motion-control systems, and robotics development.
  • Suitable for engineering teams building automation hardware, research platforms, education projects, and prototypes.
  • Designed for practical integration in robot servo motor, actuator, gearbox, and compact motion applications.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$2,600
Version
Brake

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hobber HPG-20T Actuator dimension drawing for installation reference.pdf ▶ Hobber HPG-20T Actuator user manual for setup and integration.pdf ▶

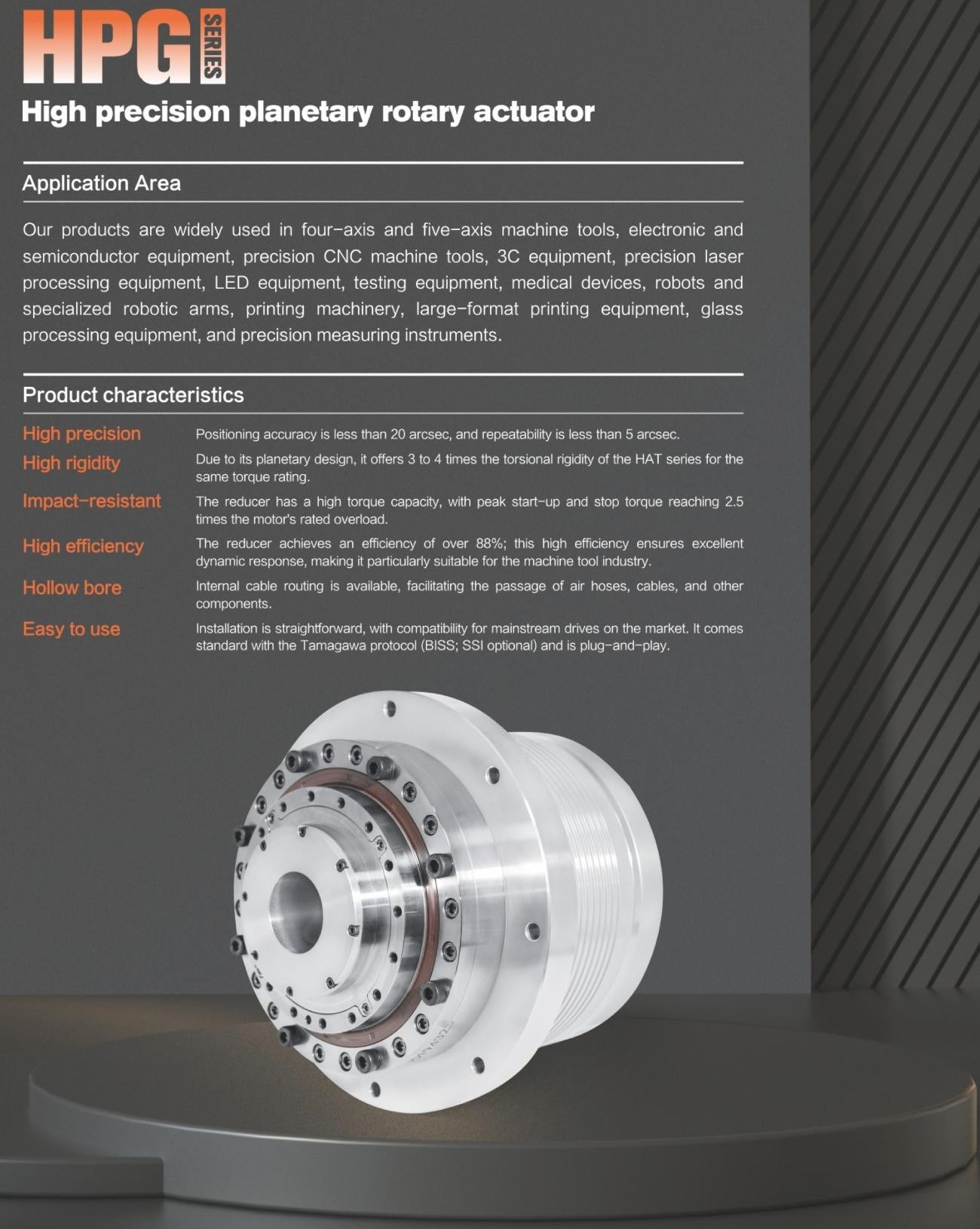

Hobber HPG-20T Actuator | Robot Actuator for Robotics Development detail image 1

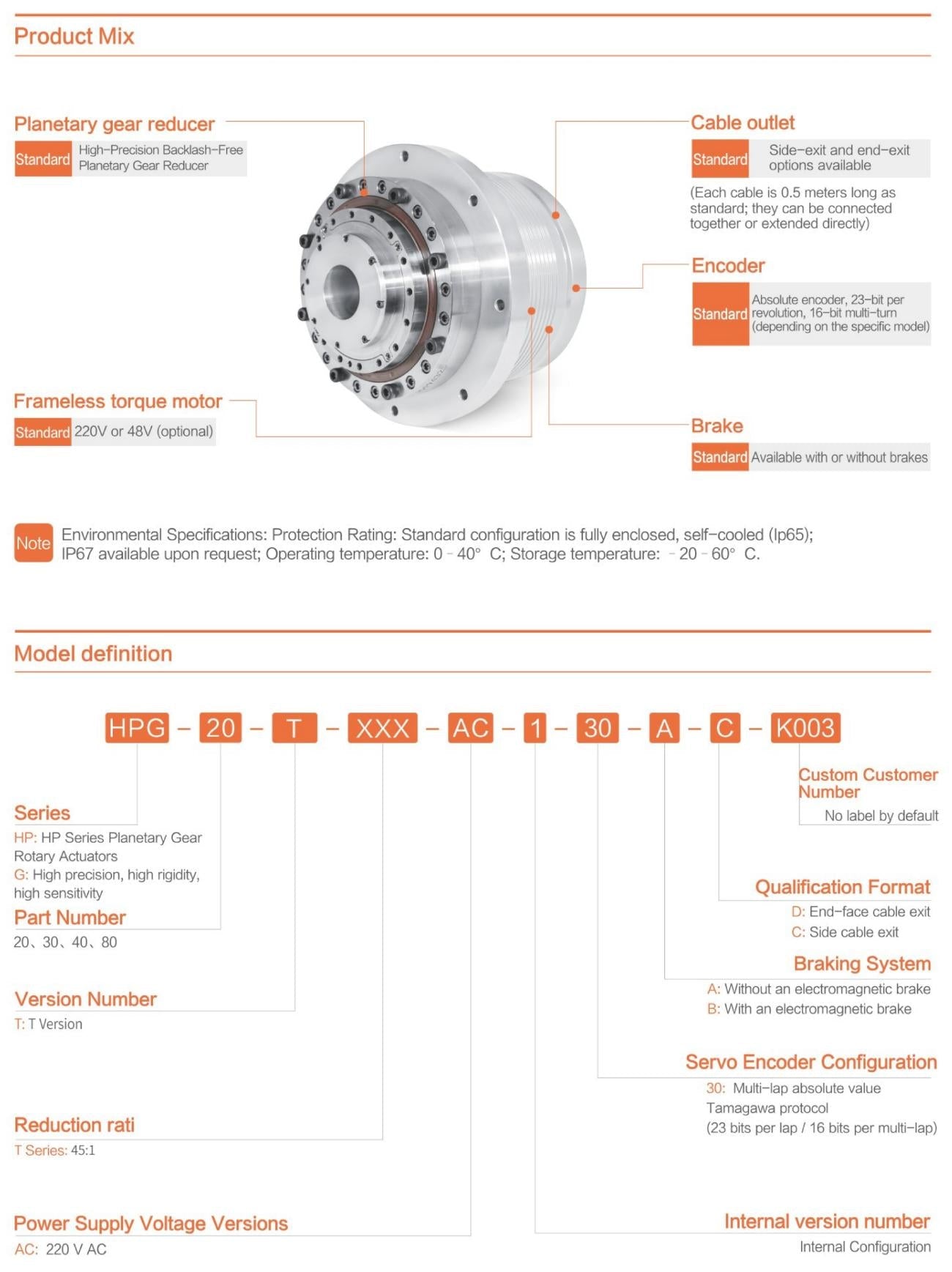

Hobber HPG-20T Actuator | Robot Actuator for Robotics Development detail image 2

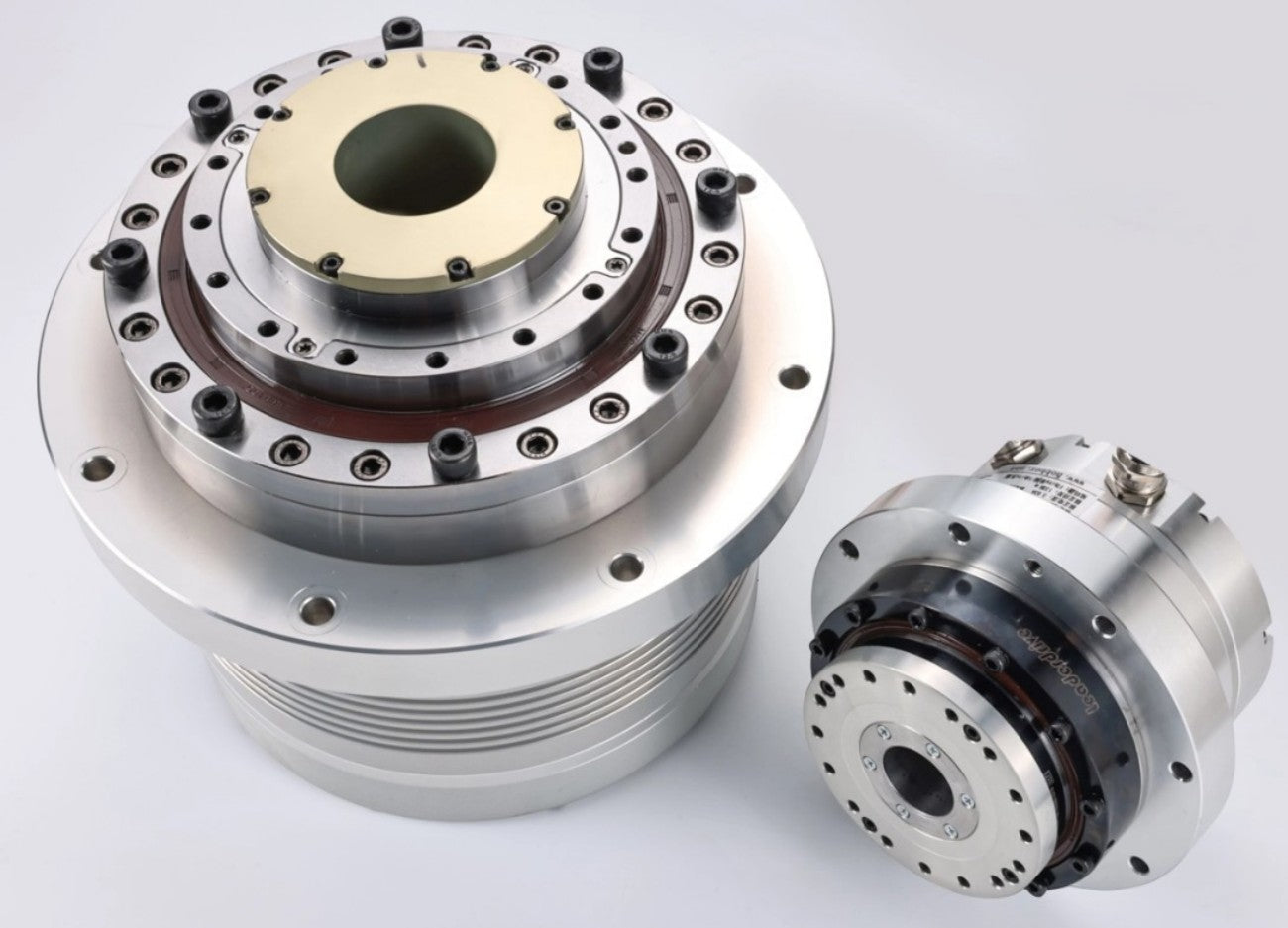

Hobber HPG-20T Actuator | Robot Actuator for Robotics Development detail image 3

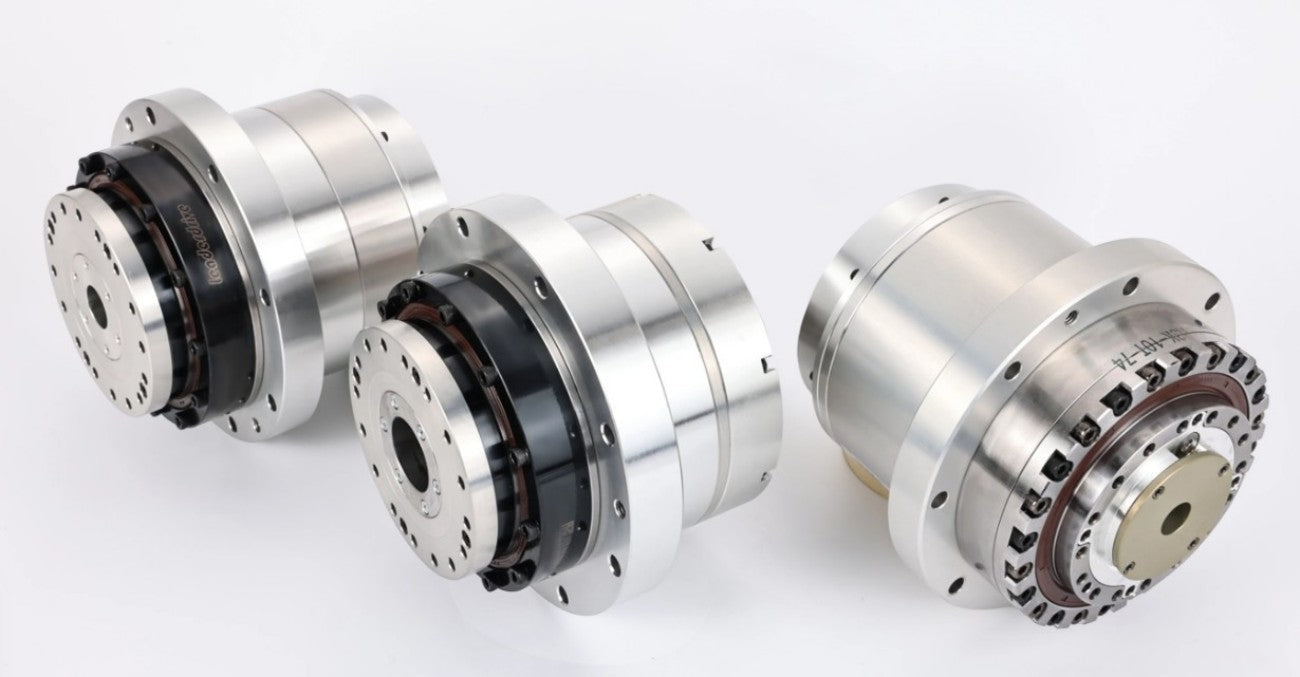

Hobber HPG-20T Actuator | Robot Actuator for Robotics Development detail image 4
▤ Technical Specifications ⌃
Parameter Value
Gear Ratio
Gear Ratio 45
AC 220V Ratings
Peak Torque (AC) 358 N.m
Rated Torque (AC) 180 N.m
Maximum Speed (AC) 91 rpm
Rated Speed (AC) 44 rpm
Maximum Current (AC) 18.00 Arms
Rated Current (AC) 9.05 Arms
Torque Constant (AC) 19.89 N.m/Arms
Motor Phase‑to‑Phase Resistance (AC) 0.8 Ohms (20°C)
Motor Phase‑to‑Phase Inductance (AC) 8 mH
Motor Back‑EMF Constant (AC) 44 Vrms/krpm
Encoder & Positioning
Encoder Type Absolute Encoder
Encoder Resolution (Per Revolution) 2^23 (8,388,608) bit
Encoder Multi-Revolution Counter 2^16 (65,536) bit
Angular Transmission Accuracy ≤18 Arcsec
Repeat Positioning Accuracy ≤5 Arcsec
Mechanical Properties
Torsional Stiffness 120 N.m/Arcm
Allowable Tilting Moment 1030 N.m
Rotor Moment of Inertia (Without Brake) 1.17 × 10⁻³ kg·m²
Rotor Moment of Inertia (With Brake) 1.34 × 10⁻³ kg·m²
Mass (Without Brake) 10.92 Kg
Mass (With Brake) 12.33 Kg
Number of Motor Poles 16
Ambient Conditions
Ambient Conditions Operating temp: 0~40°C / Storage: ‑20~60°C / Humidity: 20~80% RH (non‑condensing) / Vibration: 24.5 m/s² (10~400 Hz) / Free from dust, metal particles, corrosive/flammable gases, oil mist / Indoor use, avoid direct sunlight / Altitude below 1000 m
Motor Insulation
Insulation Resistance 100 MΩ or higher (DC 500 V)
Dielectric Strength AC 1500 V / 1 min
Insulation Class Class F
Protection Rating
Protection Rating Fully enclosed cooling type (IP65)
