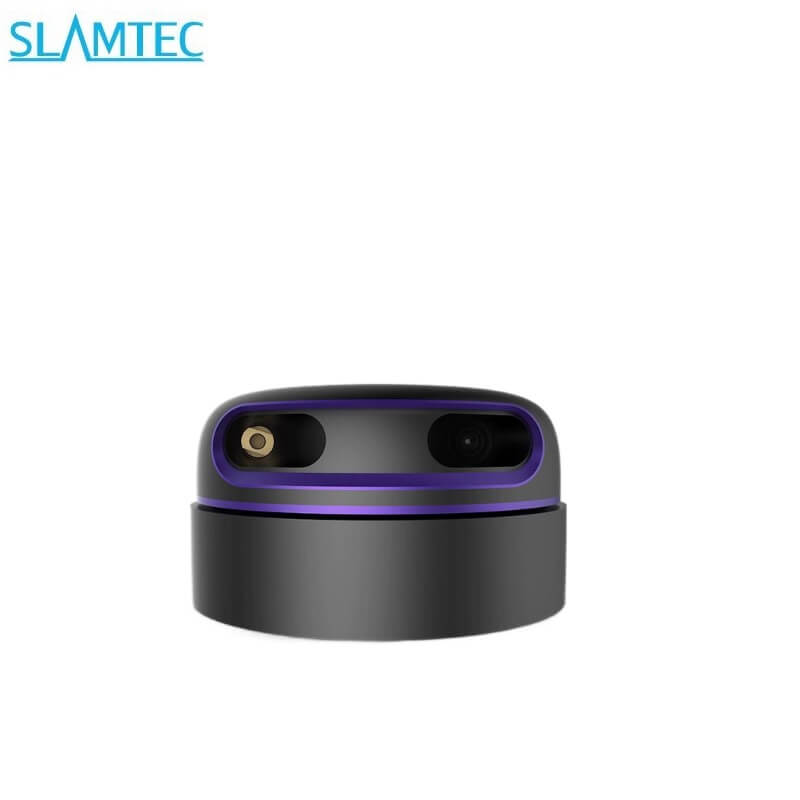

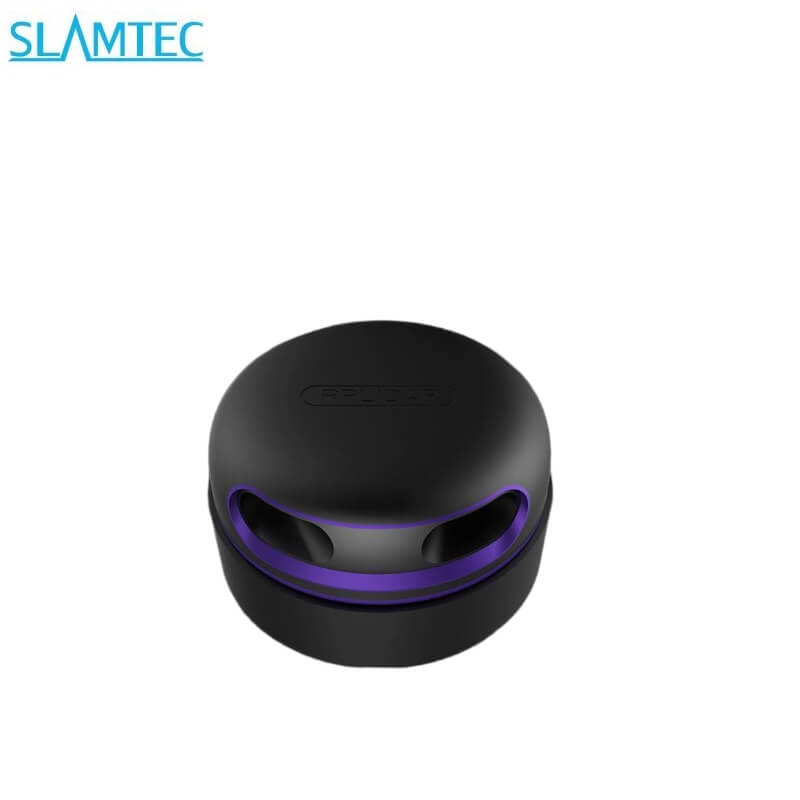

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: SLAMTEC RPLIDAR A3
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and mapping systems.
  • Designed for robot perception workflows that need reliable ranging, localization, and environmental sensing.
  • Useful for developers building SLAM, obstacle detection, navigation, and robotics automation applications.
$765
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SLAMTEC RPLIDAR A3 LiDAR dimension drawing for installation reference.pdf ▶ SLAMTEC RPLIDAR A3 LiDAR user manual for setup and integration.pdf ▶ SLAMTEC RPLIDAR A3 LiDAR datasheet with technical specifications.pdf ▶

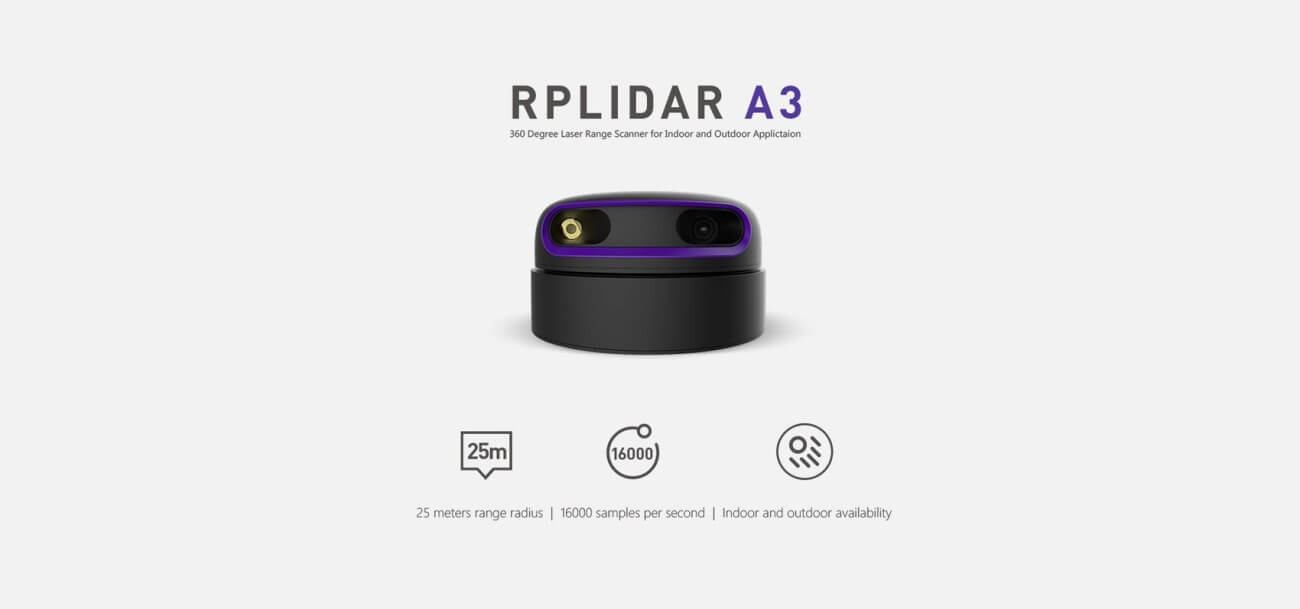

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

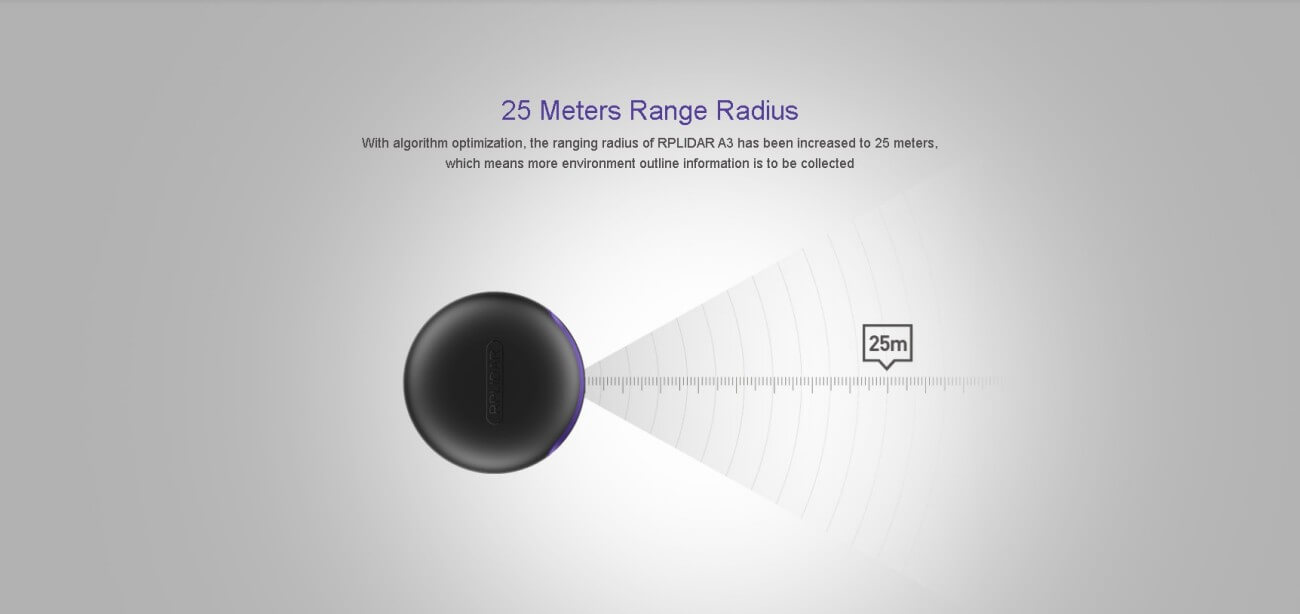

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

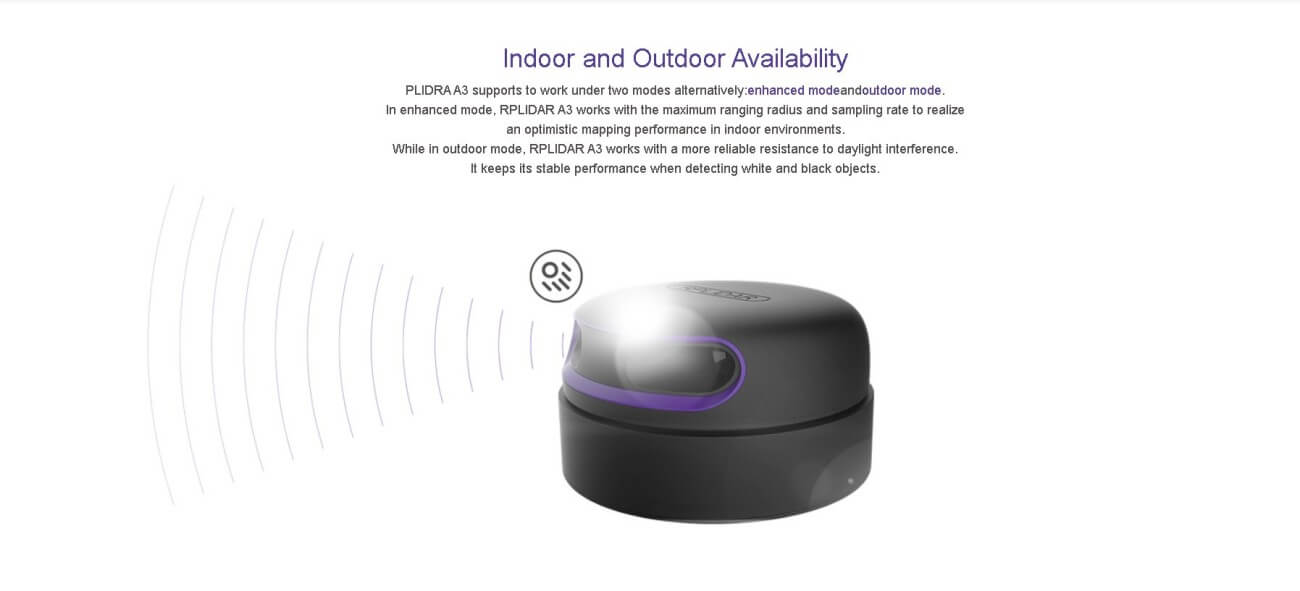

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

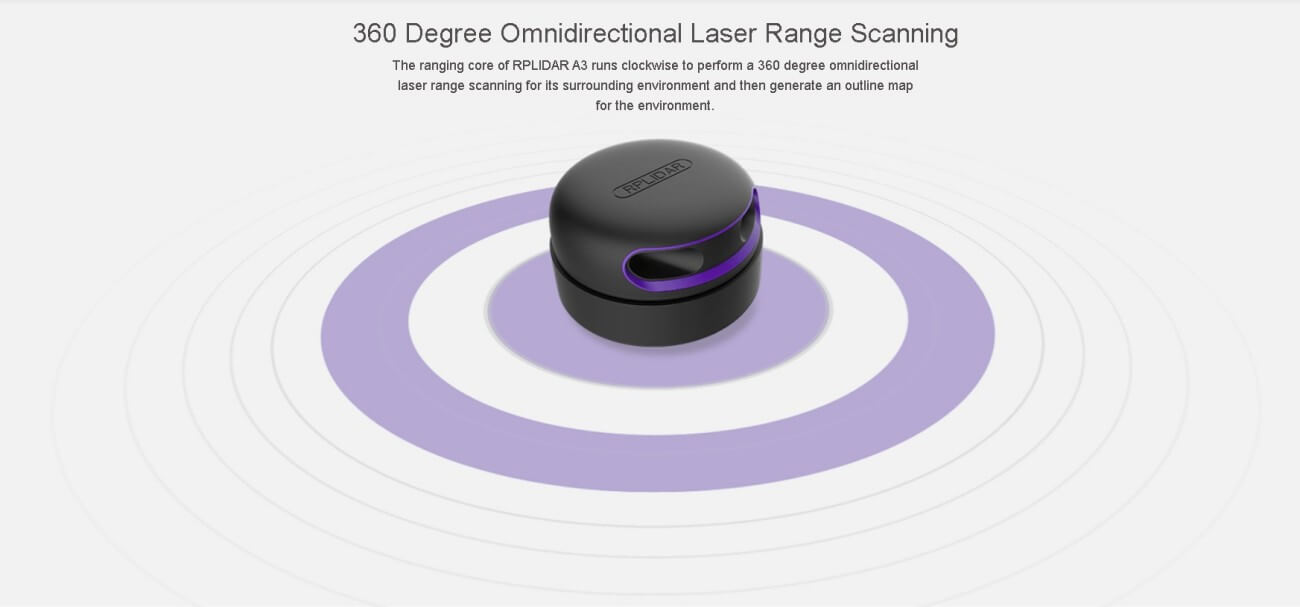

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

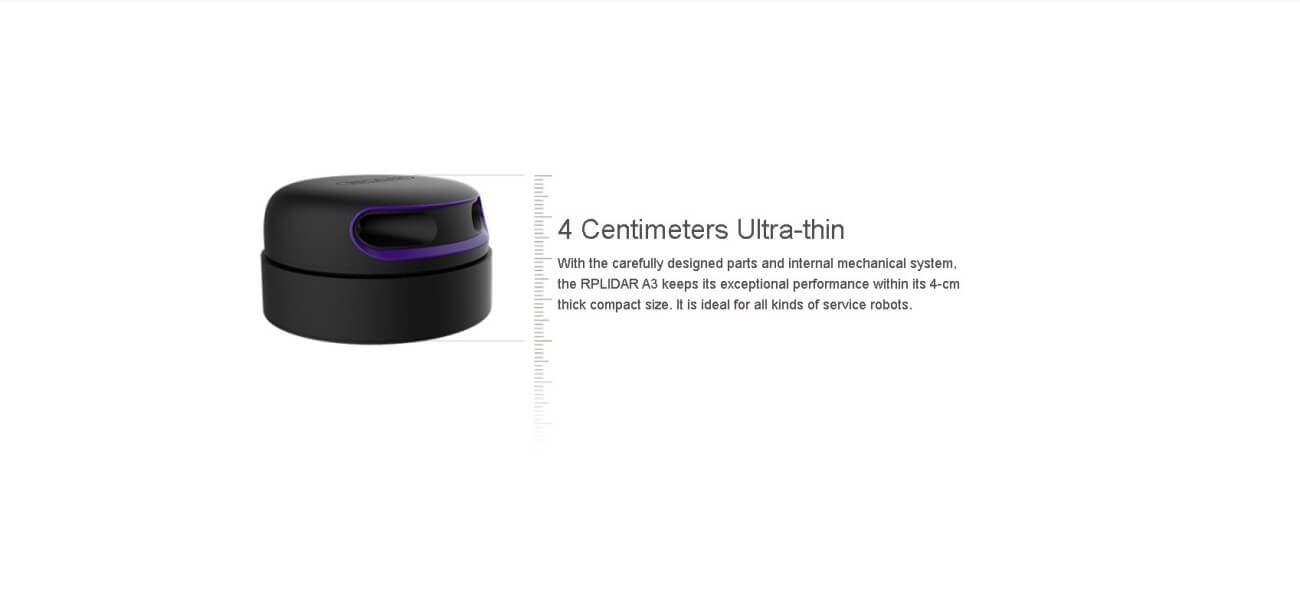

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6

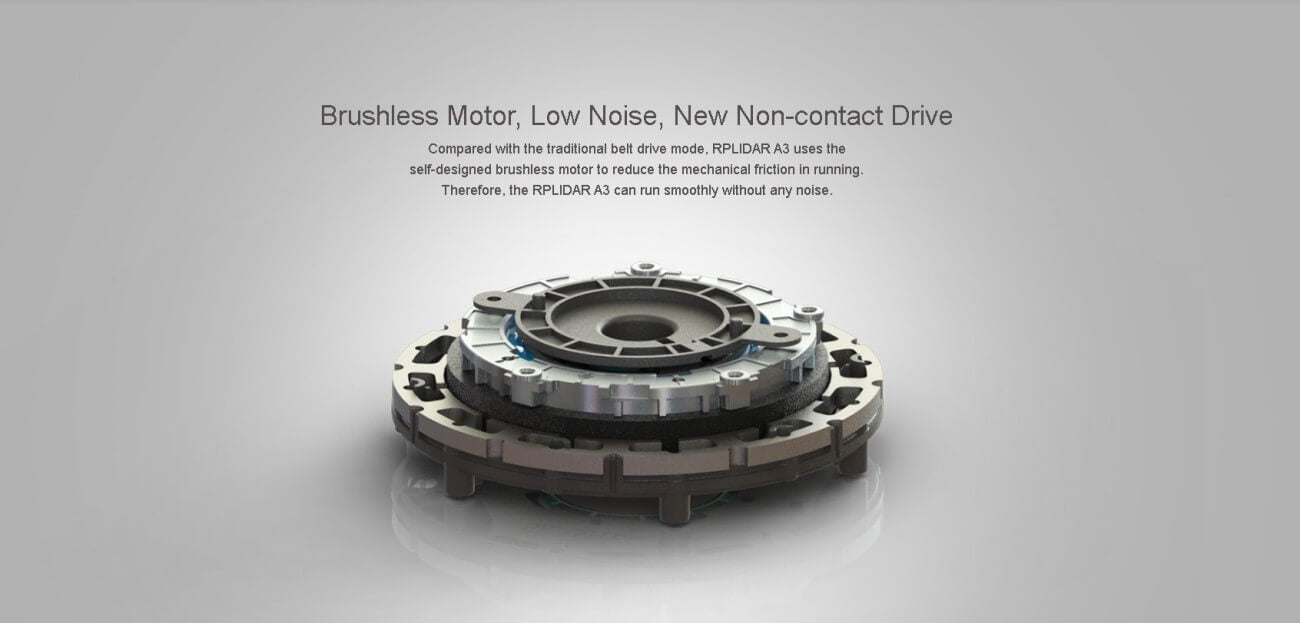

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7

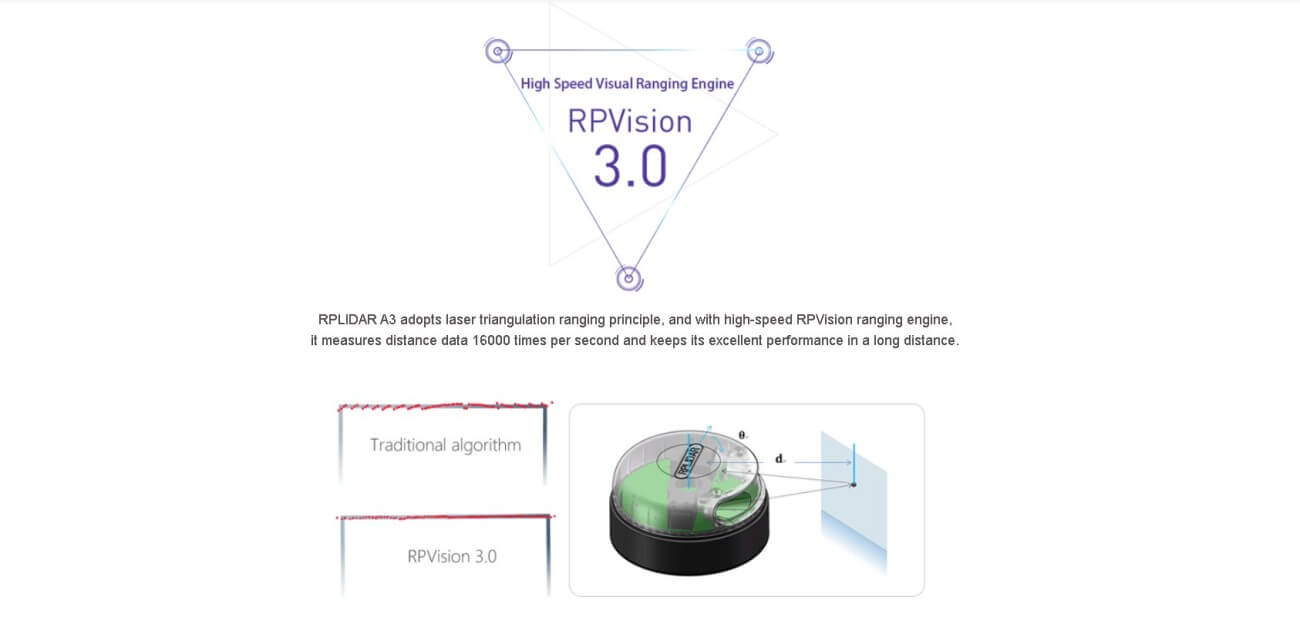

SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9
SLAMTEC RPLIDAR A3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10
▤ PARAMETER ⌃
Model
SLAMTEC RPLIDAR A3
Operating Range
White object: 20 meters
Operating Range
Black object: TBD
Minimum Operating ranging
0.2m
Sample Rate
16KHz
Scan Rate
Typical value: 10 Hz (adjustable between 5 Hz-15 Hz)
Angular Resolution
0.225°
Scan Field Flatness
±1.5
Communication Interface
TTL UART
Communication Speed
256000 bps
Compatibility
Support former SDK protocols
Laser wavelength
785nm
Laser power
10mW
Pulse length
87us
Laser Safety Class
IEC-60825 Class 1
Power Voltage
4.9—5.2V
Power Voltage Ripple
20mV
Inrush Current
2500mA(Max)
System Start Current
1500mA(Max)
Power Current
200mA (5V Power，power off ) 450mA (5V Power，power on)
Weight
190g
Temperature range
0—40ºC
