HONPINE FHG-III Harmonic Drive Reducer | Precision Gearbox for Robot Joint Applications

  • HONPINE harmonic drive reducer for robotic joints and compact actuator modules.
  • Designed for robot arms, automation equipment, and high-precision motion systems.
  • Suitable for robotics developers, research labs, and industrial automation builders.
$520
Version
Model
Reduction Ratio

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

HONPINE FHG-III Harmonic Drive Reducer CAD model archive for 3D mechanical integration reference. ▶ HONPINE FHG-III Harmonic Drive Reducer product structure diagram and mechanical reference drawing. ▶

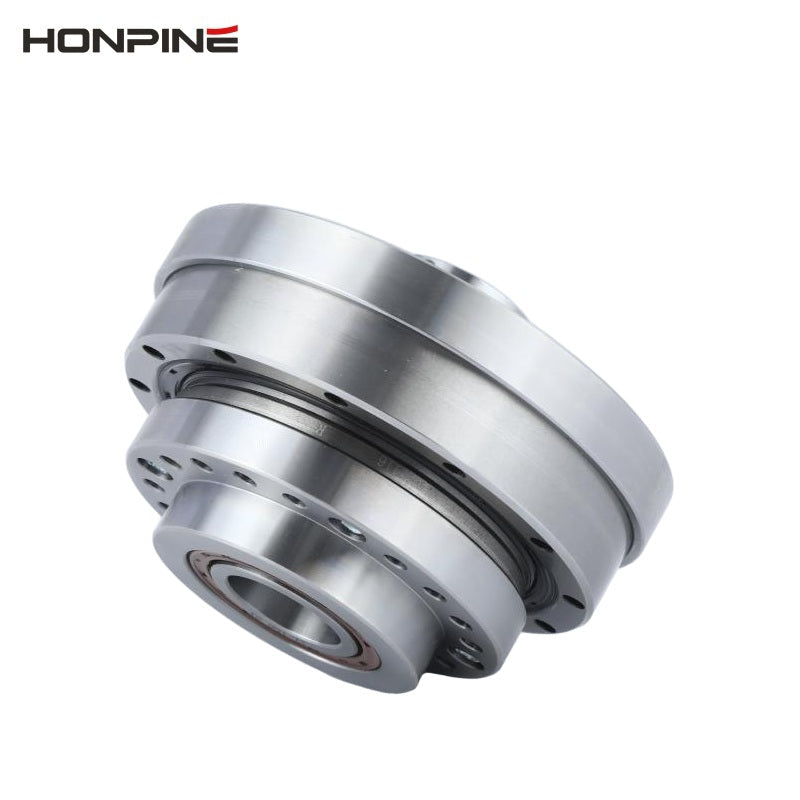

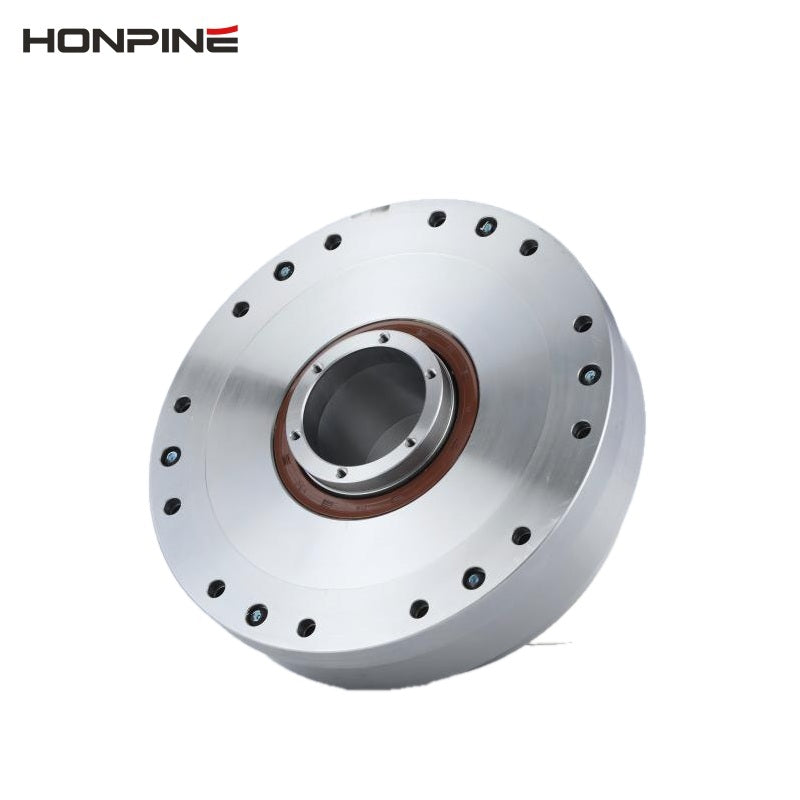

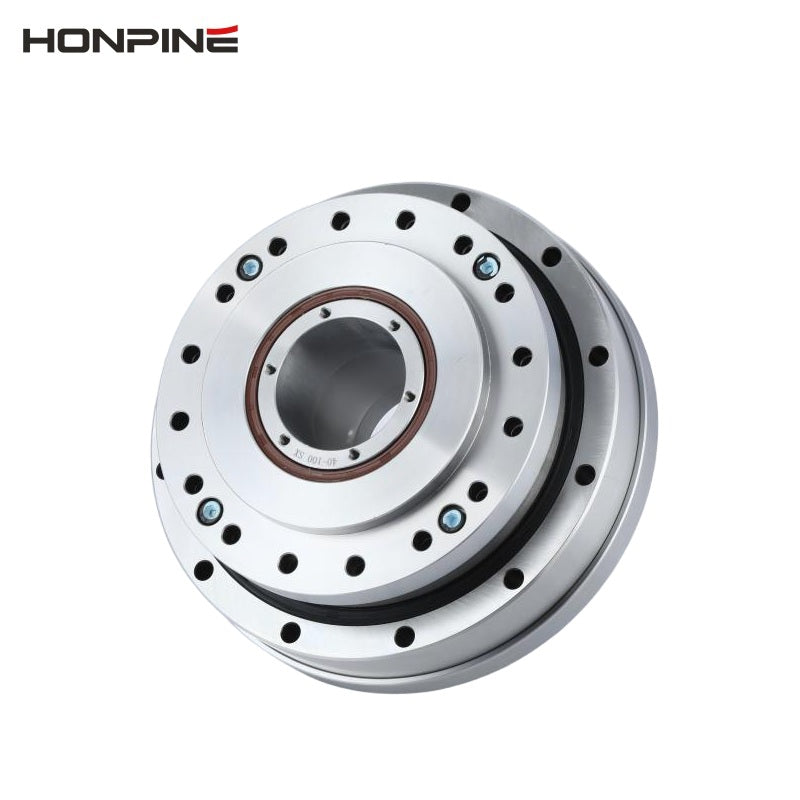

HONPINE FHG-III Harmonic Drive Reducer

The HONPINE FHG-III Harmonic Drive Reducer is a precision harmonic drive reducer for robotic joints, compact gearboxes, robot actuators, and automation equipment. It is suitable for robotics developers, research labs, and engineering teams building high-precision motion systems.

Features

  • **Precision gearbox platform:** Designed for compact robotic joint and actuator applications.
  • **Robotics integration:** Suitable for robot arms, automation equipment, and motion modules.
  • **Engineering-focused:** Built for research, prototyping, and industrial automation builders.
  • **Source-backed listing:** Product data is extracted from the reference product page.

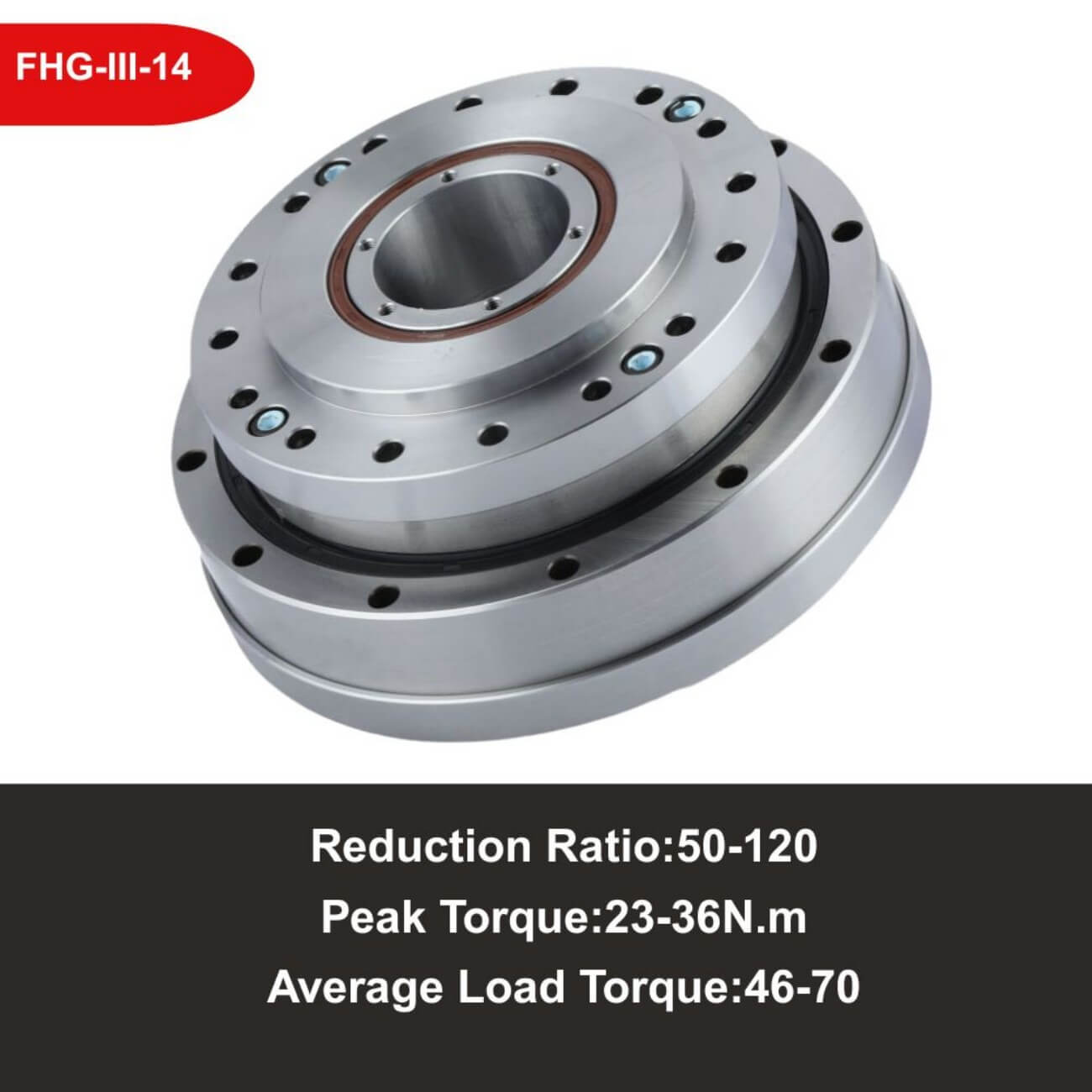

HONPINE FHG-III Harmonic Drive Reducer detail image 1
HONPINE FHG-III Harmonic Drive Reducer detail image 2

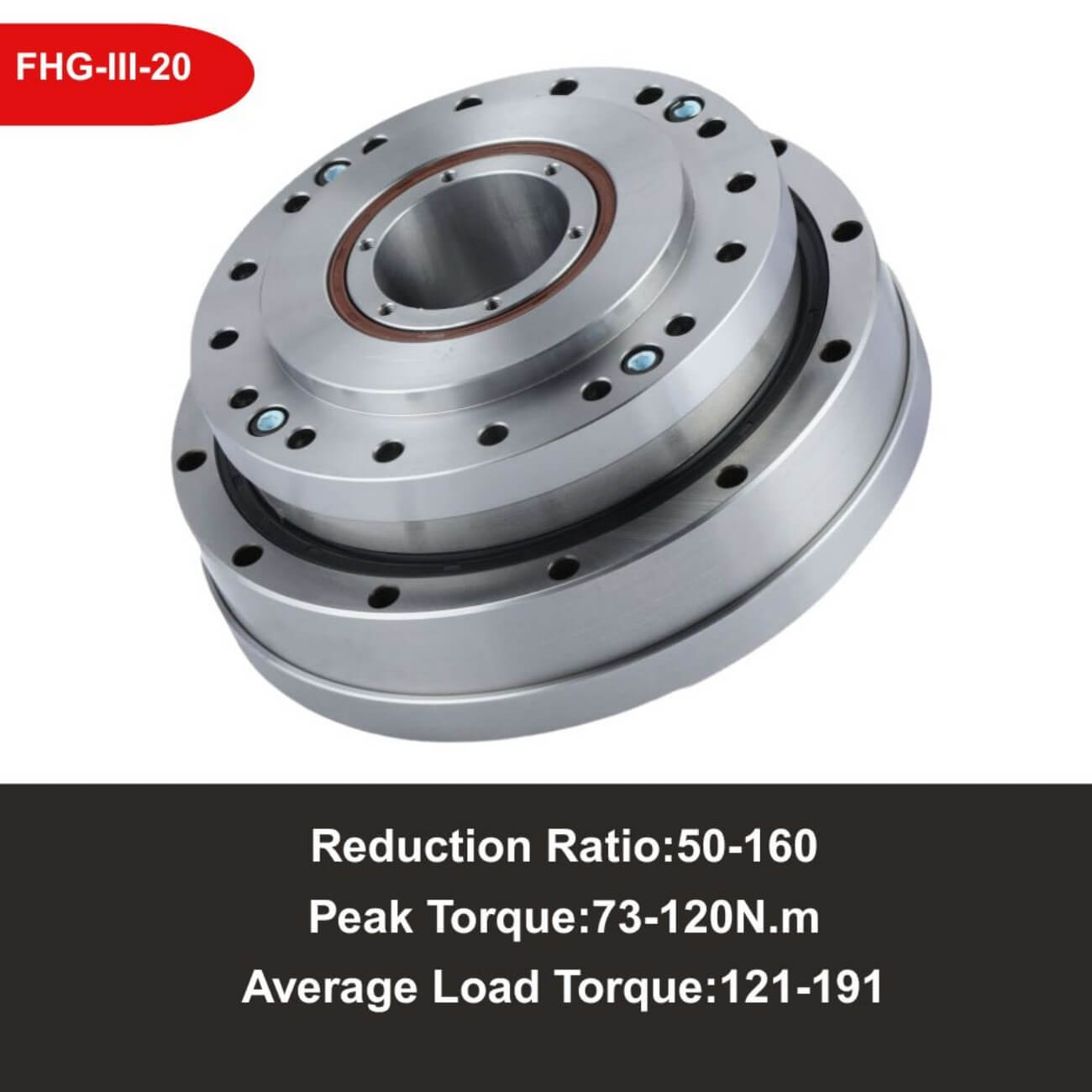

HONPINE FHG-III Harmonic Drive Reducer detail image 3
HONPINE FHG-III Harmonic Drive Reducer detail image 4

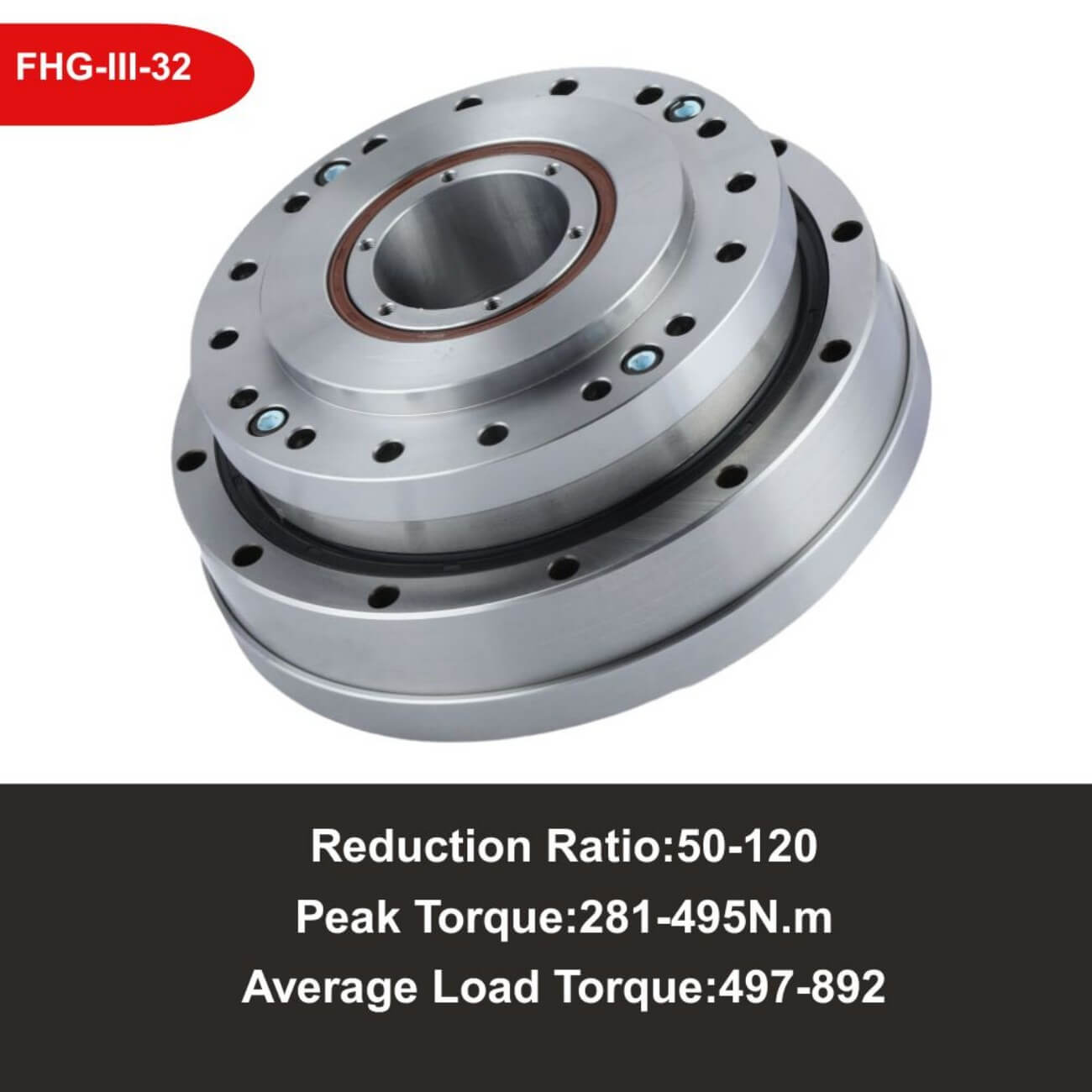

HONPINE FHG-III Harmonic Drive Reducer detail image 5
HONPINE FHG-III Harmonic Drive Reducer detail image 6
▤ Technical Specifications ⌃
Model Reduction ratio Rated torque at 2000r/min input Permissible peak torque at start and stop Permissible maximum value for average load torque Permissible maximum value for average load torque Permissible maximum input rotational speed(Grease) Backlash weight Desian life
Nm kgfm Nm kgfm Nm kgfm Nm kgfm r/min r/min Arc Sec kg Hour
14 50 7 0.7 23 2.3 9 0.9 46 4.7 8500 3500 ≤20 FHG-I/II:0.40 FHG-III:0.7 FHG-IV:0.66 FHG-V:0.40 10000
80 10 1.0 30 3.1 14 1.4 61 6.2 15000
100 10 1.0 36 3.7 14 1.4 70 7.2 15000
120 10 1.0 36 3.7 14 1.4 70 7.2 15000
17 50 21 2.1 44 4.5 34 3.4 91 9 7300 3500 ≤20 FHG-I/II:0.54 FHG-III:0.99 FHG-IV:0.90 FHG-V:0.62 10000
80 29 2.9 56 5.7 35 3.6 113 12 15000
100 31 3.2 70 7.2 51 5.2 143 15 15000
120 31 3.2 70 7.2 51 5.2 112 11 15000
20 50 33 3.3 73 7.4 44 4.5 127 13 6500 3500 ≤20 FHG-I/II:0.72 FHG-III:1.32 FHG-IV:1.29 FHG-V:0.82 10000
80 44 4.5 96 9.8 61 6.2 165 17 15000
100 52 5.3 107 10.9 64 6.5 191 20 15000
120 52 5.3 113 11.5 64 6.5 191 20 15000
160 52 5.3 120 12.2 64 6.5 191 20 15000
25 50 51 5.2 127 13 72 7.3 242 25 5600 3500 ≤20 FHG-I/II:1.22 FHG-III:2.02 FHG-IV:1.99 FHG-V:1.40 10000
80 82 8.4 178 18 113 12 332 34 15000
100 87 8.9 204 21 140 14 369 38 15000
120 87 8.9 217 22 140 14 395 40 15000
32 50 99 10 281 29 140 14 497 51 4800 3500 ≤20 FHG-I/II:2.54 FHG-III:4.20 FHG-IV:4.00 FHG-V:2.70 10000
80 153 16 395 40 217 22 738 75 15000
100 178 18 433 44 281 29 841 86 15000
120 178 18 459 47 281 29 892 91 15000
40 50 178 18 523 53 255 26 892 91 4000 3000 ≤20 FHG-I/IV:4.40 FHG-III:7.20 FHG-IV:7.00 FHG-V:4.06 10000
80 268 27 675 69 369 38 1270 130 15000
100 345 35 738 75 484 49 1400 143 15000
120 382 39 802 82 586 60 1530 156 15000
