ENCOS

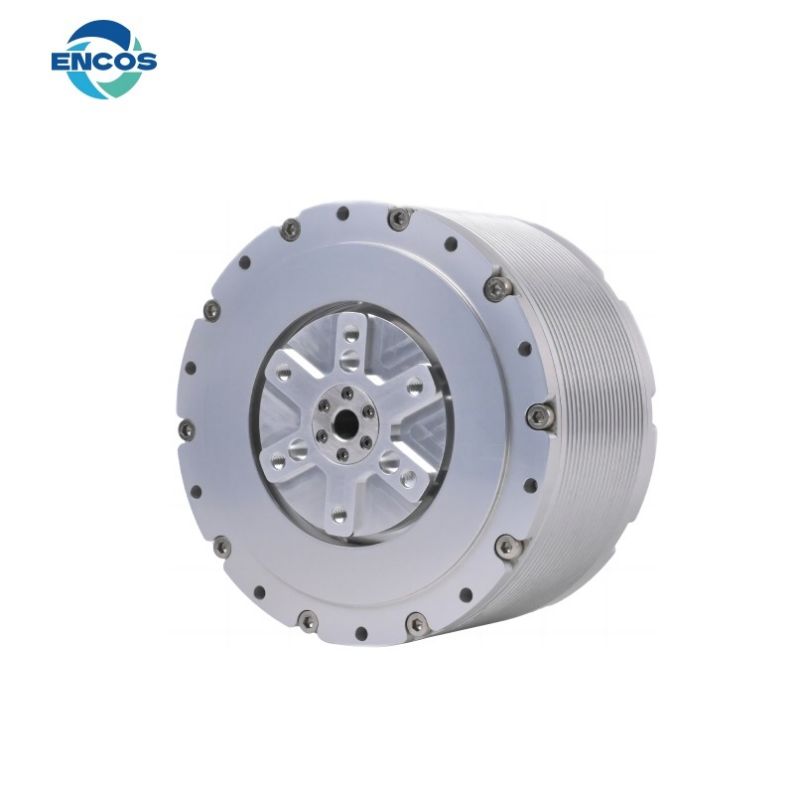

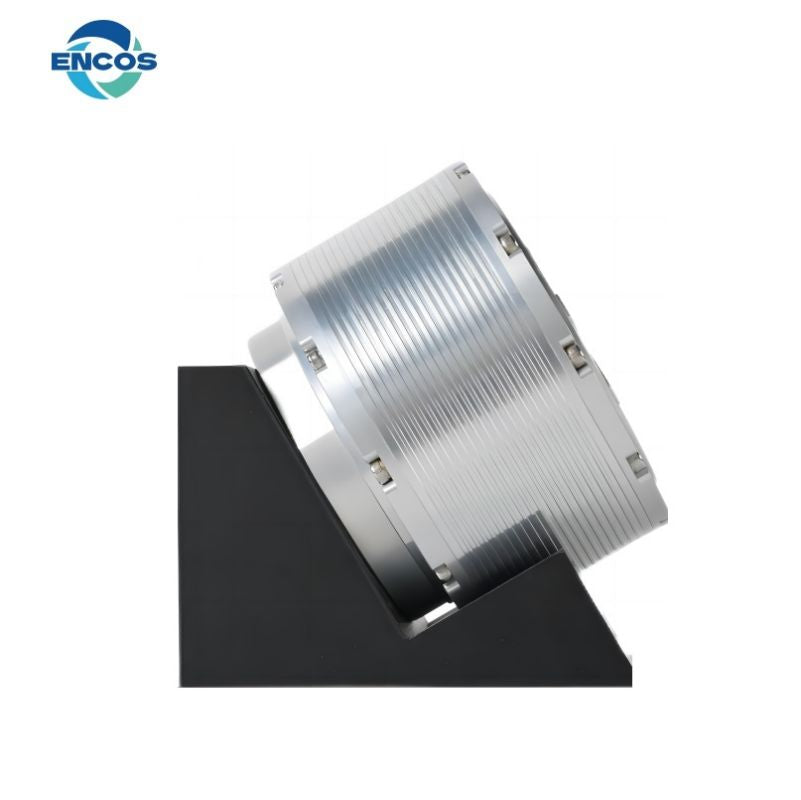

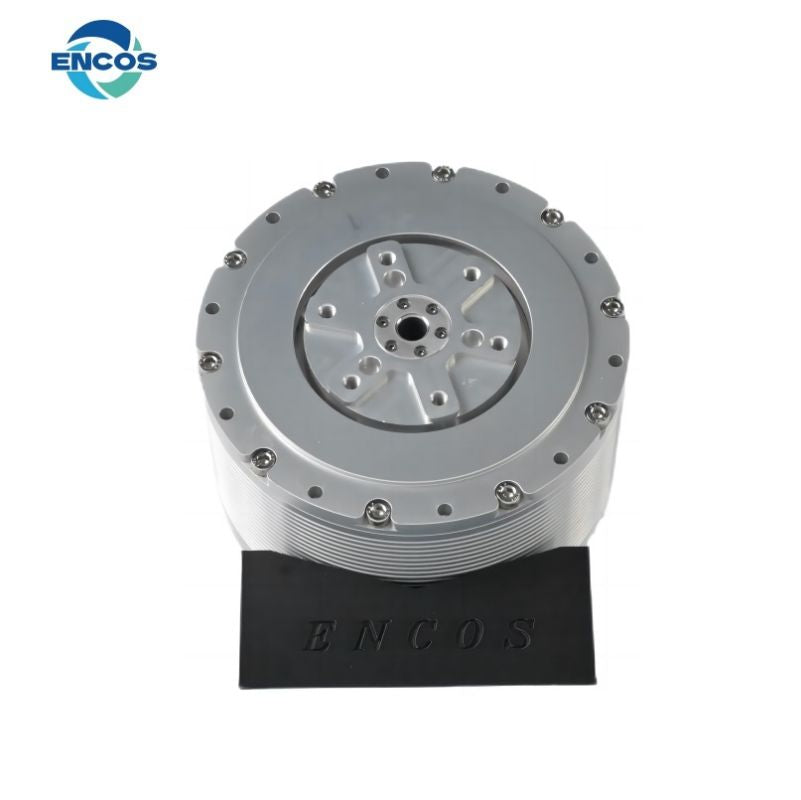

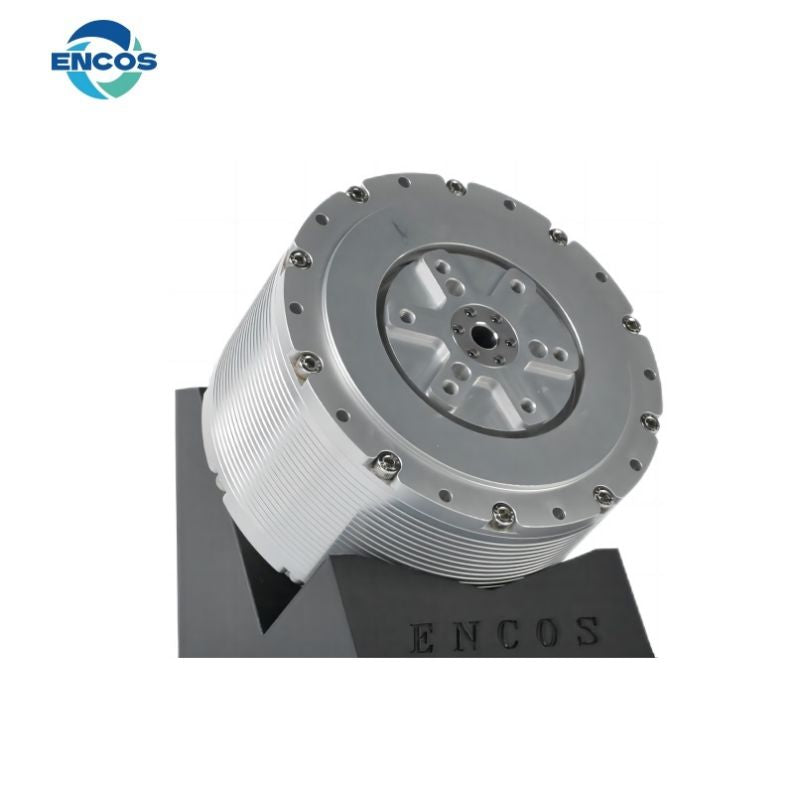

ENCOS EC-A10020-P2-24 Motor | Robot Servo Motor for Robotics Development

  • ENCOS robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$2,250
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ENCOS EC-A10020-P2-24 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A10020-P2-24 Motor dimension drawing for installation reference.pdf ▶
ENCOS EC-A10020-P2-24 Motor | Robot Servo Motor for Robotics Development detail image 1
▤ PARAMETER ⌃
Reduction Ratio
24
Rated Voltage
48 V
Rated Bus Current
35.12 A
Rated Phase Current
44.05 A
Rated Power
1686 W
Rated Speed
115 RPM
Rated Torque
100 Nm
Peak Speed
123 RPM
Peak Phase Current
140 A
Peak Torque
330 Nm
Efficiency
75%
Torque Constant
2.6 Nm/A
Weight
2172~2211 g
Backlash
20 Arcmin
Motor Size
124x85 mm
Hole Diameter
8 mm
Communication Mode
CAN
Communication Baud Rate
1M
Double Encoder
Yes
Axial And Radial Loads
6.76 KN
Bending Moment Resistance
300 Nm
Cross Roller Bearing Type
9008
The Rotor Inertia Of The Motor
477 kgmm²
Torque Density
149~152 Nm/kg
