ENCOS

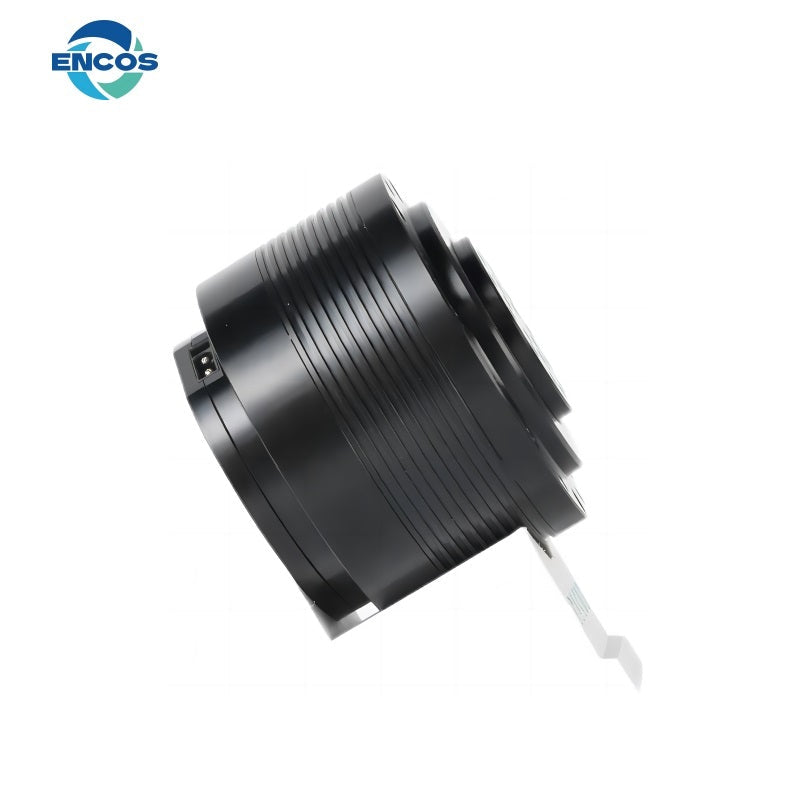

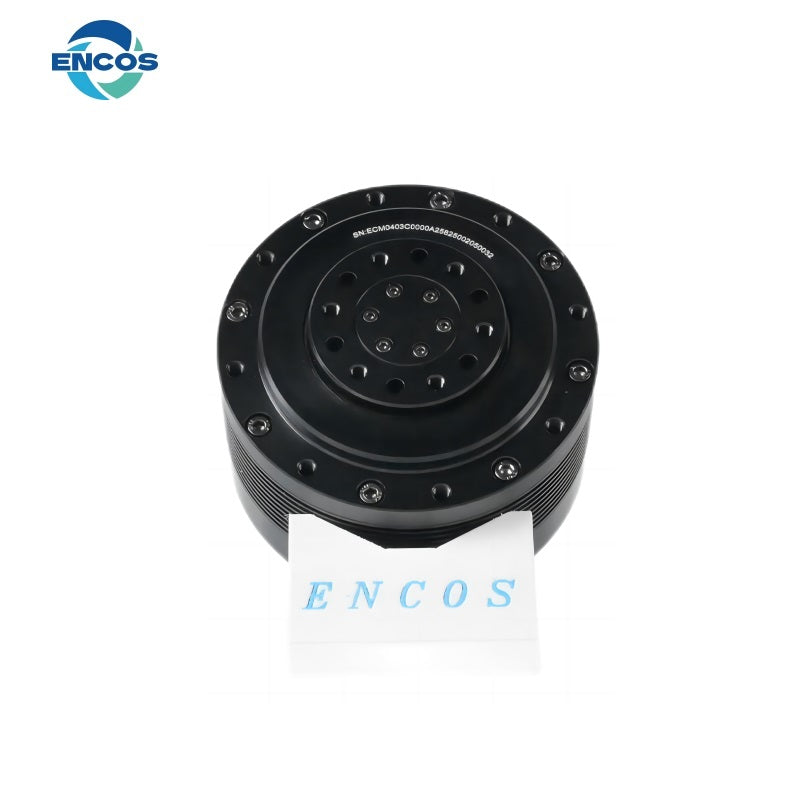

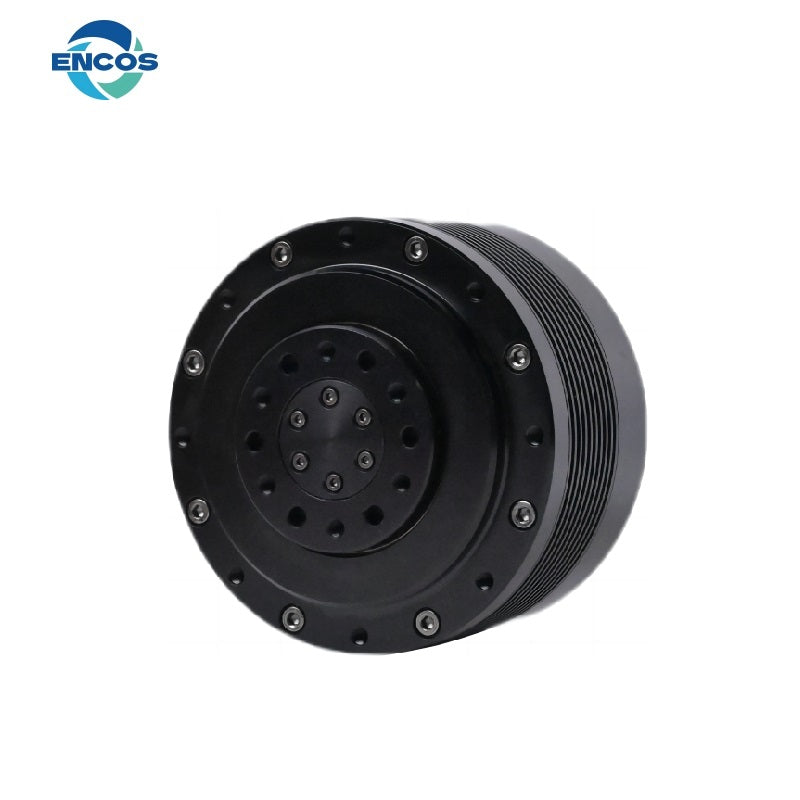

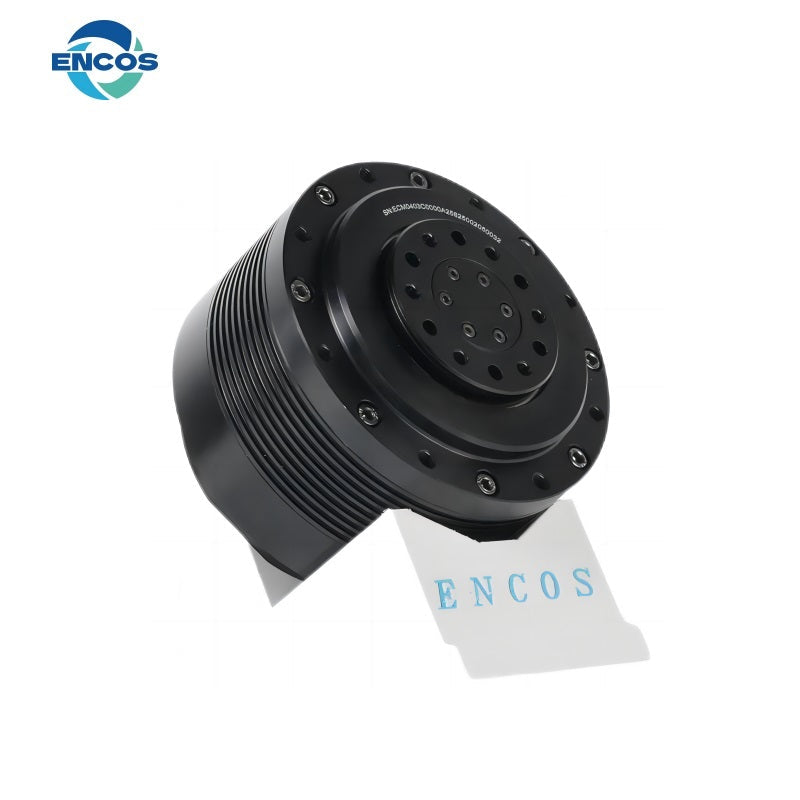

ENCOS EC-A6416-P2-25 Motor | Robot Servo Motor for Robotics Development

  • ENCOS robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$925
Version
Accessory Kit

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

ENCOS EC-A6416-P2-25 Motor CAD model for mechanical integration.stp ▶ ENCOS EC-A6416-P2-25 Motor dimension drawing for installation reference.pdf ▶ ENCOS EC-A6416-P2-25 Motor dimension drawing for installation reference.pdf ▶

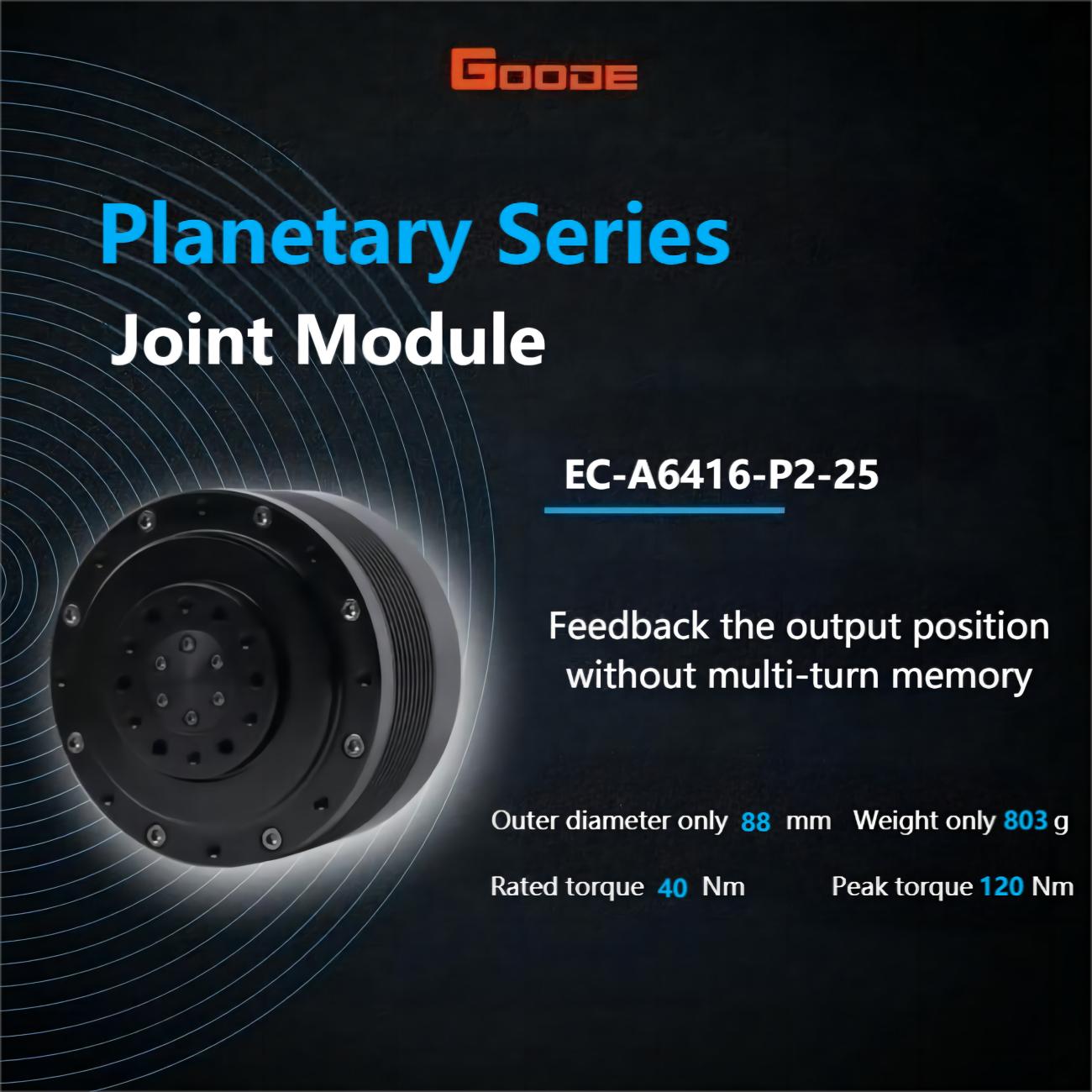

ENCOS EC-A6416-P2-25 Motor | Robot Servo Motor for Robotics Development detail image 1
▤ Technical Specifications ⌃
Parameter EC-A6416-P2-25 EC-A6416-P2-30.25H
Reduction Ratio 25 30.25
Rated Voltage 48 V 48 V
Rated Bus Current 13 A 8.18 A
Rated Phase Current 17.5 A 9.4 A
Rated Power 624 W 392.64 W
Rated Speed 107 RPM 97 RPM
Rated Torque 40 Nm 25 Nm
Peak Speed 120 RPM 119 RPM
Peak Phase Current 60 A 60 A
Peak Torque 120 Nm 132 Nm
Efficiency 73% 75%
Torque Constant 2.74 Nm/A 2.65 Nm/A
Weight 805 g 1013 g
Backlash 15 Arcmin 18 Arcmin
Motor Size 88x67.5 mm 88x73.9 mm
Hole Diameter - 7 mm
Communication Mode CAN CAN
Communication Baud Rate 1M 1M
Double Encoder Yes Yes
Axial And Radial Loads 2.14 KN 2.63 KN
Bending Moment Resistance 40 Nm 78 Nm
Cross Roller Bearing Type 4005 6005
The Rotor Inertia Of The Motor 104 kgmm² 102.678 kgmm²
Torque Density 149.1 Nm/kg 130.3 Nm/kg
Pole Pair - 14
Phase Resistance - 220 mΩ
Phase Inductance - 35 μH
