HIGH TORQUE

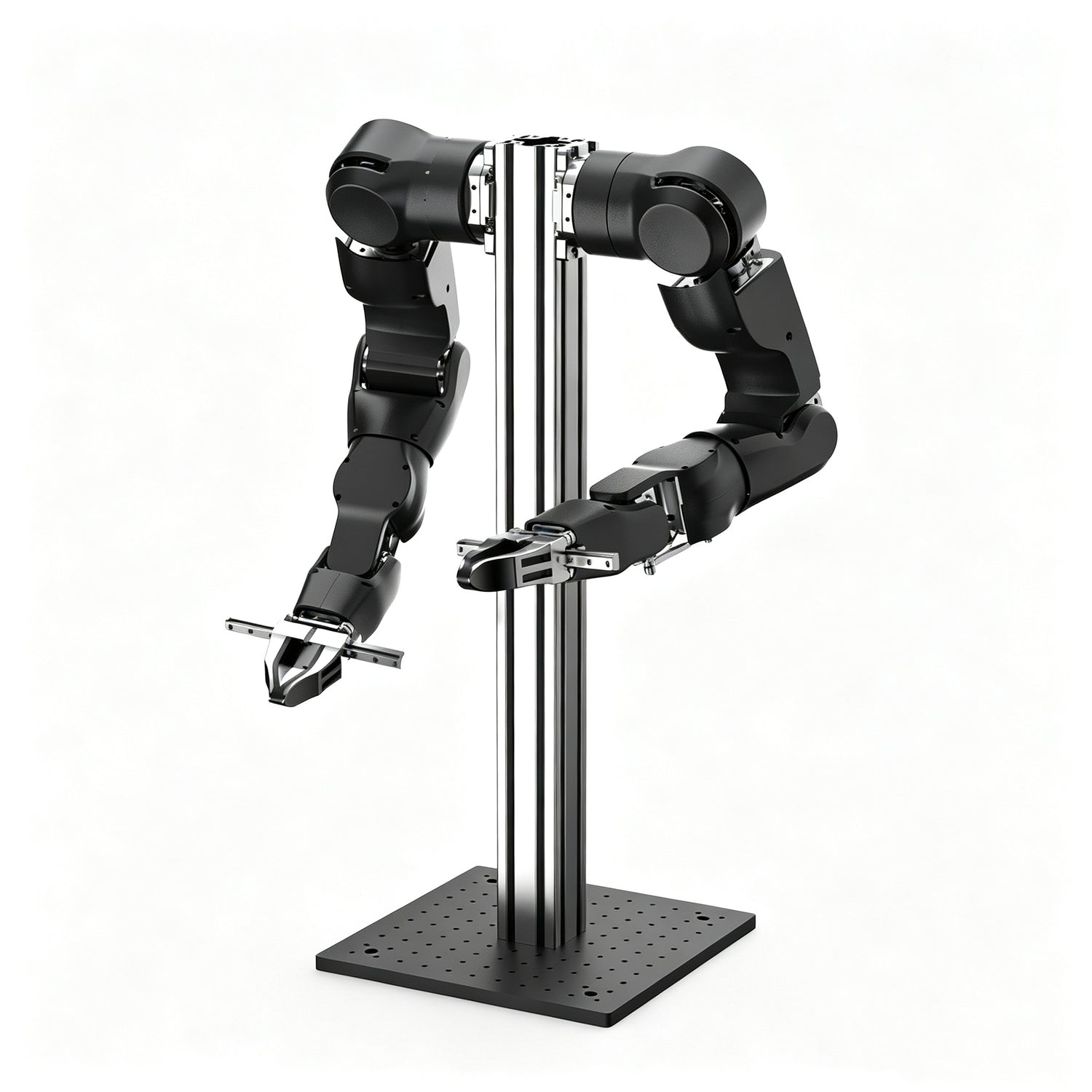

HIGH TORQUE OpenArm-HT 7-DOF Robotic Arm

  • 7-DOF robotic arm with up to 5 kg payload
  • Up to 3.6 m/s end-effector motion speed
  • 60 N·m peak joint torque with CAN FD communication
  • 689 mm vertical dimension and 1596 mm arm span

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

High Torque OpenArm-HT 7-DOF Robotic Arm

The OpenArm-HT is a 7-DoF robotic arm designed for robotics development, manipulation research, and custom robotic applications. With a 5 kg maximum payload, high-speed end-effector motion, and high-torque joints, it provides a capable platform for developers, researchers, and robotics teams working on advanced robotic systems.

7-DoF Robotic Arm

OpenArm-HT features 7 degrees of freedom, providing a wide range of articulated motion for robotic manipulation and development. The arm has a 689 mm vertical dimension and a 1596 mm arm span, supporting a broad working range for different robotic applications.

High-Torque Joint Performance

The robotic arm supports a maximum payload of 5 kg and delivers up to 60 N·m peak joint torque. Its end-effector can reach a maximum motion speed of 3.6 m/s, providing a combination of payload capacity, torque, and speed for demanding manipulation tasks.

CAN FD Communication

OpenArm-HT uses CAN FD for communication and control. The system is built around a 7-joint configuration, with individual joint motion ranges specified for each axis to support flexible robotic arm movement and control.

Key Specifications

  • 7 degrees of freedom
  • Maximum payload: 5 kg
  • Peak joint torque: 60 N·m
  • Maximum end-effector motion speed: 3.6 m/s
  • Vertical dimension: 689 mm
  • Arm span: 1596 mm
  • CAN FD communication
  • Joint-specific motion ranges for all 7 axes

Applications

OpenArm-HT is suitable for robotics research, robot manipulation development, custom robotic systems, prototyping, developer projects, and educational applications where a 7-DOF robotic arm with high torque and CAN FD communication is required.

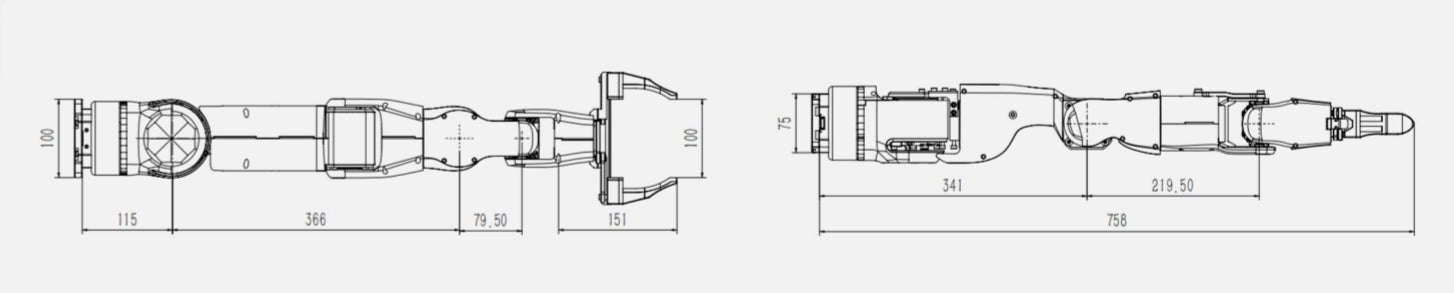

HIGH TORQUE OpenArm-HT 7-DOF Robotic Arm
▤ OpenArm-HT Specifications ⌃
Basic Parameters
Specification OpenArm-HT
Vertical Dimension (Zero Position) 689mm
Arm Span 1596mm
Single Arm Weight 6kg
Maximum Payload 5kg
Maximum End-Effector Motion Speed 3.6m/s
Degrees of Freedom 7
Maximum Joint Torque (Peak) 60N·m
Communication Method CAN FD
Joint Motor Models HTDW-7535-02-CNE; HTDW-6036-02-CNE; HTDW-6036-02-DNE; HTDW-5036-02-DNE; HTDW-4438-30-NE-UC (HTDW-4530-02-CNE); HTDW-4438-30-NE (HTDW-4530-02-DNE)
Arm Dimension 758mm
Joint Motion Range
Joint OpenArm-HT
J1 -180° to +90°
J2 -15° to +195°
J3 -90° to +90°
J4 -60° to +130°
J5 -90° to +90°
J6 -45° to +45°
J7 -90° to +90°
