Benewake

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Usage: Vehicle testing
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$175
Version
Communication Interface

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TF02-i LiDAR datasheet with technical specifications.pdf ▶ Benewake TF02-i LiDAR user manual for setup and integration.pdf ▶ Benewake TF02-i LiDAR dimension drawing for installation reference.pdf ▶

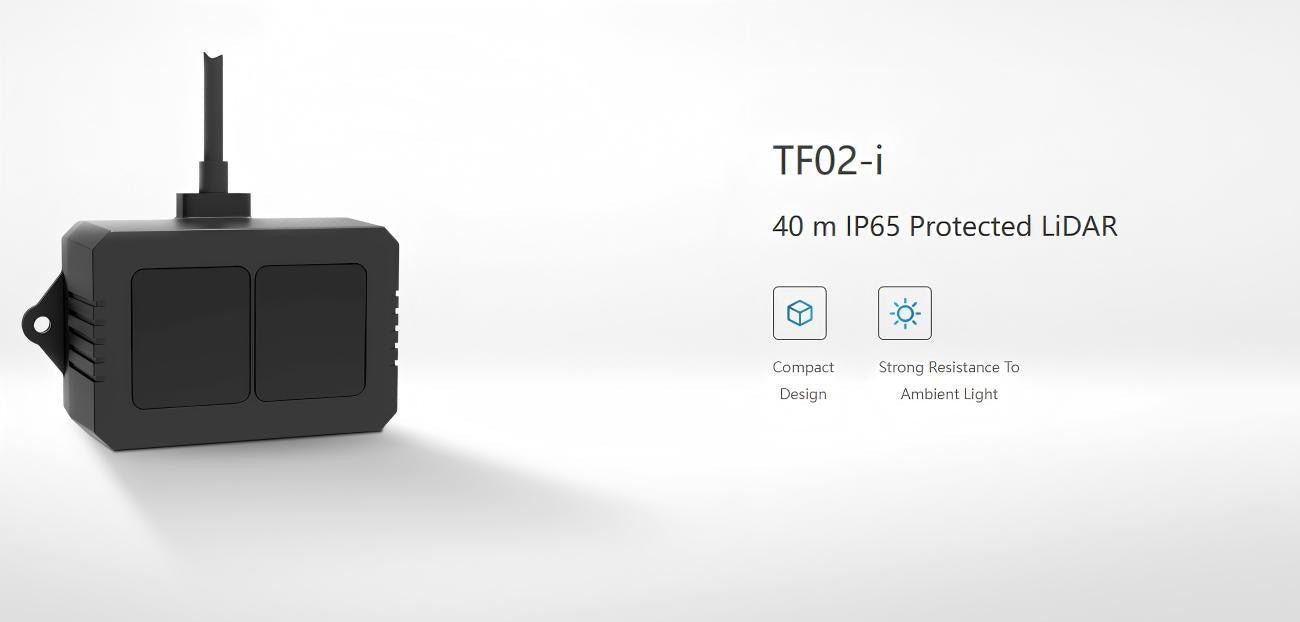

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

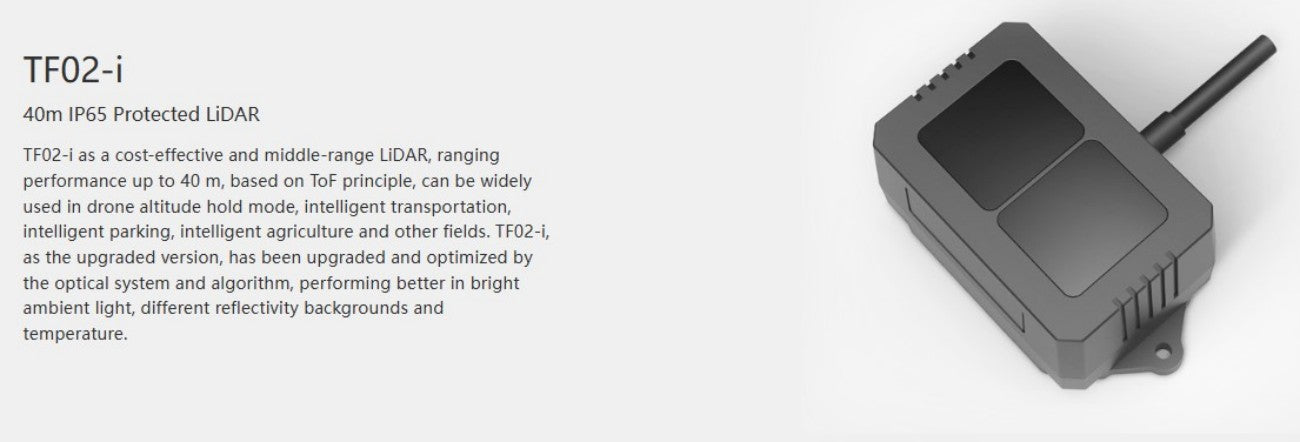

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

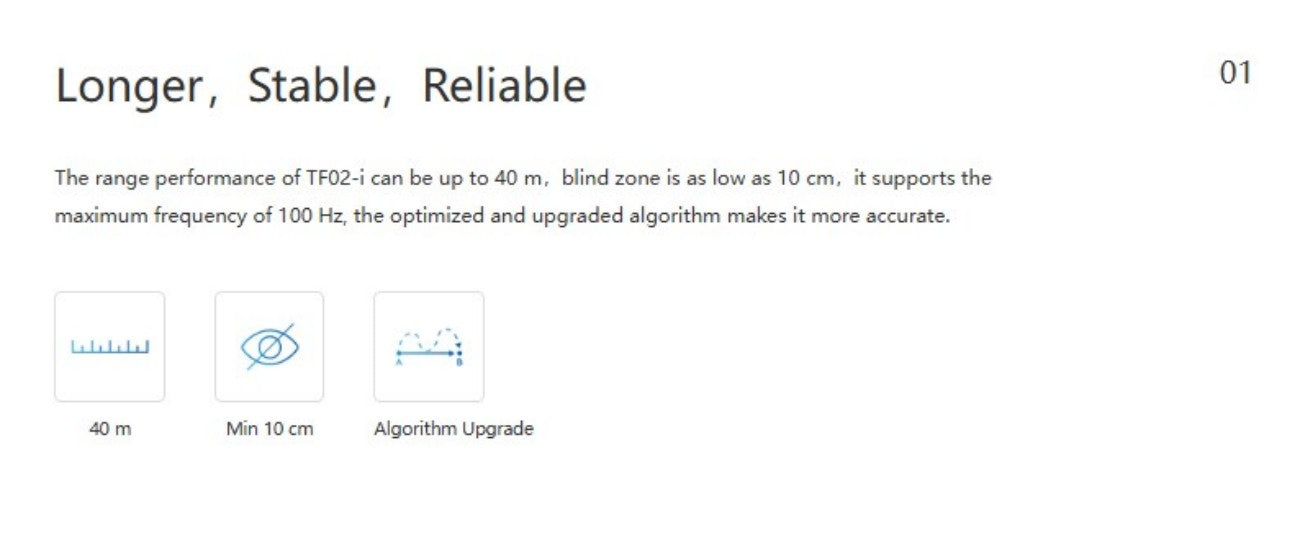

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

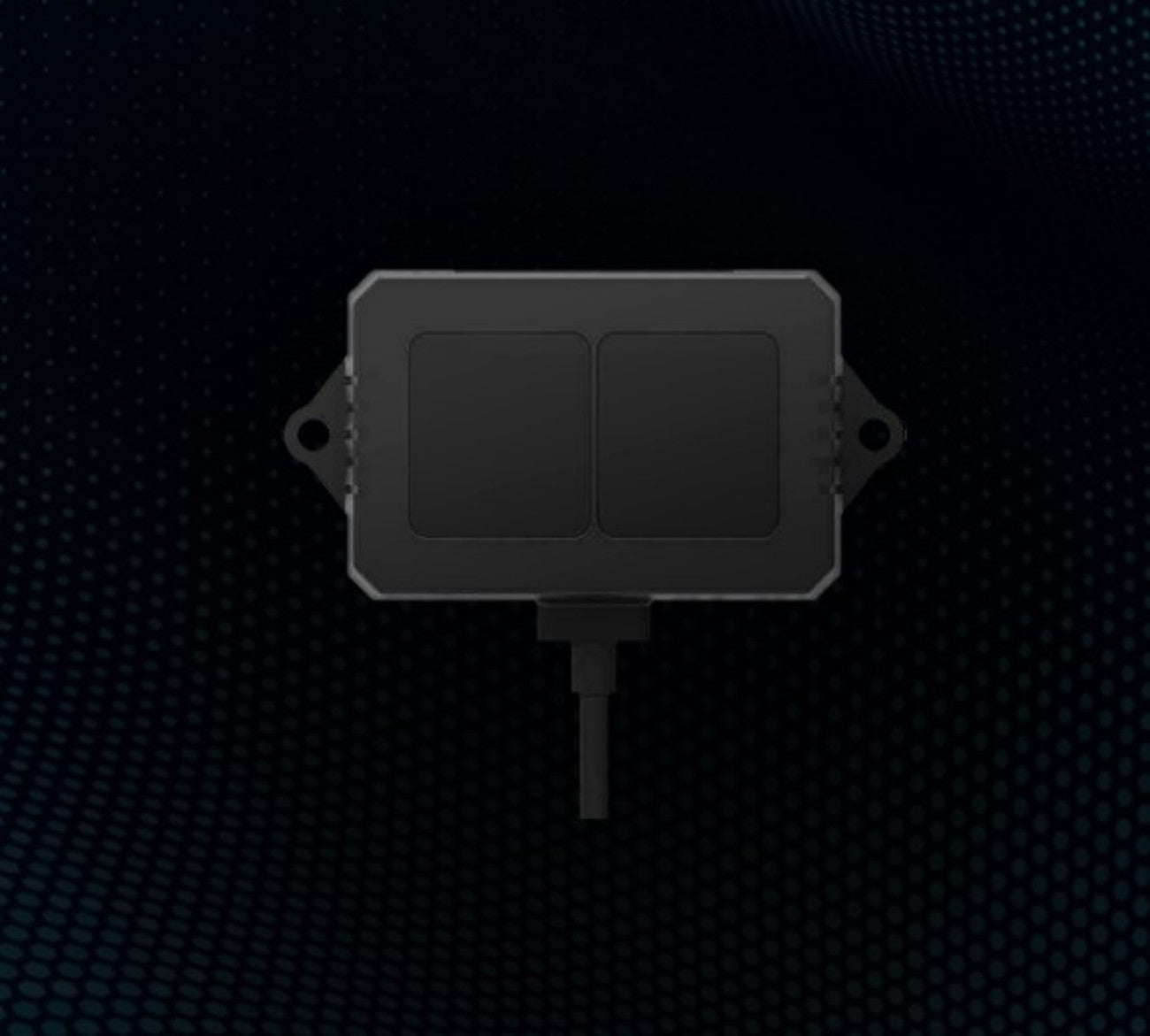

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

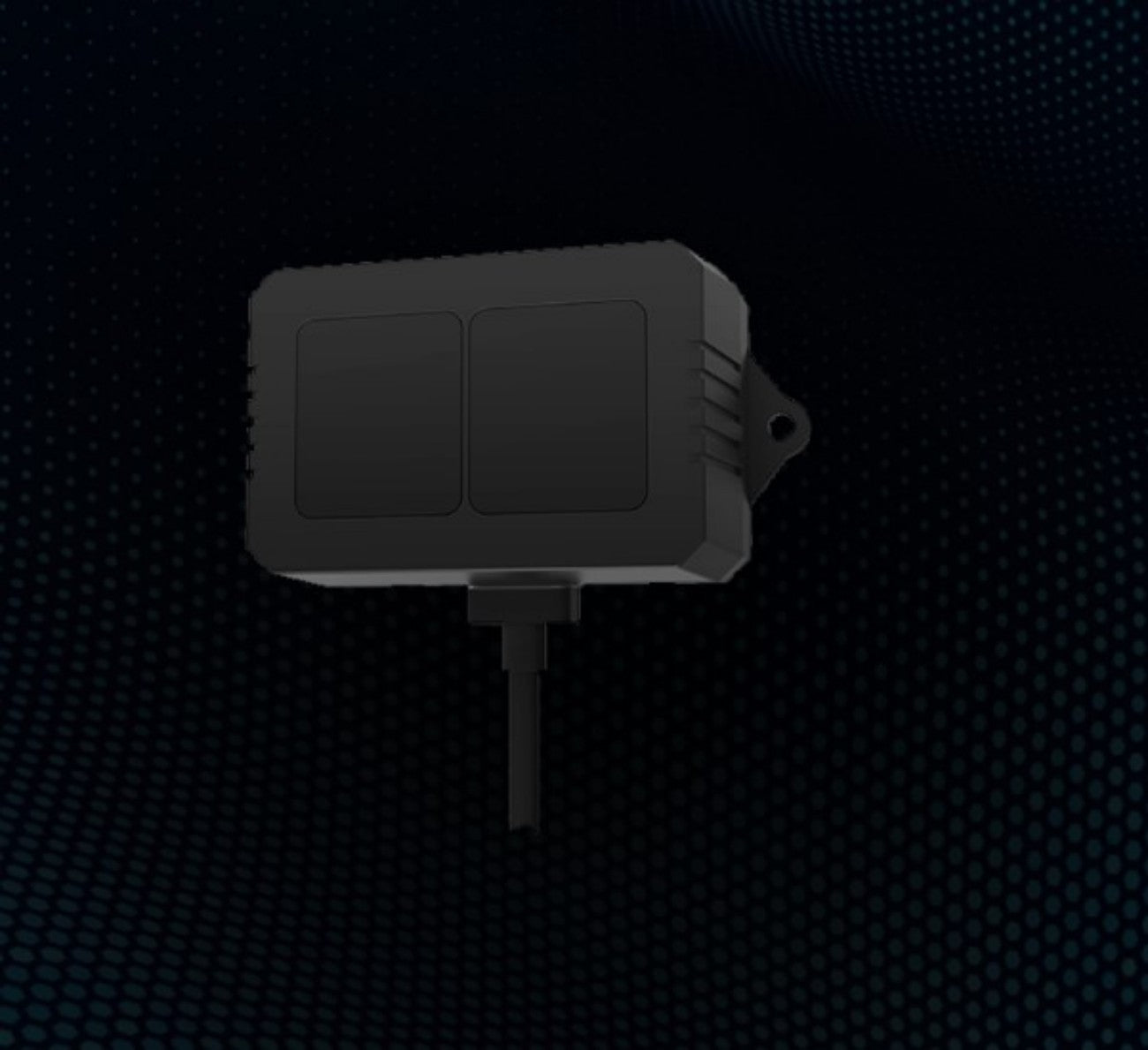

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7

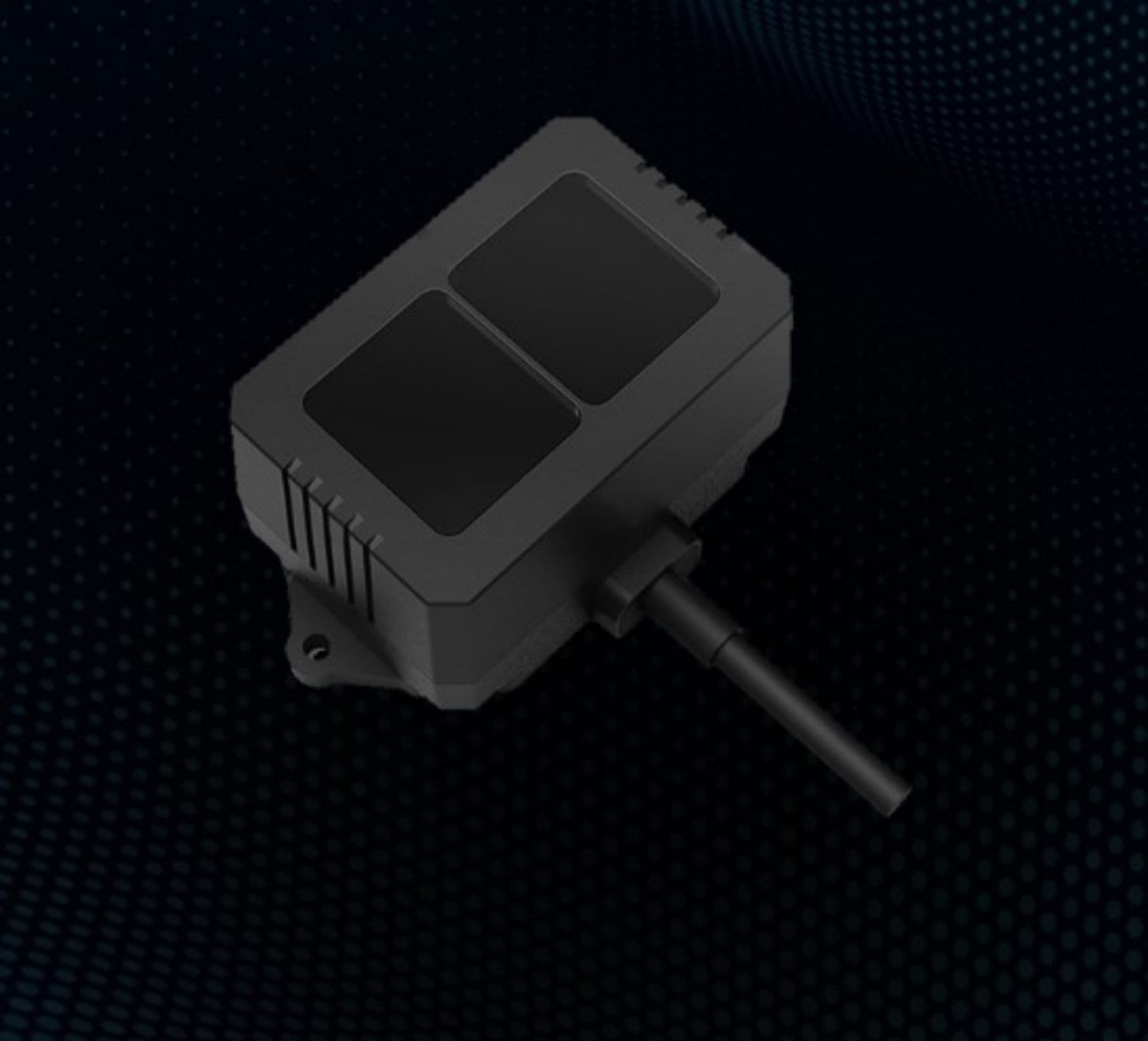

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9

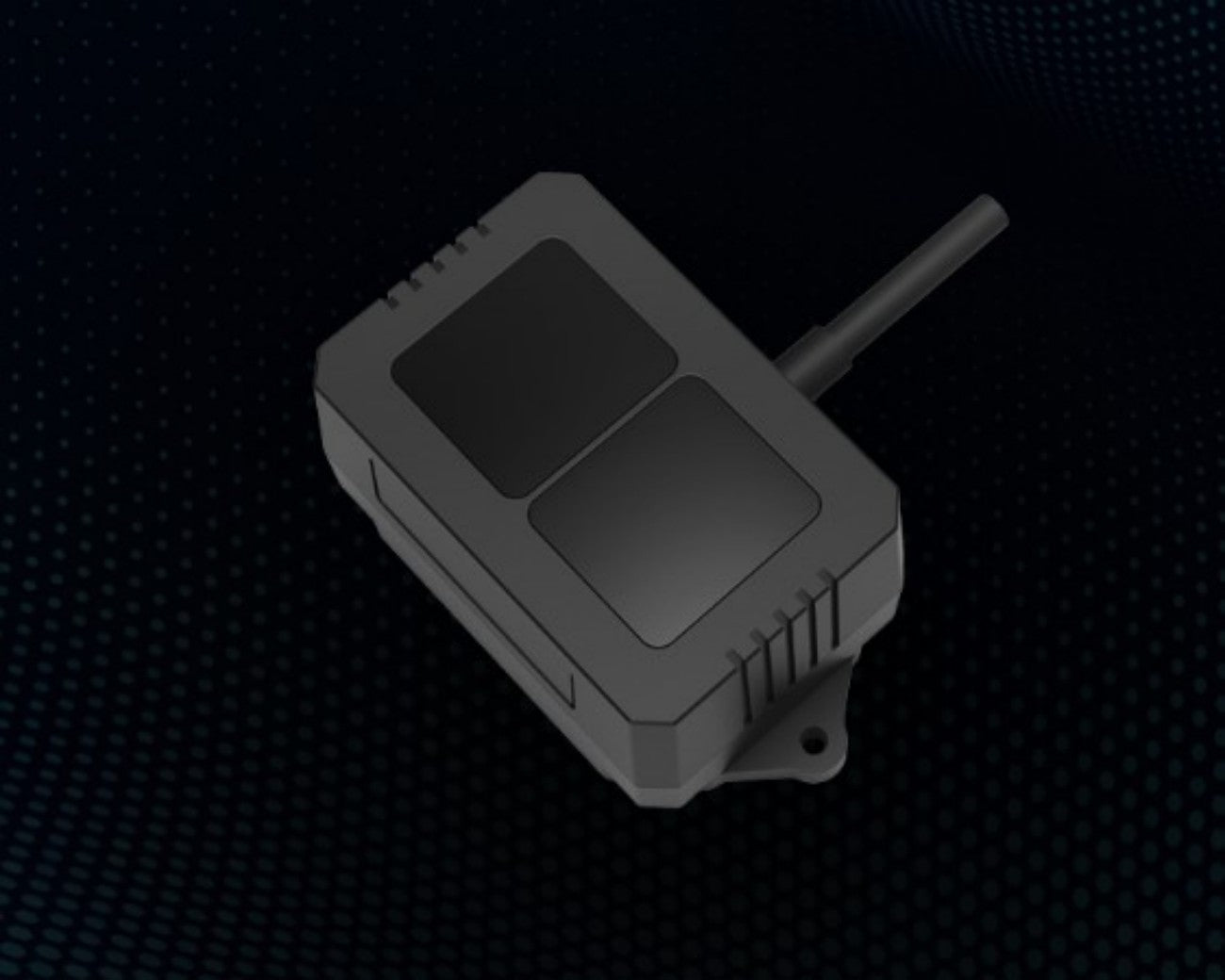

Benewake TF02-i LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10
▤ PARAMETER ⌃
Usage
Vehicle testing
Theory
TOF
Interface
RS-485
Resolution (Bits)
1cm
Amplifier Type
VCSEL
Manufacturer Part Number
TF02-i
Operating Temperature
-20~60°C
Brand Name
Benewake
Place of Origin
Beijing, China
Brand
Benewake tf02-i lidar
Voltage - Supply
7~30V
Current - Supply
≤70mA@12V
Package / Case
PC/ABS/PMMA
Frequency
100Hz
Size / Dimension
69mm x 41.5mm x 31.5mm (L*W*H)
Measuring Range
0.1~40m @90% reflectivity
Cross Reference
no
Product name
Pedestrian detection benewake tf02-i lidar medium range sensor
Distance resolution
1cm
Frame rate
100Hz
Ambient light immunity
100Klux
Operation temperature
-20~60°C
Enclosure rating
IP65
Light source
VCSEL
Central wavelength
850nm
FOV
3°
Supply voltage
7~30V
Selling Units
Single item
Single package size
12.5 x 9.5 x 5 cm
Single gross weight
0.500 kg
