TTBOT

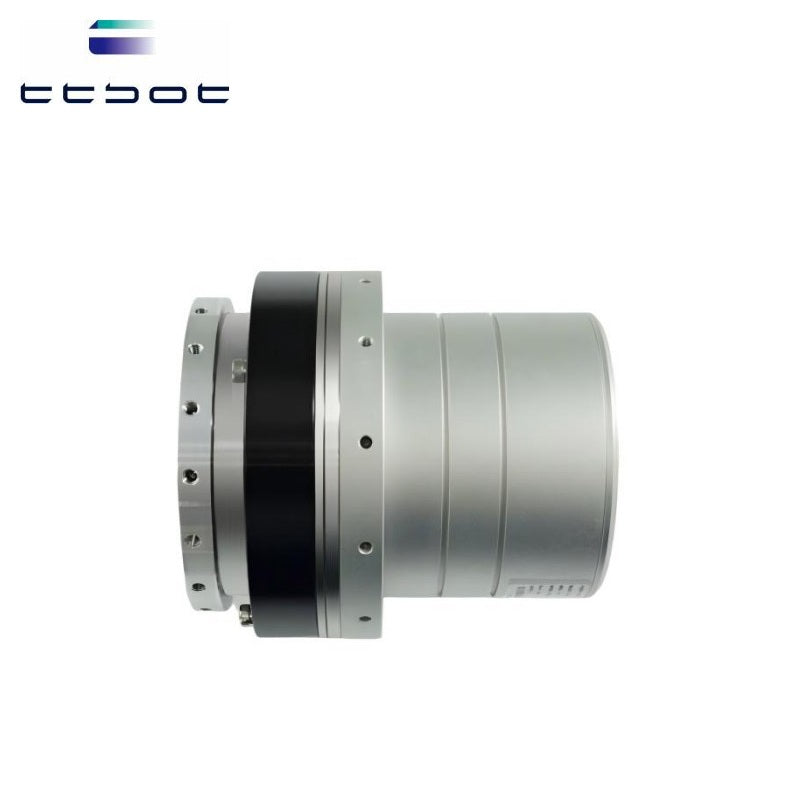

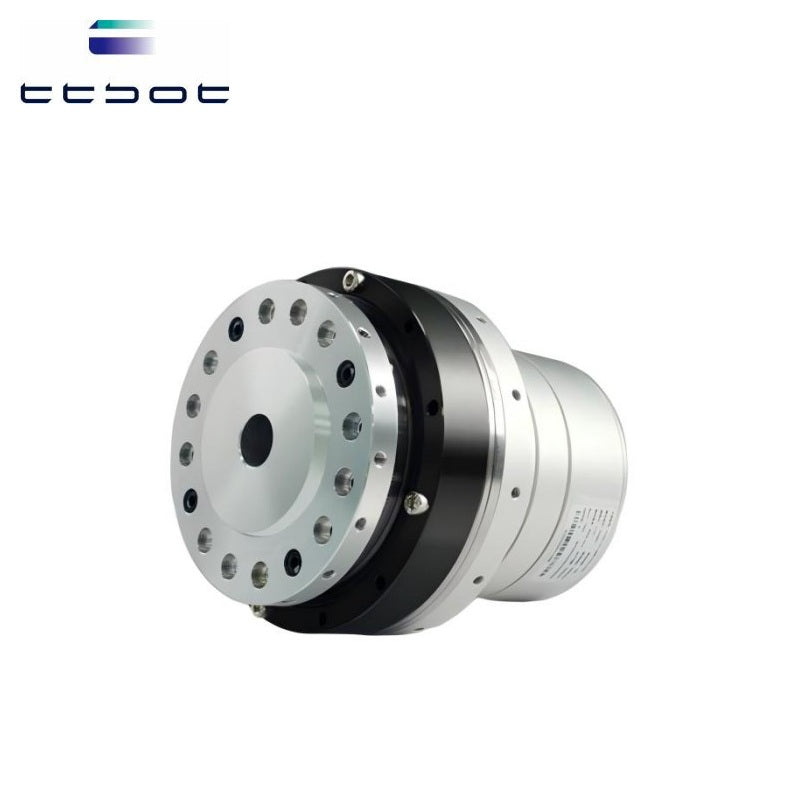

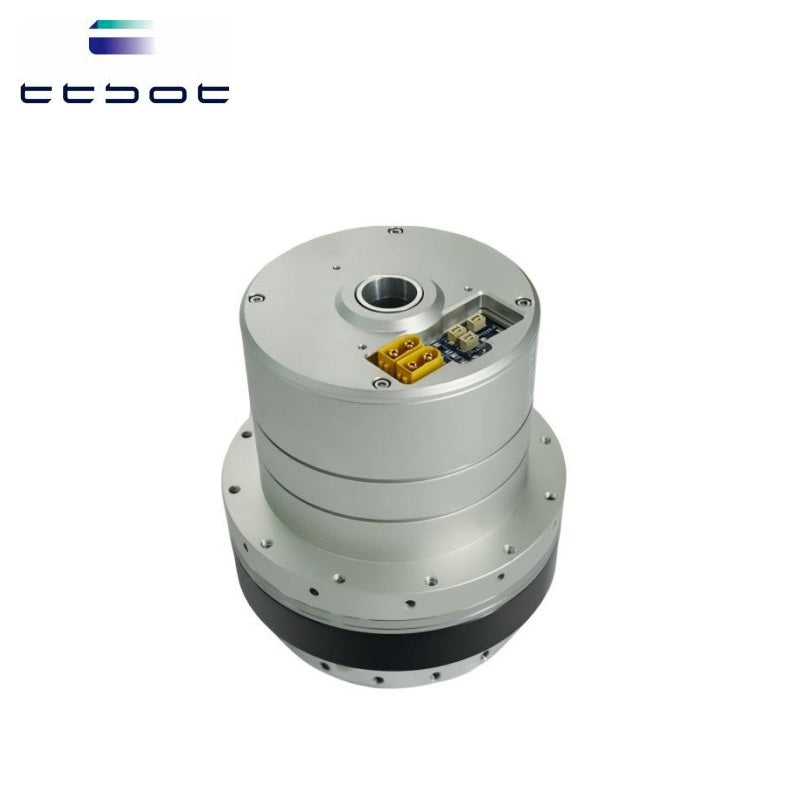

TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development

  • TTBOT robot servo motor for robot joints, actuator assemblies, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototypes, and motion-control systems.
  • Designed for practical integration in robot actuator, compact mechanism, and embedded control applications.
  • Useful for robotics labs, automation engineers, and hardware developers selecting motor components for robot platforms.
$1,545
Version
Communication
Gear ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

TTBOT HJ32 Motor dimension drawing for installation reference.pdf ▶ TTBOT HJ32 Motor CAD model for mechanical integration.stp ▶

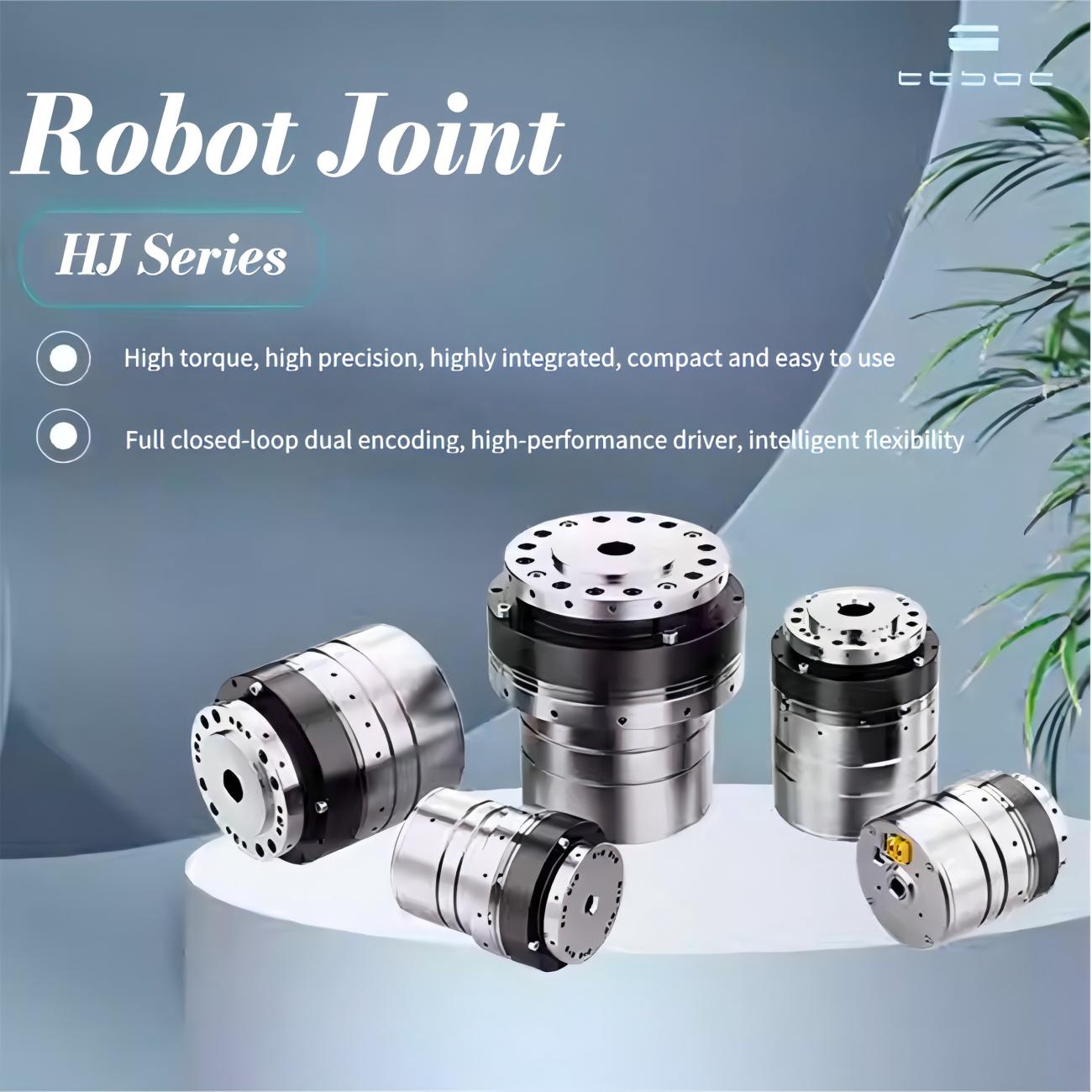

TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development detail image 1

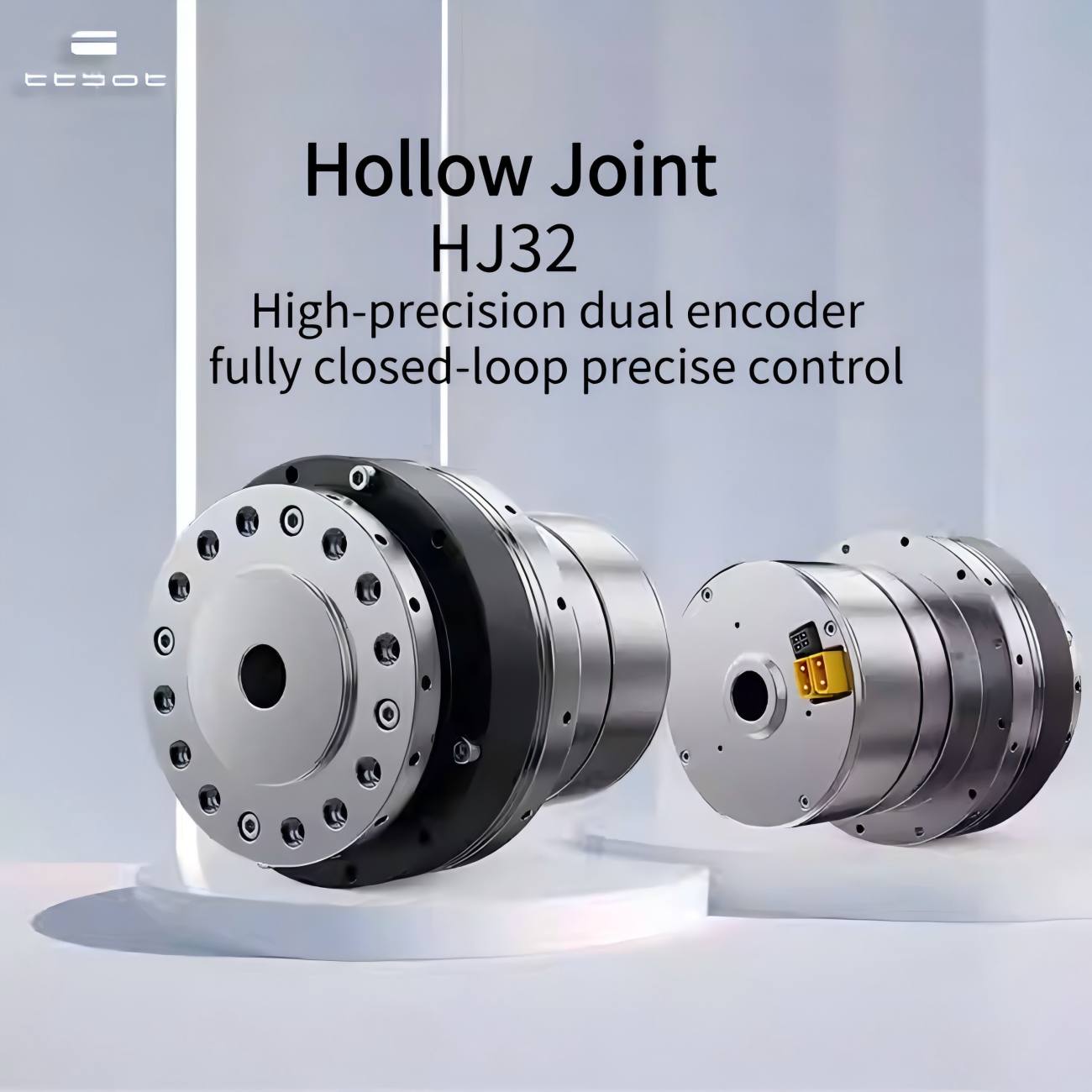

TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development detail image 2

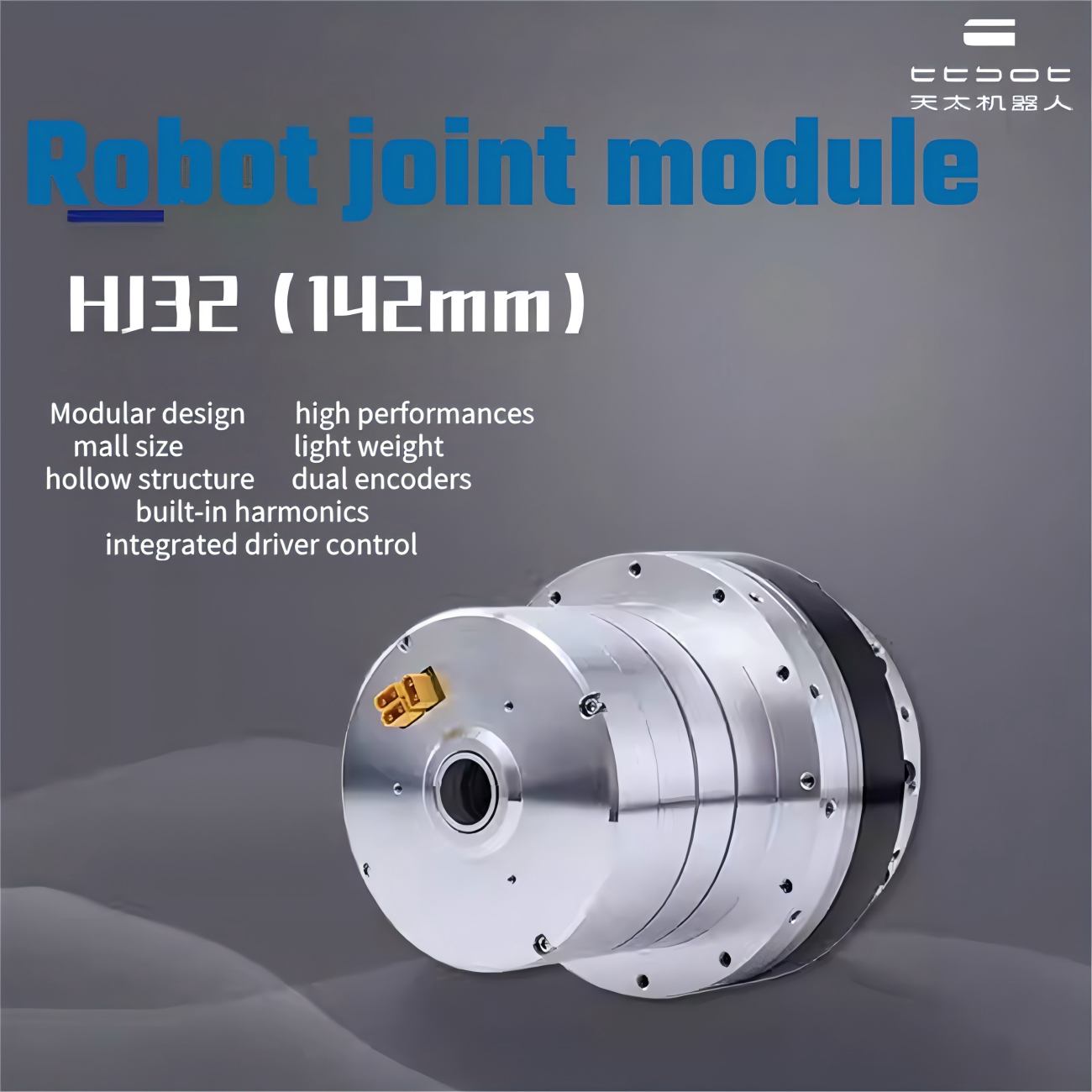

TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development detail image 3

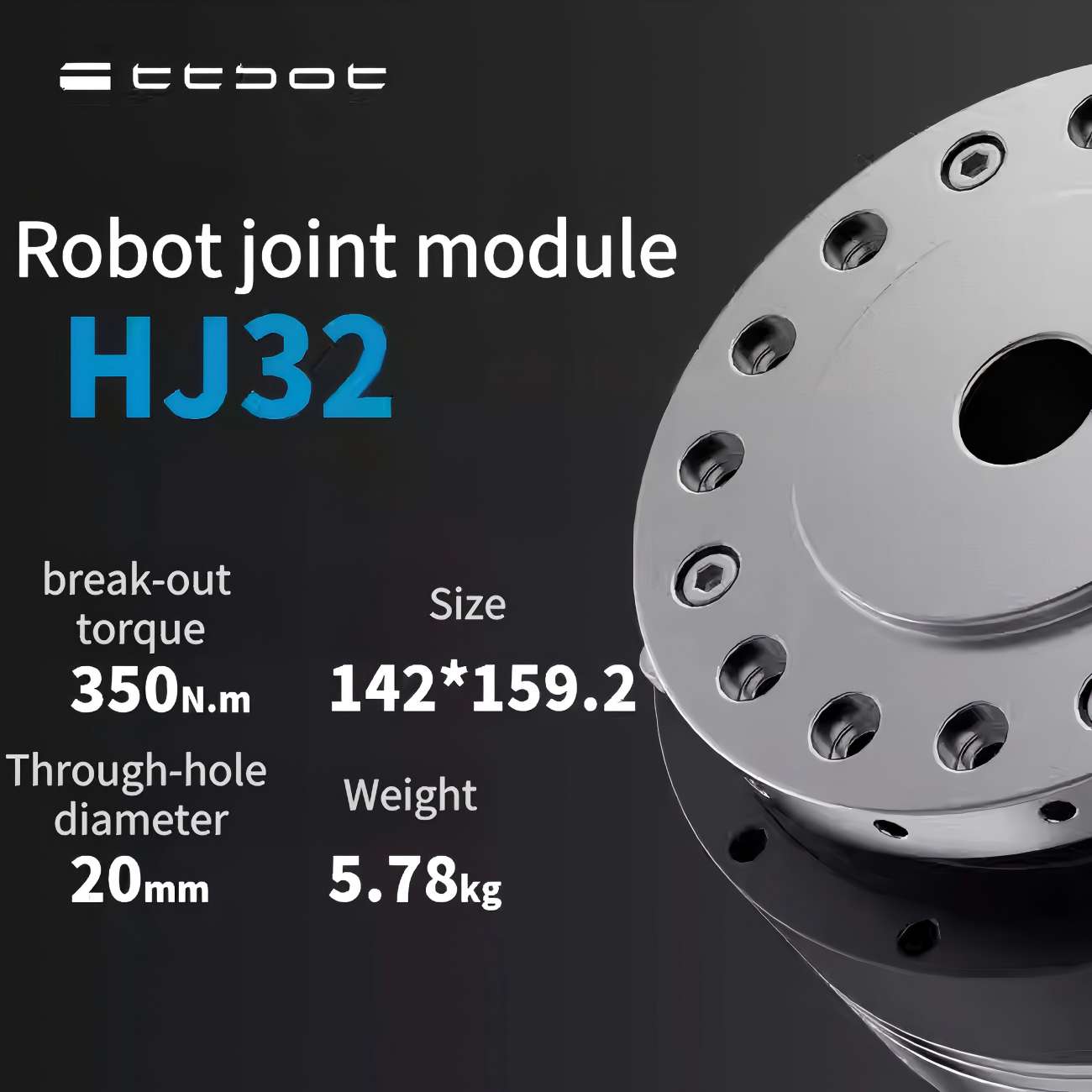

TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development detail image 4

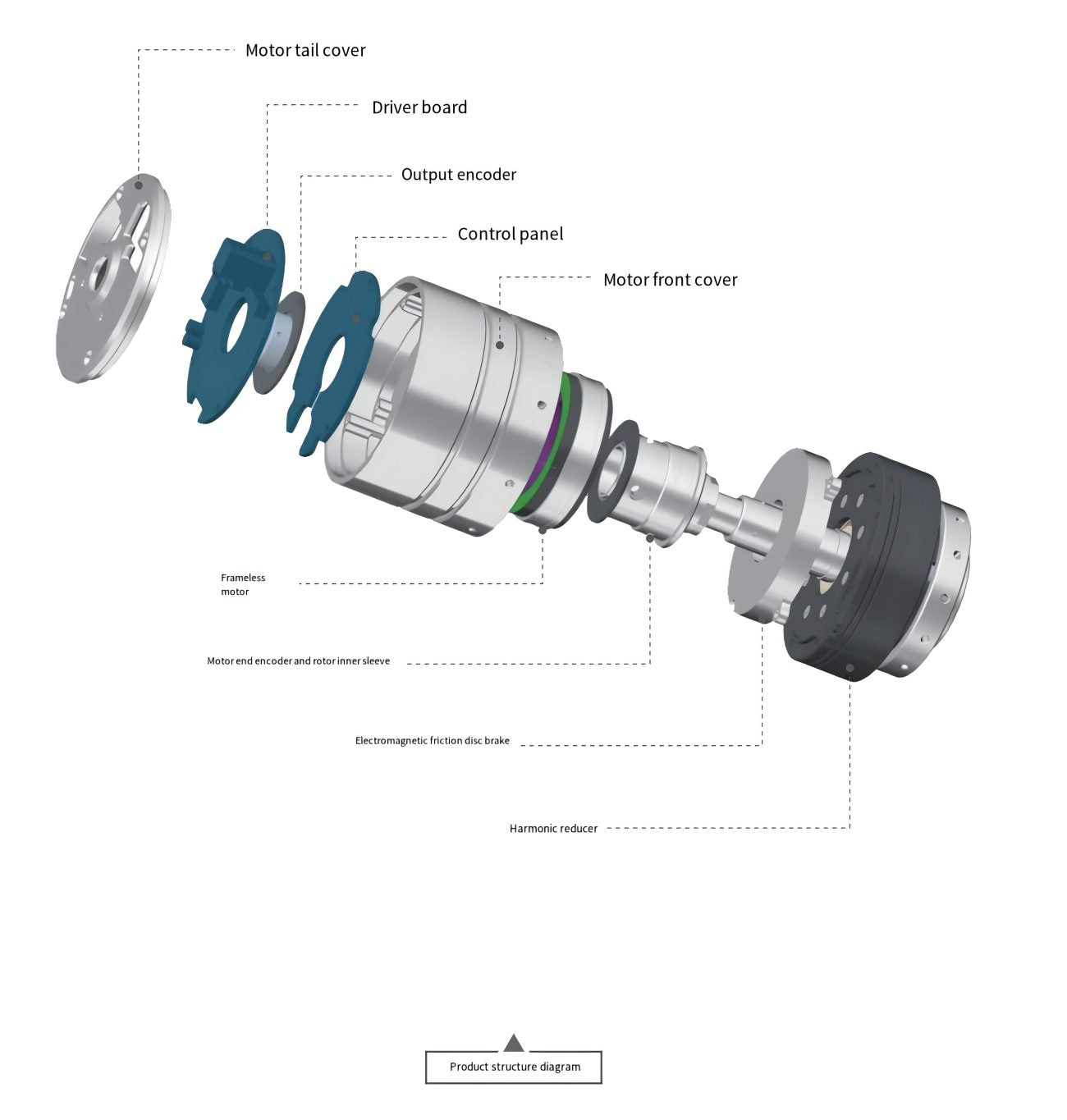

TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development detail image 5

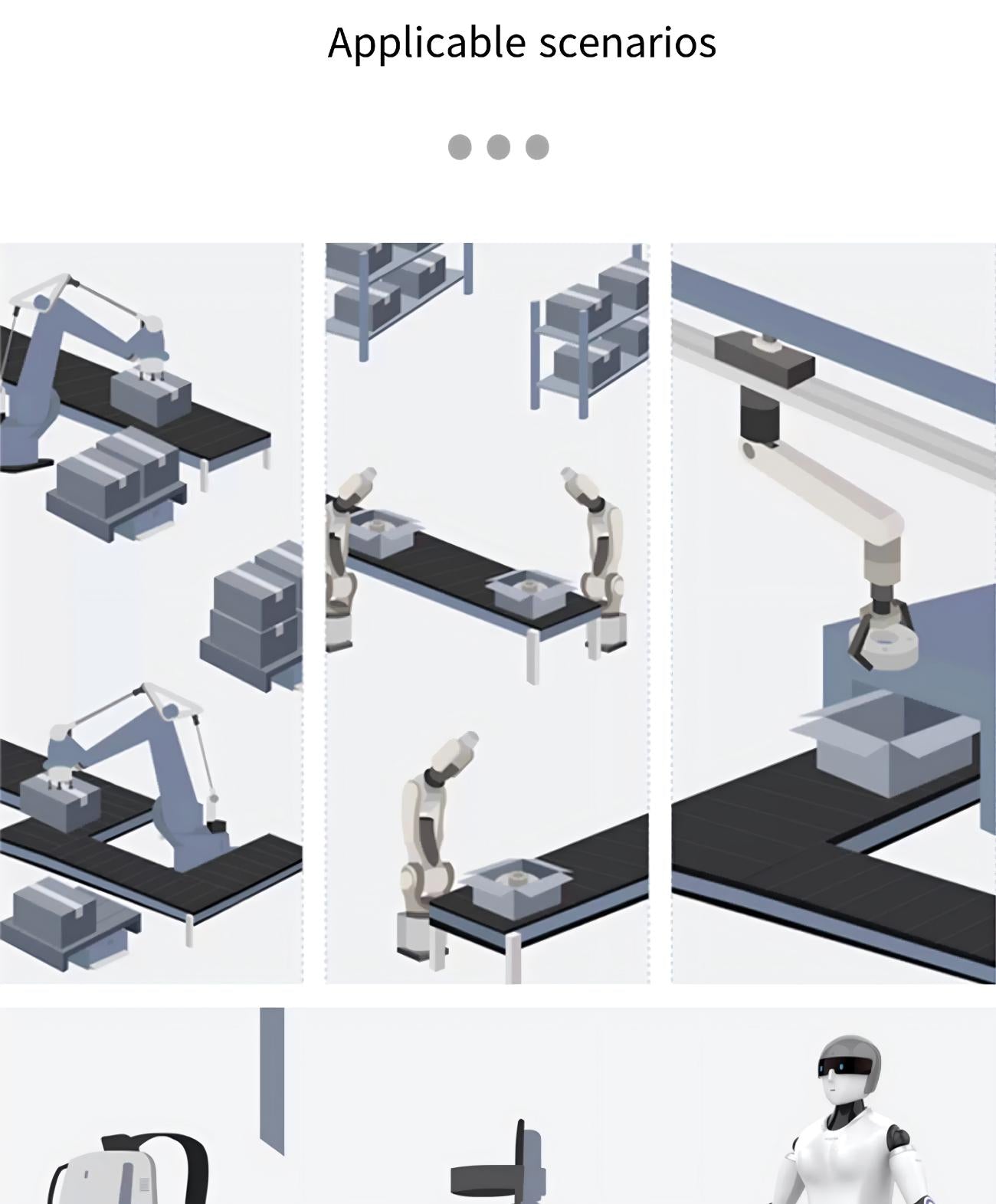

TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development detail image 6
TTBOT HJ32 Motor | Robot Servo Motor for Robotics Development detail image 7
▤ Technical Specifications ⌃
Parameter Value 1 Value 2
Supply Voltage 48V DC 48V DC
Motor Power 600W 600W
Motor Rated Current 15A 15A
Motor Peak Current 45A 45A
Back EMF Constant 8.3Vrms/KRPM 8.3Vrms/KRPM
Module Rated Motor Speed 2500rpm 2500rpm
Module Peak Motor Speed 3000rpm 3000rpm
Reduction Ratio 101 121
Rated Torque 128N.m 155N.m
Peak Torque 290N.m 350N.m
Starting Torque 290N.m 350N.m
Rated Speed 25rpm 20rpm
Peak Speed 29rpm 25rpm
Allowable/Instantaneous Bending Moment 460/900N.m 460/900N.m
Allowable/Instantaneous Radial Force 1350/2300N 1350/2300N
Allowable/Instantaneous Axial Force 1350/2300N 1350/2300N
Outer Diameter × Length 142×159.2mm 142×159.2mm
Communication Range 20mm 20mm
Weight 5.78kg 5.78kg
Reducer Backlash 20arcsec 20arcsec
Transmission Accuracy 1arcmin 1arcmin

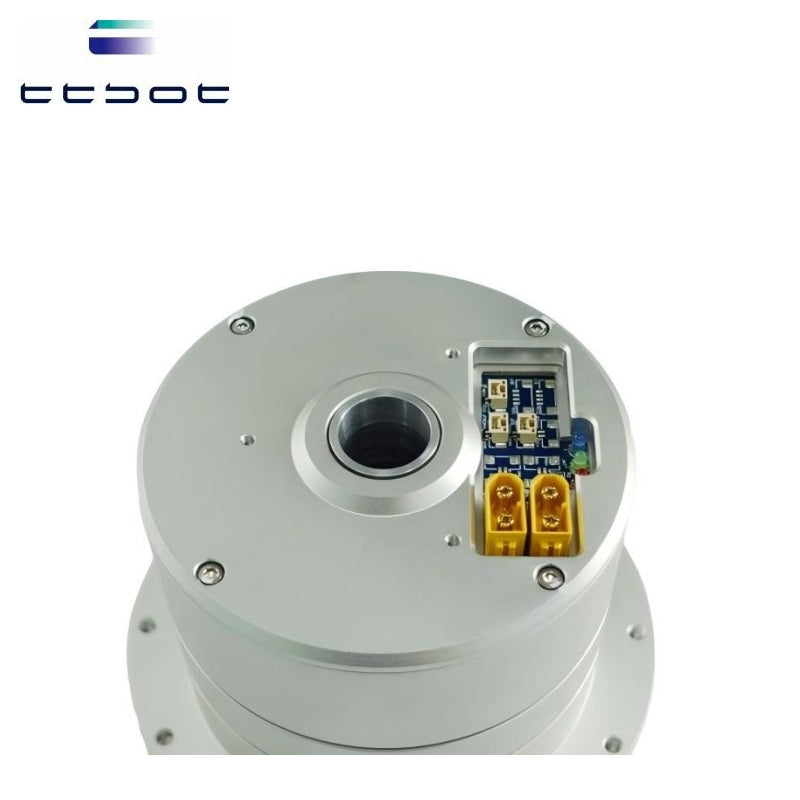

Power Supply Interface XT-60 XT-60
Communication Method & Protocol CAN / EtherCAT CAN / EtherCAT
Communication Interface CAN: GH1.25-2P EtherCAT: GH1.25-4P CAN: GH1.25-2P EtherCAT: GH1.25-4P
Noise ≤70dBA ≤70dBA
Encoder Type 15-bit Absolute Dual Encoder 15-bit Absolute Dual Encoder
Brake Type (Optional) Electromagnetic Friction Plate Type Electromagnetic Friction Plate Type
Protection Class IP6X IP6X
Insulation Class B B
Operating Ambient Temperature 0~40°C 0~40°C
