HONPINE

HONPINE FHD Light Weight Harmonic Reducer | Precision Gearbox for Robot Joint Applications

  • HONPINE harmonic drive reducer for robotic joints and compact actuator modules.
  • Designed for robot arms, automation equipment, and high-precision motion systems.
  • Suitable for robotics developers, research labs, and industrial automation builders.
$320
Version
Model
Reduction Ratio

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Developer Support

HONPINE_FHD_3D_Model_STP for 3D mechanical integration reference. ▶ HONPINE_FHD_Product_structure_diagram for 3D mechanical integration reference. ▶

HONPINE FHD Light Weight Harmonic Reducer

The HONPINE FHD Light Weight Harmonic Reducer is a precision harmonic drive reducer for robotic joints, compact gearboxes, robot actuators, and automation equipment. It is suitable for robotics developers, research labs, and engineering teams building high-precision motion systems.

Features

  • **Precision gearbox platform:** Designed for compact robotic joint and actuator applications.
  • **Robotics integration:** Suitable for robot arms, automation equipment, and motion modules.
  • **Engineering-focused:** Built for research, prototyping, and industrial automation builders.
  • **Source-backed listing:** Product data is extracted from the reference product page.

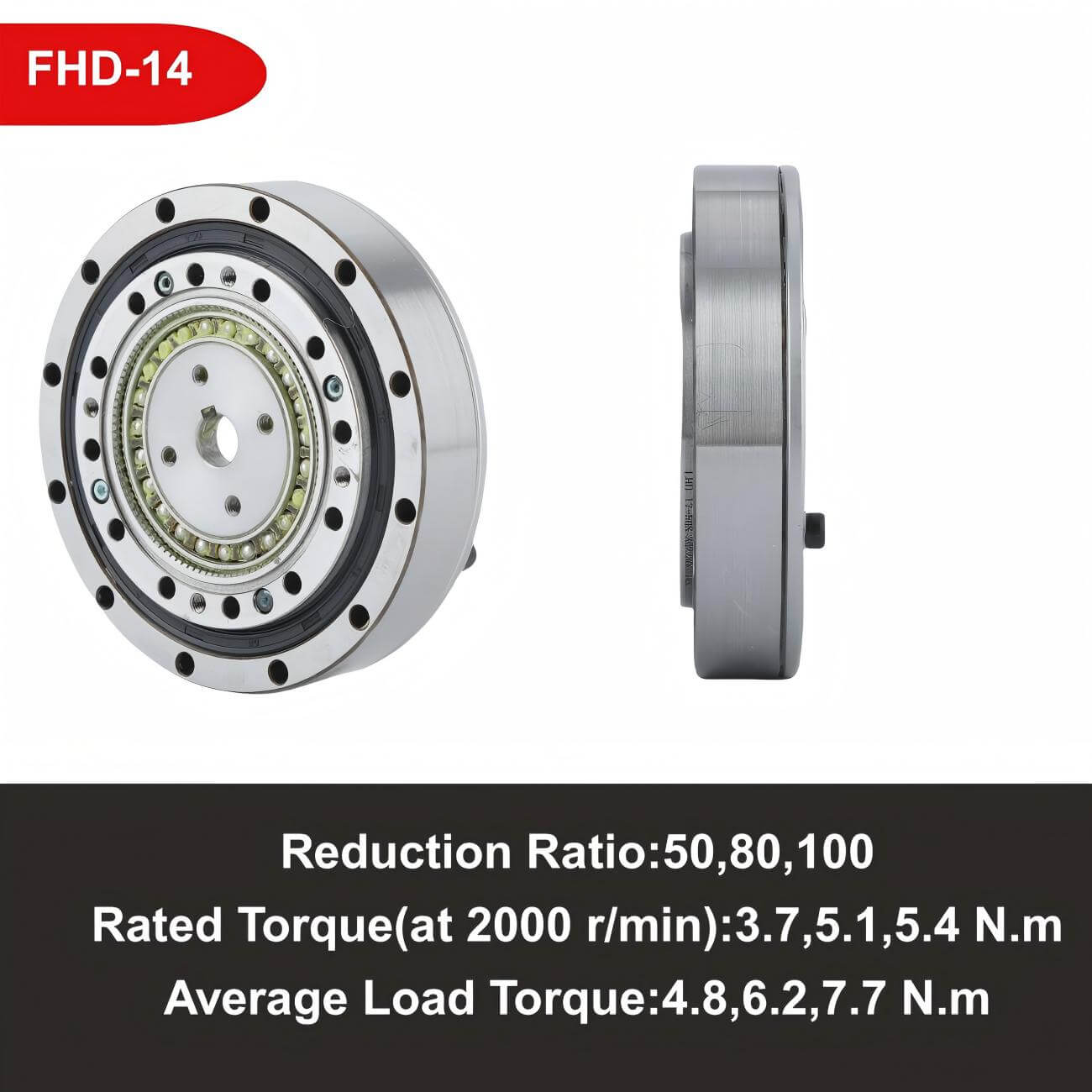

HONPINE FHD Light Weight Harmonic Reducer detail image 1
HONPINE FHD Light Weight Harmonic Reducer detail image 2
HONPINE FHD Light Weight Harmonic Reducer detail image 3

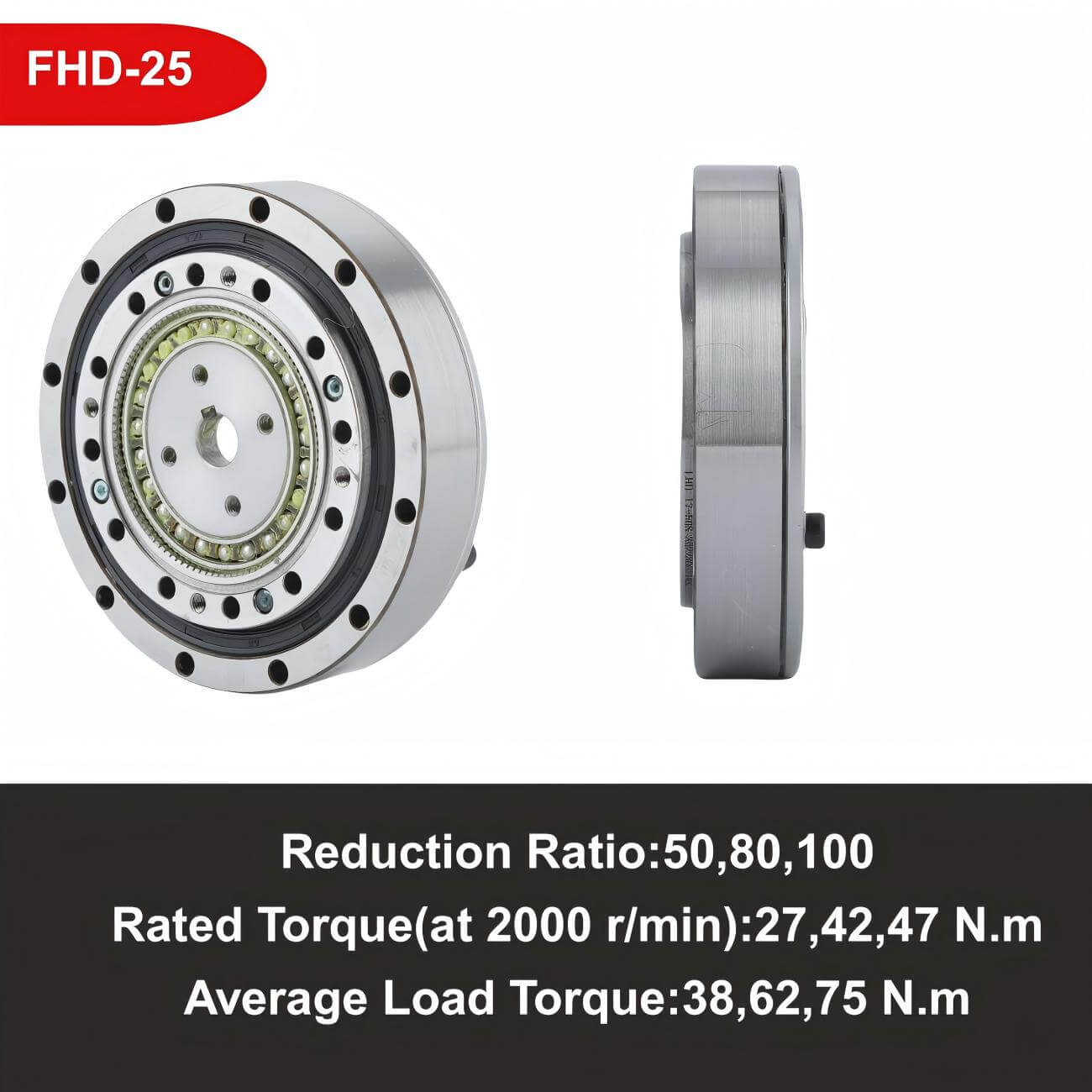

HONPINE FHD Light Weight Harmonic Reducer detail image 4
HONPINE FHD Light Weight Harmonic Reducer detail image 5
▤ Technical Specifications ⌃
FHD Series Parameter Table : Sheet 1 - Starting torgue of FHD series unit:cNm
Type Reduction ratio 14 17 20 25 32
50 6.2 19 25 39 60
80 5 16 23 36 55
100 4.8 17 22 34 50
FHD Series Parameter Table : Sheet 2
Model Value Instant permissible value
FHD-14 Mb di41Nm Mb max 80Nm
Ft di 270N Ft max 490N
Fa di270N Fa max 490N
FHD-17 Mb di59Nm Mb max 140Nm
Ftdi 330N Ftmax 570N
Fa di330N Fa max 570N
FHD-20 Mbdi117Nm Mb max 230Nm
Ftdi 550N Ft max 975N
Fa di 550N Fa max975N
FHD-25 Mb di213Nm Mb max 420Nm
Ftdi790N Ft max 1400N
Fa di790N Fa max 1400N
FHD-32 Mb di400Nm Mb max800Nm
Ftdi1240N Ft max2100N
Fa di 1240N Fa max 2100N
FHD Series Parameter Table : Sheet 3
Model Reduction ratio Rated torque at 2000r/min input (Nm) Permissible peak torque at start and stop (Nm) Permissible maximum value for average load torque (Nm) Permissible maximum momentary torque (Nm) Permissible maximum input rotational speed(Grease) (r/min) Permissible average input rotational speed(Greaae) (r/min) Backlash (Arc Sec) Weight (Kg) Desian life (Hour)
14 50 3.7 12 4.8 23 8500 3500 ≤20 FHD-I:0.34 FHD-II:0.64 9000
80 5.1 15 6.2 29 10000
100 5.4 19 7.7 35 10000
17 50 11 23 18 48 7300 3500 ≤20 FHD-I:0.42 FHD-II:0.87 9000
80 14 29 21 54 10000
100 16 37 27 71 10000
20 50 17 39 24 69 6500 3500 ≤20 FHD-I:0.54 FHD-II:1.14 9000
80 23 49 28 78 10000
100 28 57 34 95 10000
25 50 27 69 38 127 5600 3500 ≤20 FHD-I:0.95 FHD-II:1.75 9000
80 42 91 62 157 10000
100 47 110 75 184 10000
32 50 53 151 75 268 4800 3500 ≤20 FHD-I:1.90 FHD-II:3.56 9000
80 79 202 126 350 10000
100 96 233 151 420 10000
