Hinson

Hinson HE-3091FA1001 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection Distance (90% reflectivity): 0.05 ~ 30 m
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$369
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Hinson HE-3091FA1001 LiDAR dimension drawing for installation reference.pdf ▶ Hinson HE-3091FA1001 LiDAR CAD model for mechanical integration.stp ▶

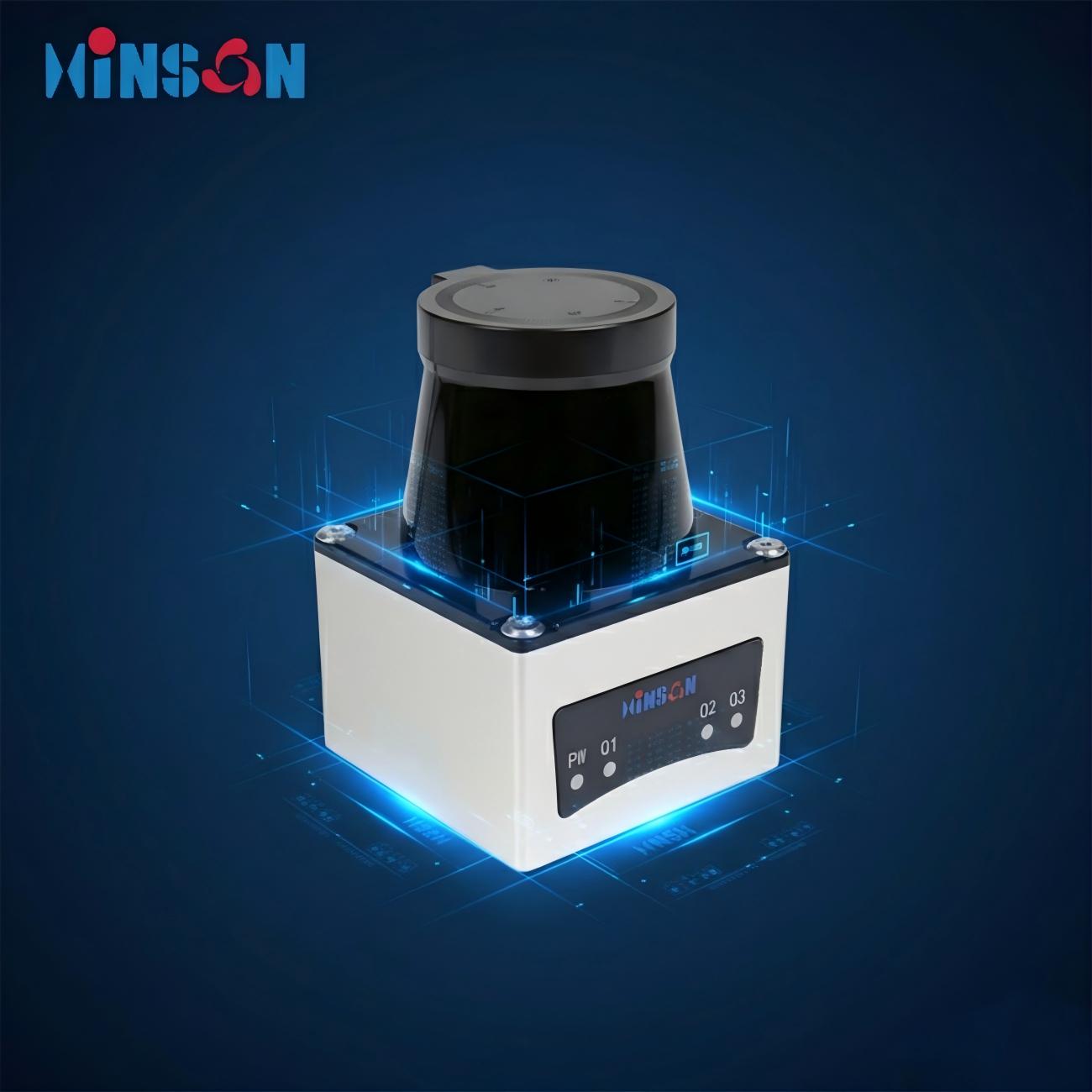

Hinson HE-3091FA1001 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

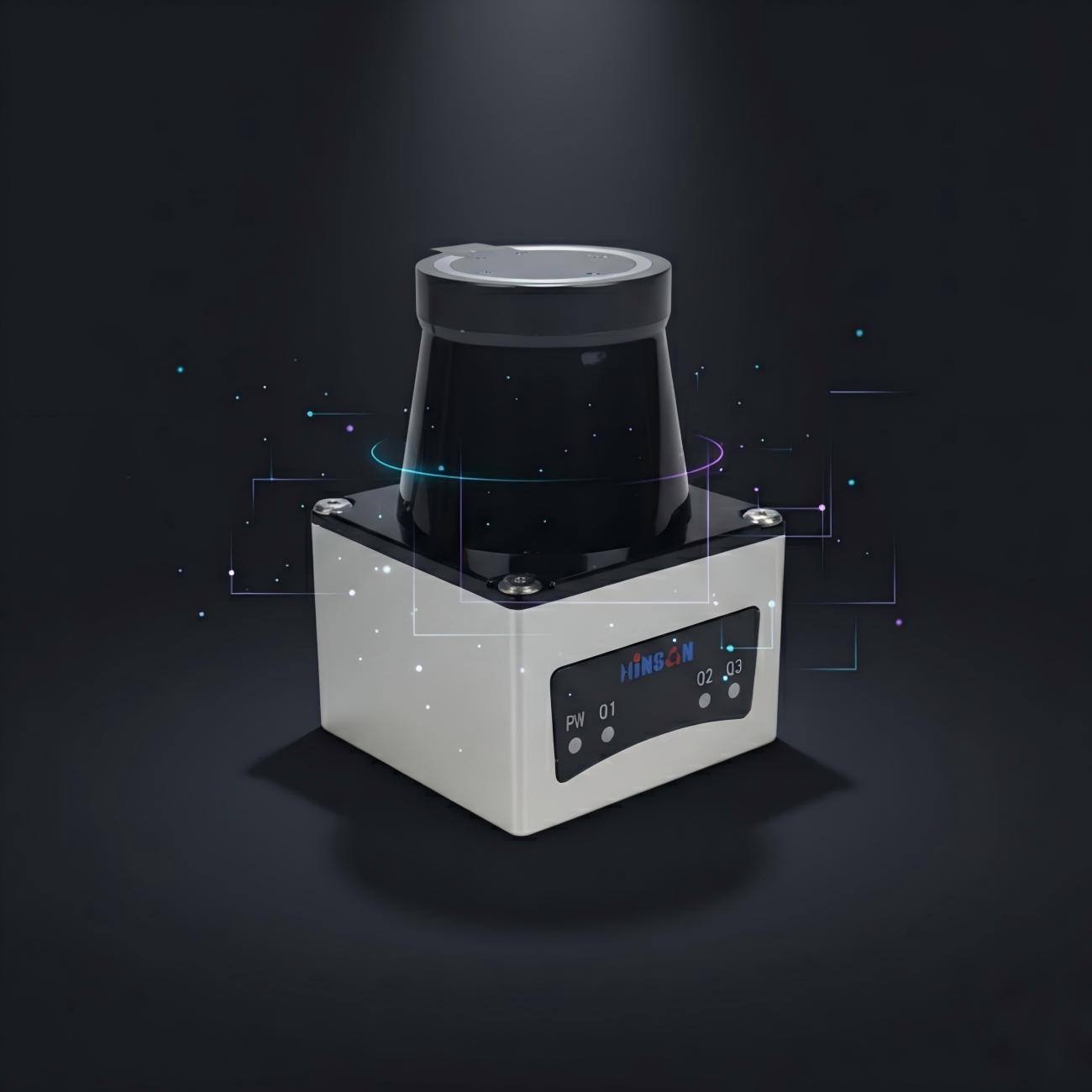

Hinson HE-3091FA1001 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
▤ PARAMETER ⌃
Detection Distance (90% reflectivity)
0.05 ~ 30 m
Detection Distance (10% reflectivity)
0.05 ~ 10 m
Detection Angle
320° (2D)
Measurement Frequency
432 kHz
Scan Frequency
15 Hz / 30 Hz (configurable)
Point Cloud Angular Resolution
0.025° / 0.05° / 0.1° / 0.25° / 0.5°
Recognizable Object Shape
Any shape, resolution depends on detection distance
Absolute Accuracy
±20 mm
Repeat Accuracy
±20 mm
Measurement Noise
±10 mm
Detection Output Delay
0‑500 ms configurable
Detection Hold Delay
0‑500 ms configurable
Digital Input
4 × NPN
Digital Output
4 × NPN
Configuration Port
TCP/UDP
Number of Echoes
3 (1st, 2nd, last, max. energy)
Obstacle Avoidance Channels
64 (communication), 16 (I/O)
Operating Voltage
DC 12 ~ 30 V
Rated Power
3 W
Laser Class
905 nm Class 1 (IEC 60825-1:2014)
Indicator LEDs
4 × LED (green, yellow, orange, red)
Cable
1 m direct outgoing cable (customizable length)
Material
Base: aluminum alloy; Scanning window: PUMA with nano-coating
Protection Rating
IP65
Object Reflectivity
2 ~ 1000%
Ambient Light
< 80000 Lux (sunlight resistant)
Operating Environment
Indoor use, -10°C ~ 50°C, <80% RH (non-condensing)
