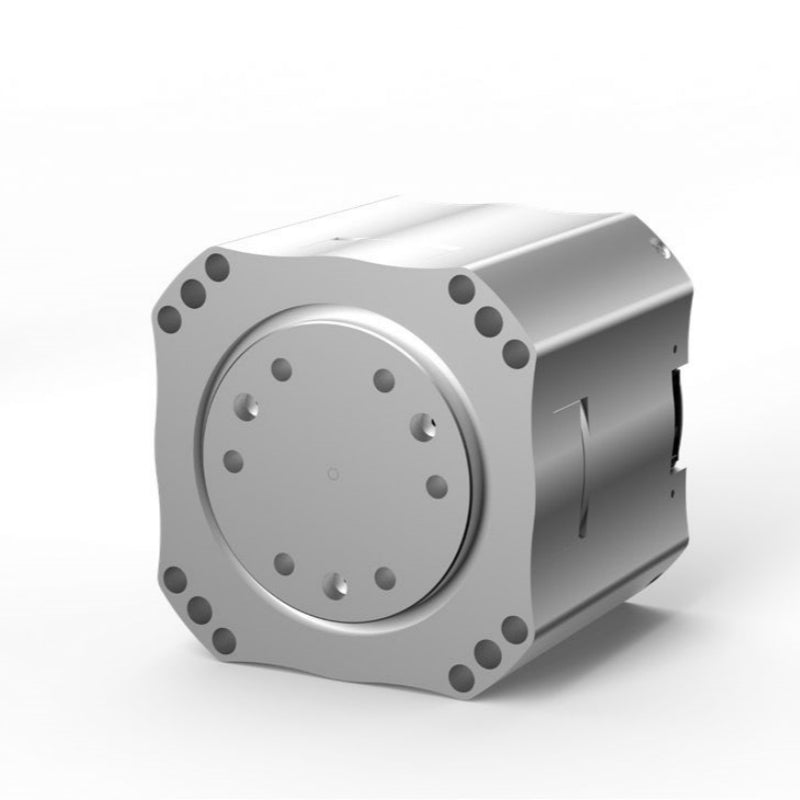

HIGH TORQUE HTDW-6036-02-CNE Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and advanced robotics research platforms.
  • Compact planetary joint module with integrated motor and gearbox design.
  • 36:1 reduction ratio provides high torque output for robotic motion control.
  • Cross roller bearing structure improves joint stability and load performance.
  • CANFD/CAN communication enables flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTDW-6036-02-CNE Planetary Joint Module

The HIGH TORQUE HTDW-6036-02-CNE is a compact planetary joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. Featuring an integrated motor, planetary gearbox, cross roller bearing structure, encoder feedback, and communication interface, it provides a reliable joint actuator solution for precise robotic motion control and research applications.

Compact Integrated Joint Design

The HTDW-6036-02-CNE features a compact 60 × 56 mm structure with an integrated motor and gearbox design. The optimized mechanical layout helps reduce system complexity while providing a practical actuator solution for robotic joints with limited installation space.

36:1 Planetary Reduction System

Equipped with a 36:1 reduction ratio, the module delivers efficient torque transmission for robotic motion applications. It provides 10 Nm rated torque and up to 36 Nm locked-rotor torque, making it suitable for humanoid robots, robotic arms, and other high-performance robotic systems.

Cross Roller Bearing Structure

The HTDW-6036-02-CNE adopts a cross roller bearing design to improve joint rigidity and load handling capability. This structure helps maintain stable operation in robotic applications requiring precise positioning and consistent mechanical performance.

High-Precision Motion Feedback

The integrated encoder system provides 14-bit input and output encoder resolution, enabling accurate position feedback and responsive joint control. It supports precise motion control for robotics development, education, and research platforms.

CANFD/CAN Communication Integration

Supporting CANFD/CAN communication with up to 3 kHz control frequency, the joint module allows flexible integration with robotic controllers and embedded systems. It is suitable for building humanoid robots, robotic arms, and next-generation automation platforms.

HIGH TORQUE HTDW-6036-02-CNE Planetary Joint Module
▤ PARAMETER ⌃

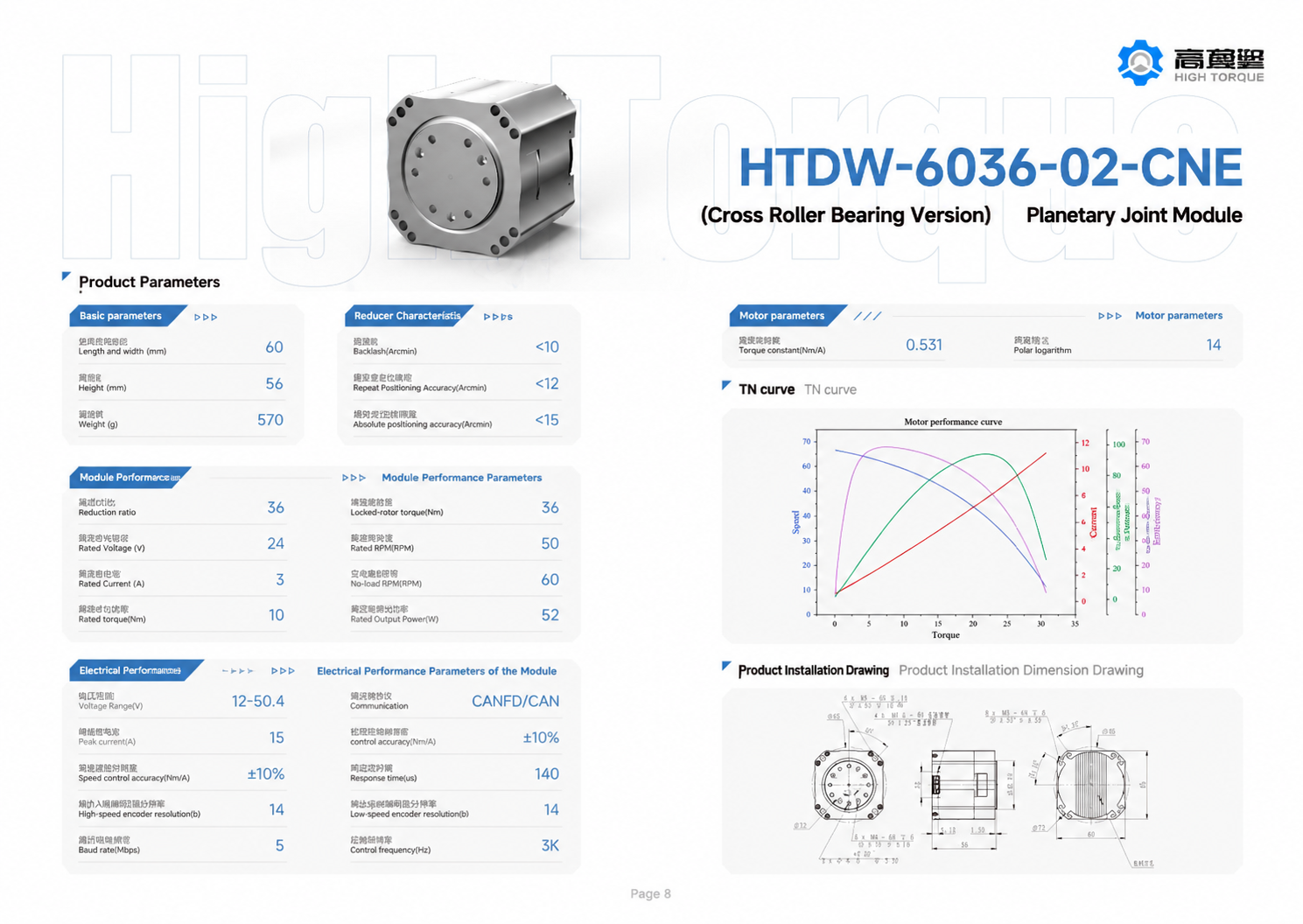

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 60 mm
Height 56 mm
Weight 570 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 36
Rated Voltage 24 V
Rated Current 3 A
Rated Torque 10 Nm
Locked-Rotor Torque 36 Nm
Rated RPM 50 RPM
No-Load RPM 60 RPM
Rated Output Power 52 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 15 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
