OCServo

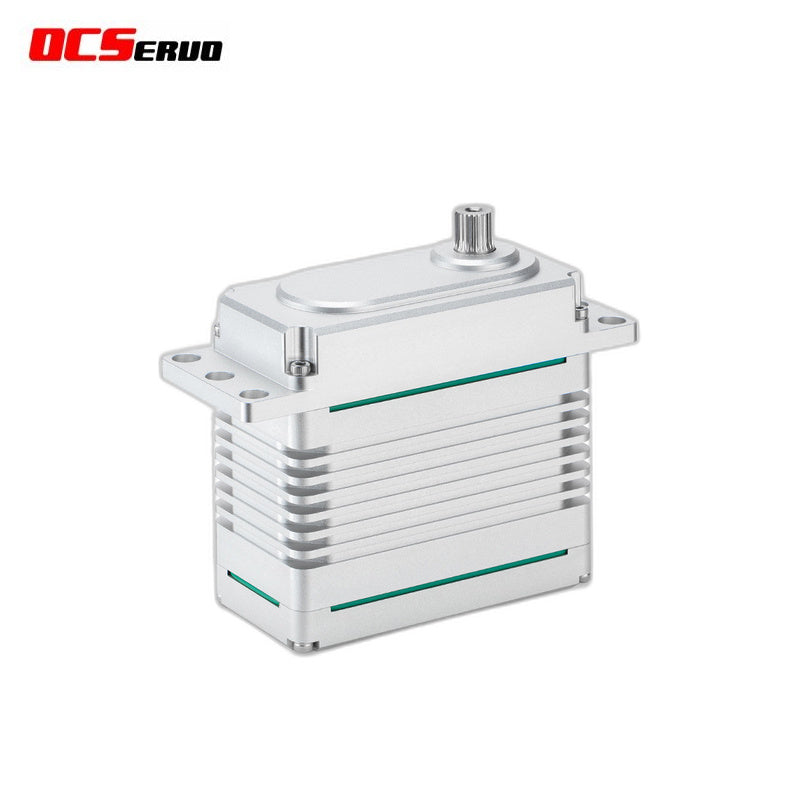

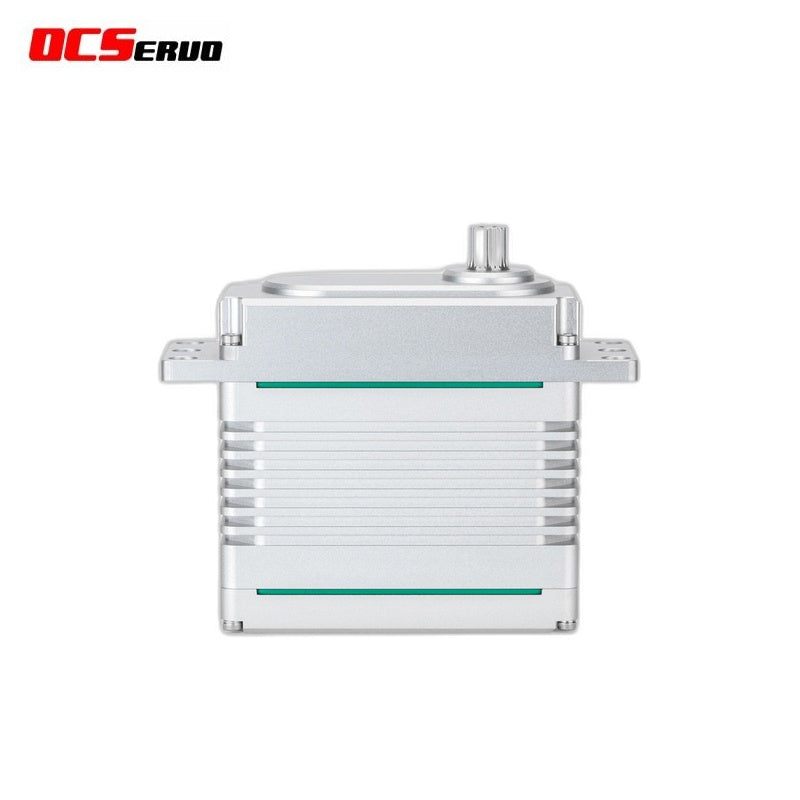

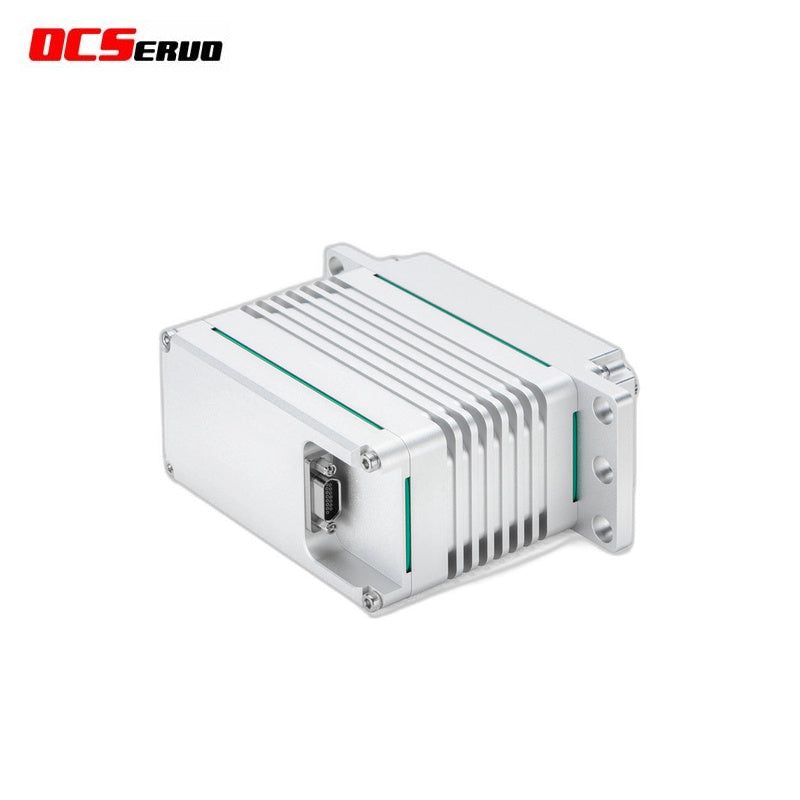

OCServo OCS-D6501 Servo Motor

  • Stall torque (kg·cm): 24V: 560; 28V: 650; 30V: 700
  • Rated torque (kg·cm): 24V: 200; 28V: 230; 30V: 250
  • Operating Voltage: 24V / 28V / 30V
  • No load speed (sec/60°): 24V: 0.30; 28V: 0.25; 30V: 0.21
  • Command Type: PWM or S-bus or CAN or 485
$1,280
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D6501 dimensional drawing.pdf ▶ OCServo OCS-D6501 technical specifications.pdf ▶

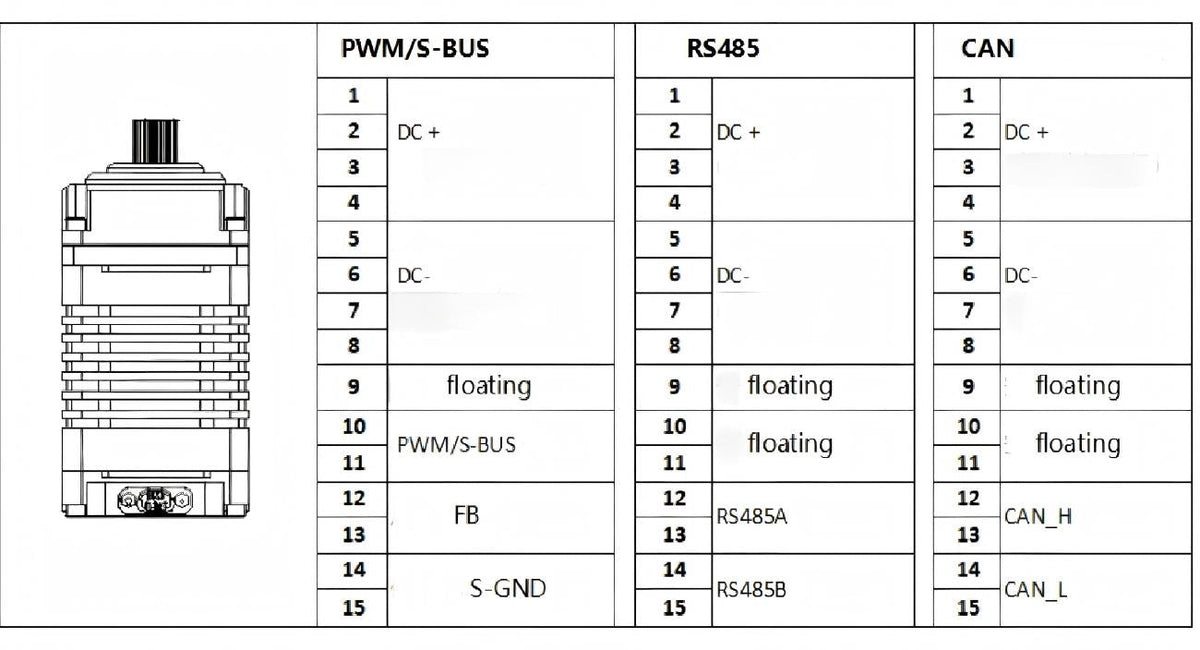

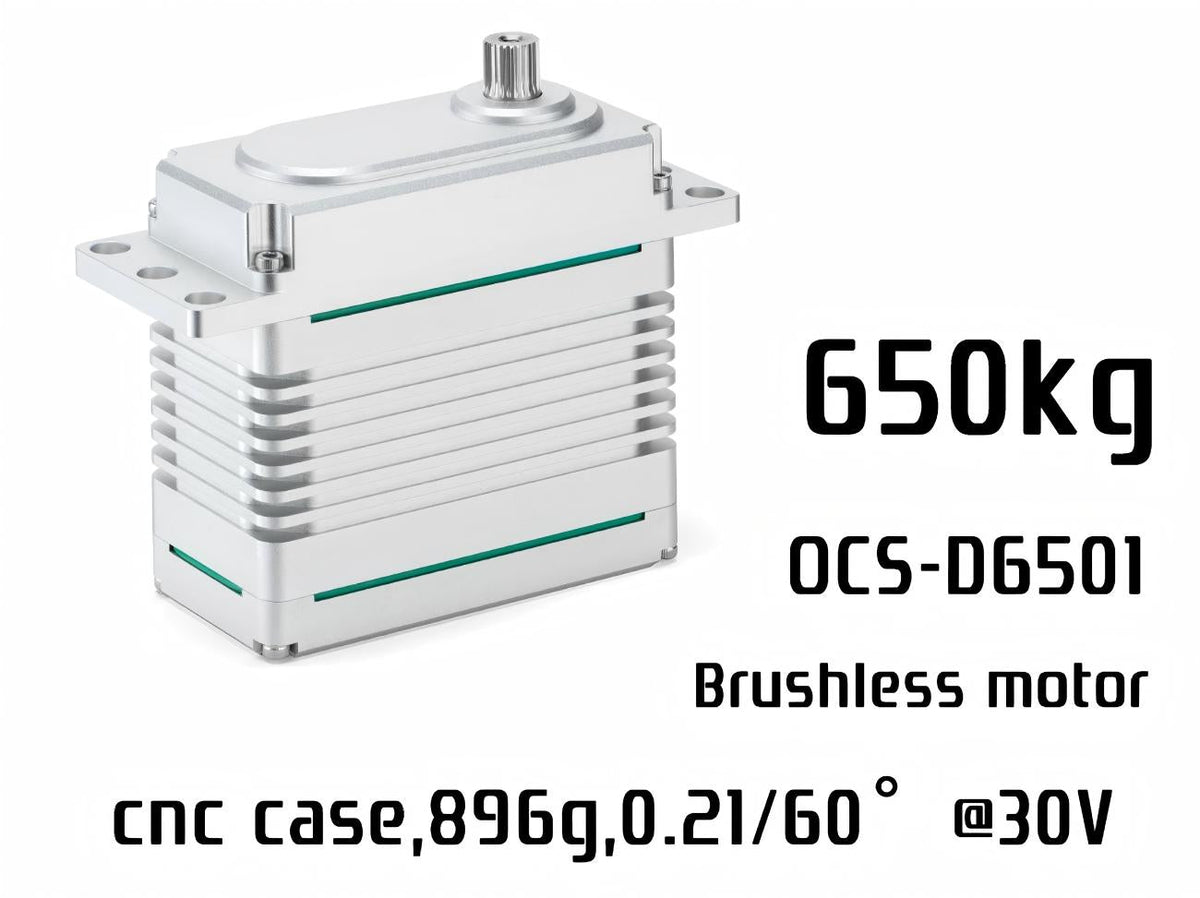

OCServo OCS-D6501 Servo Motor detail image
OCServo OCS-D6501 Servo Motor detail image
OCServo OCS-D6501 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
28.0V650kg-cm BLS Servo
Item No.
OCS-D6501
Storage Temperature Range
-30°C ~ 70°C
Operating Temperature Range
-20°C ~ 60°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
100.0 × 50.0 × 97.0
Weight (g)
895
Gear Type
Steel Gear
Limit Angle
-
Bearings
8 Ball bearings
Output Spline
25T - Φ11.98mm
Horn Type
Metal
Case Material
Aluminium CNC
Connector Wire
J30J-15TJL (Need to purchase separately)
Motor Type
BLS motor
Waterproof Performance
Yes
Operating Voltage
24V / 28V / 30V
No load speed (sec/60°)
24V: 0.30; 28V: 0.25; 30V: 0.21
Running current (at no load) (mA)
24V: <400; 28V: <430; 30V: <450
Stall torque (kg·cm)
24V: 560; 28V: 650; 30V: 700
Stall current (A)
24V: <18; 28V: <21; 30V: <22.5
Rated torque (kg·cm)
24V: 200; 28V: 230; 30V: 250
Rated current (A)
24V: ≤3.5; 28V: ≤4; 30V: ≤4.5
Idle current (mA)
60 (all voltages)
Command Type
PWM or S-bus or CAN or 485
Amplifier Type
Digital Controller
Pulse Width Range
500~2500 μsec (customizable)
Neutral Position
1500 μsec (customizable)
Running Degree
90° (when 1000~2000 μsec) customizable
Dead Band Width
3 μsec
Rotating Direction
CCW (when 1000~2000 μsec) customizable
