CmdRob

CmdRob M142 Motor

  • CmdRob motor for robot joint development, actuator integration, and automation hardware.
  • Available configurations support compact servo actuator and motion-control component selection.
  • Suitable for engineering teams building robot joints, test platforms, automation systems, and lab prototypes.
  • Designed for practical robot hardware integration where reliable motion components matter.
$1,120
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

CmdRob M142 Motor dimension drawing for installation reference.pdf ▶ CmdRob M142 Motor dimension drawing for installation reference.pdf ▶ CmdRob M142 Motor CAD model for mechanical integration.stp ▶ CmdRob M142 Motor CAD model for mechanical integration.stp ▶

CmdRob M142 Motor

The CmdRob M142 Motor is a CmdRob motor for robotics development, robot joint hardware, actuator systems, automation projects, and engineering lab integration.

Features

  • **Robot joint integration:** Suitable for servo systems, actuator builds, and motion hardware.
  • **Configuration options:** Supports model selection for robot actuator and motion-control development.
  • **Engineering use:** Designed for robotics developers, automation engineers, education labs, and prototype teams.
  • **Component-focused design:** Useful for compact robot hardware and integrated motor applications.

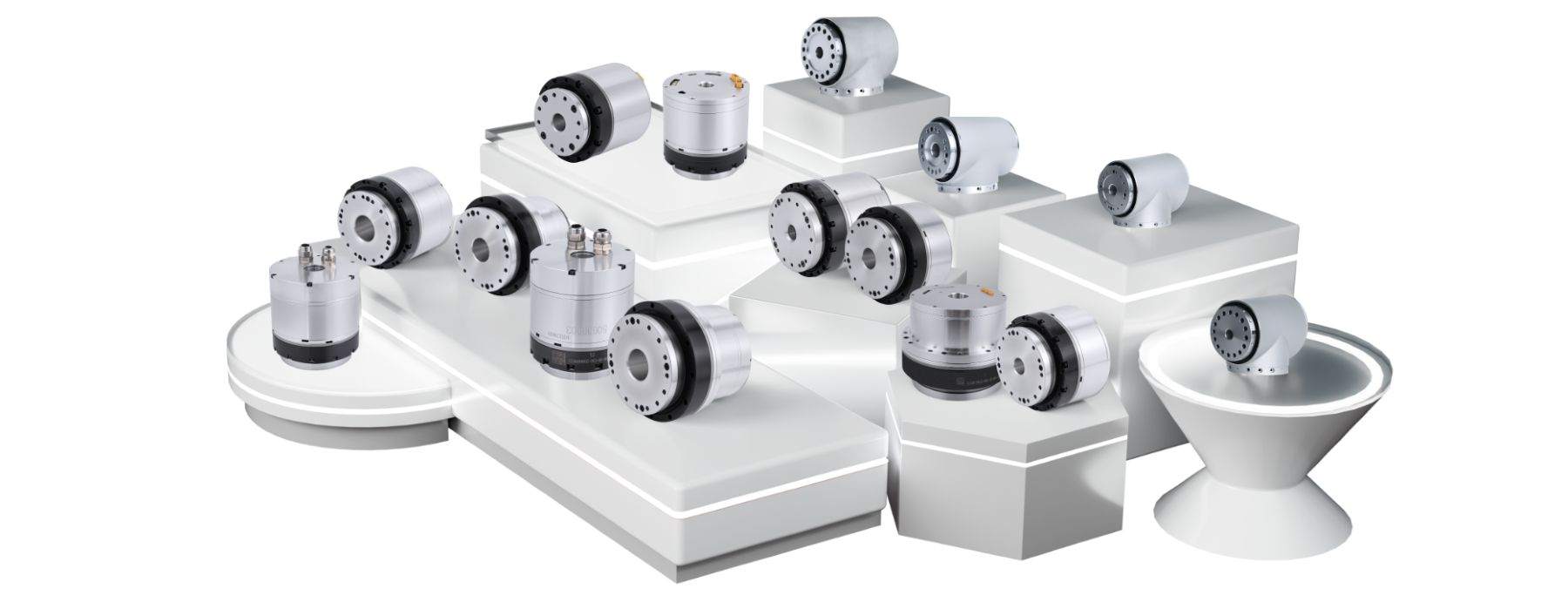

CmdRob M142 Motor detail image 1

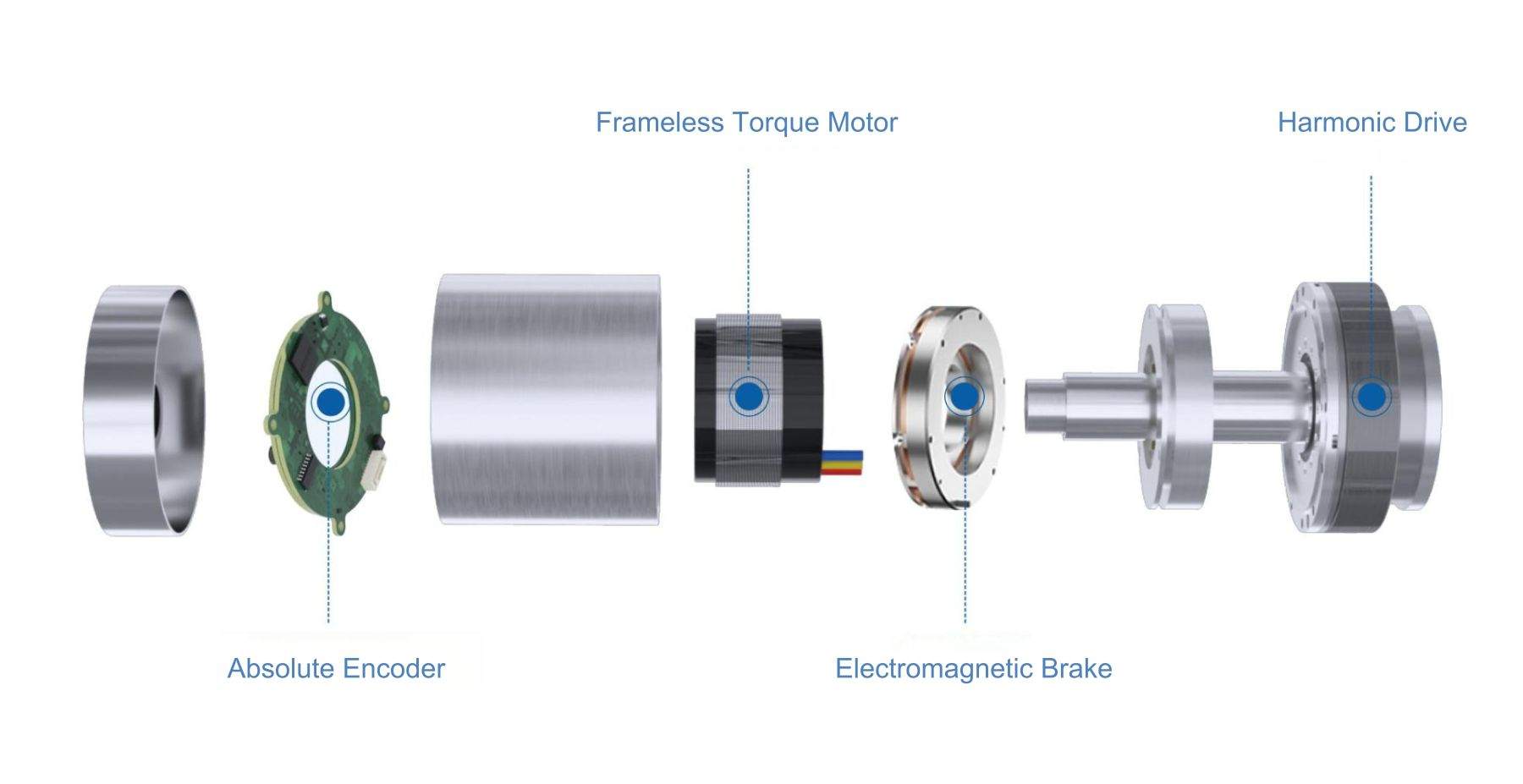

CmdRob M142 Motor detail image 2
CmdRob M142 Motor detail image 3
CmdRob M142 Motor detail image 4
CmdRob M142 Motor detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Reduction Ratio
M142: 51 M142: 81 M142: 101 M142: 121
Input Voltage
M142: 220 (±10%)V M142: 220 (±10%)V M142: 220 (±10%)V M142: 220 (±10%)V
Maximum Torque
M142: 497N.m M142: 738N.m M142: 841N.m M142: 892N.m
50.71kgf.m
M142: 75.30kgf.m M142: 85.82kgf.m M142: 91.02kgf.m
Average Load Torque
M142: 140N.m M142: 217N.m M142: 281N.m M142: 281N.m
14.29kgf.m
M142: 22.14kgf.m M142: 28.67kgf.m M142: 28.67kgf.m
Start-Stop Peak Torque
M142: 281N.m M142: 395N.m M142: 433N.m M142: 459N.m
28.67kgf.m
M142: 40.30kgf.m M142: 44.18kgf.m M142: 46.84kgf.m
Maximum Speed
M142: 95r/min M142: 60r/min M142: 48r/min M142: 40r/min
Rated Speed
M142: 60r/min M142: 37r/min M142: 30r/min M142: 25r/min
Motor Torque Constant
M142: 0.59N·m/A M142: 0.59N·m/A M142: 0.59N·m/A M142: 0.59N·m/A
0.006kgf·m/A
M142: 0.006kgf·m/A M142: 0.006kgf·m/A M142: 0.006kgf·m/A
Maximum Current
M142: 10.94A M142: 9.68A M142: 8.51A M142: 7.53A
Allowable Continuous Current
M142: 5.45A M142: 5.32A M142: 5.52A M142: 4.61A
Back EMF Constant
M142: 42.1V/krpm M142: 42.1V/krpm M142: 42.1V/krpm M142: 42.1V/krpm
Phase Resistance (20°C)
M142: 0.46Ω M142: 0.46Ω M142: 0.46Ω M142: 0.46Ω
Phase Inductance
M142: 2.5mH M142: 2.5mH M142: 2.5mH M142: 2.5mH
Moment of Inertia
M142: 680(kg·mm²) M142: 680(kg·mm²) M142: 680(kg·mm²) M142: 680(kg·mm²)
680*10^-4(kgf·cm·s²)
M142: 680*10^-4(kgf·cm·s²) M142: 680*10^-4(kgf·cm·s²) M142: 680*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy(1)
M142: 20arc-sec M142: 20arc-sec M142: 20arc-sec M142: 20arc-sec
Positioning Accuracy(2)
M142: 60arc-sec M142: 60arc-sec M142: 60arc-sec M142: 60arc-sec
Encoder Communication Protocol
M142: BISS / TAMAGAWA M142: BISS / TAMAGAWA M142: BISS / TAMAGAWA M142: BISS / TAMAGAWA
Encoder Communication Interface
M142: BISS-C / TAMAGAWA M142: BISS-C / TAMAGAWA M142: BISS-C / TAMAGAWA M142: BISS-C / TAMAGAWA
Encoder Resolution(Single-turn)
M142: 17-bit (131,072 pulses/rev) M142: 17-bit (131,072 pulses/rev) M142: 17-bit (131,072 pulses/rev) M142: 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn)
M142: 16-bit (-32,768 to +32,767 revs) M142: 16-bit (-32,768 to +32,767 revs) M142: 16-bit (-32,768 to +32,767 revs) M142: 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution
M142: 6,684,672pulses/rev M142: 10,616,832pulses/rev M142: 13,238,272pulses/rev M142: 15,859,712pulses/rev
Mass
M142: 6.5 KG M142: 6.5 KG M142: 6.5 KG M142: 6.5 KG
Ambient Environmental Conditions
M142: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M142: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M142: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m M142: Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C Operating/Storage Humidity: 20 to 80%RH (non-condensing) Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz) Shock Resistance: 300 m/s² Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Usage: Indoor use, avoid direct sunlight Altitude: Below 1000 m
Design Life（H）
M142: 10000 M142: 15000 M142: 15000 M142: 15000
Motor Insulation
M142: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M142: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M142: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C) M142: Insulation Resistance: 500 MΩ or more (at DC 500 V) Dielectric Strength: AC 1500 V / 1 min Insulation Class: Class F (155°C)
Mounting Orientation
M142: Omnidirectional Mounting M142: Omnidirectional Mounting M142: Omnidirectional Mounting M142: Omnidirectional Mounting
Protection Rating
M142: Totally Enclosed, Non-Ventilated (IP54) M142: Totally Enclosed, Non-Ventilated (IP54) M142: Totally Enclosed, Non-Ventilated (IP54) M142: Totally Enclosed, Non-Ventilated (IP54)
