NOUS

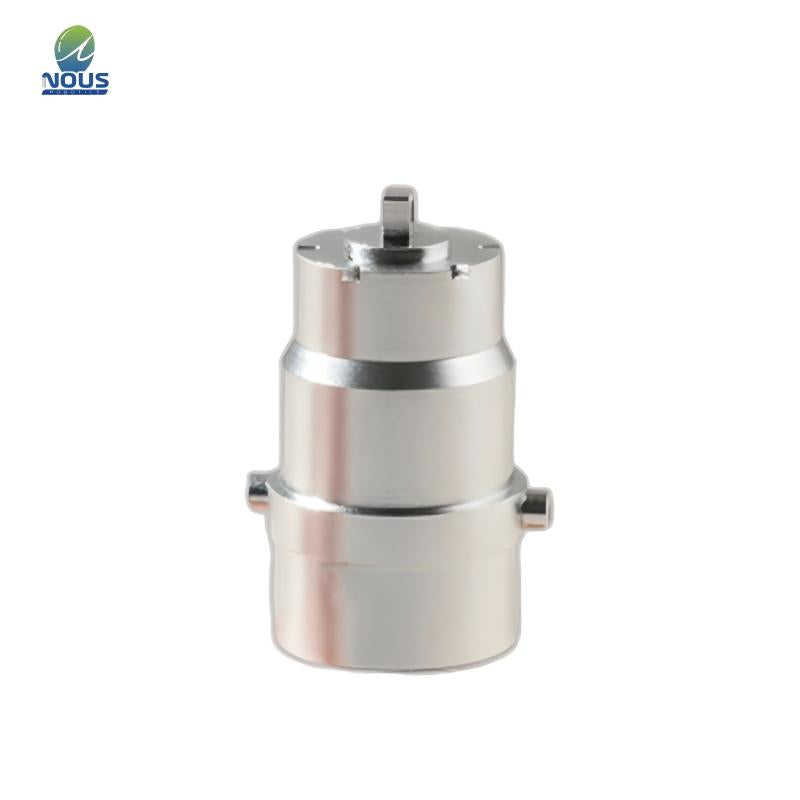

NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development

  • NOUS robot actuator for robot joints, compact motion systems, robotics development, and automation hardware.
  • Suitable for engineers building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in actuator modules, robot servo systems, and compact robotic assemblies.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$1,050
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

NOUS DH16I-10-02-1-RS dimension drawing for installation reference.pdf ▶
NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development detail image 1
NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development detail image 2
NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development detail image 3
NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development detail image 4
NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development detail image 5
NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development detail image 6
NOUS DH16I Series Micro Actuator | Robot Actuator for Robotics Development detail image 7
▤ PARAMETER ⌃
Model
DH16I‑10‑02‑1‑RS
External dimensions (mm)
Φ20*30
Rated thrust (N)
30
Maximum thrust (N)
50
Maximum self‑locking force (N)
40
Rated linear velocity (mm/s)
6
Maximum linear velocity (mm/s)
13
Stroke (mm)
10
Repeatability (mm)
±0.01
Weight (g)
< 40
Temperature (℃)
-10‑45℃
IP Level
IP54
Screw type
Planetary roller screw
Motor type
Frameless torque motor
Rated voltage (VDC)
DC12±10%
Rated current (A)
1.5
Instantaneous maximum current (A)
2.1
Encoder type
Incremental encoder
Drive control
External
Location feedback
No
Torque feedback
No
Communication interface
RS485 or LVTTL Optional
