PY TECHNOLOGY

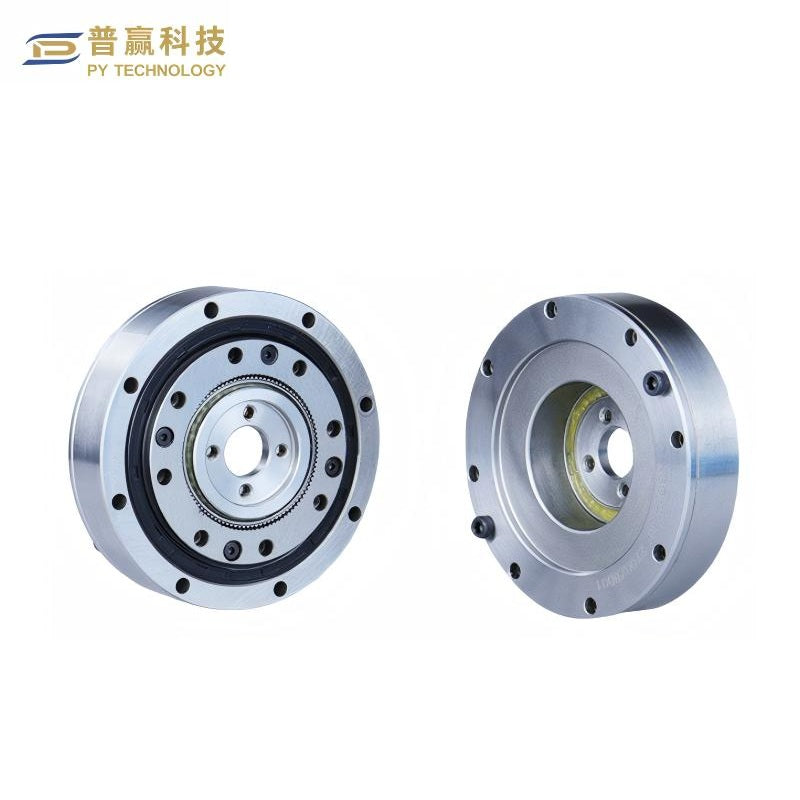

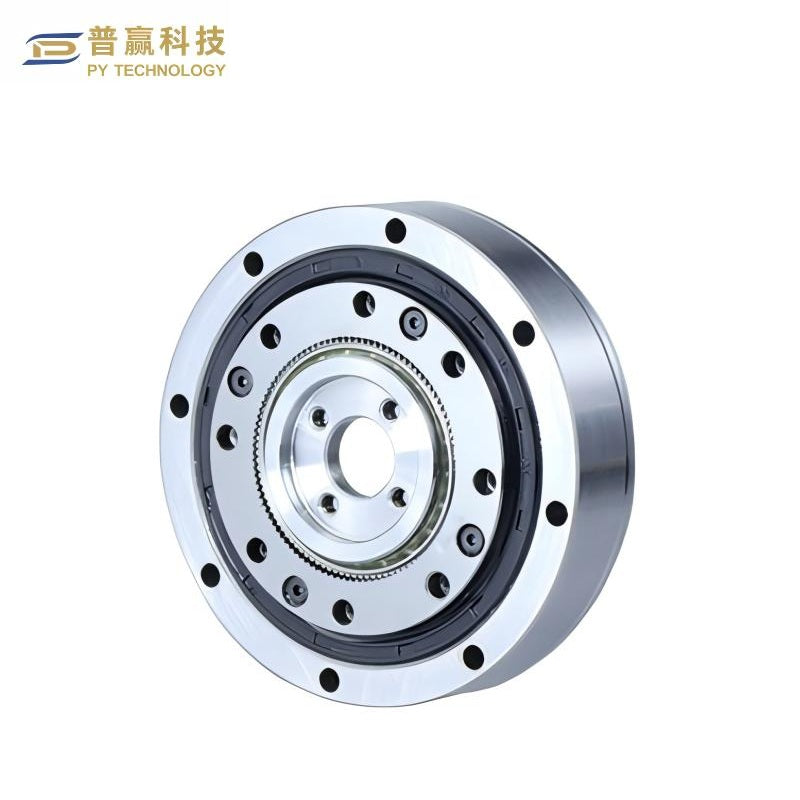

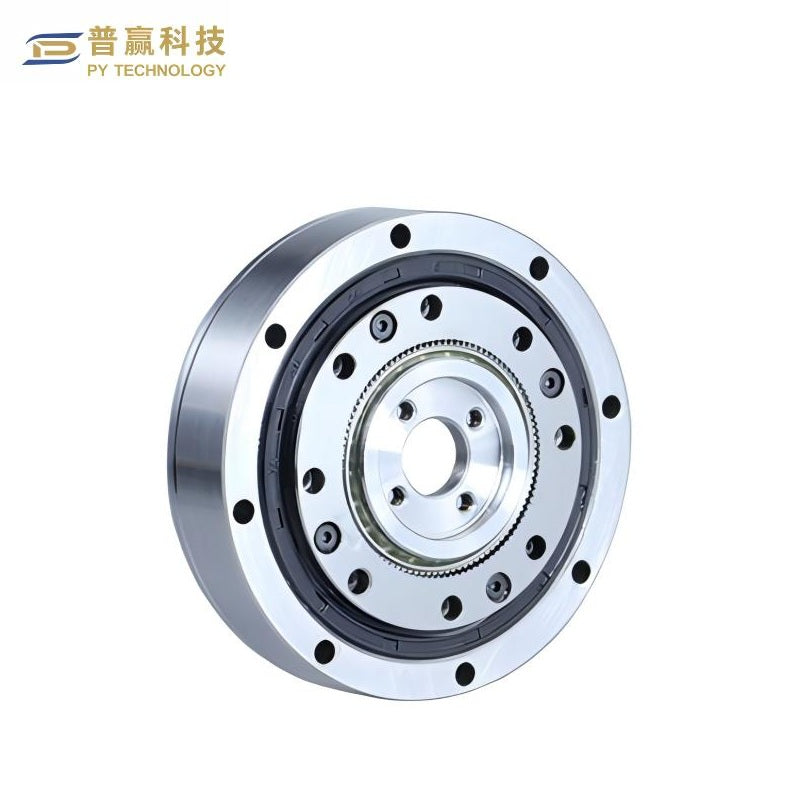

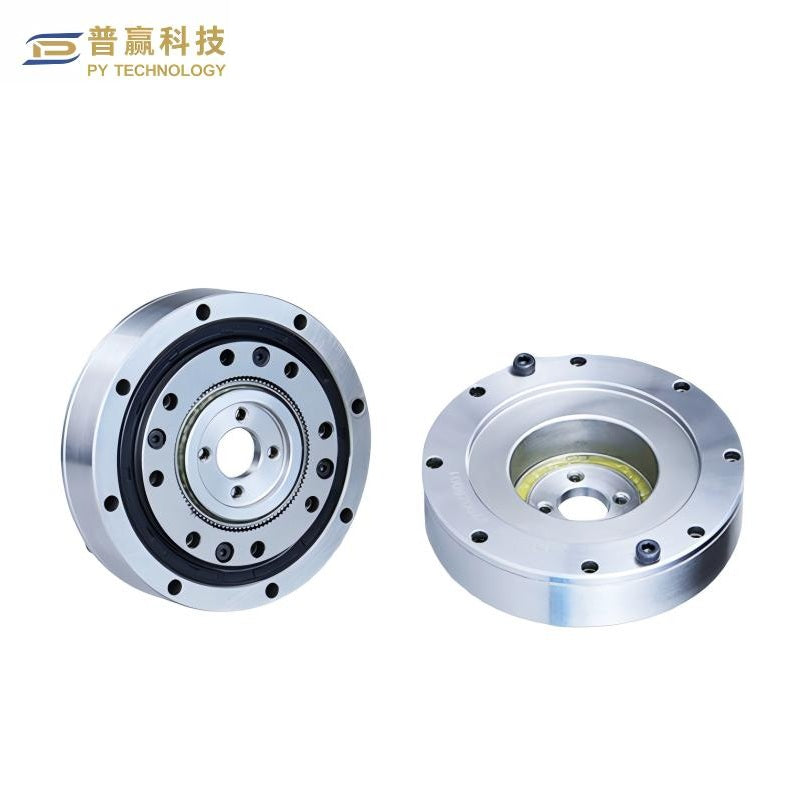

PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications

  • PY TECHNOLOGY harmonic reducer for robot joints, precision mechanisms, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, compact robot actuators, research platforms, and motion systems.
  • Designed for practical integration in reducers, gearboxes, robot servo assemblies, and mechanical transmission projects.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$95
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

PY TECHNOLOGY HBD8-17 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY HBD20-32 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY HBD 8-11 Series dimension drawing for installation reference.pdf ▶ PY TECHNOLOGY HBD 20-32 Series dimension drawing for installation reference.pdf ▶

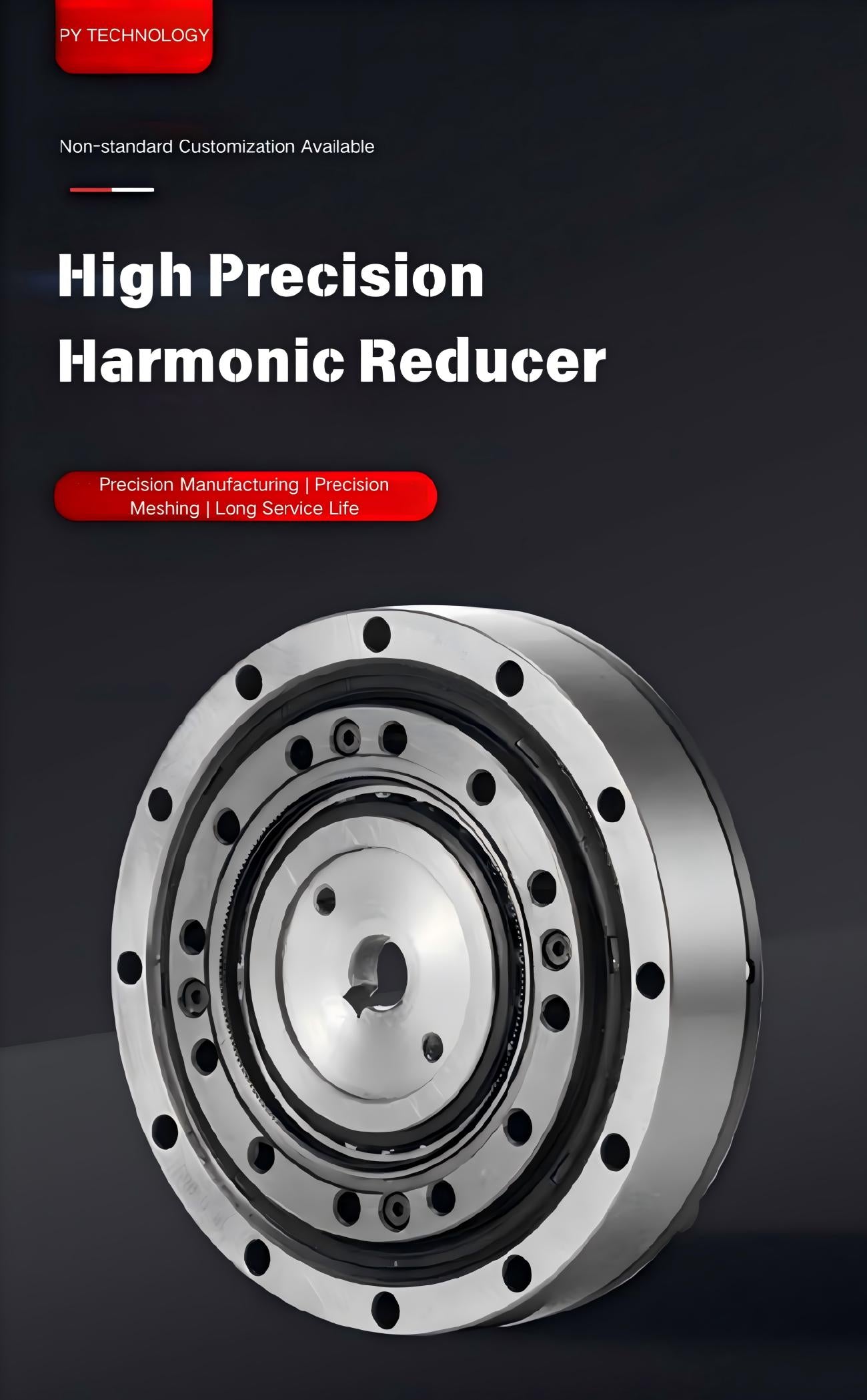

PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 1
PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 2
PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 3

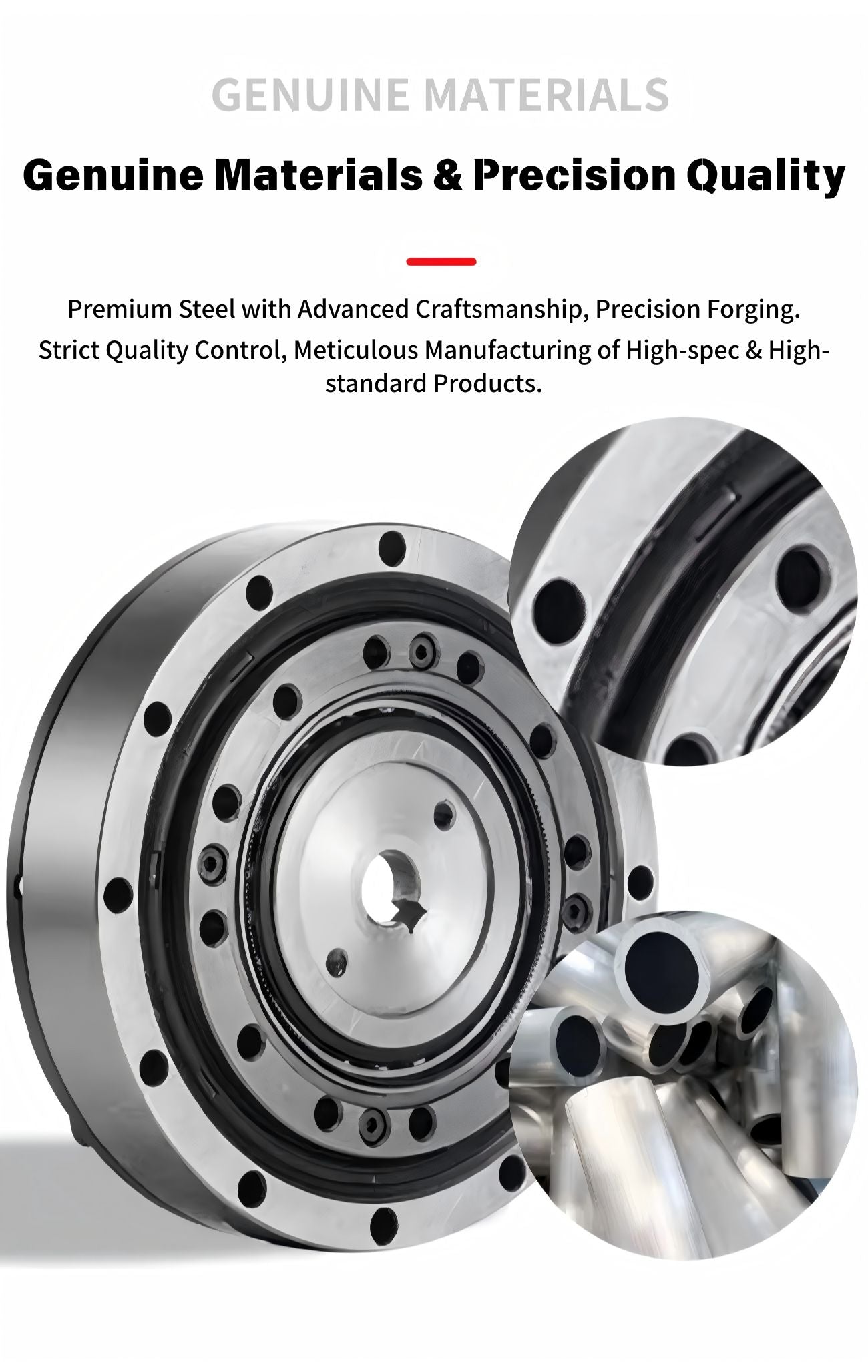

PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 4

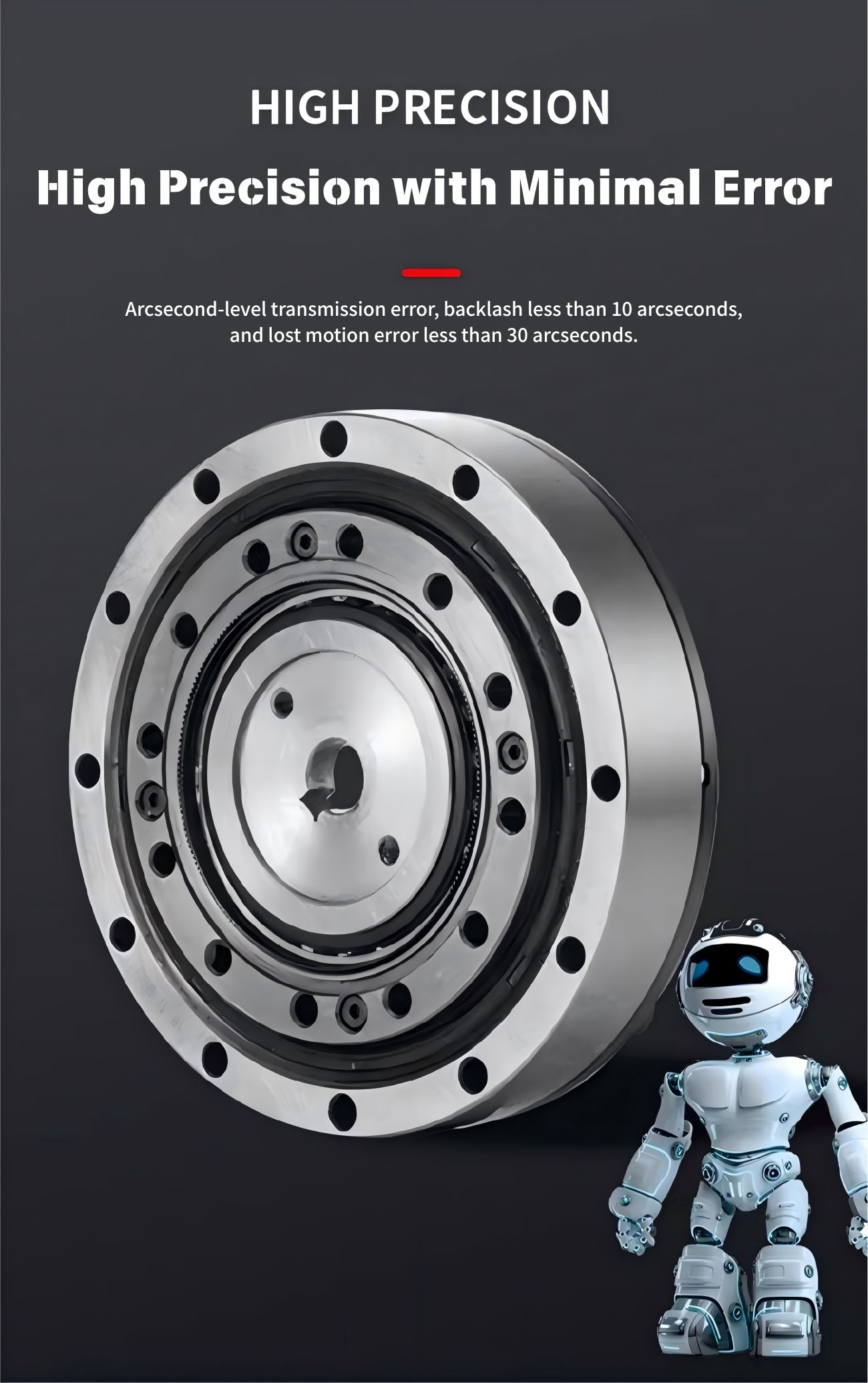

PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 5

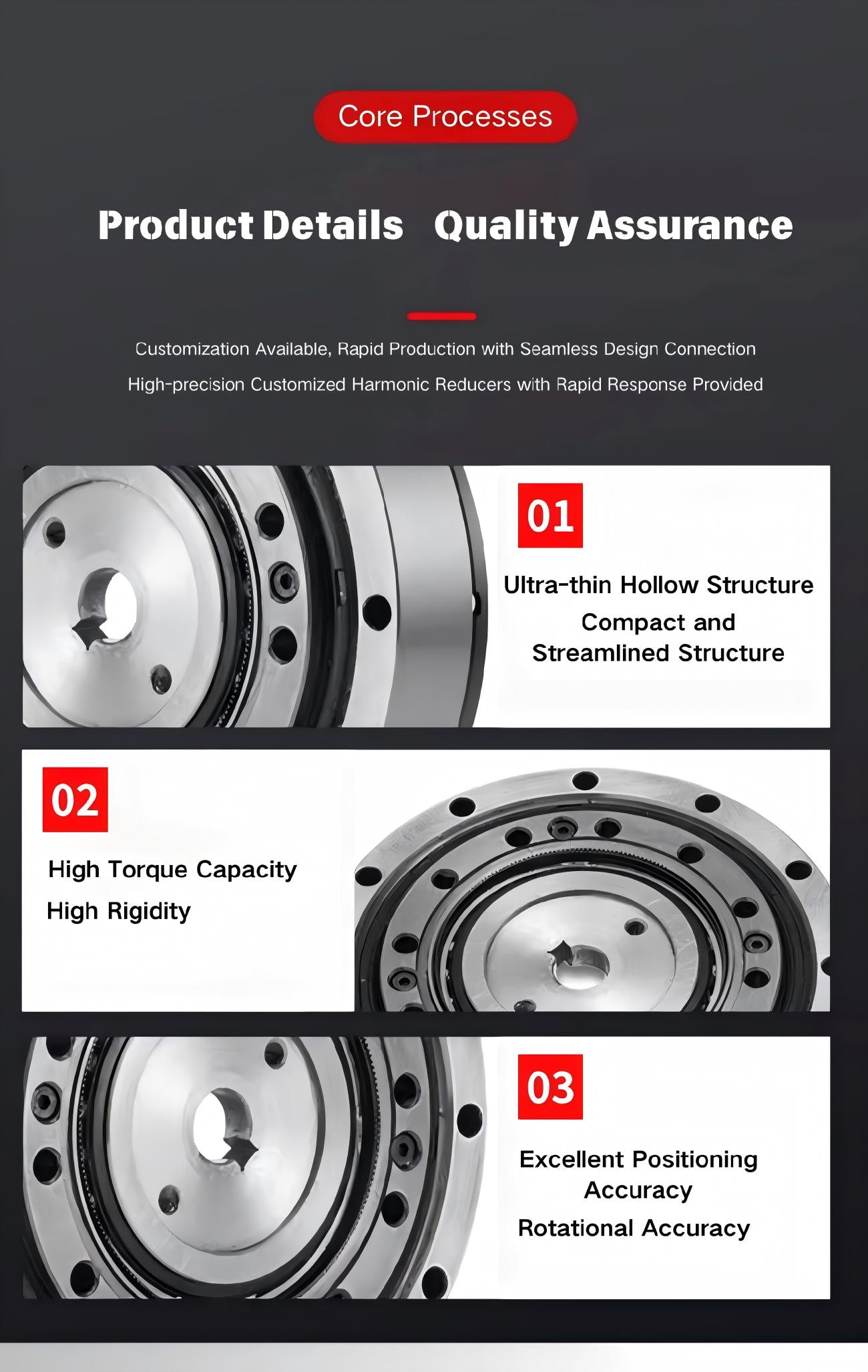

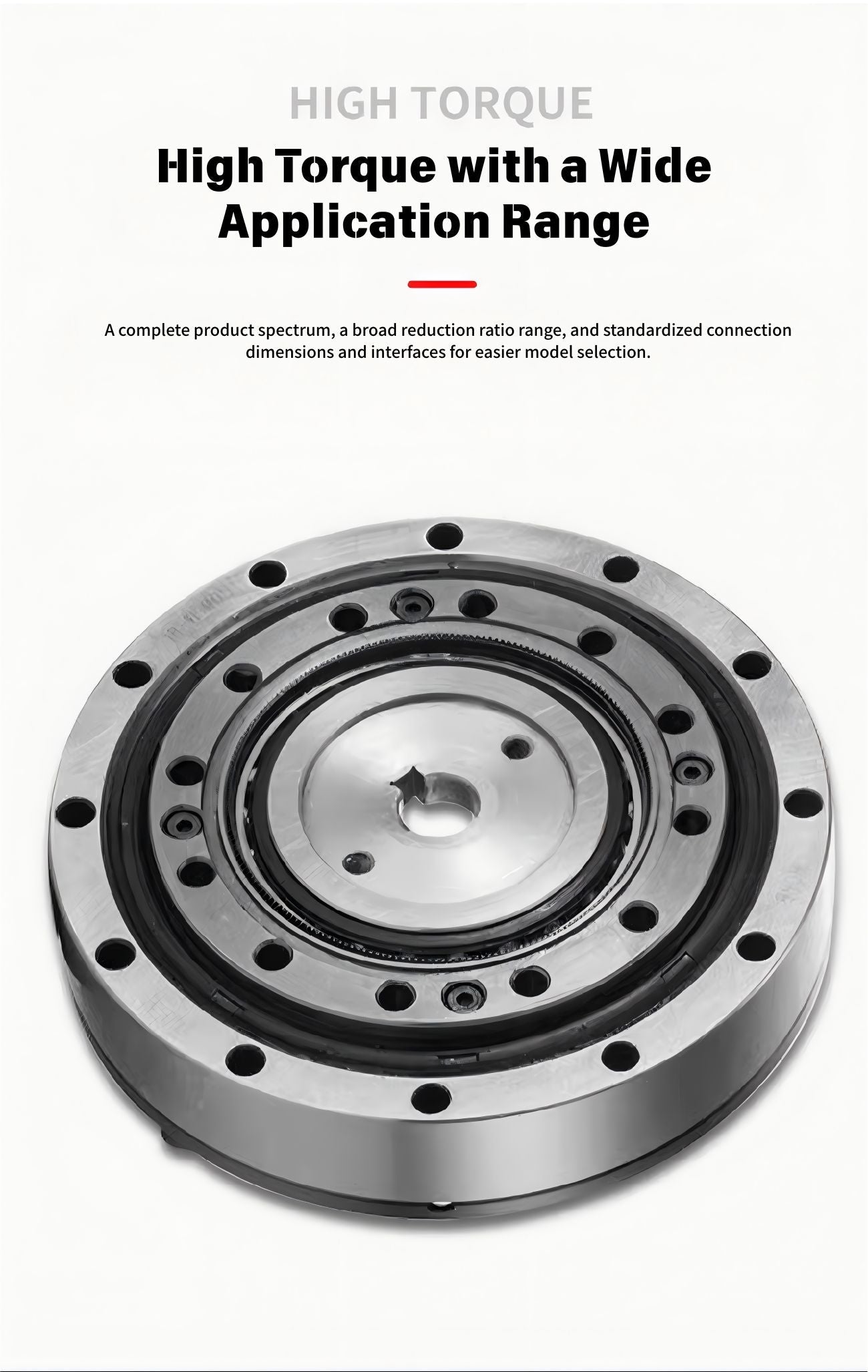

PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 6

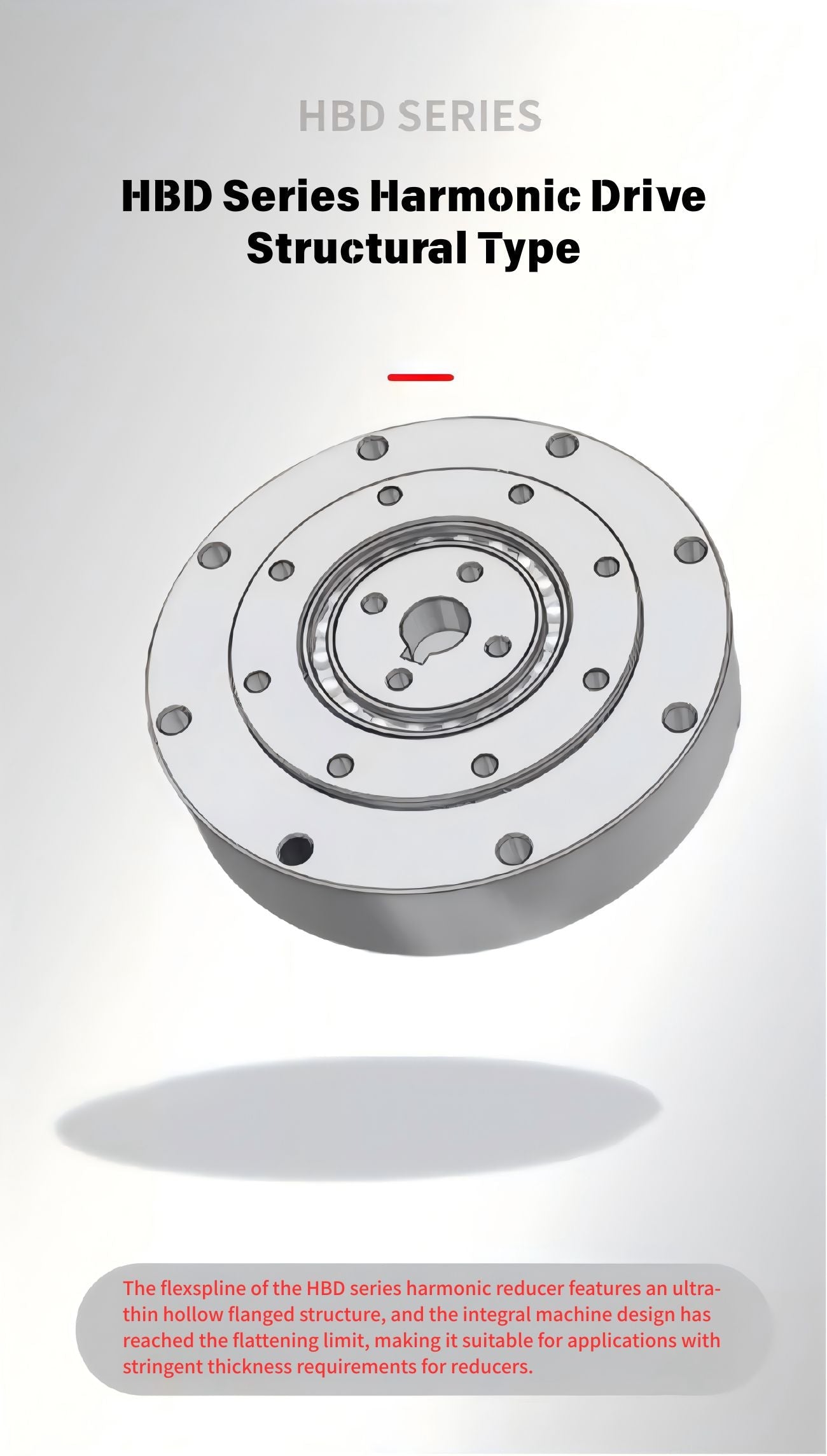

PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 7
PY TECHNOLOGY HBD Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 8
▤ Technical Specifications ⌃
Parameter Value Value Value Value
Model HBD-17 HBD-17 HBF-17 HBF-17
Reduction Ratio 30 50 80 100
Weight (kg) 0.41 0.41 0.41 0.41
Rated Torque at 2000 r/min (Nm) 6.8 11 14 16
Rated Torque at 2000 r/min (Kgf·m) 0.68 1.1 0.14 1.6
Permissible Peak Torque (Start/Stop) (Nm) 12 23 33 37
Permissible Peak Torque (Start/Stop) (Kgf·m) 1.2 2.3 3.3 3.8
Allowable Average Load Torque (Nm) 9.3 18 25 27
Allowable Average Load Torque (Kgf·m) 0.93 1.9 2.5 2.8
Instantaneous Permissible Maximum Torque (Nm) 27 48 71 71
Instantaneous Permissible Maximum Torque (Kgf·m) 2.7 4.9 0.71 0.71
Permissible Max Input Speed (r/min) 7300 7300 7300 7300
Permissible Average Input Speed (r/min) 3500 3500 3500 3500
Moment of Inertia (×10² km²) 0.054 0.054 0.054 0.054
Moment of Inertia (×10⁴ kgf·m·s²) 0.055 0.055 0.055 0.055
Backlash (Arc sec) ≤20 ≤20 ≤20 ≤20
