SITO DRIVE

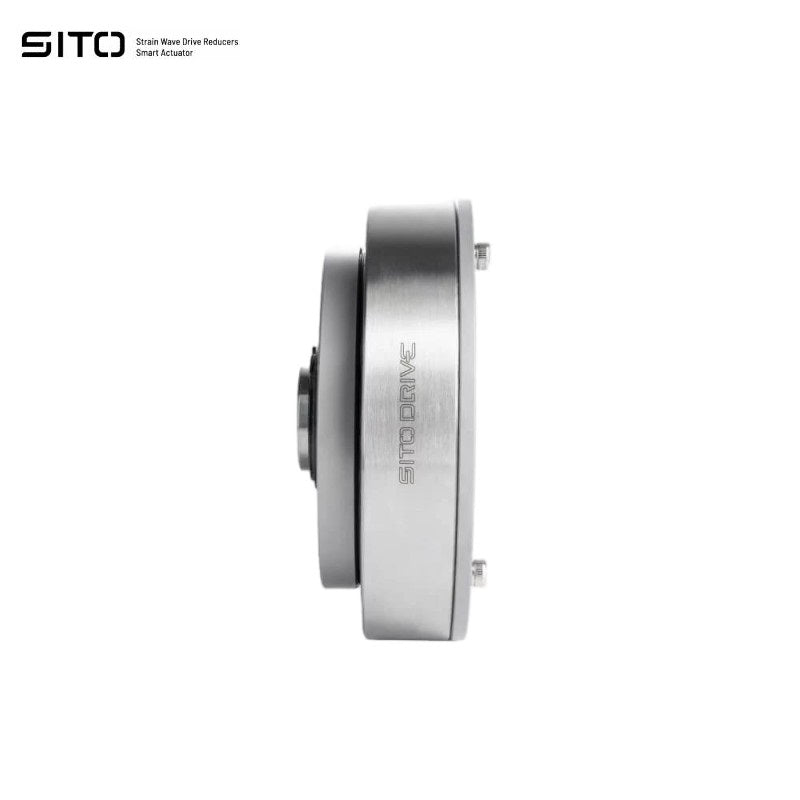

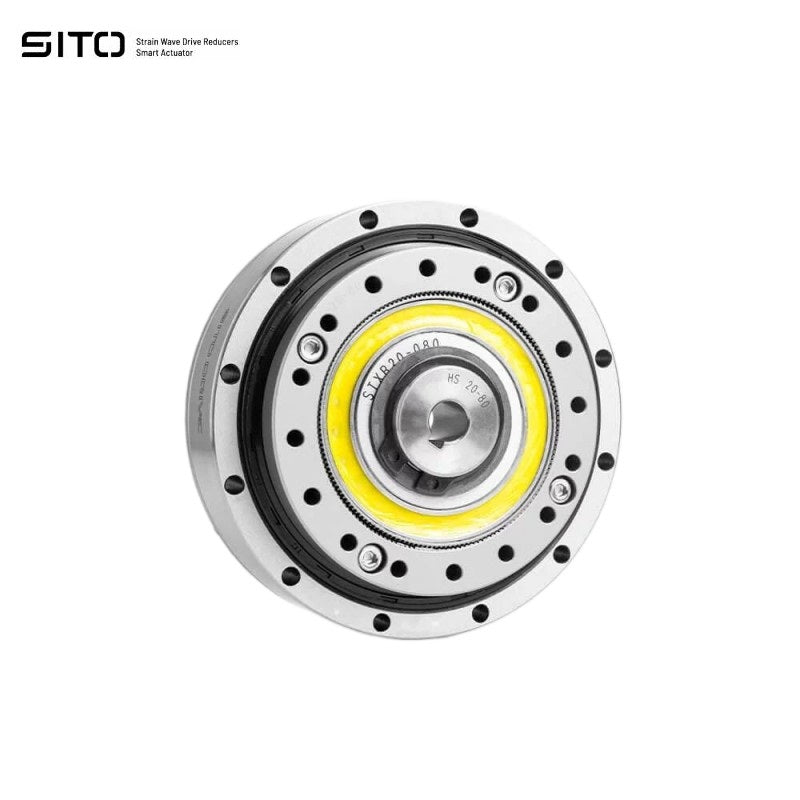

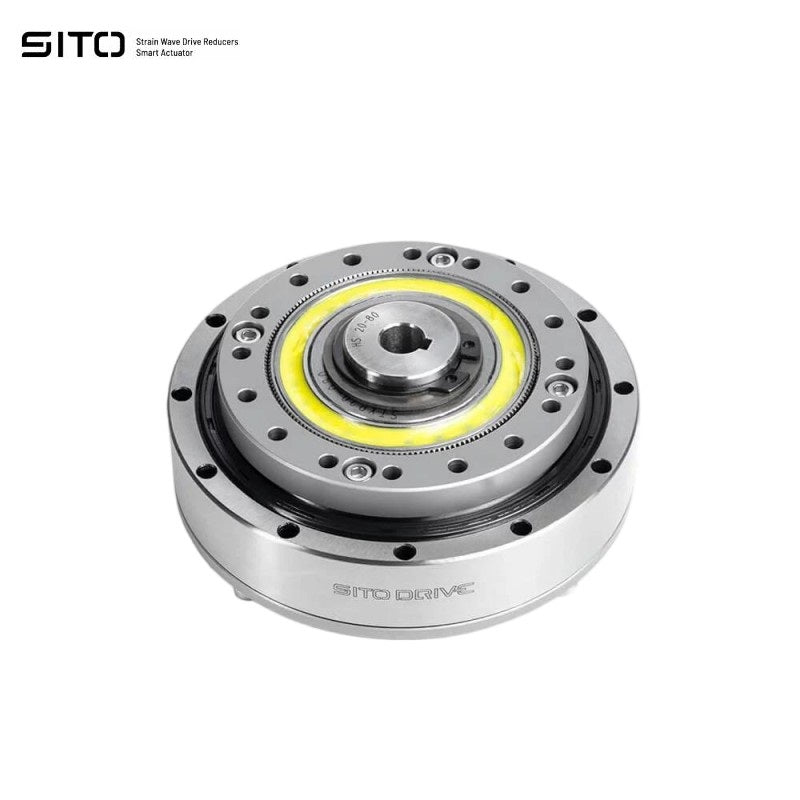

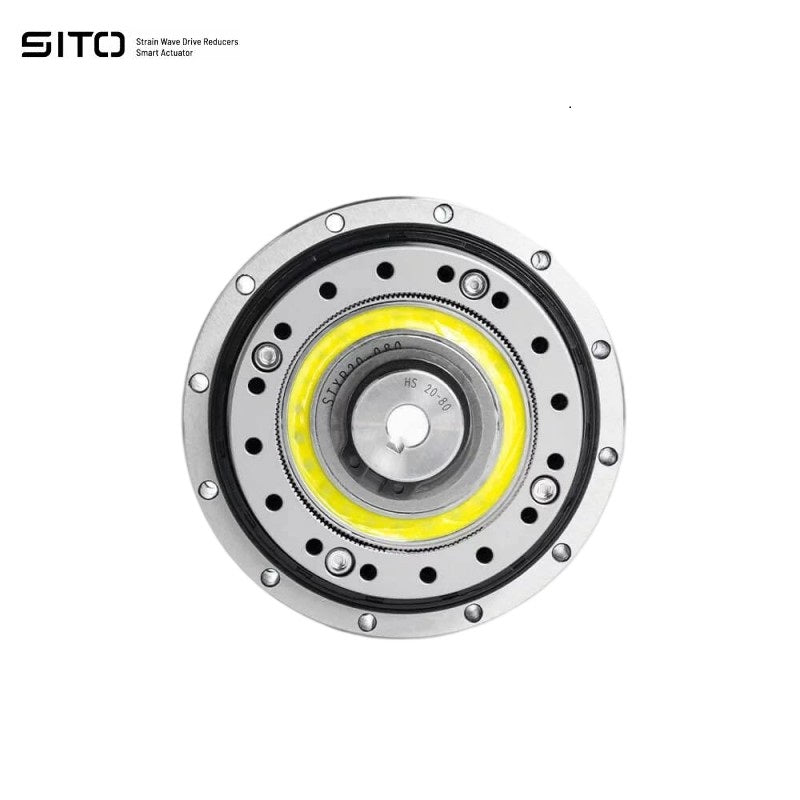

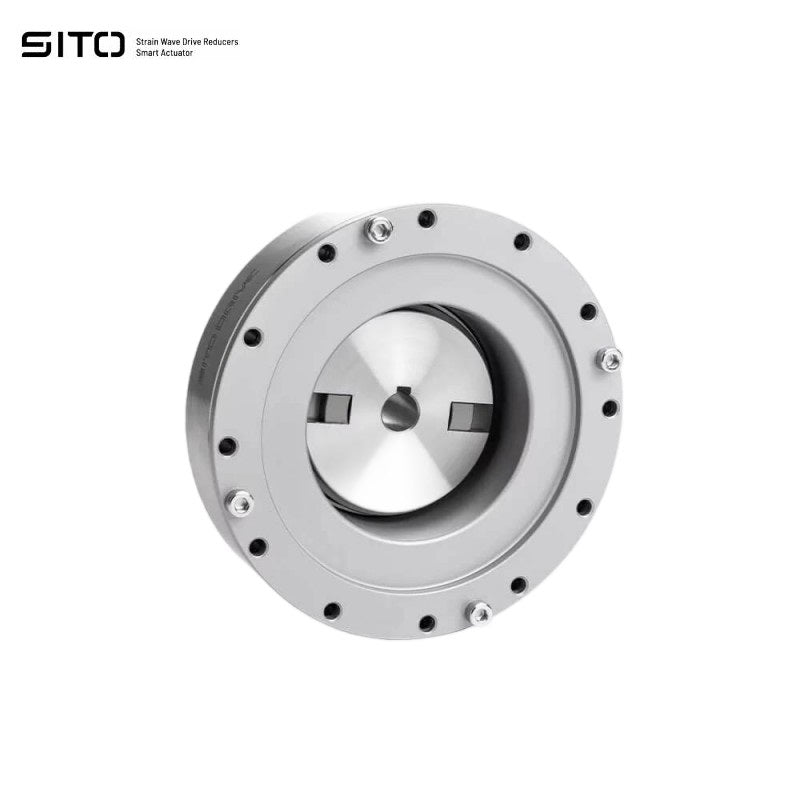

SITO DRIVE HS-20-I Reducer

  • SITO DRIVE reducer for robotic joints, precision transmission, and compact actuator assemblies.
  • Suitable for robotics development, education labs, automation prototypes, and research platforms.
  • Designed for robot joint modules, precision motion assemblies, and compact robot hardware.
  • Useful for engineering teams evaluating transmission, actuator, and motion-control components.
$248
Speed Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

SITO DRIVE HS-20-I Reducer CAD model for mechanical integration.stp ▶ SITO DRIVE HS-20-I Reducer installation dimension drawing.pdf ▶

SITO DRIVE HS-20-I Reducer

The SITO DRIVE HS-20-I Reducer is a SITO DRIVE reducer for robotics development, actuator integration, automation prototypes, and research platforms. It is intended for engineering teams building robot joints, compact motion modules, and precision robot hardware systems.

Features

  • **Robot hardware integration:** Suitable for robotic joints, actuator assemblies, and motion modules.
  • **Robotics development:** Supports education, research, prototyping, and automation projects.
  • **Compact motion systems:** Built for designs where controlled movement and mechanical integration matter.
  • **Engineering reference:** Product-specific specifications support evaluation and system design.
SITO DRIVE HS-20-I Reducer detail image 1
SITO DRIVE HS-20-I Reducer detail image 2

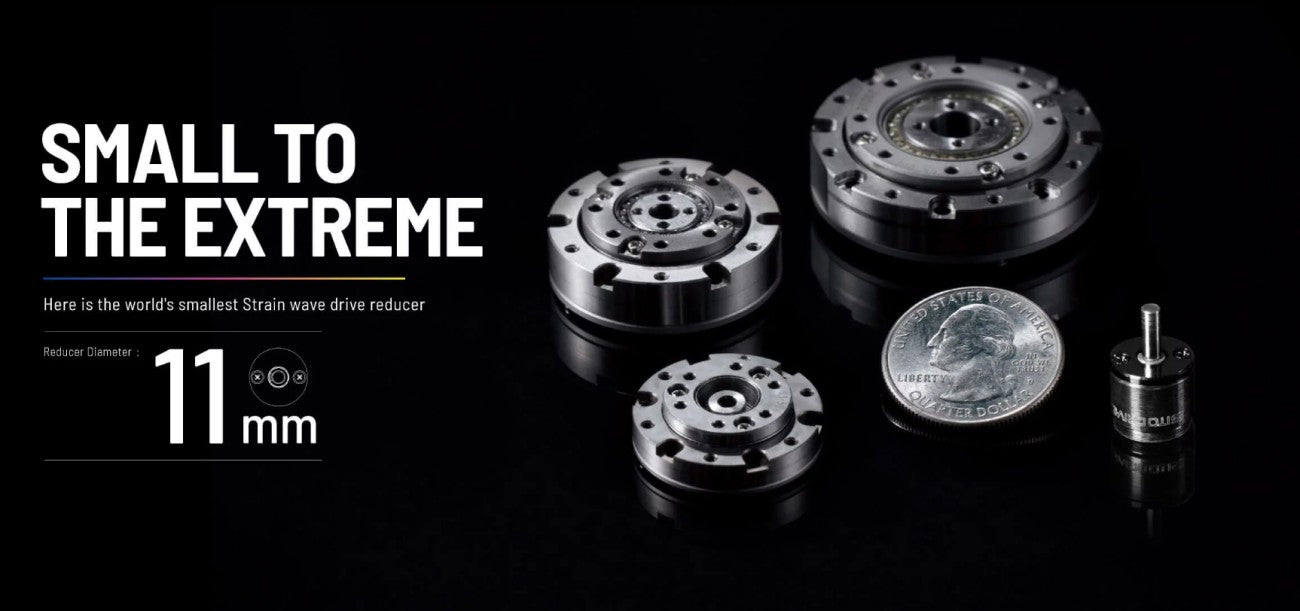

SITO DRIVE HS-20-I Reducer detail image 3
SITO DRIVE HS-20-I Reducer detail image 4
SITO DRIVE HS-20-I Reducer detail image 5
Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots
▤ PARAMETER ⌃
Model
HS-20-I
Transmission Ratio
HS-20-I: 30 HS-20-I: 50 HS-20-I: 80 HS-20-I: 100 HS-20-I: 120
Rated Torque at 2000r/min input
HS-20-I: 15 Nm HS-20-I: 25 Nm HS-20-I: 34 Nm HS-20-I: 40 Nm HS-20-I: 40 Nm
Peak Torque allowed during start/stop
HS-20-I: 27 Nm HS-20-I: 56 Nm HS-20-I: 74 Nm HS-20-I: 82 Nm HS-20-I: 87 Nm
Maximum allowable average load torque
HS-20-I: 20 Nm HS-20-I: 34 Nm HS-20-I: 47 Nm HS-20-I: 49 Nm HS-20-I: 49 Nm
Instantaneous Maximum Torque
HS-20-I: 50 Nm HS-20-I: 98 Nm HS-20-I: 127 Nm HS-20-I: 147 Nm HS-20-I: 147 Nm
Maximum allowable input speed
6500 rpm
Allowable average speed
3500 rpm
Moment of inertia
0.193 (×10⁻⁴kg·m²)
Backlash
HS-20-I: ≤20 arcsec HS-20-I: ≤20 arcsec HS-20-I: ≤10 arcsec HS-20-I: ≤10 arcsec HS-20-I: ≤10 arcsec
