Yunshis

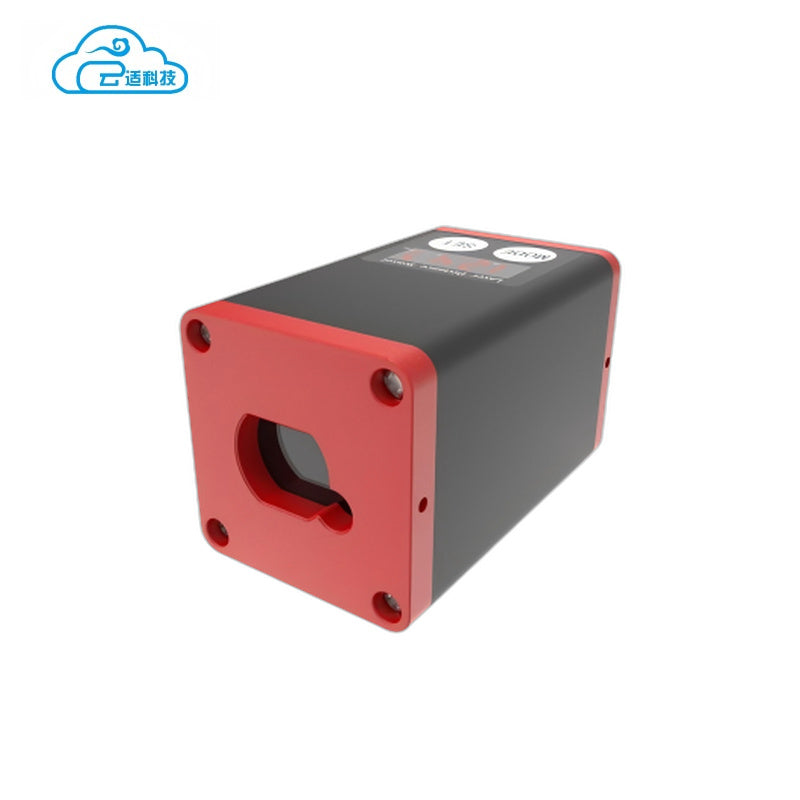

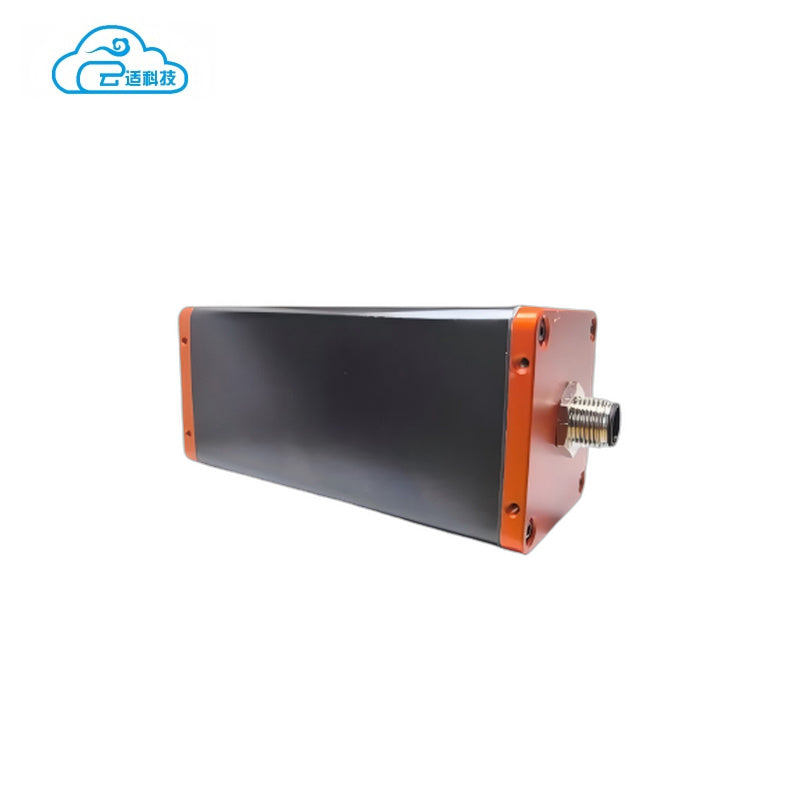

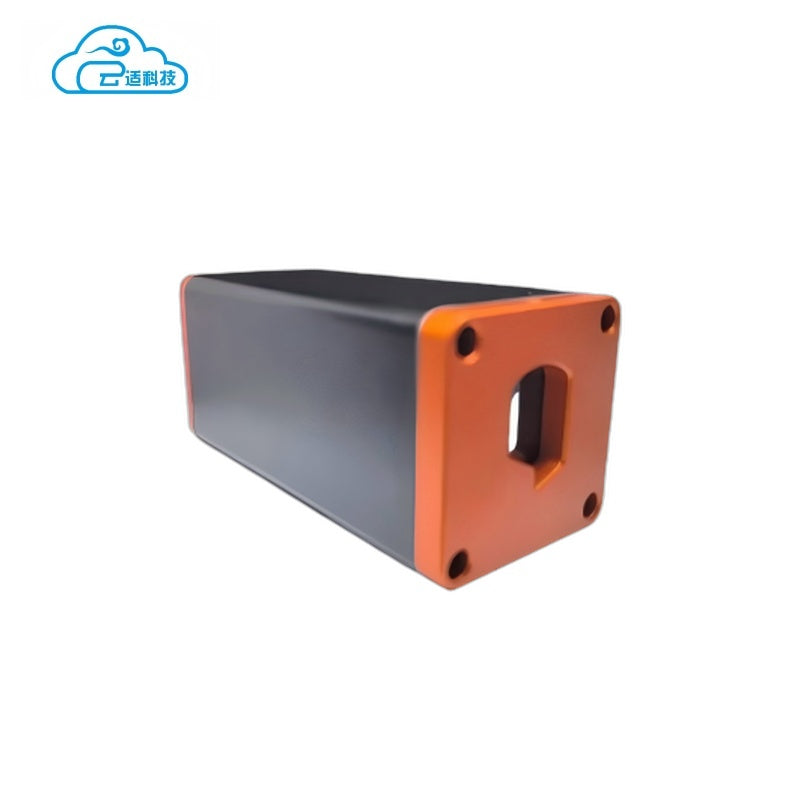

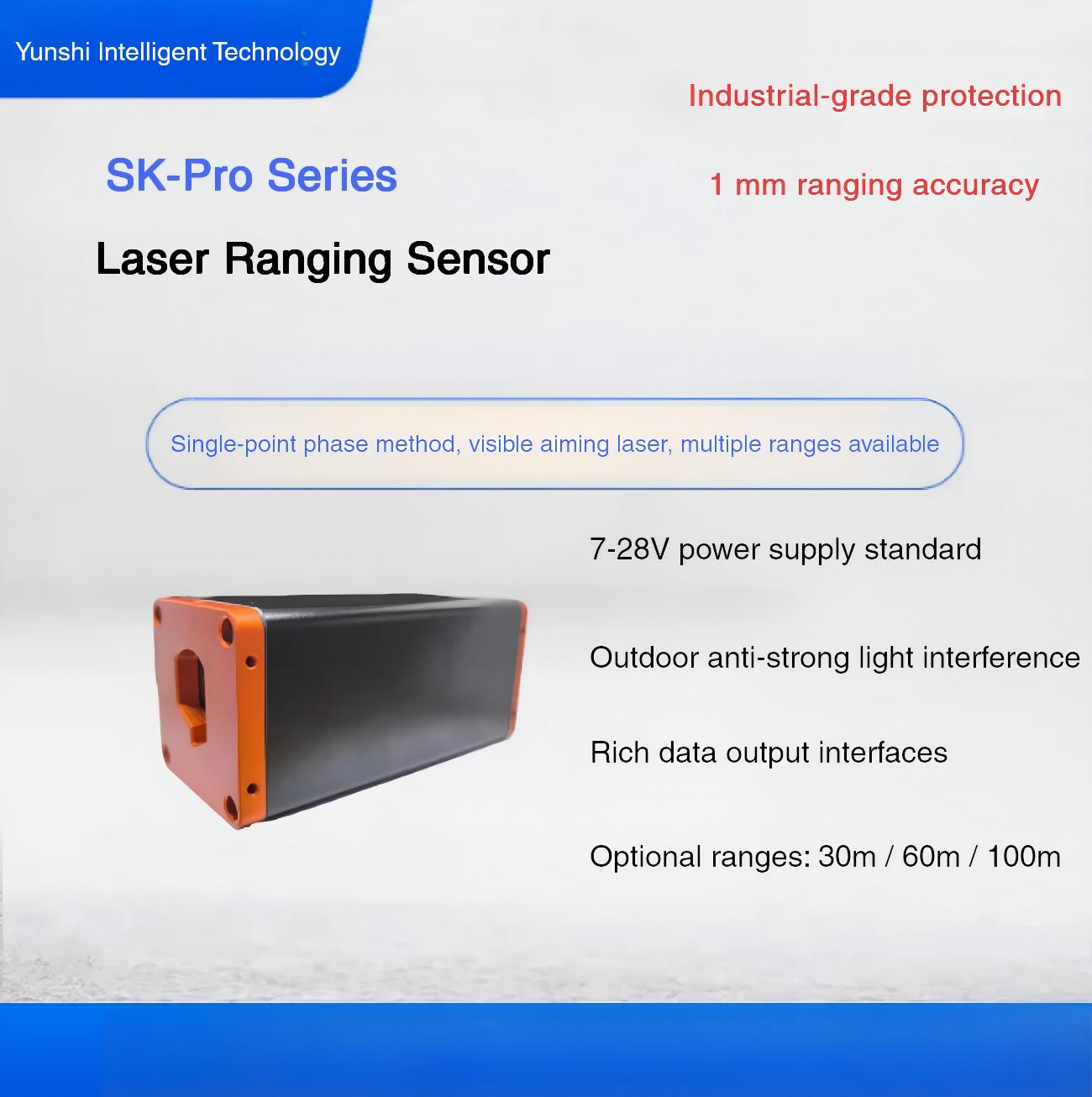

Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation

  • Laser Ranging Sensor designed for robotics sensing and automation projects
  • Supports robot distance measurement, obstacle awareness, and embedded perception workflows
  • Suitable for robotics developers, research labs, education projects, and automation prototypes
  • Technical specifications and downloadable support files are preserved from the reference source when available
  • Draft Shopify listing prepared for the Yunshis laser ranging sensor product line
$680
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

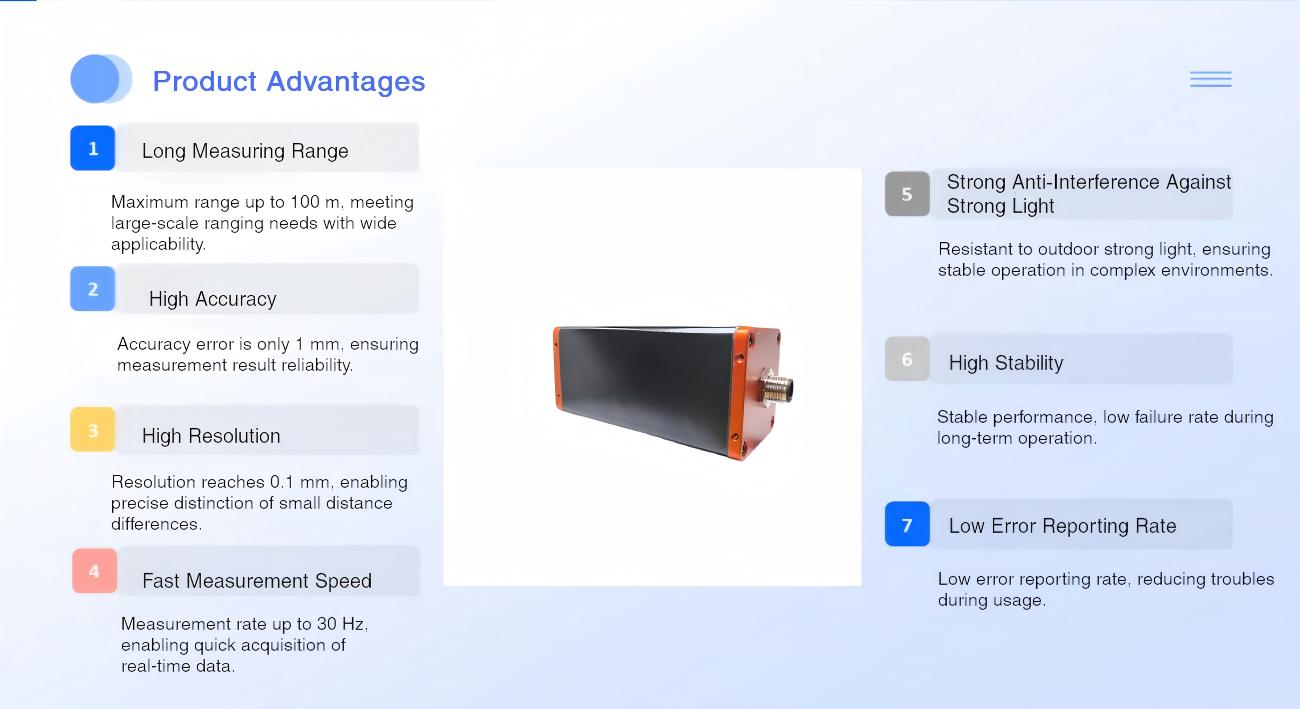

<h2>Yunshis SK-Pro Laser Ranging Sensor</h2><p>Yunshis SK-Pro Laser Ranging Sensor is a Yunshis laser ranging sensor for robotics sensing, distance measurement, automation, and embedded development workflows.</p><h3>Features</h3><ul><li>Laser Ranging Sensor for robot perception and ranging applications</li><li>Designed for robotics developers, education labs, automation teams, and embedded system integrators</li><li>Supports distance sensing use cases such as obstacle detection, positioning, and environment awareness</li><li>Product media, specifications, and downloadable support files are mapped from the reference page when available</li></ul>

Developer Support

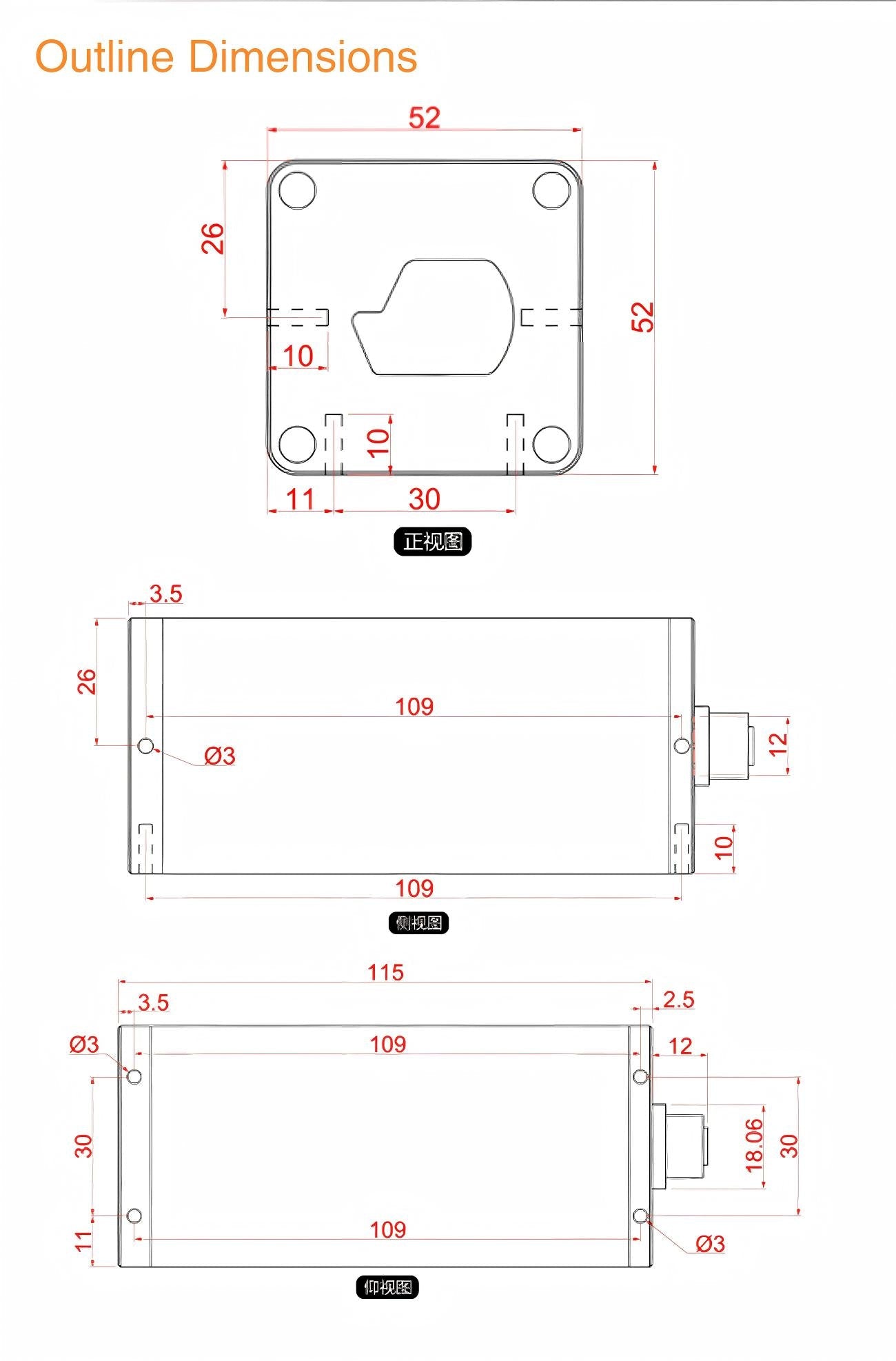

Yunshis SK-Pro Laser Ranging Sensor drawing document for mechanical reference and product dimensions. ▶
Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation Yunshis SK-Pro Laser Ranging Sensor | Laser Ranging Sensor for Robotics & Automation

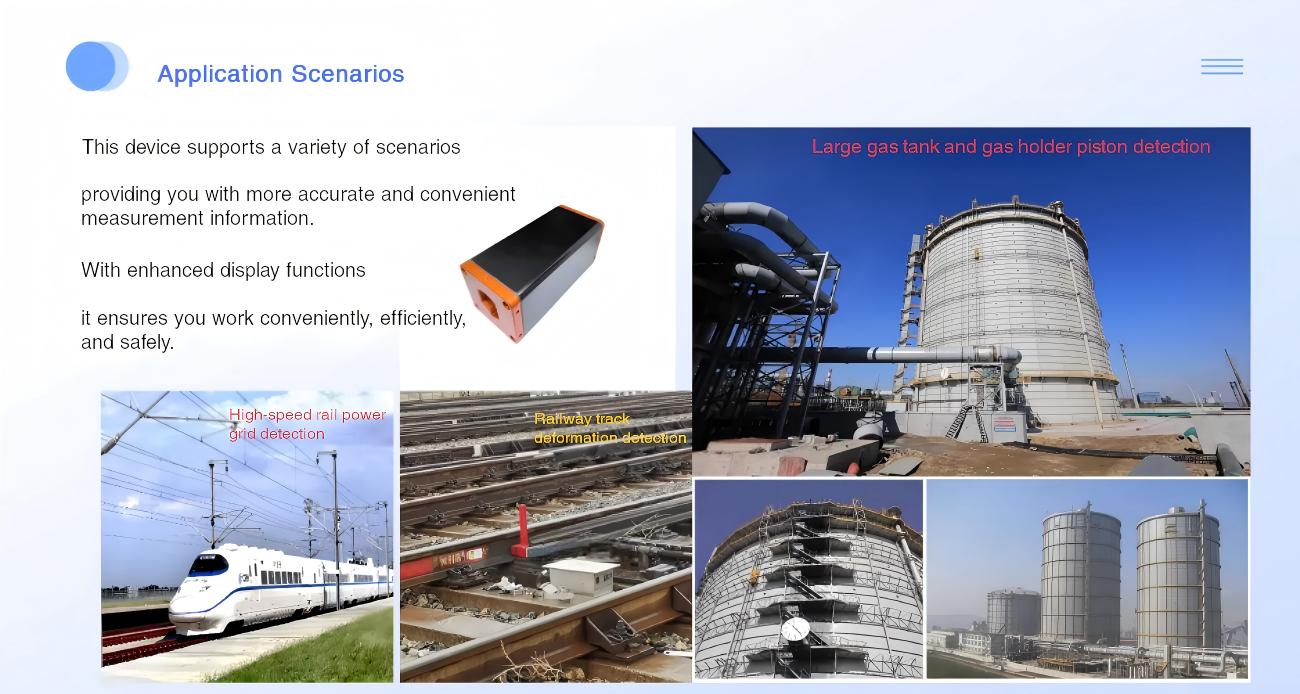

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

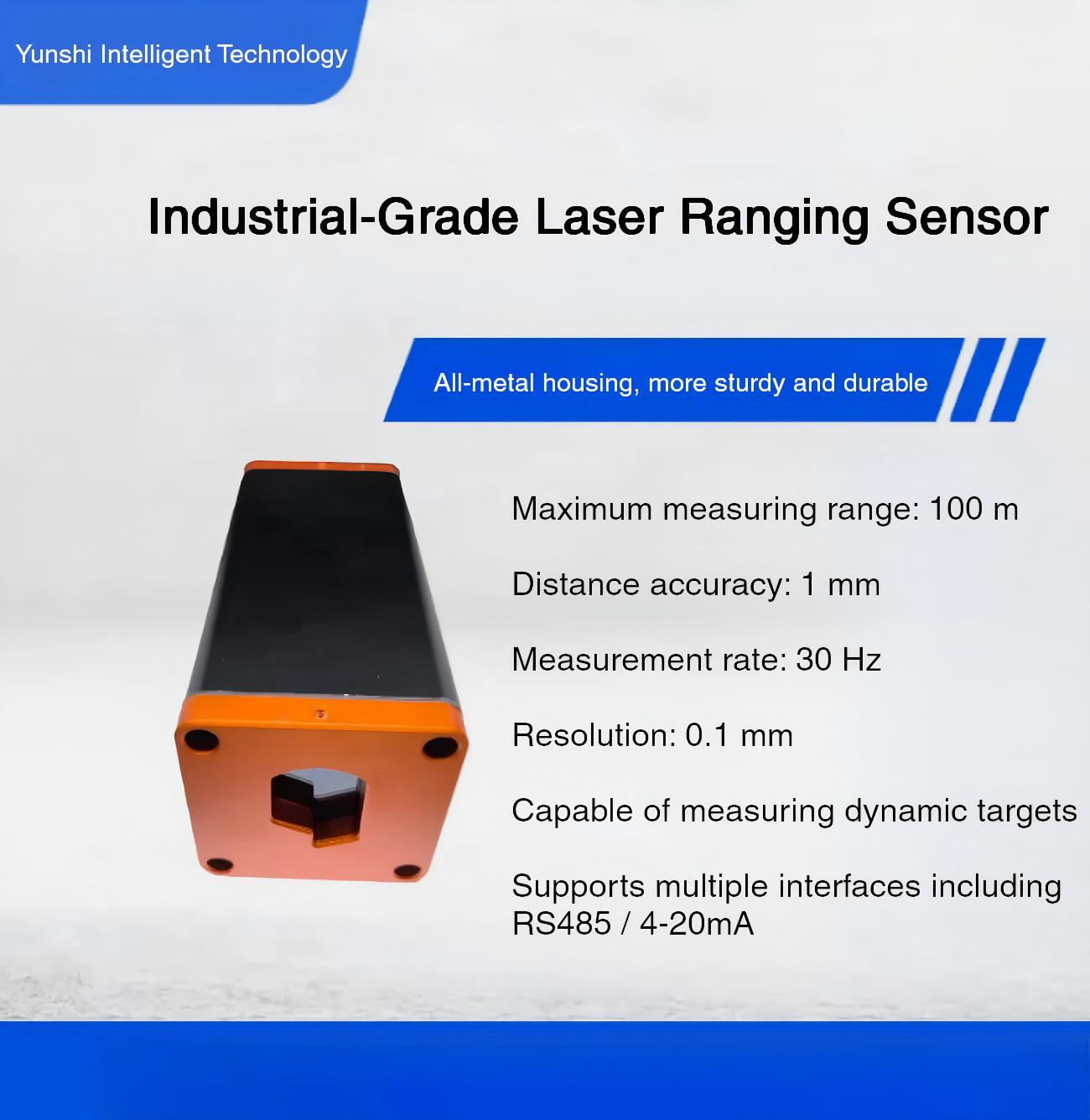

▤ Technical Specifications ⌃
Parameter
SK-Pro30
SK-Pro60
SK-Pro100
Model
SK-Pro30
SK-Pro60
SK-Pro100
Measurement Range
0.05~30m
0.05~60m
0.05~100m
Resolution
0.1mm
Repeatability Precision
0.5mm
Accuracy
1mm
Measurement Rate
30Hz (Adjustable)
Response Time
Min 0.033s
Target Object
Natural surface or dedicated reflection plate for static/dynamic targets
Ambient Light Immunity
Anti-outdoor sunlight 100kLux
Light Source
Red visible laser, wavelength 650~660nm
Laser Safety Class
Class 1 (IEC 60825-1:2014, EN 60825-1:2014)
Typical Spot Diameter
Φ2mm (at 10m)
Laser Lifespan
Over 100000h
Power Supply
DC7~28V
Power Consumption
<2W
Housing Material
Aluminum Alloy
Lens Material
PMMA
Dimension (L*W*H)
52*52*115mm
IP Rating
IP67
Weight
270g
Operating Temperature
-20~+60°C
Mounting
Bottom M3*4 screw holes, side M3*4 screw holes
