GENISOM

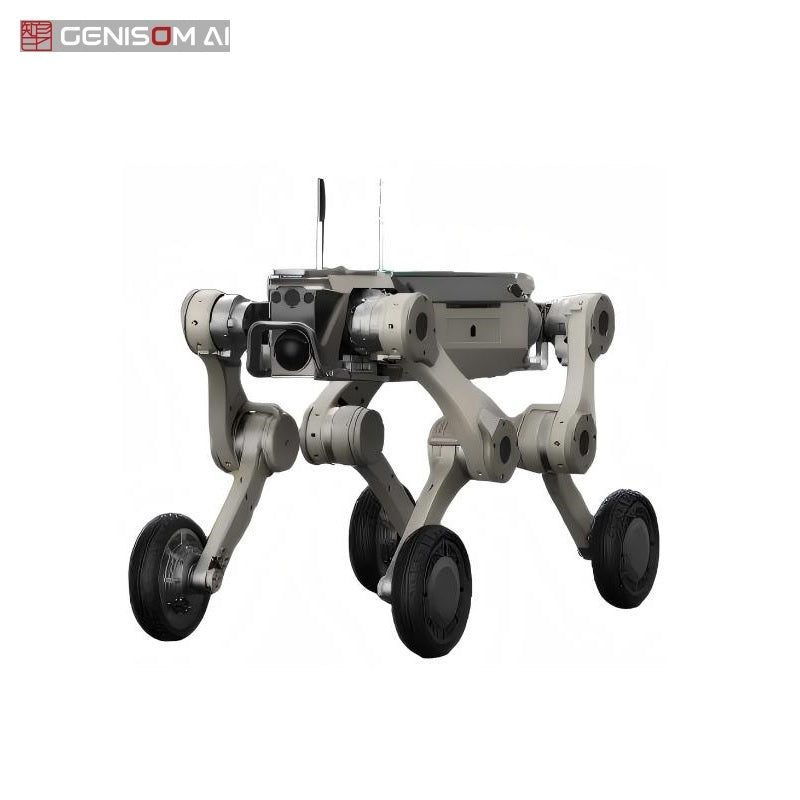

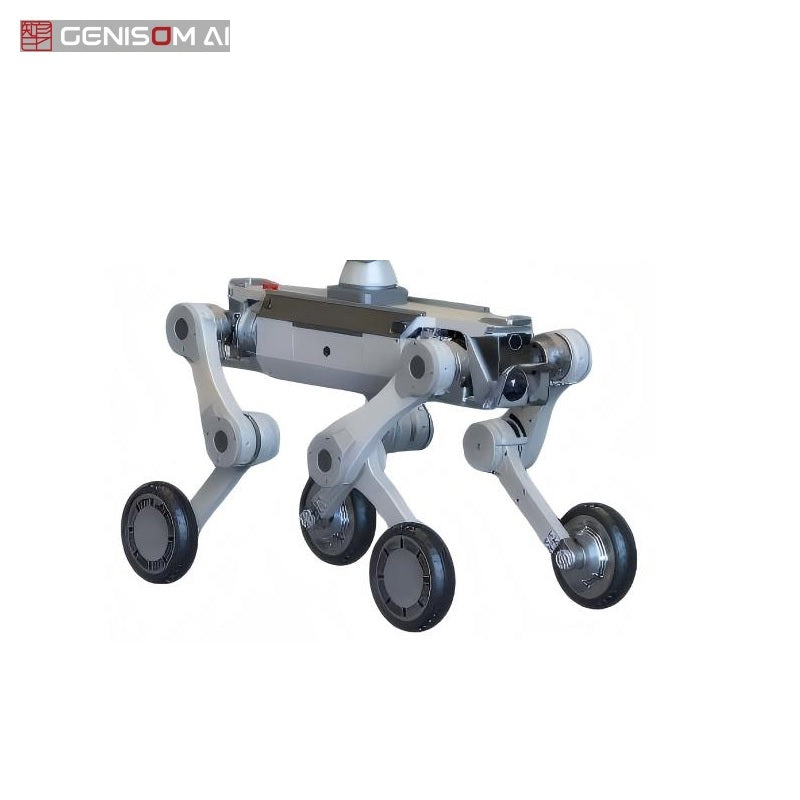

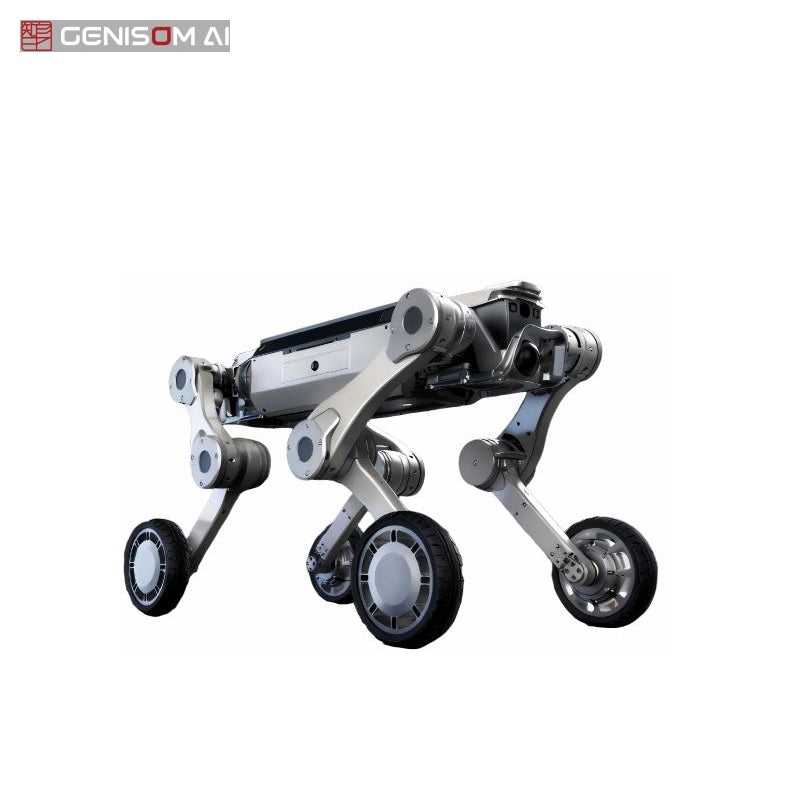

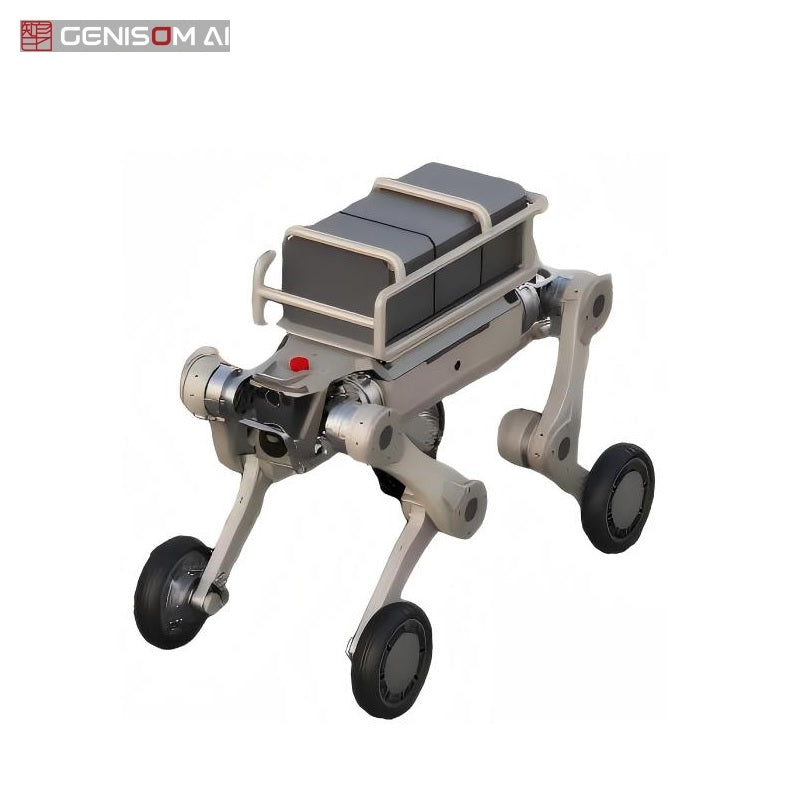

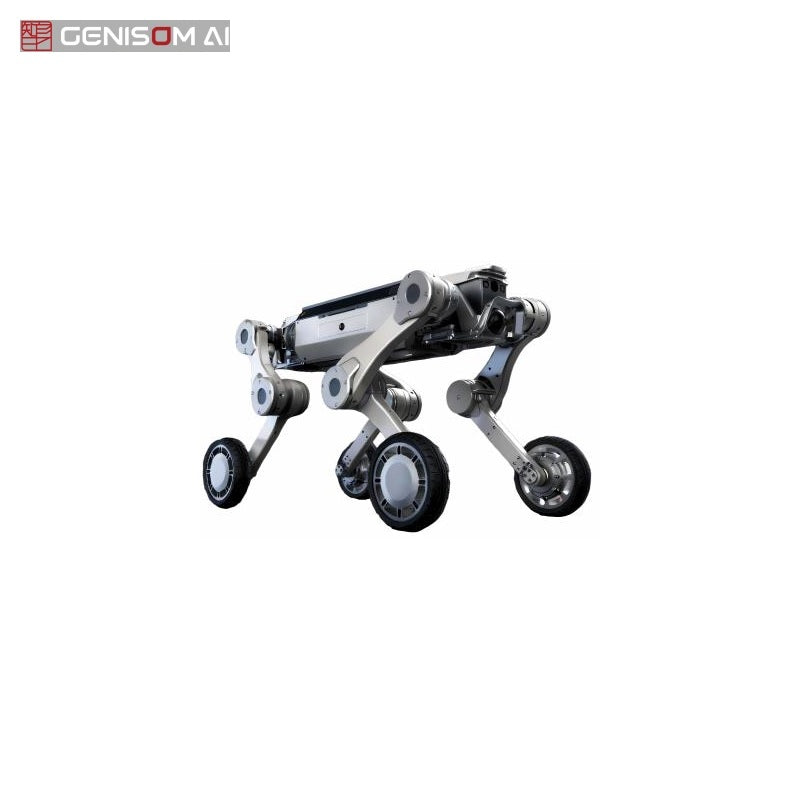

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research

  • GENISOM quadruped robot platform for robotics research, embodied AI development, and education labs.
  • Suitable for teams building robot locomotion, autonomous behavior, perception, and field robotics workflows.
  • Designed for robotics developers, universities, and engineering teams evaluating quadruped robot applications.
  • Supports practical robot platform development for prototyping, demonstrations, automation, and lab experiments.
$49,240
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 1
GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 2
GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 3

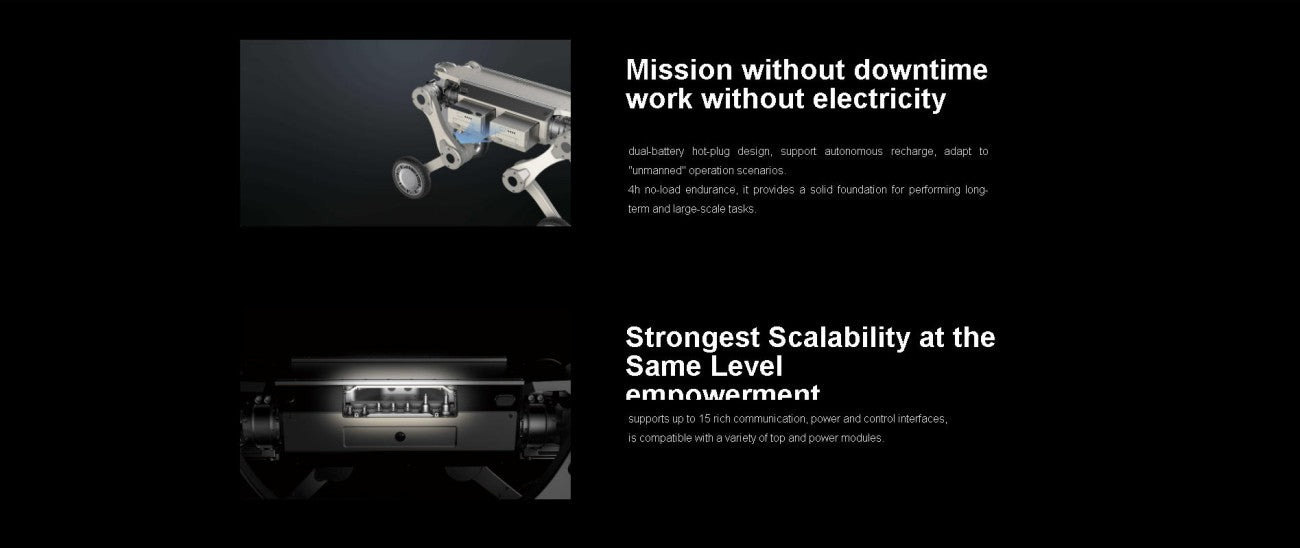

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 4

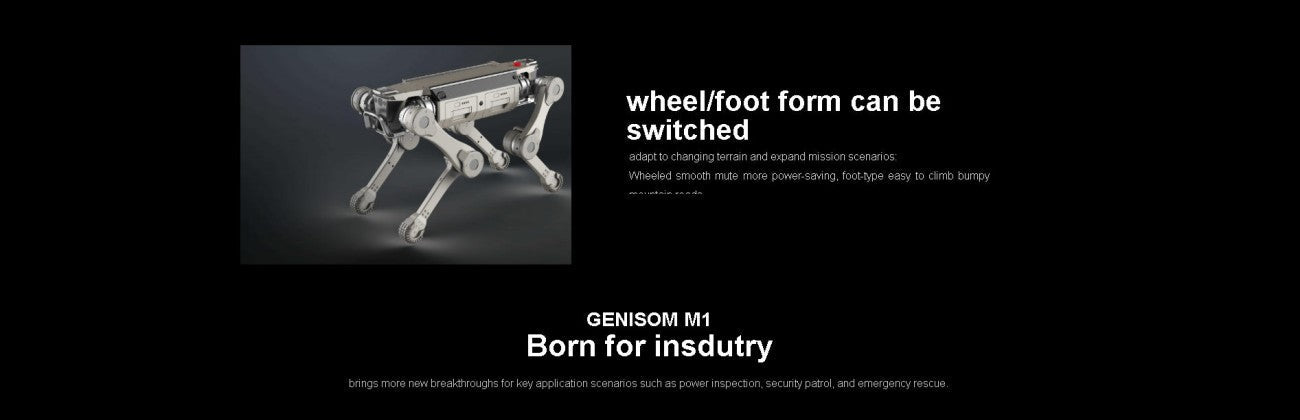

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 5

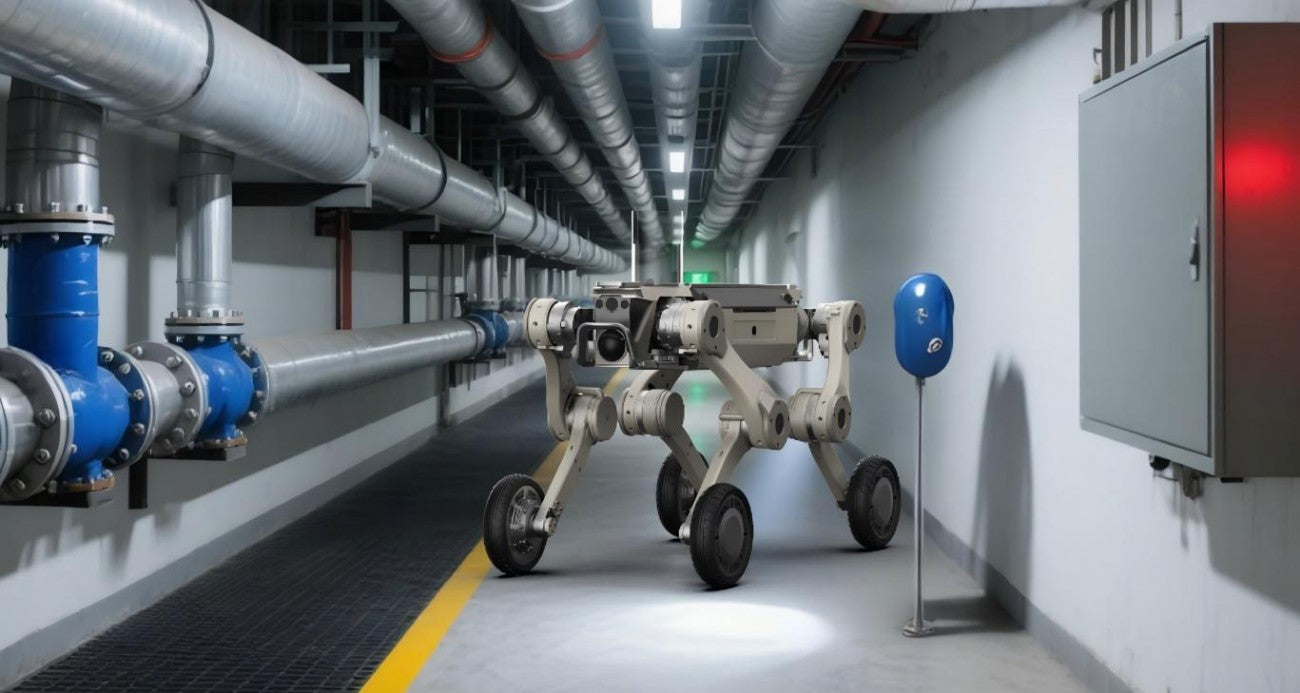

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 6

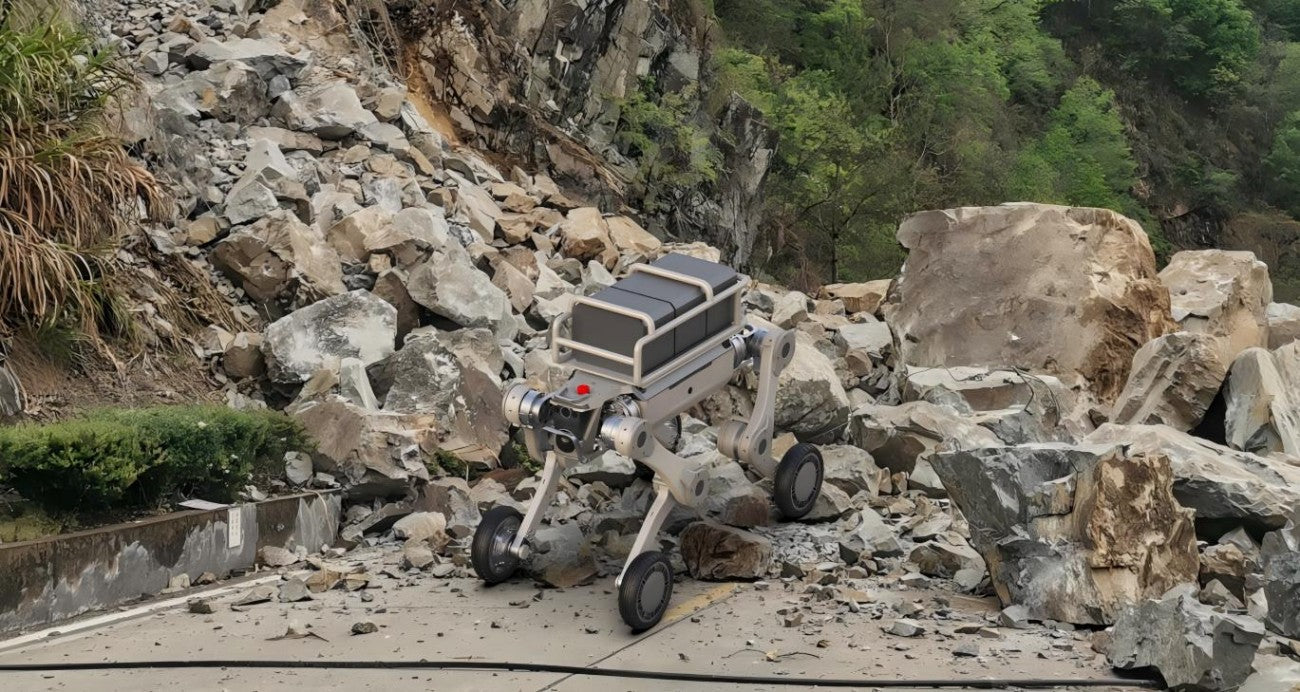

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 7

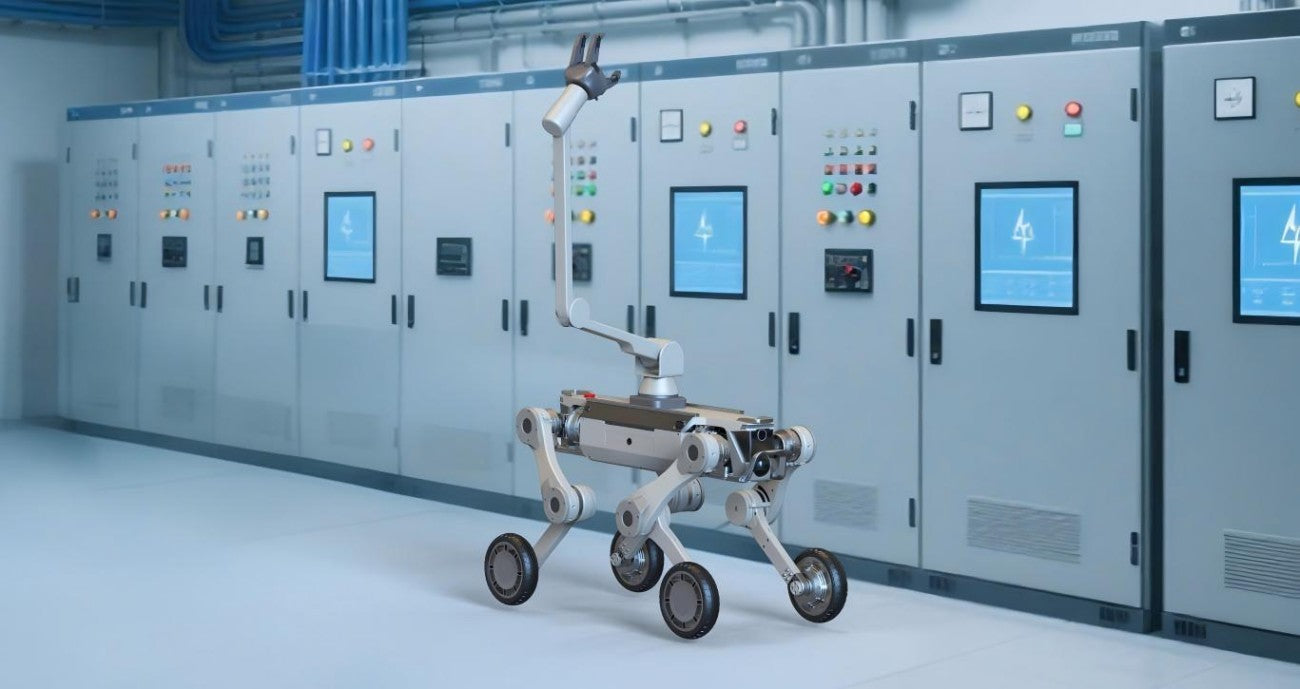

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 8

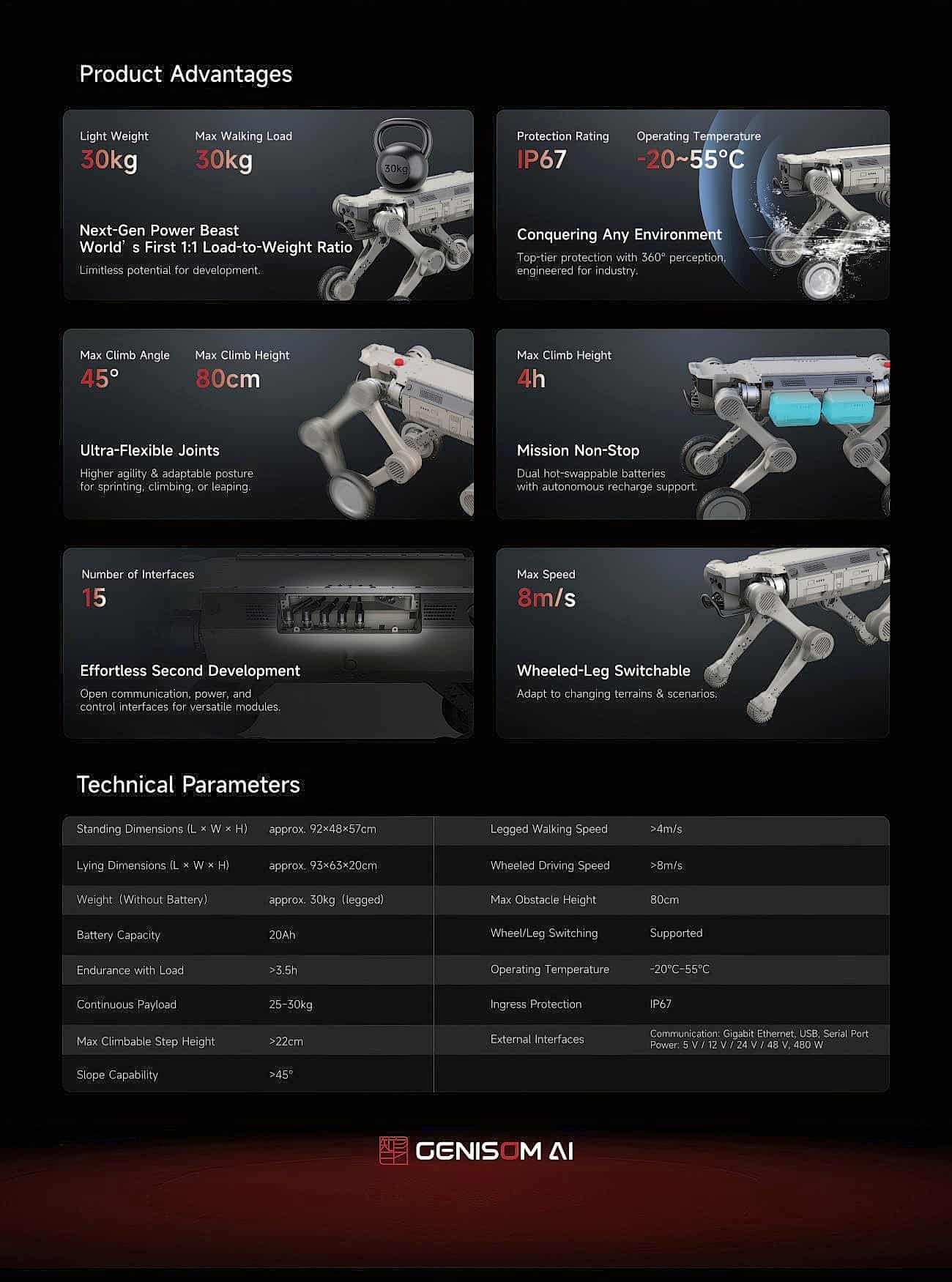

GENISOM M1 Robot | Quadruped Robot Platform for Robotics Research detail image 9
▤ PARAMETER ⌃
Overall Standing Dimensions
GENISOM M1: ≤950mm × 500mm × 600mm
Total Weight (incl. battery)
GENISOM M1: ≤40kg
Stable Payload Capacity
GENISOM M1: ≥25kg
Battery Capacity
GENISOM M1: ≥20AH 54V
Total Degrees of Freedom (DOF)
GENISOM M1: 16; Single Leg DOF: 3+1 (wheel-leg)
Battery Life
GENISOM M1: Unloaded ≥5h; Fully Loaded ≥3.5h
Maximum Speed (Limit)
GENISOM M1: 8m/s
Standard Configured Max Speed
GENISOM M1: 6m/s
Maximum Slope Climbing
GENISOM M1: ±45°
Maximum Obstacle Height
GENISOM M1: 80cm
Barrier Crossing
GENISOM M1: Height ≥50cm, Thickness ≤10cm
Maximum Stair Height
GENISOM M1: 22cm
Expansion Power Interfaces
GENISOM M1: 5V, 12V, 24V, 48V, Total Power ≥480W
Dual Battery Support
GENISOM M1: Hot-swappable, quick release/swap, no downtime required.
Communication Interfaces
GENISOM M1: Gigabit Ethernet ×2, USB 3.0 ×2, Serial Port ×1
Protection Modes
GENISOM M1: Software/Hardware E-Stop; Low battery alarm, over-temperature alarm, etc.
Locomotion
GENISOM M1: Capable of stepping, sliding, crawling. Supports linear movement (forward/backward/left/right), in-place rotation. Auto-recognizes slopes, stairs. Operates on gravel, asphalt, grass, sand, forest terrain, ruins.
Anti-Interference
GENISOM M1: Adjusts posture to maintain balance under impact. Can auto-recover to standing or enter protective mode with error reporting if fallen.
Charging
GENISOM M1: Supports manual and automatic charging modes.
Bidirectional Operation
GENISOM M1: Equipped with forward/reverse vision, supports in-place U-turn and direction switching.
Environmental Specs
GENISOM M1: Operating Temp -20°C to 55°C, Protection Rating IP67
LiDAR
GENISOM M1: Front & rear 96-line LiDARs. Provides ≥120m range, 360° horizontal, 90° vertical hemispherical FOV.
FPV Camera
GENISOM M1: Front & rear wide-angle cameras, Resolution ≥8MP.
RTK Module
GENISOM M1: GNSS RTK for real-time positioning.
Ultrasonic Sensors
GENISOM M1: Left & right sensors for obstacle detection within 5m.
Communication
GENISOM M1: Supports WiFi, Bluetooth, RF. RF Range: 500-1000m.
