PACECAT

PACECAT LDS-E200 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: LDS-E200
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for environmental sensing workflows that require reliable ranging and spatial awareness.
  • Useful for developers building localization, obstacle detection, navigation, and robotics perception applications.
$390
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

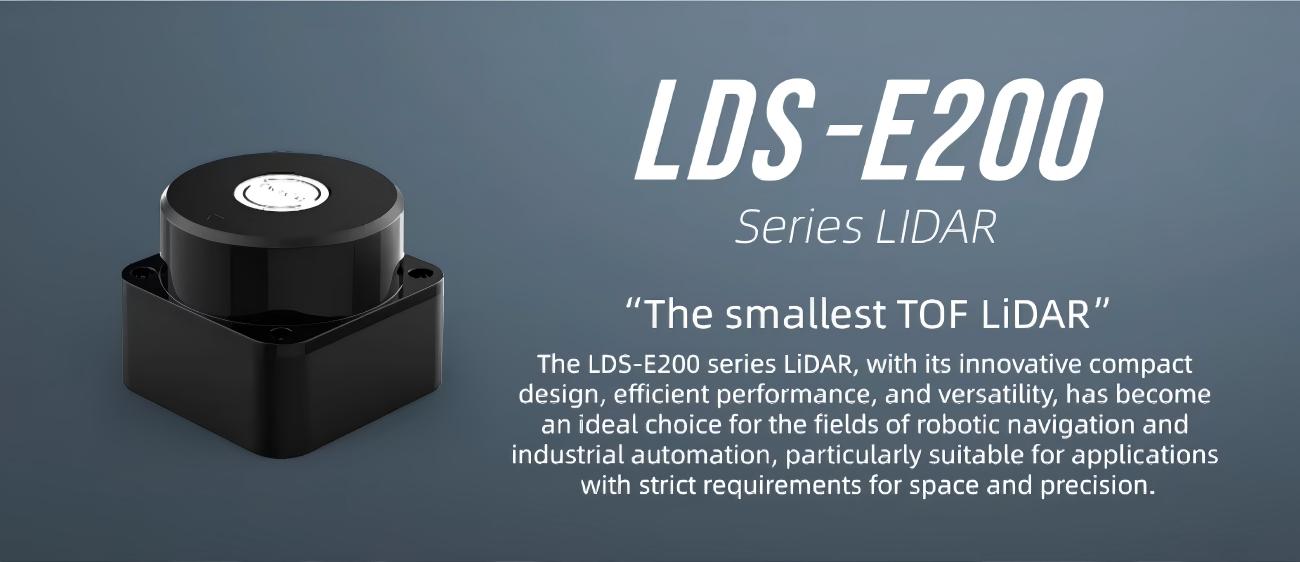

PACECAT LDS-E200 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

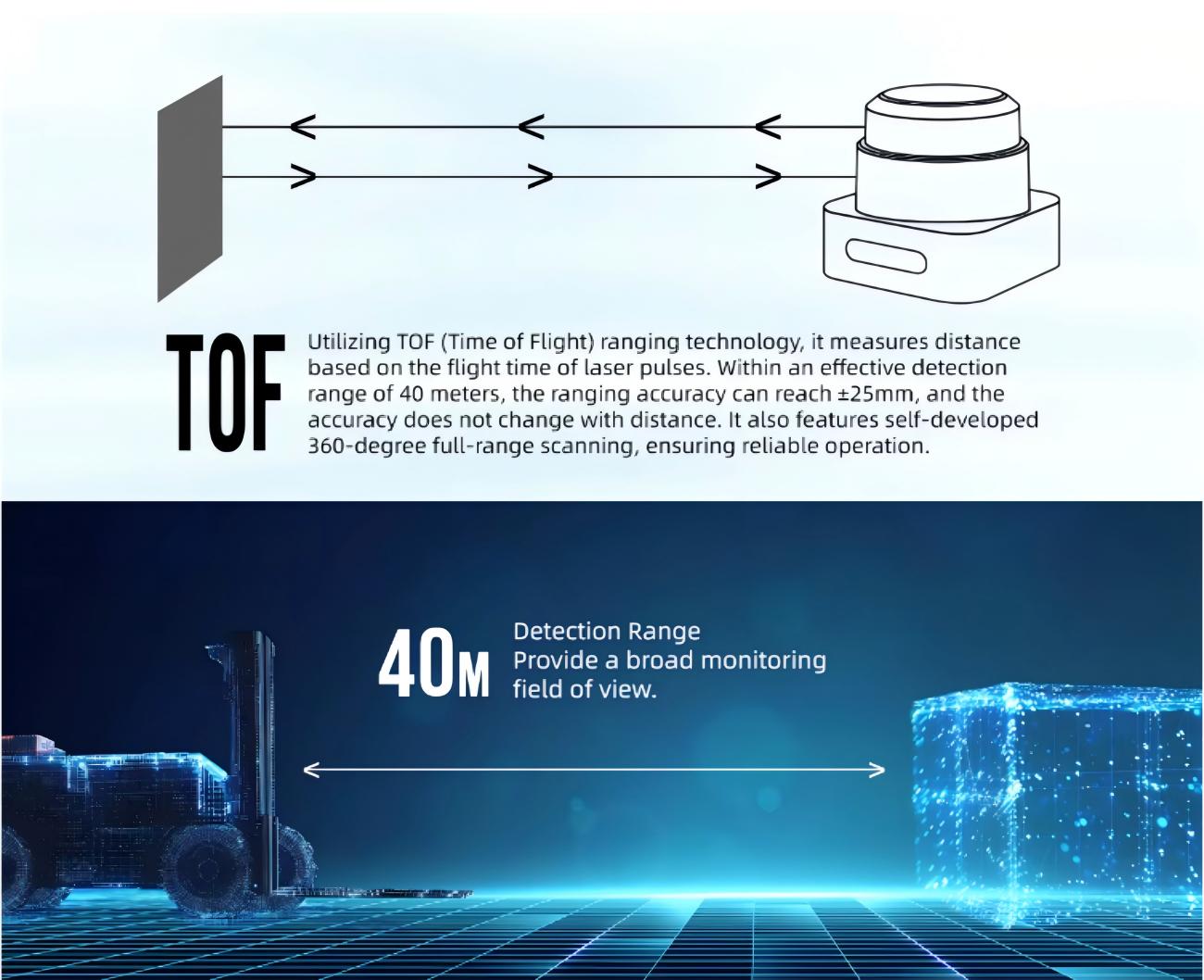

PACECAT LDS-E200 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

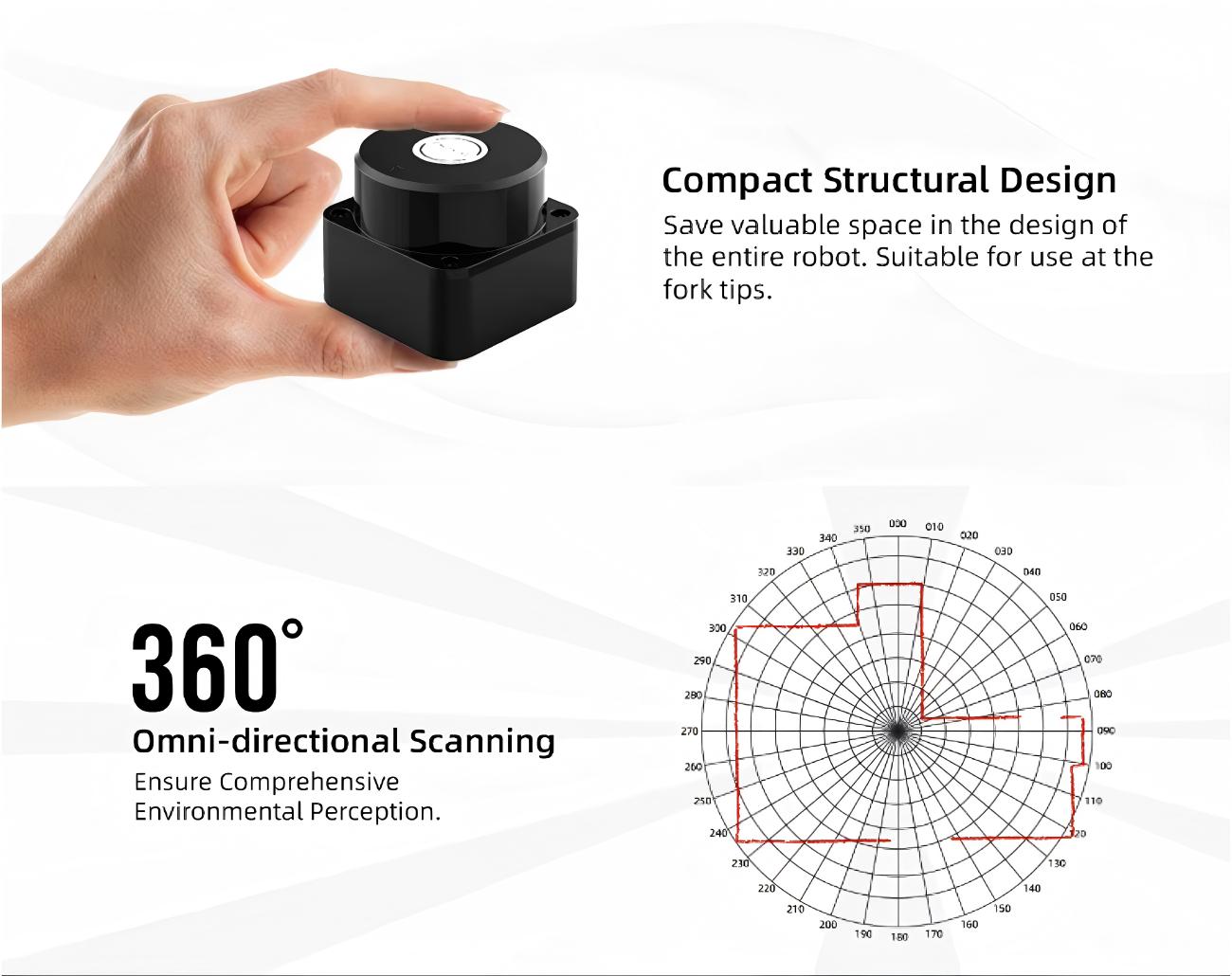

PACECAT LDS-E200 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

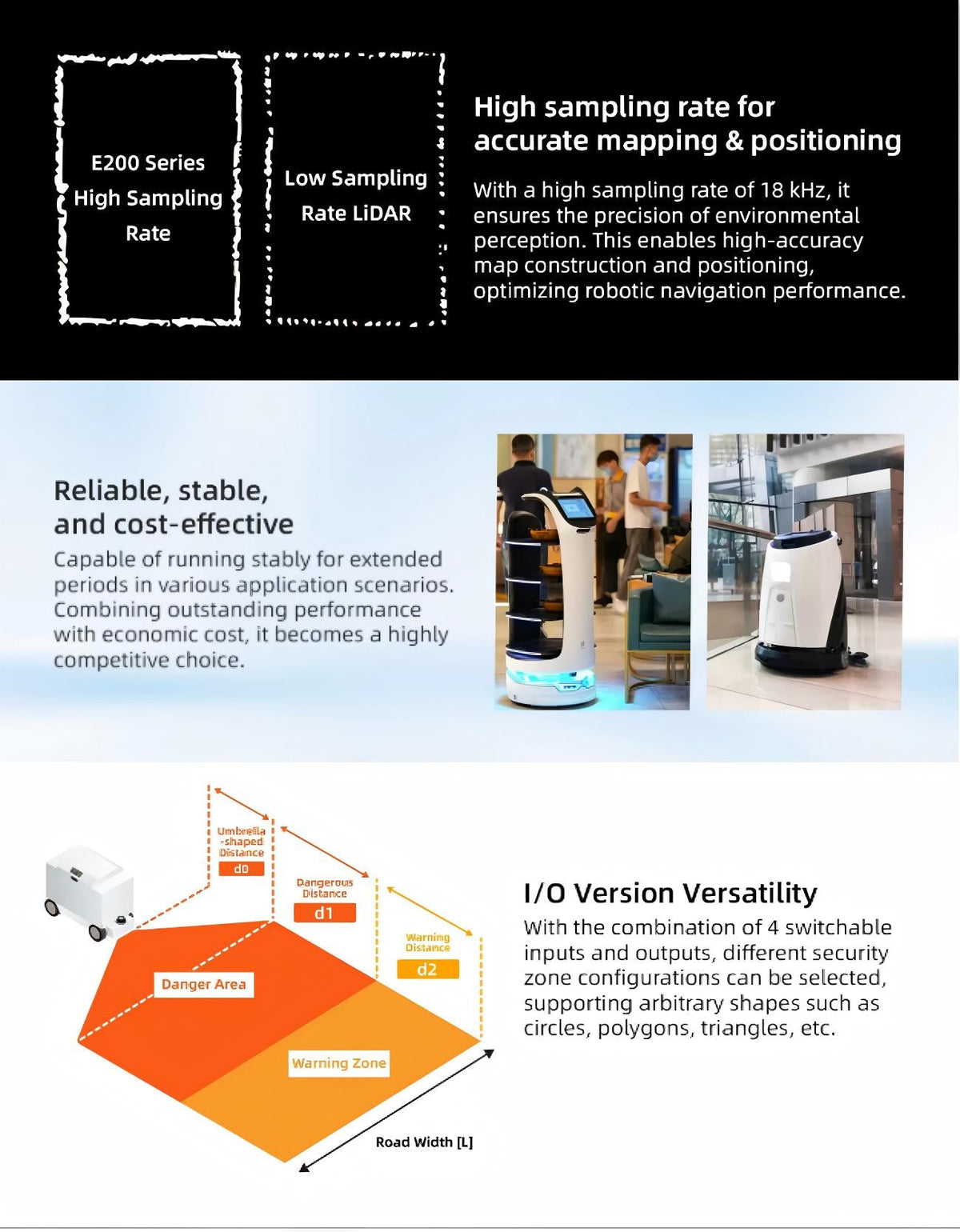

PACECAT LDS-E200 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

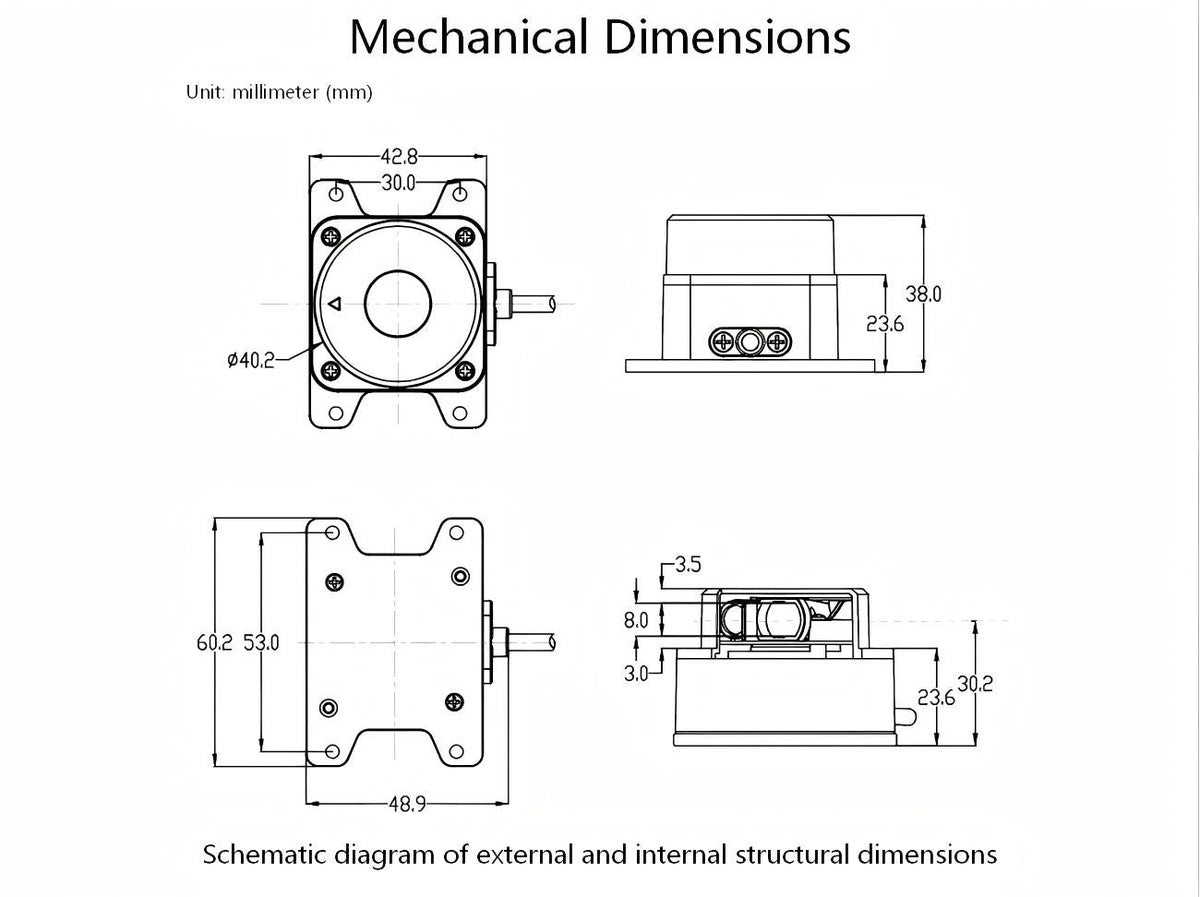

PACECAT LDS-E200 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
▤ PARAMETER ⌃
Model
LDS-E200
Laser Wavelength
905nm±15nm
Detection Range
0.1-20m (90%) 0.1-7m (10%)
Laser Frequency
18K
Refresh Rate
10Hz, 15Hz (default:10Hz)
Echo Mode
Single Pulse
Echo Intensity
0-254
Drive Method
Built-in Brushless DC Motor
Horizontal FOV
360°
Horizontal Angular Resolution
0.2°@10Hz, 0.3°@15Hz
Range Accuracy
±30mm
Range Resolution
mm
Data Interface
E200-R: UART 3.3V
Anti-glare
>80000LX
Reference Weight
E200-R: <60g
Operating Voltage / Input Voltage
5.1VDC±0.2VDC
Operating Temperature
-10°C~+50°C
Power Consumption
≤ 2.5W
Protection Grade
NA
Device Dimensions (mm)
42.6×42.6×35mm
