DAMIAO

DAMIAO DM-H55 Motor

  • Suitable for robotics development, automation prototypes, education labs, and research platforms.
  • Designed for robot hardware integration where controlled motion and torque output matter.
  • Useful for robot joint modules, humanoid projects, mobile robots, and precision motion systems.
$175
Version

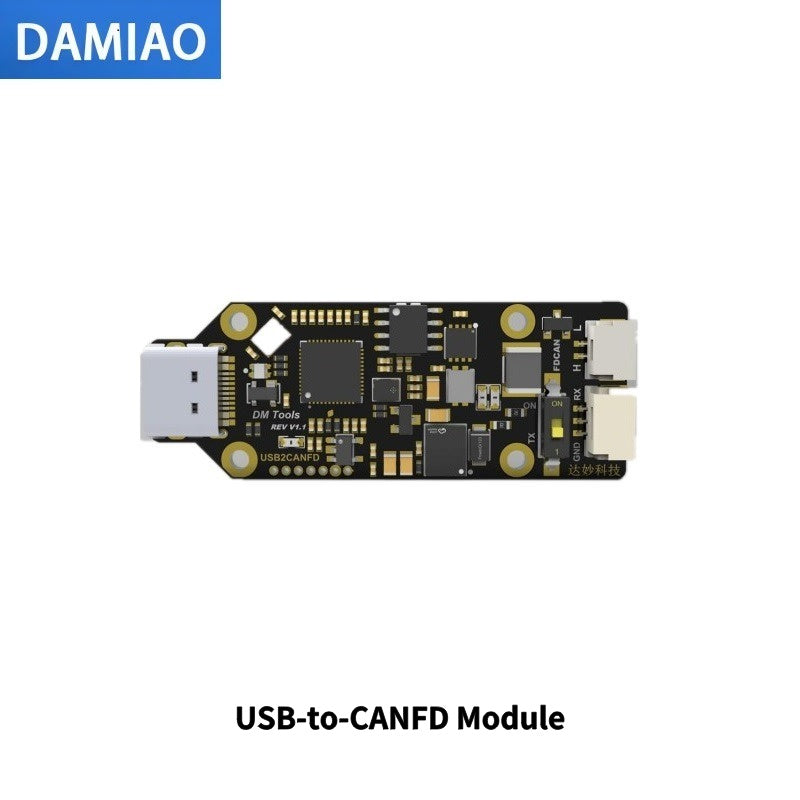

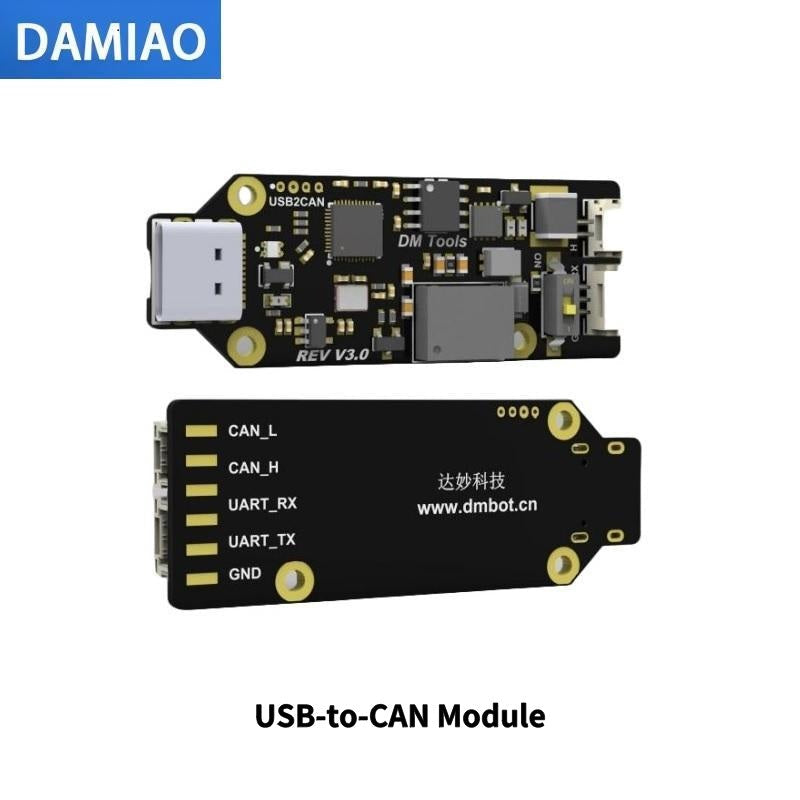

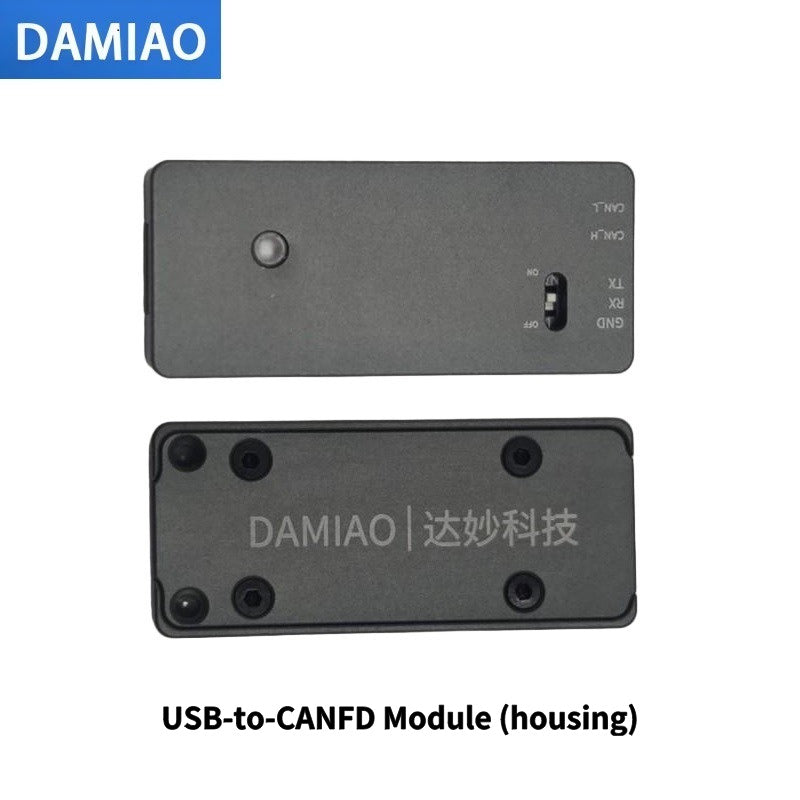

Communication Module

Care information
  • Store in a dry, dust-free environment and avoid impact or excessive vibration during handling.
  • Do not disassemble the motor or modify internal components, as this may affect performance and void warranty.
  • Ensure proper voltage supply and secure mounting before operation.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Bulk pricing and exclusive academic discounts are available for universities and research institutions.

Application Scenarios
Humanoid Robots Robotic Arms Exoskeletons Quadruped Robots AGV Vehicles ARU Robots

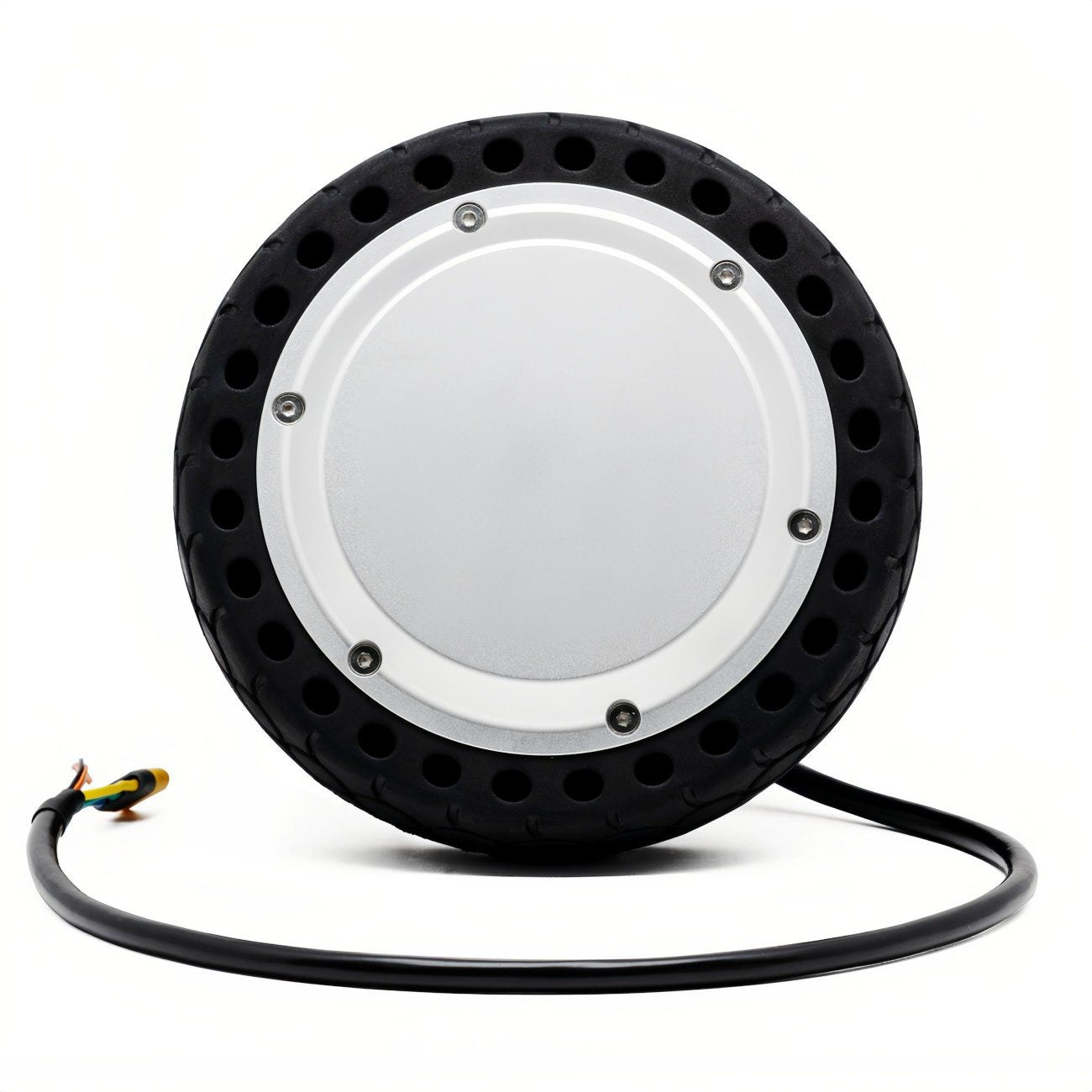

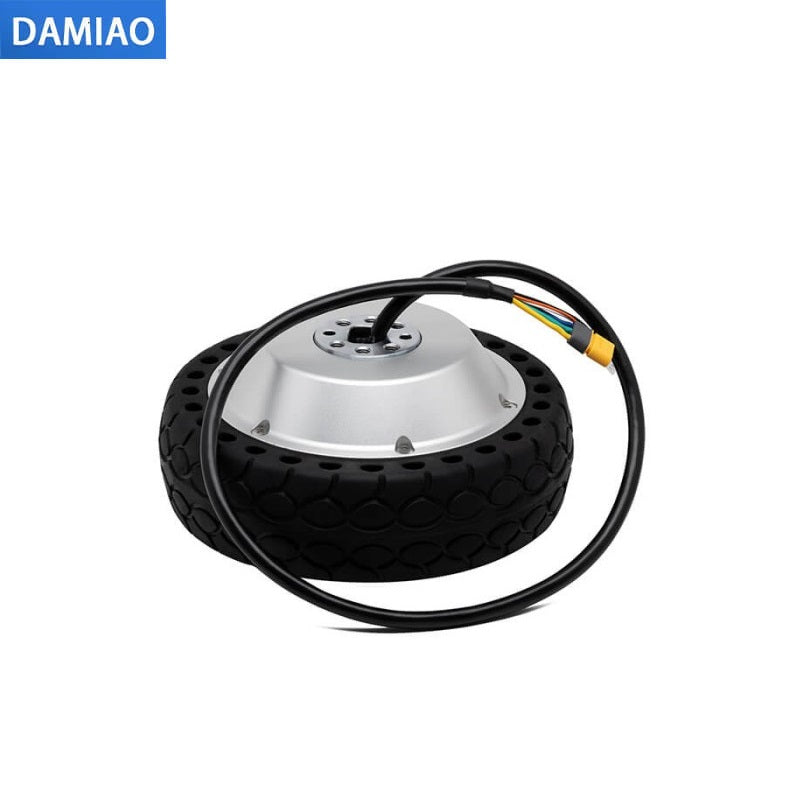

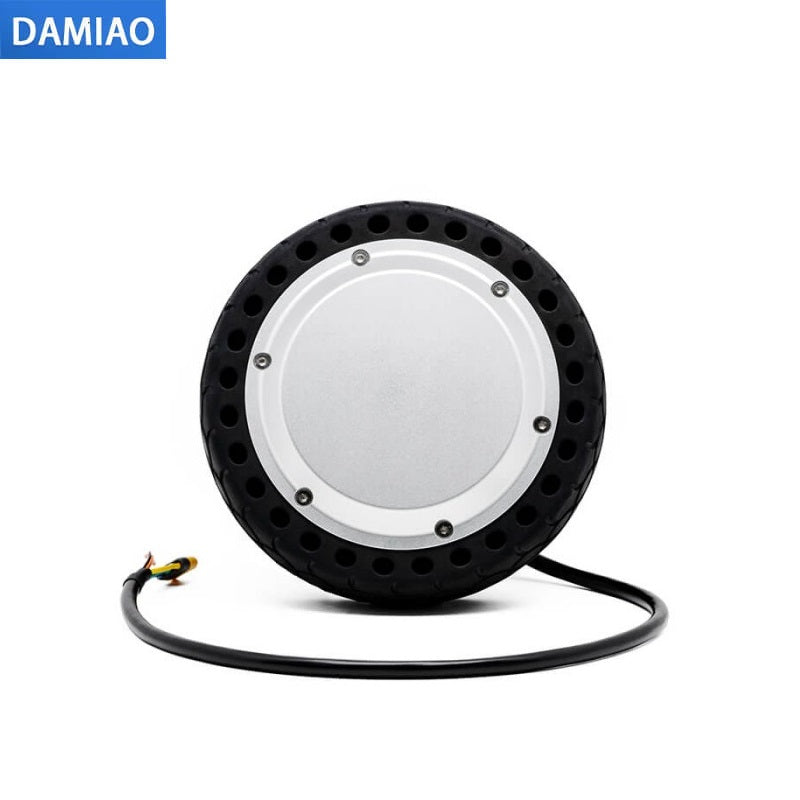

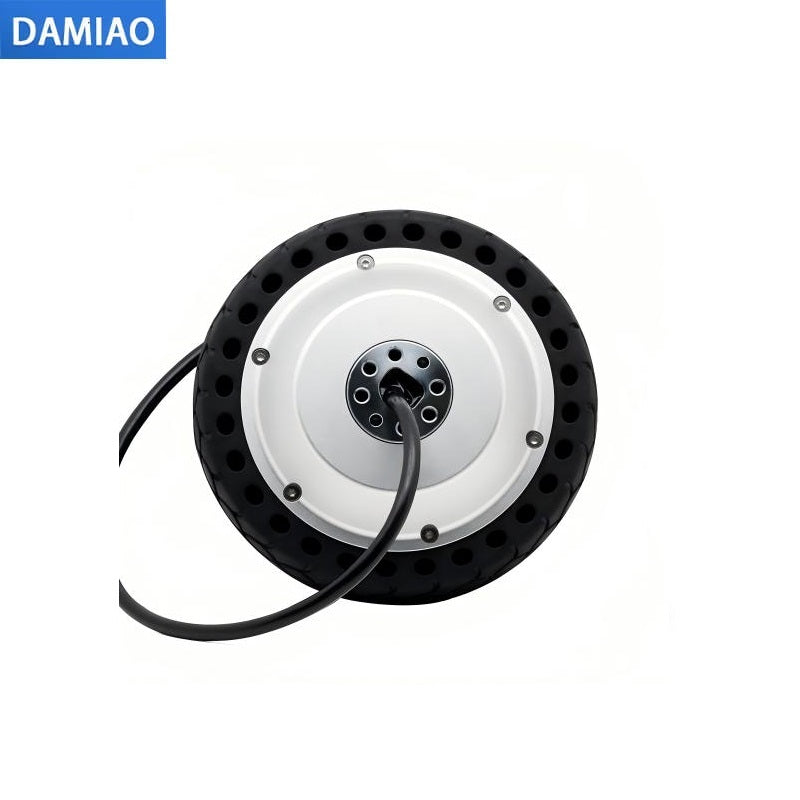

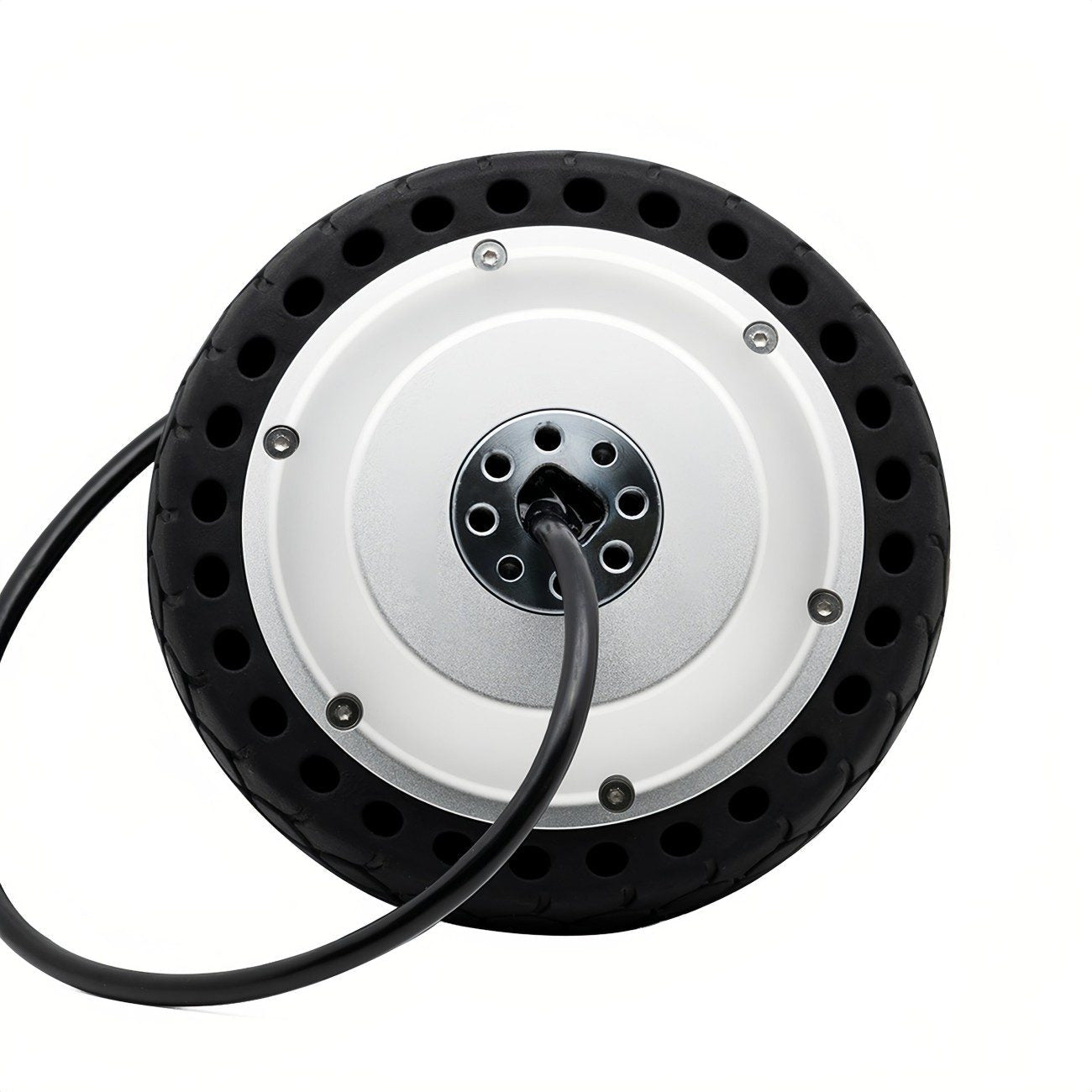

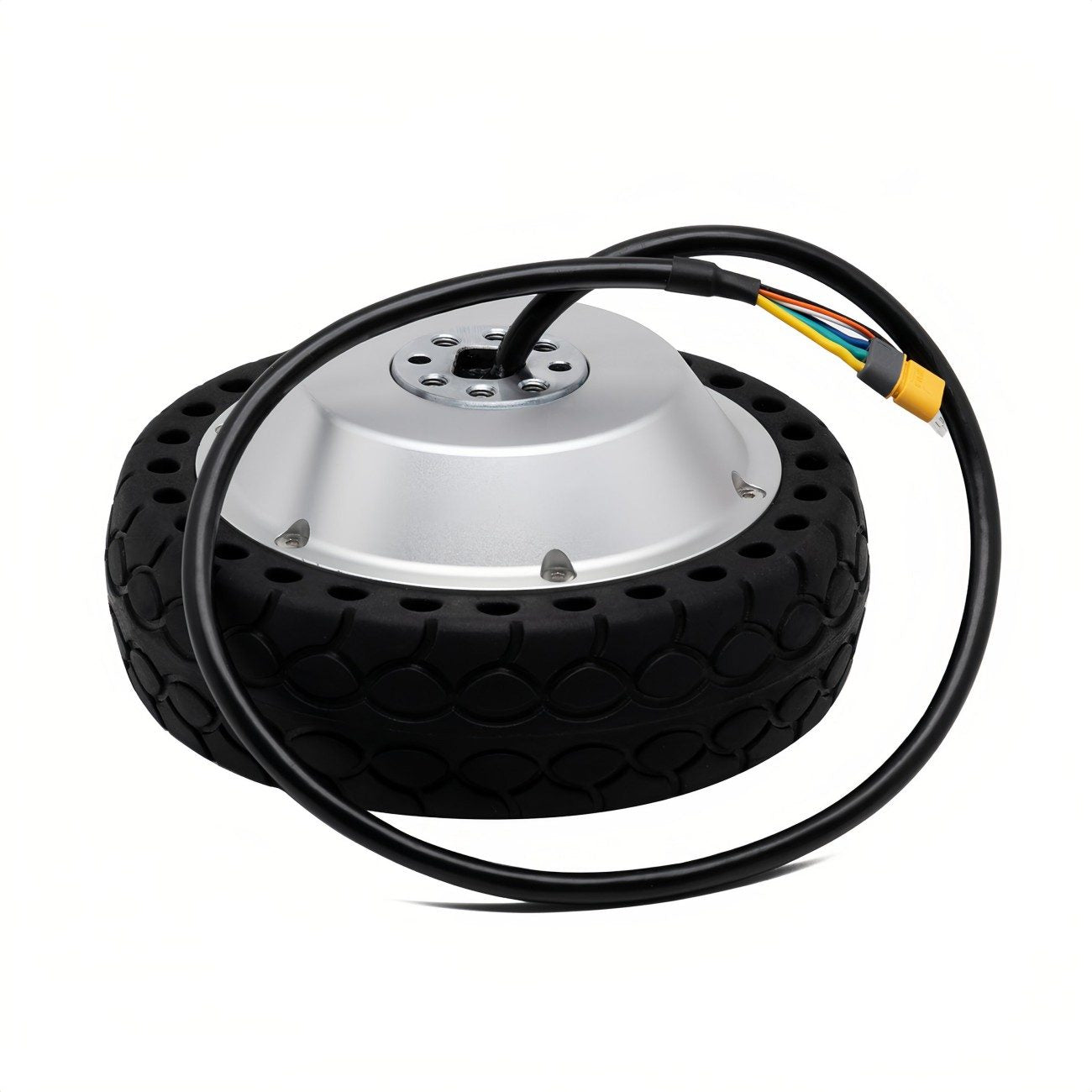

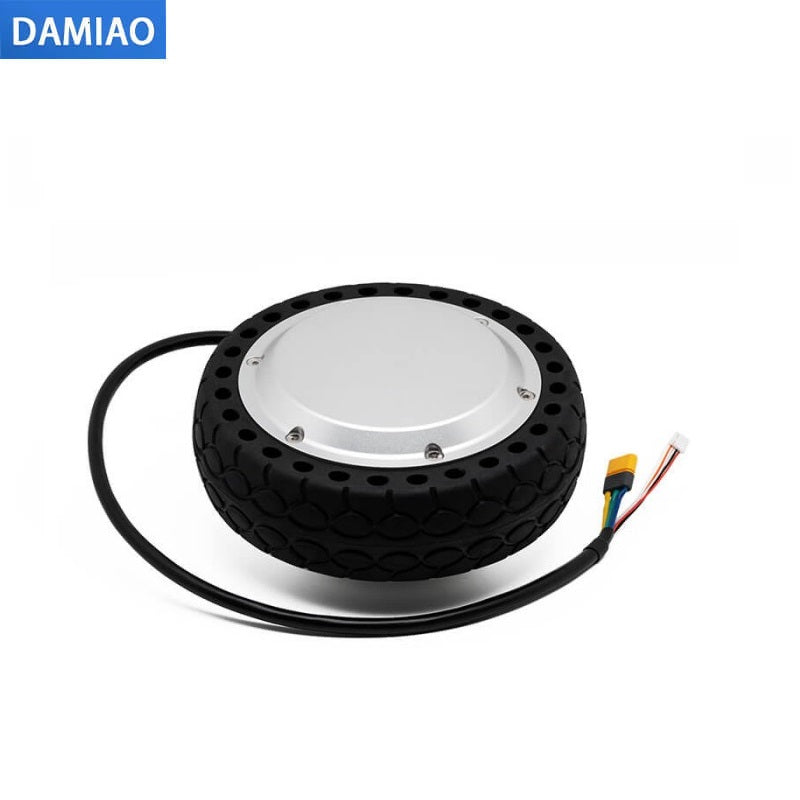

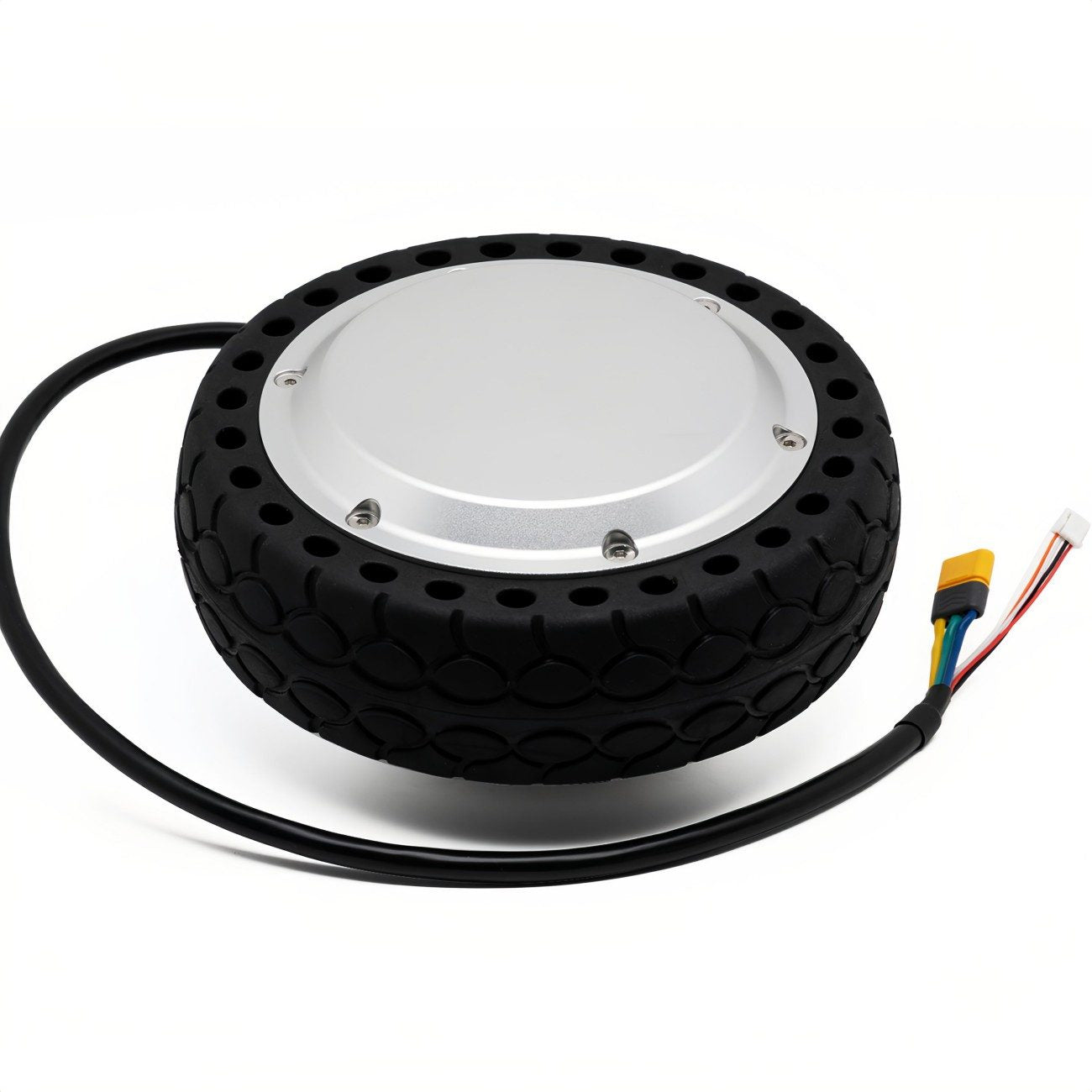

DAMIAO DM-H55 Motor

The DAMIAO DM-H55 Motor is a DAMIAO robot servo motor for robotics development, actuator integration, automation prototypes, and research platforms. It is intended for engineering teams building robotic joints, motion modules, and compact robot hardware systems.

Features

  • **Robot actuator integration:** Suitable for robotic joints, servo-driven modules, and motion hardware.
  • **Robotics development:** Supports education, research, prototyping, and automation projects.
  • **Motion system use:** Built for compact designs where reliable controlled movement is required.
  • **Engineering reference:** Product-specific specifications and approved resources support evaluation and system design.
▤ PARAMETER ⌃
Parameter
Value
Rated Voltage
24V (supports 24-48V)
Rated Phase / Supply Current
13.05A / 7.89A @ 24V; 13.05A / 5.36A @ 36V; 13.05A / 4.08A @ 48V
Peak Phase / Supply Current
33.55A / 22.62A @ 24V; 33.55A / 15.83A @ 36V; 33.55A / 12.38A @ 48V
Rated Torque
3.5 N·m
Peak Torque
9.0 N·m
Rated Speed
350 rpm
Max No-Load Speed
587 rpm @ 24V; 883 rpm @ 36V; 1185 rpm @ 48V
Modulus
18
Number of Pole Pairs
10
Phase Inductance
336 µH (@25°C)
Phase Resistance
0.281 Ω (@25°C)

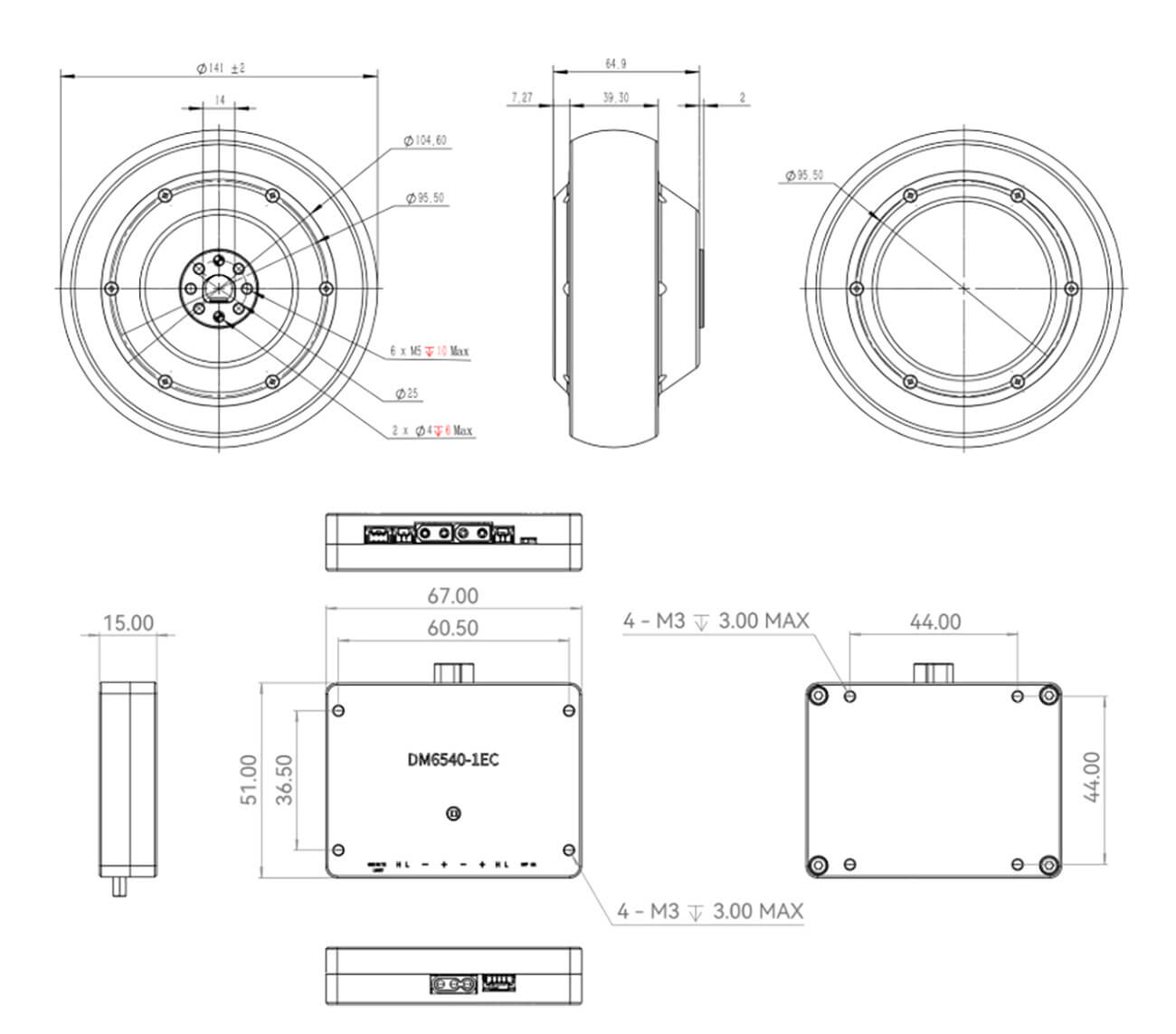

Outer Diameter
141 mm
Height
66.9 mm
Motor Weight
Approx. 2100g
Encoder Resolution
17 bit
Encoder Accuracy
±0.03 degrees
Number of Encoders
1
Control Interface
CAN @ 5Mbps (Max)
Tuning Interface
UART @ 921600 bps
Control Modes
MIT Mode, Position & Velocity Mode, Velocity Mode, Force-Position Hybrid Control
Protection
Driver over-temperature protection: 120°C, motor will exit enable mode. Motor over-temperature protection: configurable, recommended ≤100°C, motor will exit enable mode. Over-voltage protection: configurable, recommended ≤65V, motor will exit enable mode. Communication loss protection: if no CAN command is received within the set period, motor will exit enable mode. Over-current protection: configurable, recommended ≤0.98, motor will exit enable mode. Under-voltage protection: motor will exit enable mode if supply voltage falls below set value; supply voltage should not be lower than 20V.
DAMIAO DM-H55 Motor DAMIAO DM-H55 Motor DAMIAO DM-H55 Motor DAMIAO DM-H55 Motor DAMIAO DM-H55 Motor
