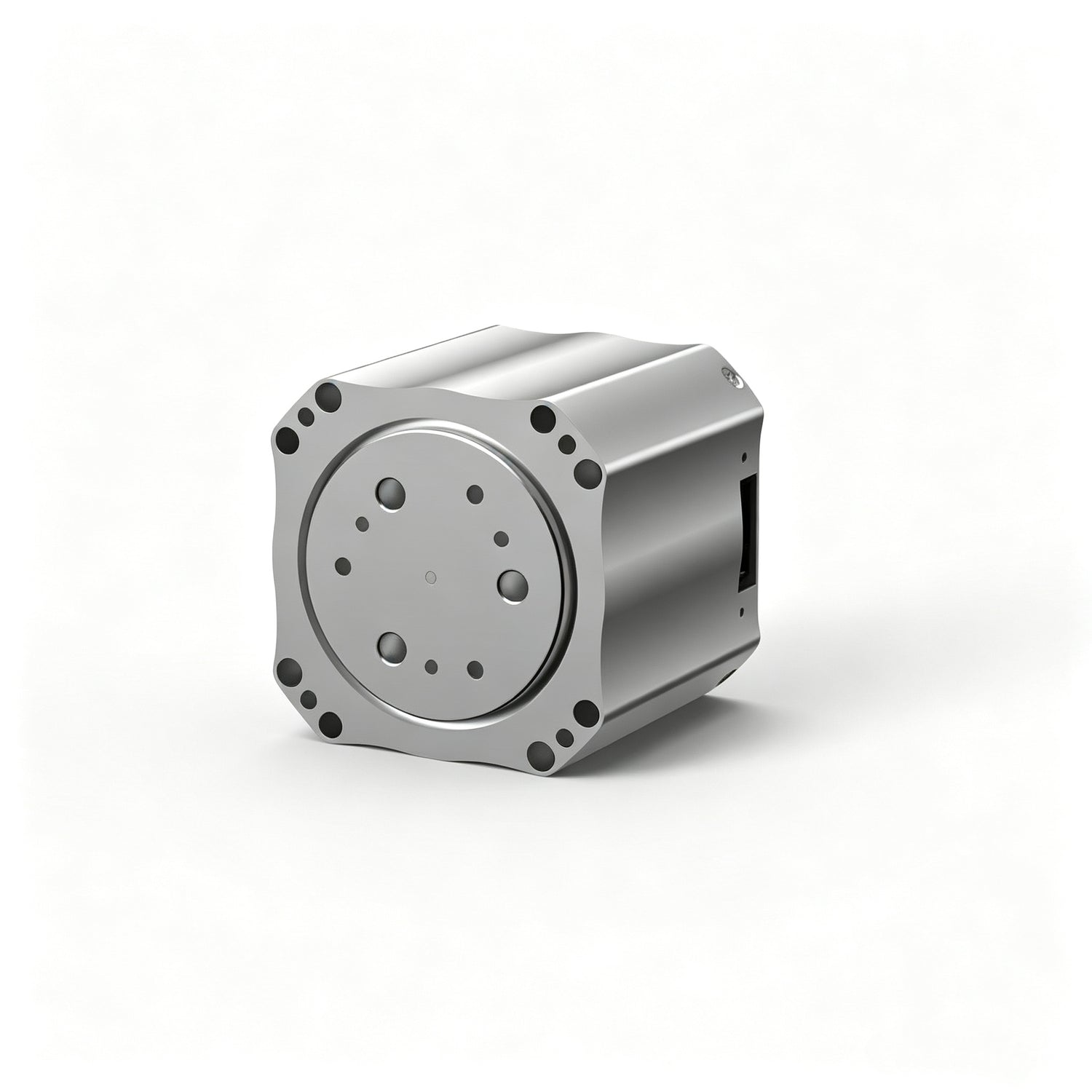

HIGH TORQUE HTDW-5022-02-DNE Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and robotics research platforms.
  • Compact planetary joint module with integrated motor and gearbox design.
  • 22:1 reduction ratio provides efficient torque output for robotic motion.
  • Dual encoder feedback enables precise joint control and stable operation.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTDW-5022-02-DNE Planetary Joint Module

The HIGH TORQUE HTDW-5022-02-DNE is a compact planetary joint module designed for humanoid robots, robotic arms, and robotics research platforms. It integrates motor, gearbox, encoder feedback, and communication functions into a compact actuator solution for precise robotic motion control and system development.

Compact Robotic Joint Design

The HTDW-5022-02-DNE combines a motor and planetary gearbox into an integrated joint module, providing a compact solution for robotic systems where installation space and weight optimization are important.

High Torque Output

With a 22:1 reduction ratio and high torque output capability, the module provides reliable power transmission for robotic joints requiring stable and controlled movement.

Encoder Feedback Control

The integrated encoder system provides accurate joint feedback for improved motion control, making the actuator suitable for applications requiring precise robotic positioning and repeatable movements.

Flexible Communication Integration

Supporting CANFD/CAN communication, the HTDW-5022-02-DNE can be integrated into various robotic control architectures for research, development, and custom robotics projects.

Applications in Advanced Robotics

The compact design and integrated control features make the HTDW-5022-02-DNE suitable for humanoid robots, robotic arms, educational platforms, and robotics research applications.

HIGH TORQUE HTDW-5022-02-DNE Planetary Joint Module
▤ PARAMETER ⌃

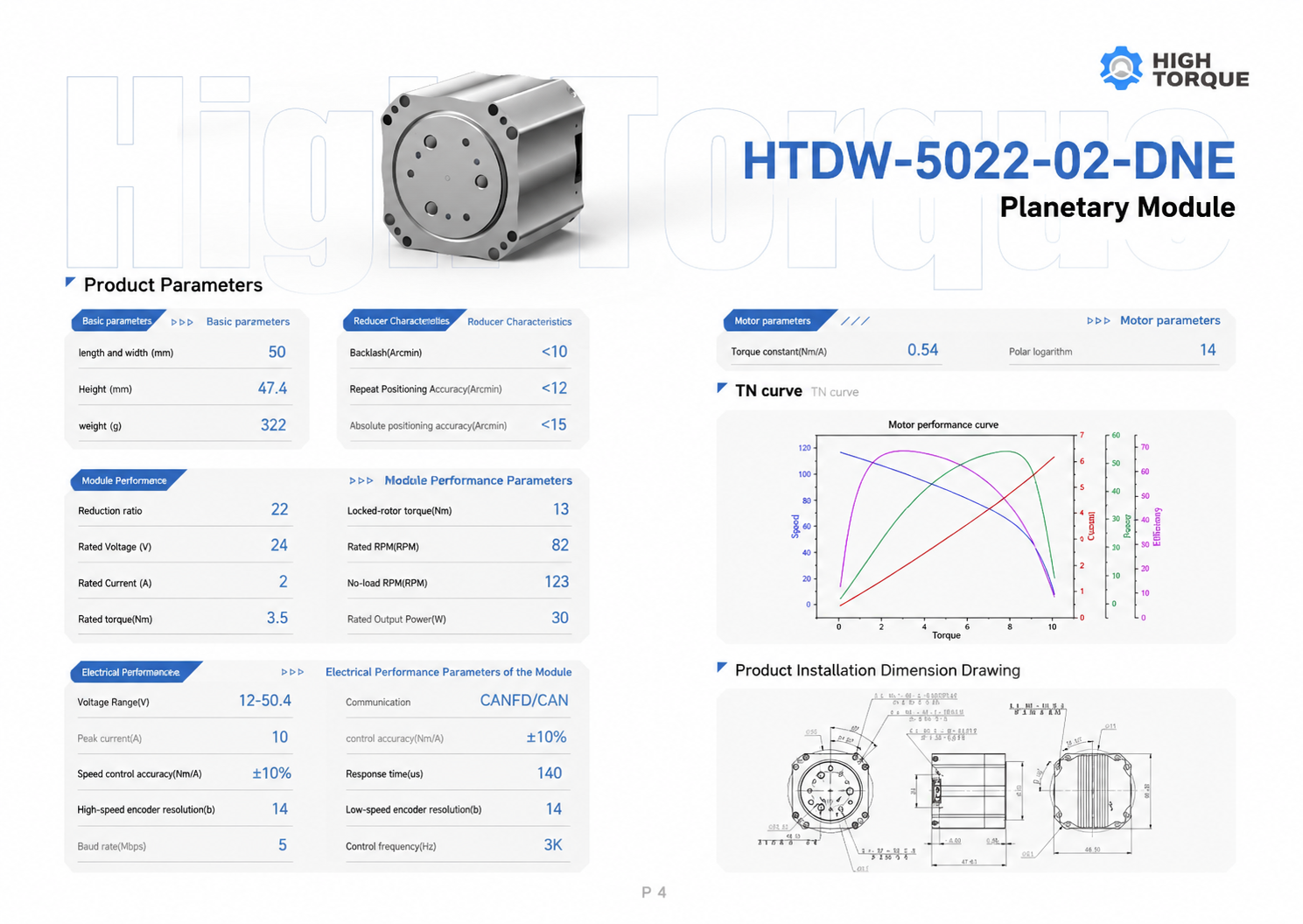

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 50 mm
Height 47.4 mm
Weight 322 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 22
Rated Voltage 24 V
Rated Current 2 A
Rated Torque 3.5 Nm
Locked-Rotor Torque 13 Nm
Rated RPM 82 RPM
No-Load RPM 123 RPM
Rated Output Power 30 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 10 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
