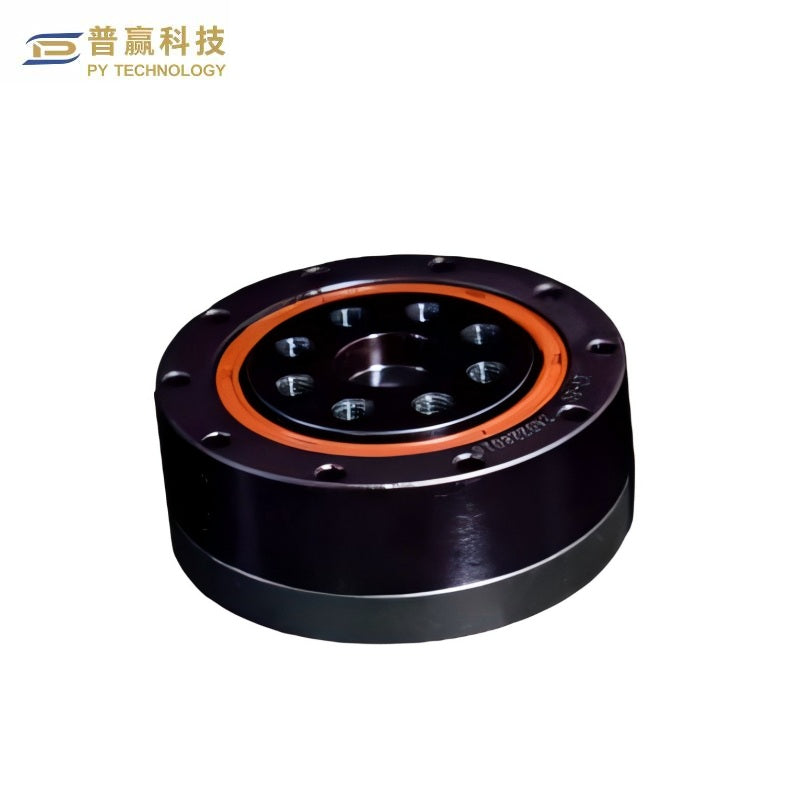

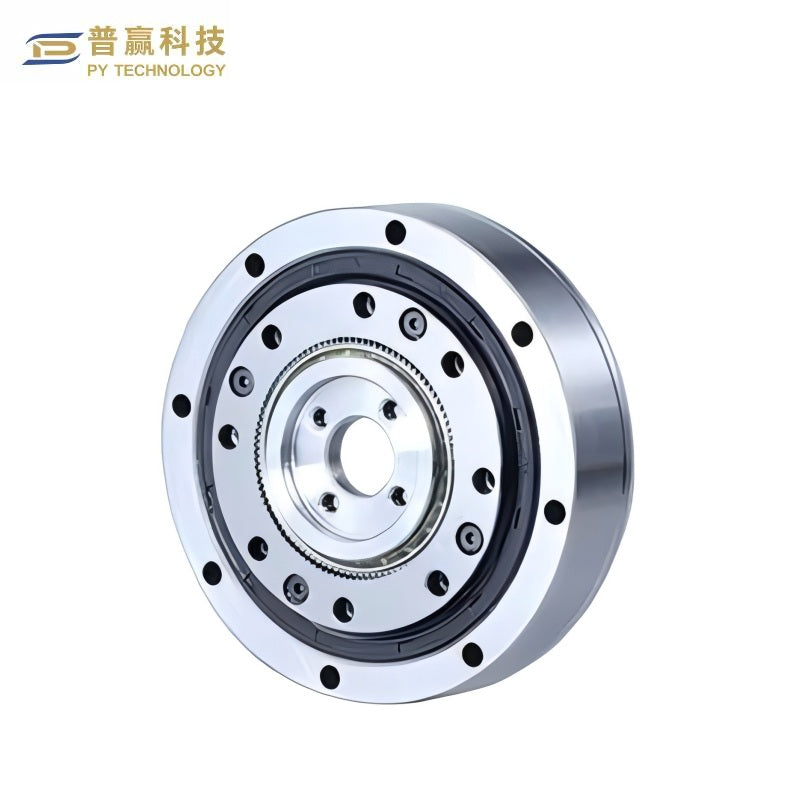

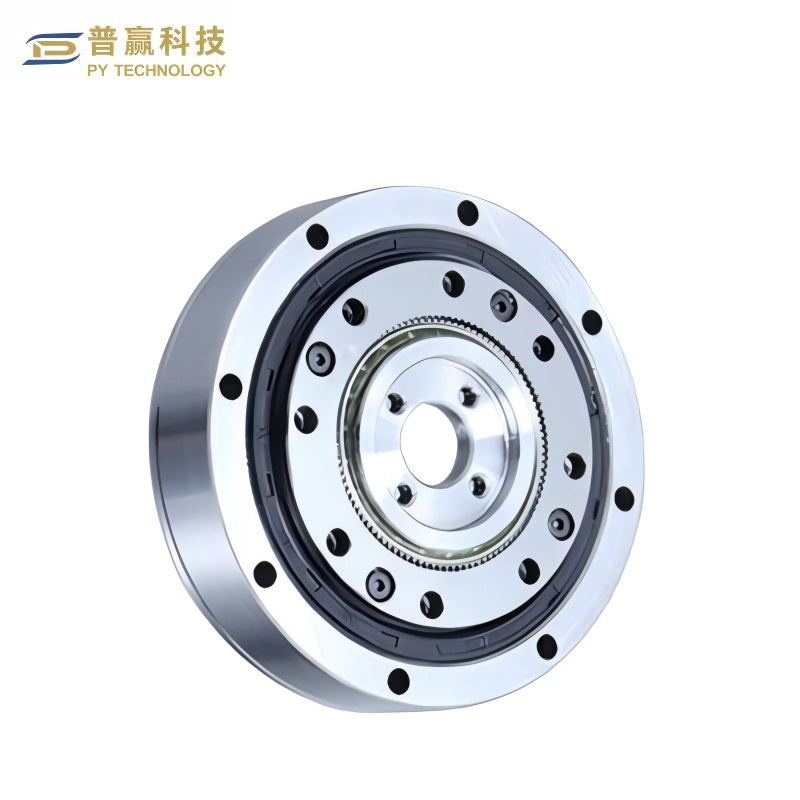

PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications

  • PY TECHNOLOGY harmonic reducer for robot joints, precision mechanisms, automation hardware, and robotics development.
  • Suitable for engineering teams building servo joints, compact robot actuators, research platforms, and motion systems.
  • Designed for practical integration in reducers, gearboxes, robot servo assemblies, and mechanical transmission projects.
  • Useful for component selection in robotics labs, automation projects, and robot hardware development workflows.
$75
Version
Reduction Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

PY TECHNOLOGY HBZ14-32 Series CAD model for mechanical integration.stp ▶ PY TECHNOLOGY HBZ-14-32 Series dimension drawing for installation reference.pdf ▶

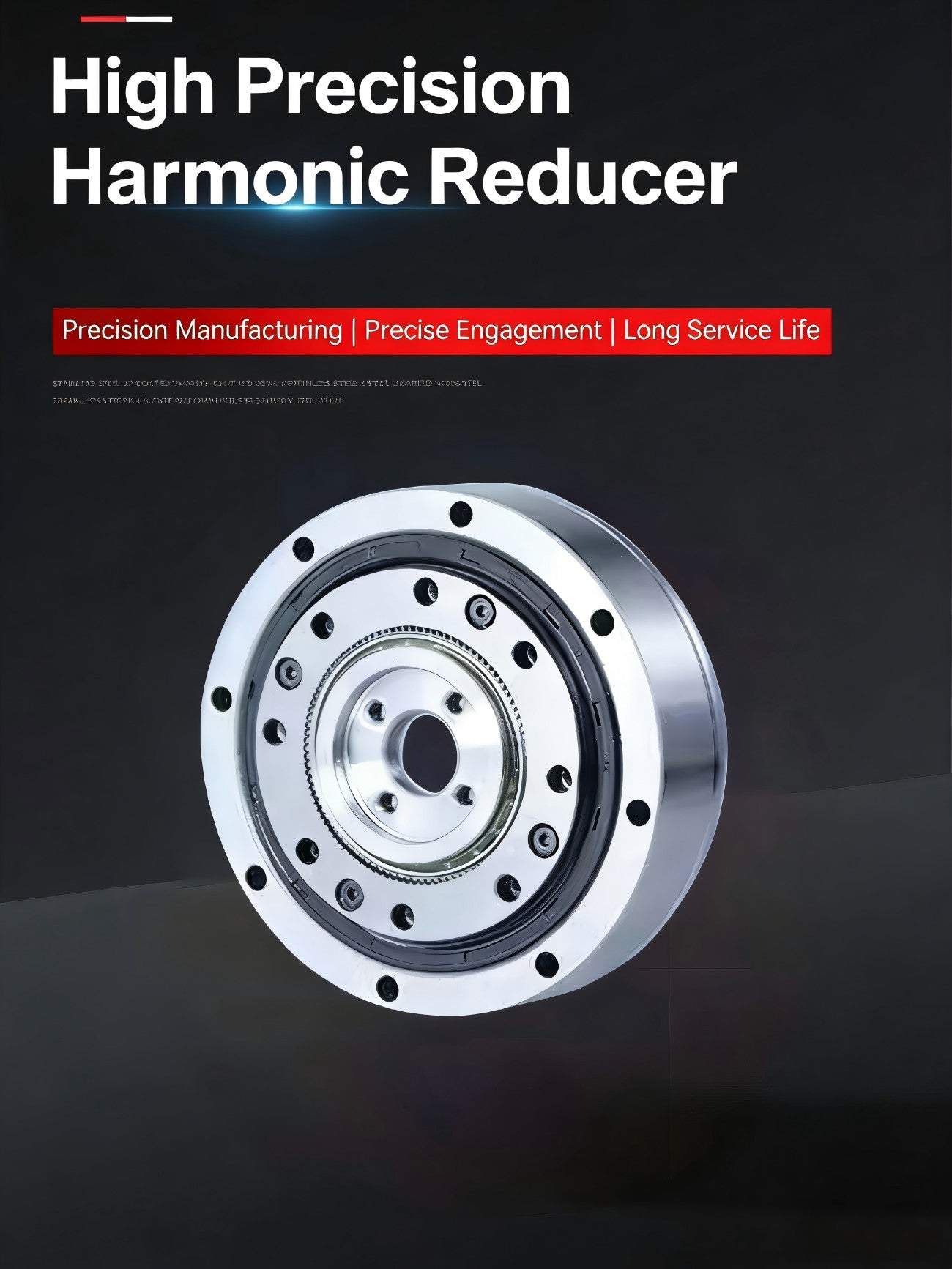

PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 1
PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 2
PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 3

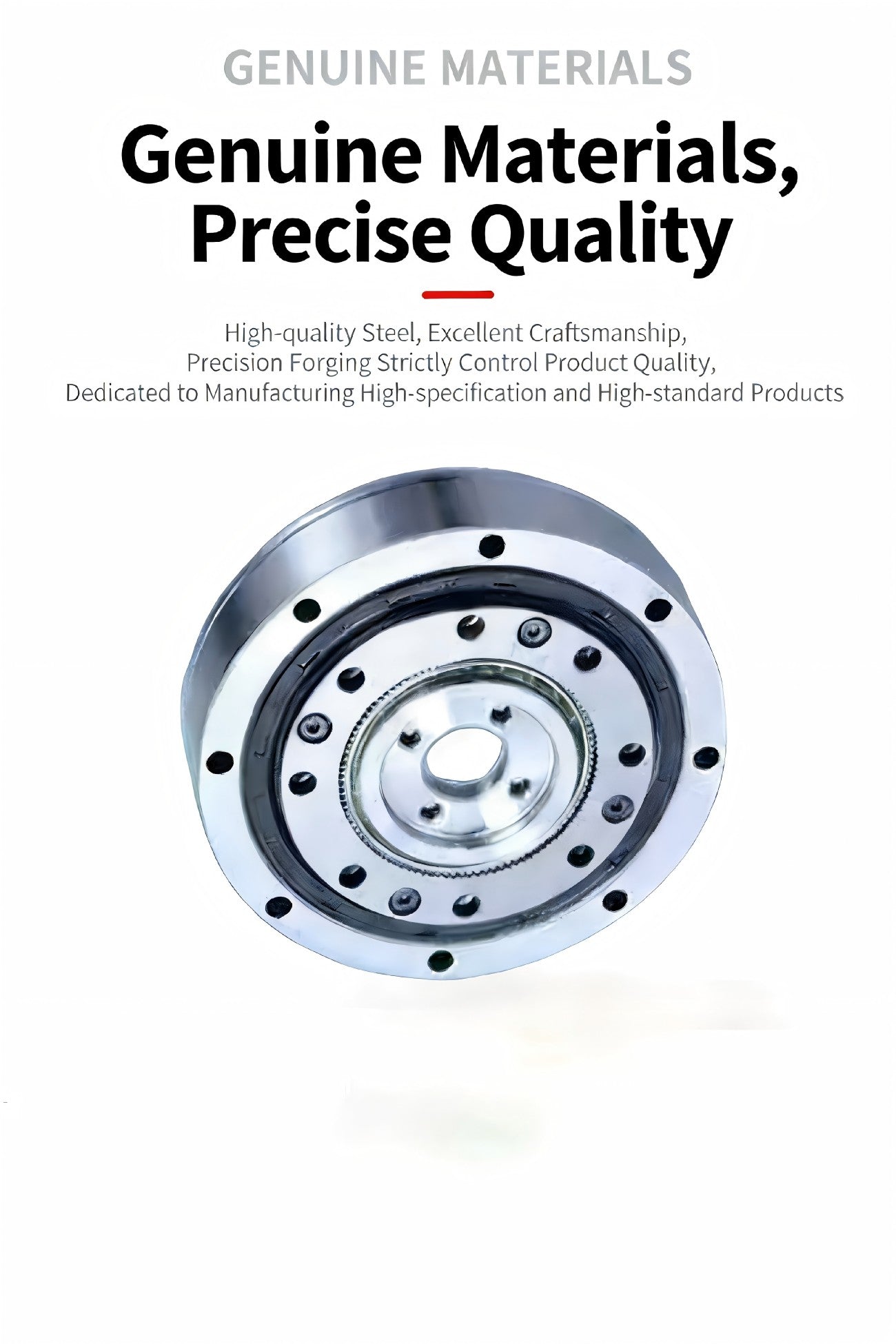

PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 4

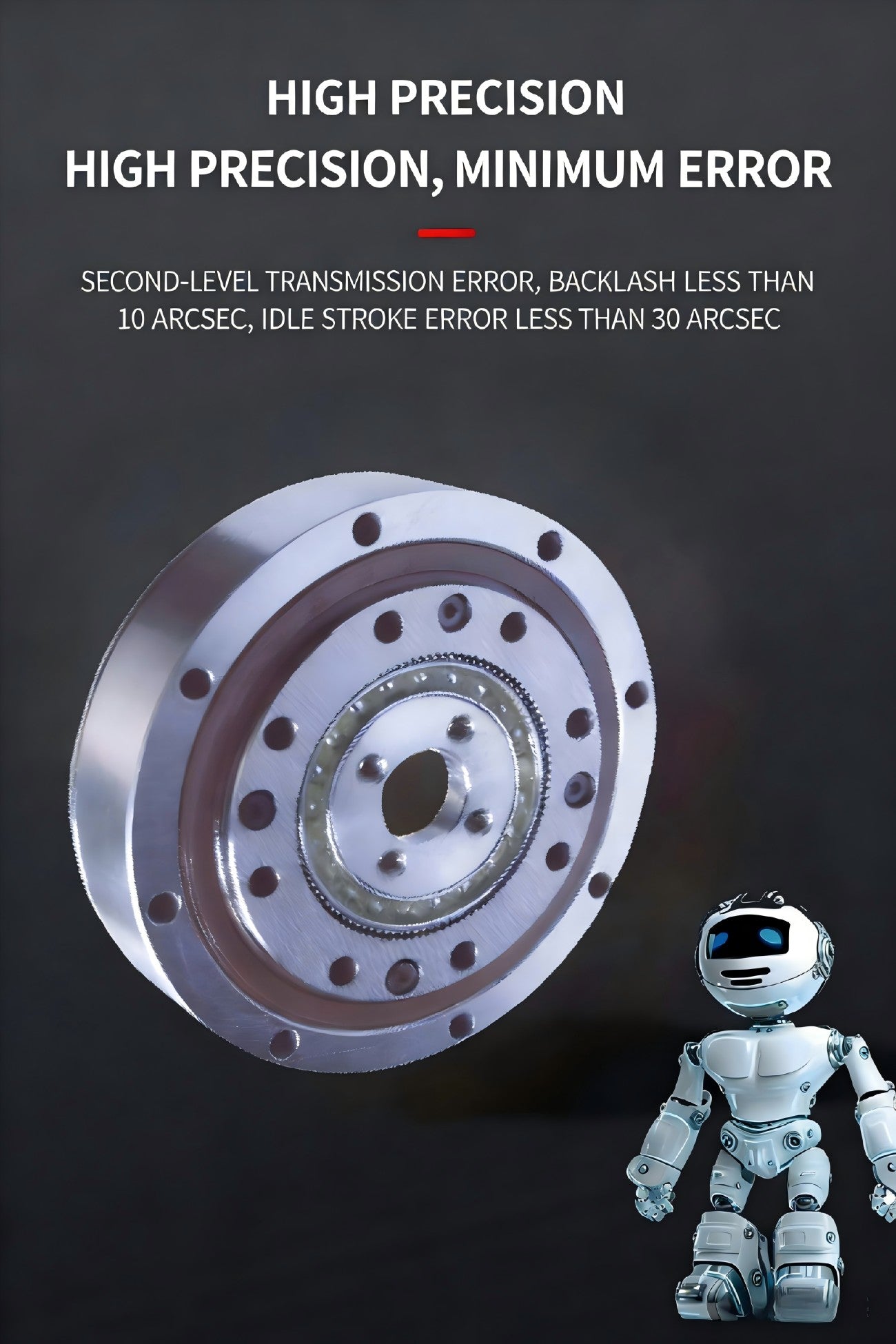

PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 5

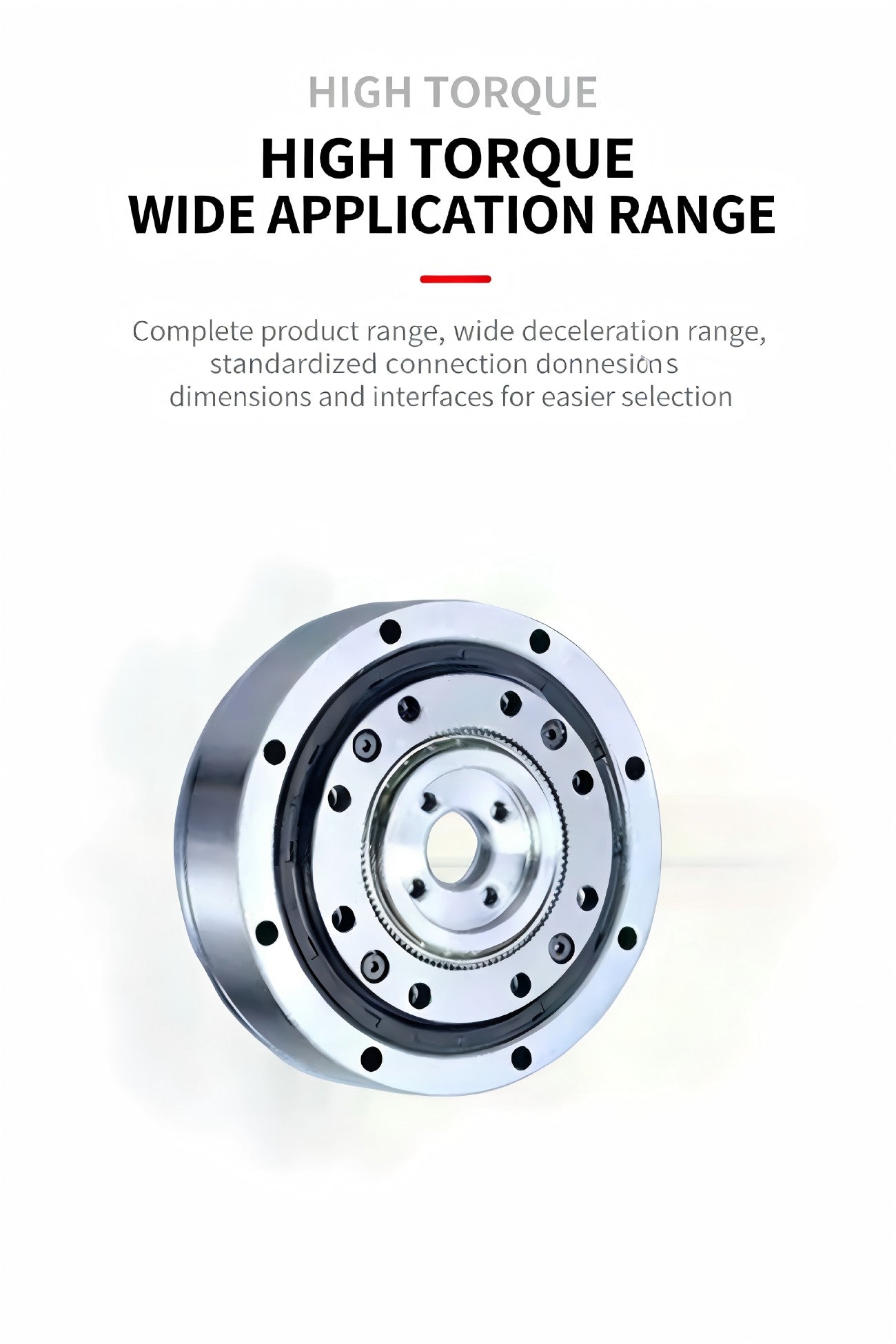

PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 6

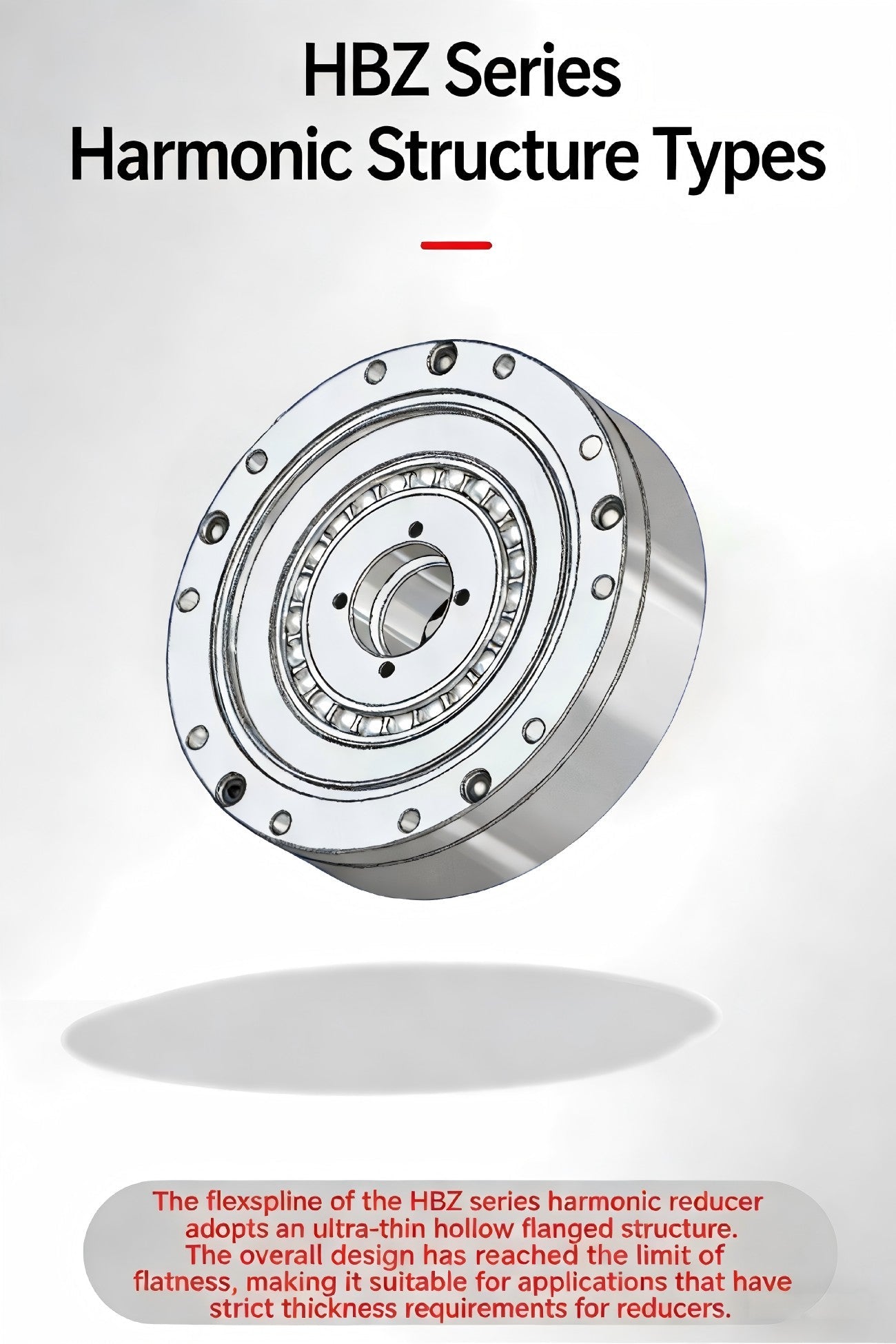

PY TECHNOLOGY HBZ Series Harmonic Reducer | Precision Gearbox for Robot Joint Applications detail image 7
▤ Technical Specifications ⌃
Parameter Value Value Value
Model HBZ-14 HBZ-14 HBZ-14
Reduction Ratio 50 80 100
Weight (kg) 0.3 0.3 0.3
Rated Torque at 2000 r/min (Nm) 3.7 4.2 5.4
Rated Torque at 2000 r/min (Kgf·m) 0.38 0.43 0.55
Permissible Peak Torque (Start/Stop) (Nm) 12 16 19
Permissible Peak Torque (Start/Stop) (Kgf·m) 1.2 1.6 1.9
Allowable Average Load Torque (Nm) 4.8 5.9 7.7
Allowable Average Load Torque (Kgf·m) 0.49 0.6 0.79
Instantaneous Permissible Maximum Torque (Nm) 24 31 35
Instantaneous Permissible Maximum Torque (Kgf·m) 2.4 3.1 3.6
Permissible Max Input Speed (Grease Lubrication) (r/min) 8500 8500 8500
Permissible Average Input Speed (Grease Lubrication) (r/min) 3500 3500 3500
Moment of Inertia (×10² km²) 0.021 0.021 0.021
Moment of Inertia (×10⁴ kgf·m·s²) 0.021 0.021 0.021
Backlash (Arc sec) ≤20 ≤20 ≤20
