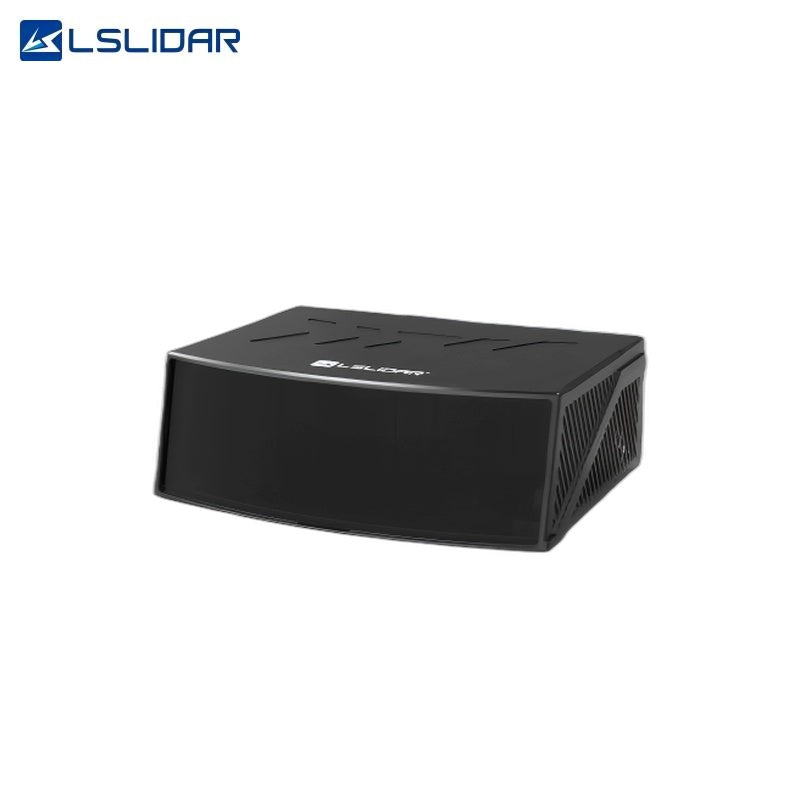

LSLIDAR CX128S2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: CX128S2
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$5,750
Model

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

LSLIDAR CX128S2 LiDAR product documentation for robotics integration.pdf ▶ LSLIDAR CX128S2 LiDAR product documentation for robotics integration.pdf ▶
LSLIDAR CX128S2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
LSLIDAR CX128S2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2

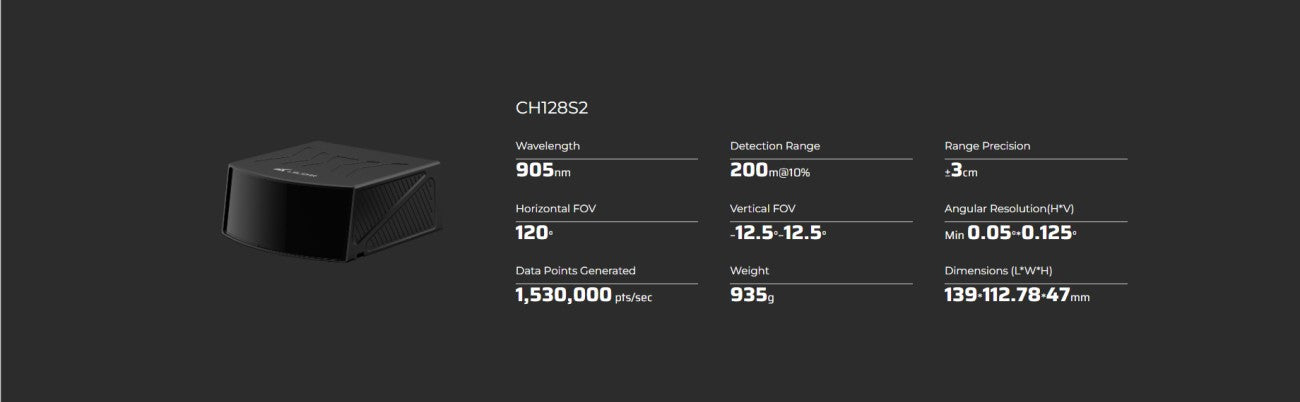

LSLIDAR CX128S2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

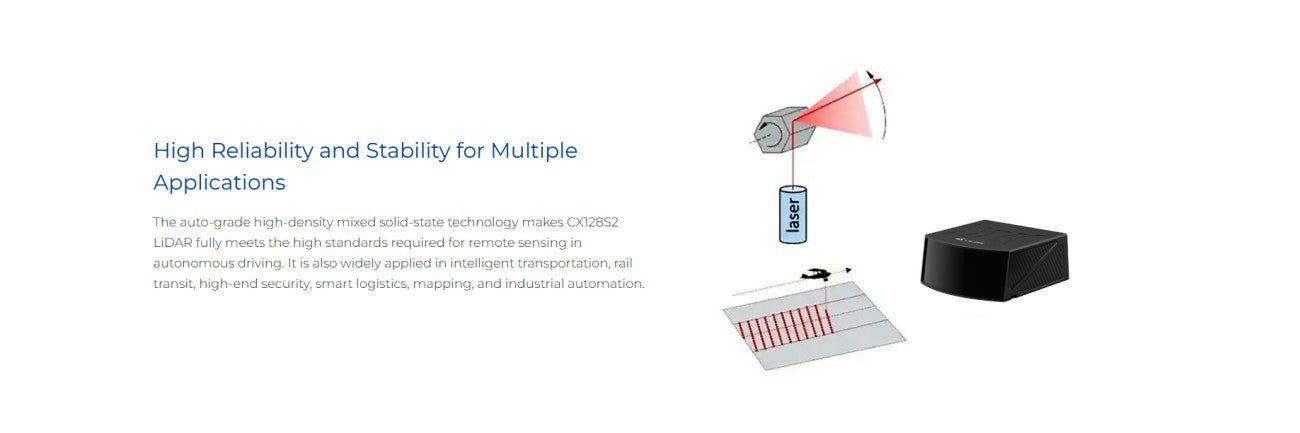

LSLIDAR CX128S2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
LSLIDAR CX128S2 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5
▤ PARAMETER ⌃
Model
CX128S2
Wavelength
905nm
Safety Class
Class I (Eye-safe)
Scanning Channels
128 channels
Ranging Principle
TOF (Time-of-Flight)
Detection Range
200 m @ 10% reflectivity
Ranging Accuracy
±3cm
Horizontal FOV
120°
Vertical FOV
25° (-12.5° ~ 12.5°)
Horizontal Resolution
0.05° / 0.1° / 0.2°
Vertical Resolution
0.125° @ ROI, 0.25° @ non-ROI
Scan Frequency
5Hz / 10Hz / 20Hz
Point Rate
1530000 points/sec
Communication Interface
Industrial Ethernet
Power Supply Range
9V~32V DC
Power Consumption
15W
IP Rating
IP6K9K
Operating Temperature
-40°C ~ +85°C
Vibration
5Hz~2000Hz, 3G rms
Shock
500m/sec², 11ms duration
Weight
< 1000 g
Dimensions
139×115.7×47 mm (rear outlet, curved surface) 139×100.3×47 mm (rear outlet, flat surface) 139×114.2×47 mm (side outlet, curved surface)
