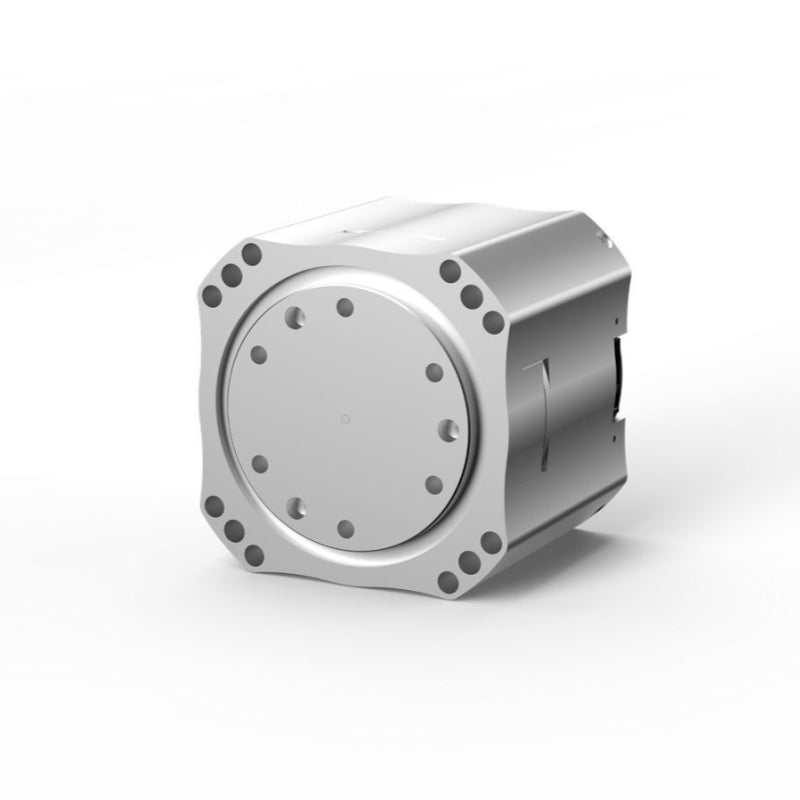

HIGH TORQUE HTDW-6036-02-DNE Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and advanced robotics research platforms.
  • Compact planetary joint module with integrated motor and gearbox design.
  • 36:1 reduction ratio delivers high torque output for robotic motion control.
  • Dual encoder feedback enables precise joint positioning and stable operation.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTDW-6036-02-DNE Planetary Joint Module

The HIGH TORQUE HTDW-6036-02-DNE is a compact planetary joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. It integrates a motor, planetary gearbox, encoder feedback system, and communication interface into a complete robotic actuator solution, providing reliable torque output and precise motion control for robotic joint applications.

Compact Integrated Joint Design

The HTDW-6036-02-DNE adopts an integrated motor and gearbox structure with a compact 60 × 56 mm form factor. Its optimized design helps reduce system complexity and enables easier integration into robotic arms, humanoid robots, and custom robotic platforms.

36:1 Planetary Reduction System

Equipped with a 36:1 reduction ratio, the joint module provides enhanced torque output and smooth transmission performance. With 10 Nm rated torque and 36 Nm locked-rotor torque, it is suitable for robotic joints requiring strong torque capability and stable motion control.

High-Precision Encoder Feedback

The module integrates 14-bit input and output encoder resolution, enabling accurate position feedback and responsive joint control. The dual encoder system supports precise motion control for robotics applications requiring repeatable and stable operation.

CANFD/CAN Communication Integration

Supporting CANFD/CAN communication with a control frequency of up to 3 kHz, the HTDW-6036-02-DNE allows flexible connection with robotic controllers and embedded systems. It provides an efficient solution for robotics developers building humanoid robots, robotic arms, and research platforms.

Robotics Development Applications

With its compact structure, high torque output, and integrated control features, the HTDW-6036-02-DNE is designed for robotics research, educational robotics, humanoid robot development, and next-generation automation systems.

HIGH TORQUE HTDW-6036-02-DNE Planetary Joint Module
▤ PARAMETER ⌃

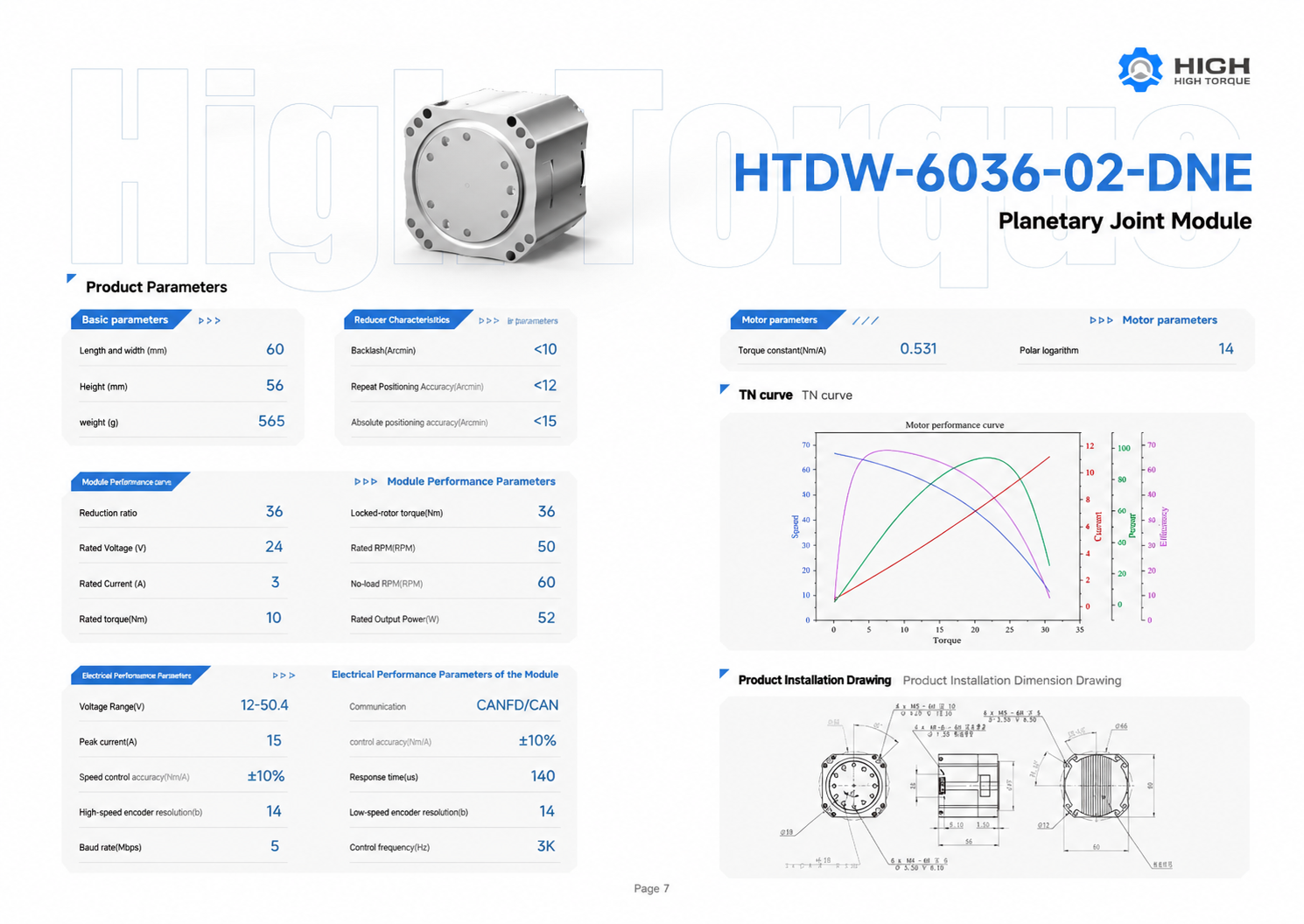

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 60 mm
Height 56 mm
Weight 565 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 36
Rated Voltage 24 V
Rated Current 3 A
Rated Torque 10 Nm
Locked-Rotor Torque 36 Nm
Rated RPM 50 RPM
No-Load RPM 60 RPM
Rated Output Power 52 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 15 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
