TianJi

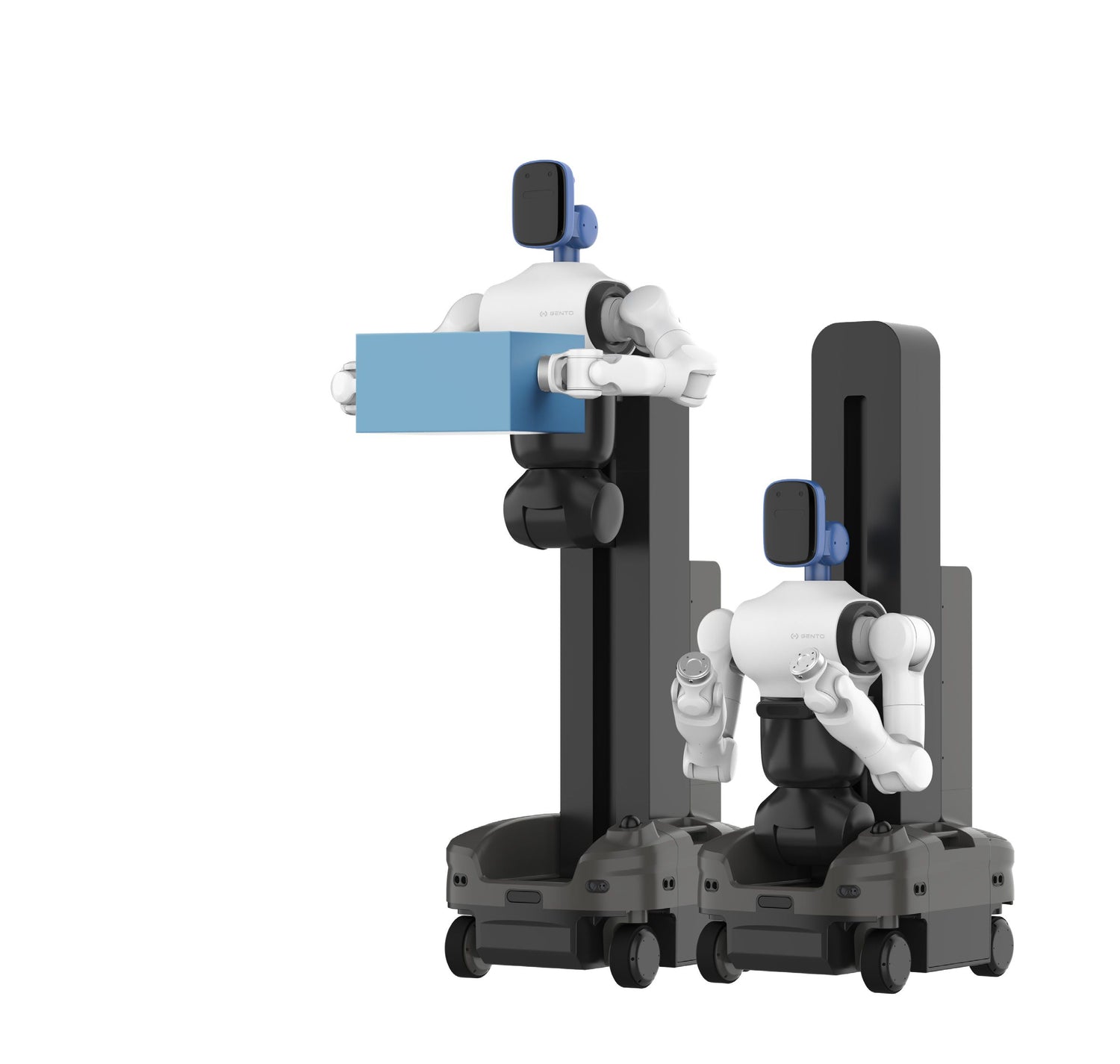

Tianji Gento Skye Wheeled Lifting Robot

• Full-body force-controlled wheeled robot platform
• 23 DoF humanoid robot development platform
• Dual 7-DoF robotic arms with force control
• Four-wheel omnidirectional mobility with adjustable lifting mechanism

Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

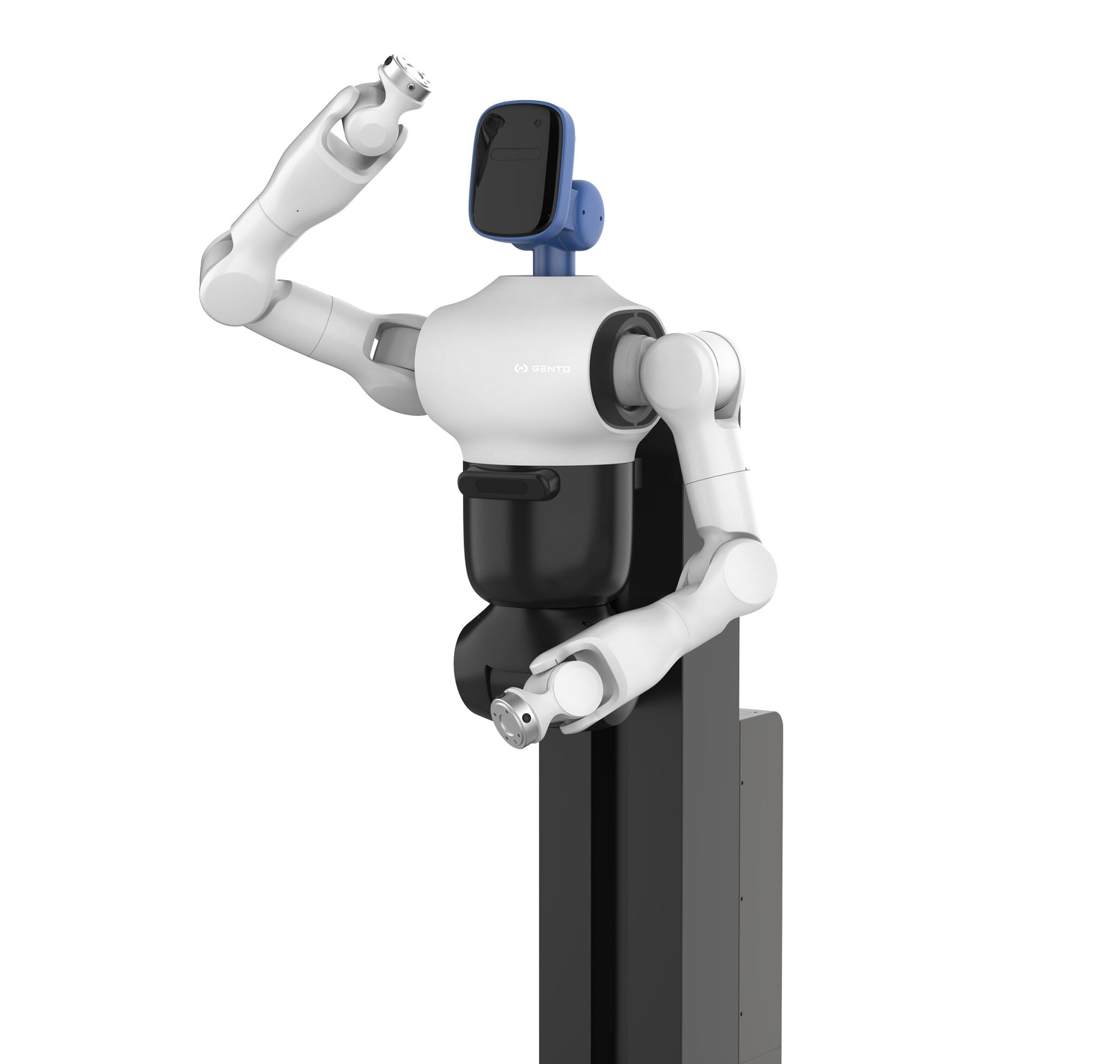

Tianji Gento Skye Wheeled Lifting Robot

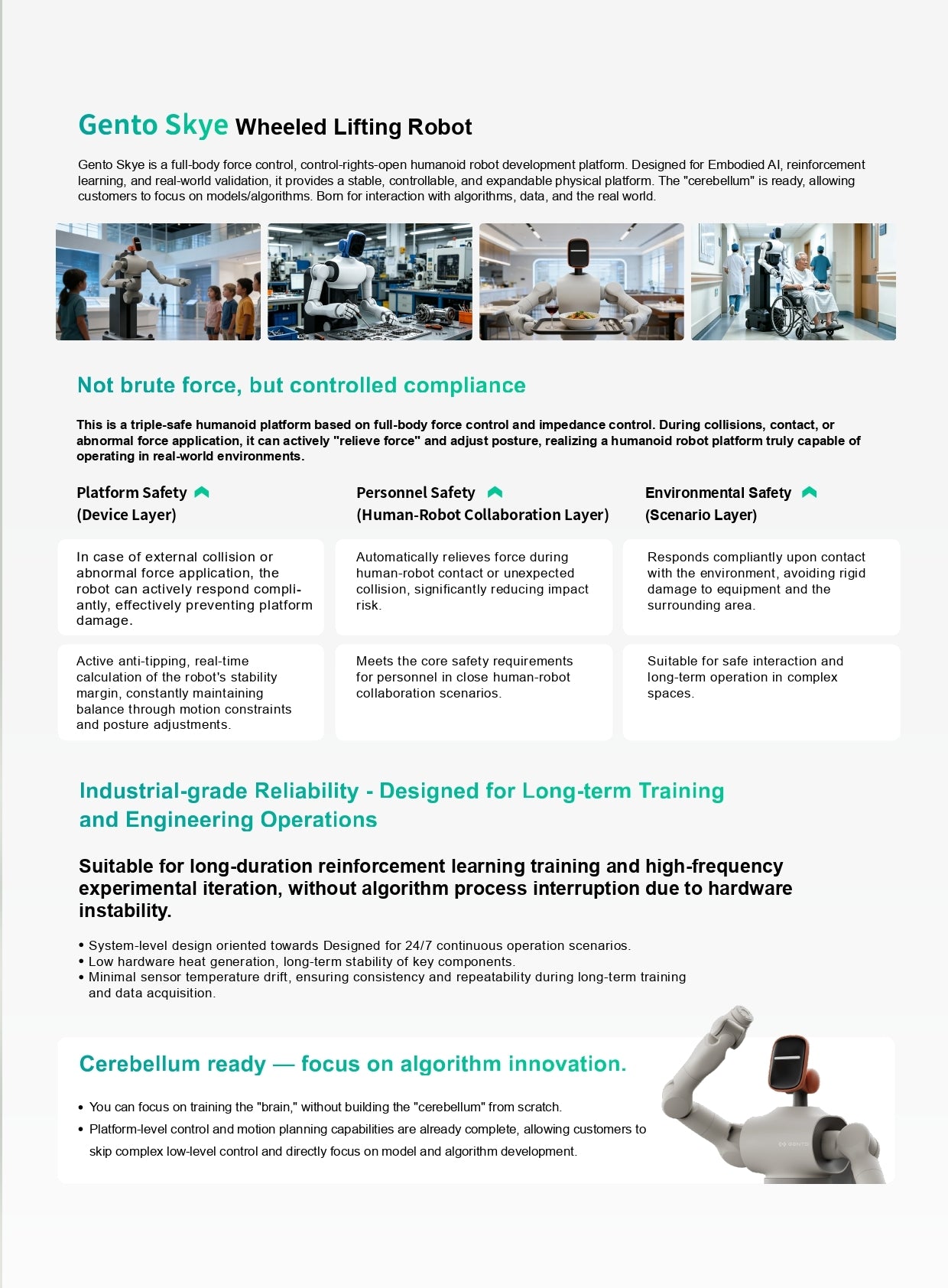

Tianji Gento Skye is a wheeled lifting robot platform designed for embodied AI research, robotics development, and real-world intelligent system validation. Combining a force-controlled dual-arm system, adjustable lifting mechanism, and omnidirectional mobile chassis, Gento Skye provides a flexible platform for advanced robot development and application exploration.

Full-Body Force-Controlled Robot Platform

Gento Skye features a 23-DoF robotic system with dual 7-DoF robotic arms and full-body force control capability. The arms support joint-level force control, compliant interaction, and precise manipulation tasks, providing a reliable foundation for robotic research and algorithm development.

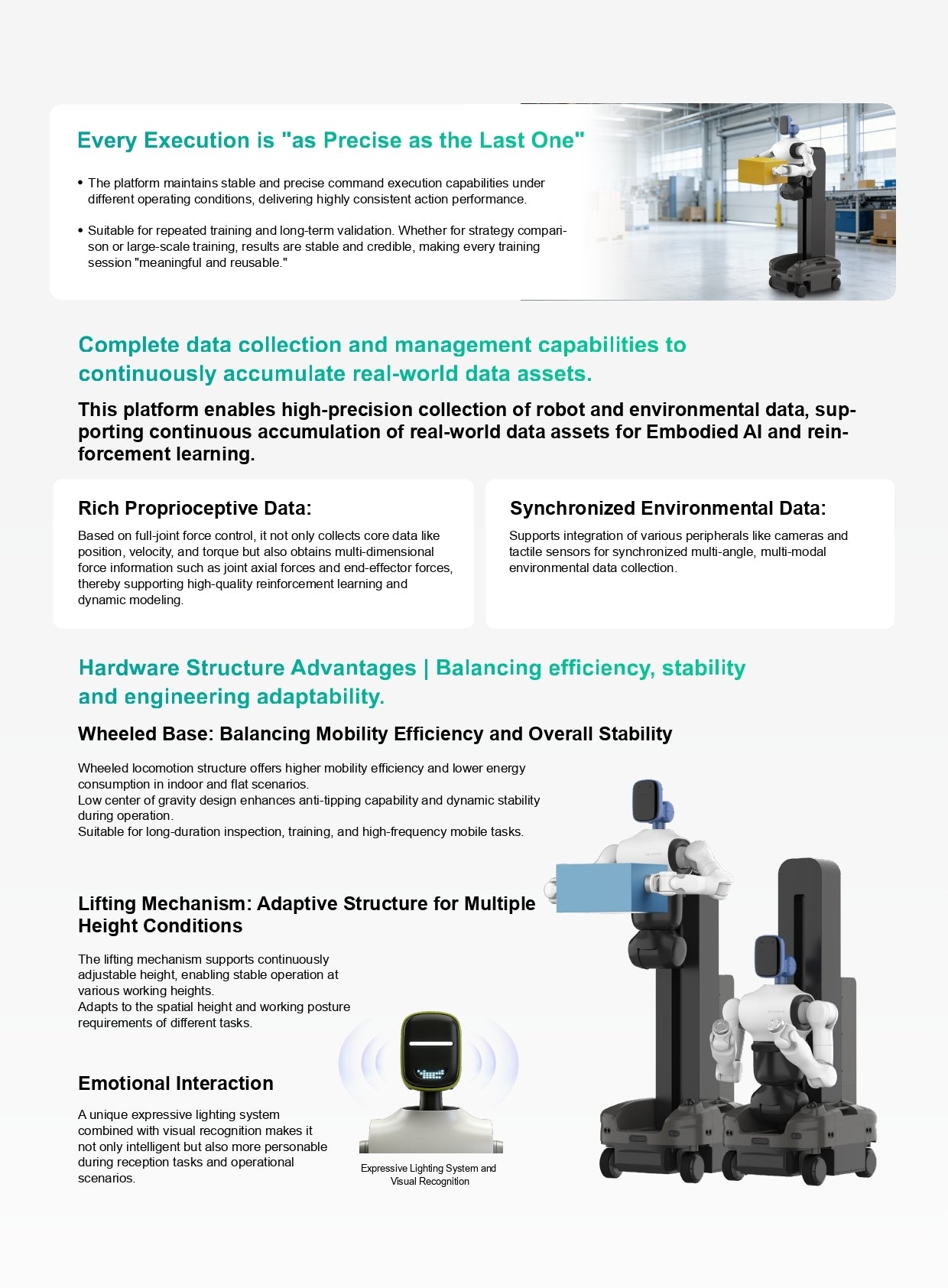

Wheeled Lifting Mobile Structure

Equipped with a four-wheel drive and four-wheel steering chassis, Gento Skye supports omnidirectional movement for flexible indoor navigation. The adjustable lifting mechanism enables a working height range from 785mm to 1685mm, allowing the robot to adapt to different application scenarios.

Open Development Architecture

Gento Skye integrates perception, computing, and motion control systems with an open development architecture. Supporting NVIDIA Jetson Orin computing platforms, the robot provides a flexible environment for embodied AI research, reinforcement learning, and real-world robot data collection.

Key Specifications

• Whole machine: 23 DoF (excluding gripper)

• Dual robotic arms: 7 DoF × 2

• Single arm payload: 5kg

• Repeatability: ±0.03mm

• Mobile platform: Four-wheel drive + four-wheel steering

• Lifting range: 785mm-1685mm

• Computing platform: NVIDIA Jetson Orin 32GB / 64GB

• Navigation: 3D LiDAR, SLAM navigation, obstacle avoidance

Applications

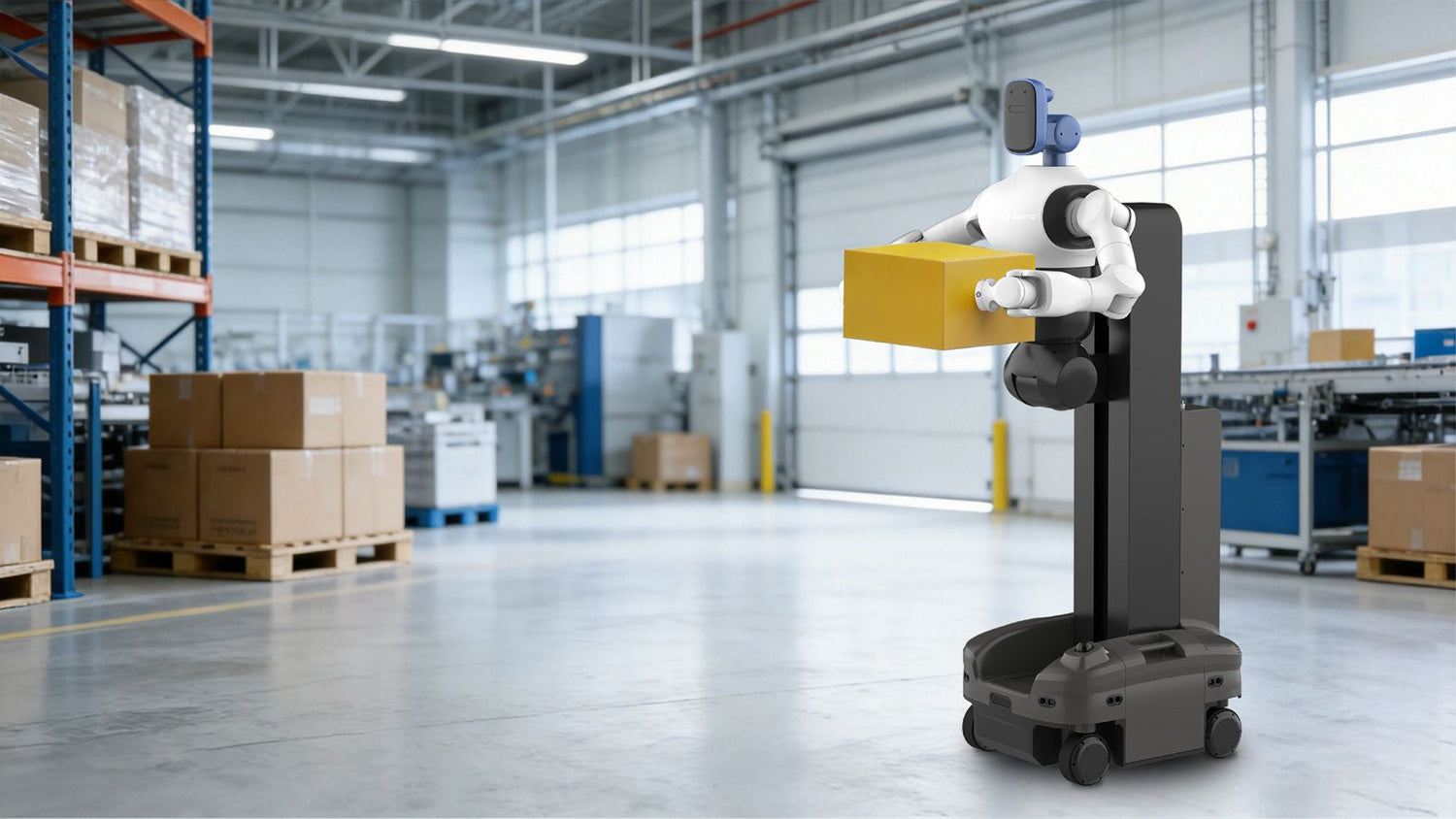

Gento Skye is designed for robotics research, education, embodied AI development, reinforcement learning experiments, and intelligent robot application development.

Tianji Gento Skye Wheeled Lifting Robot
Tianji Gento Skye Wheeled Lifting Robot
Tianji Gento Skye Wheeled Lifting Robot
Tianji Gento Skye Wheeled Lifting Robot
Tianji Gento Skye Wheeled Lifting Robot
Tianji Gento Skye Wheeled Lifting Robot

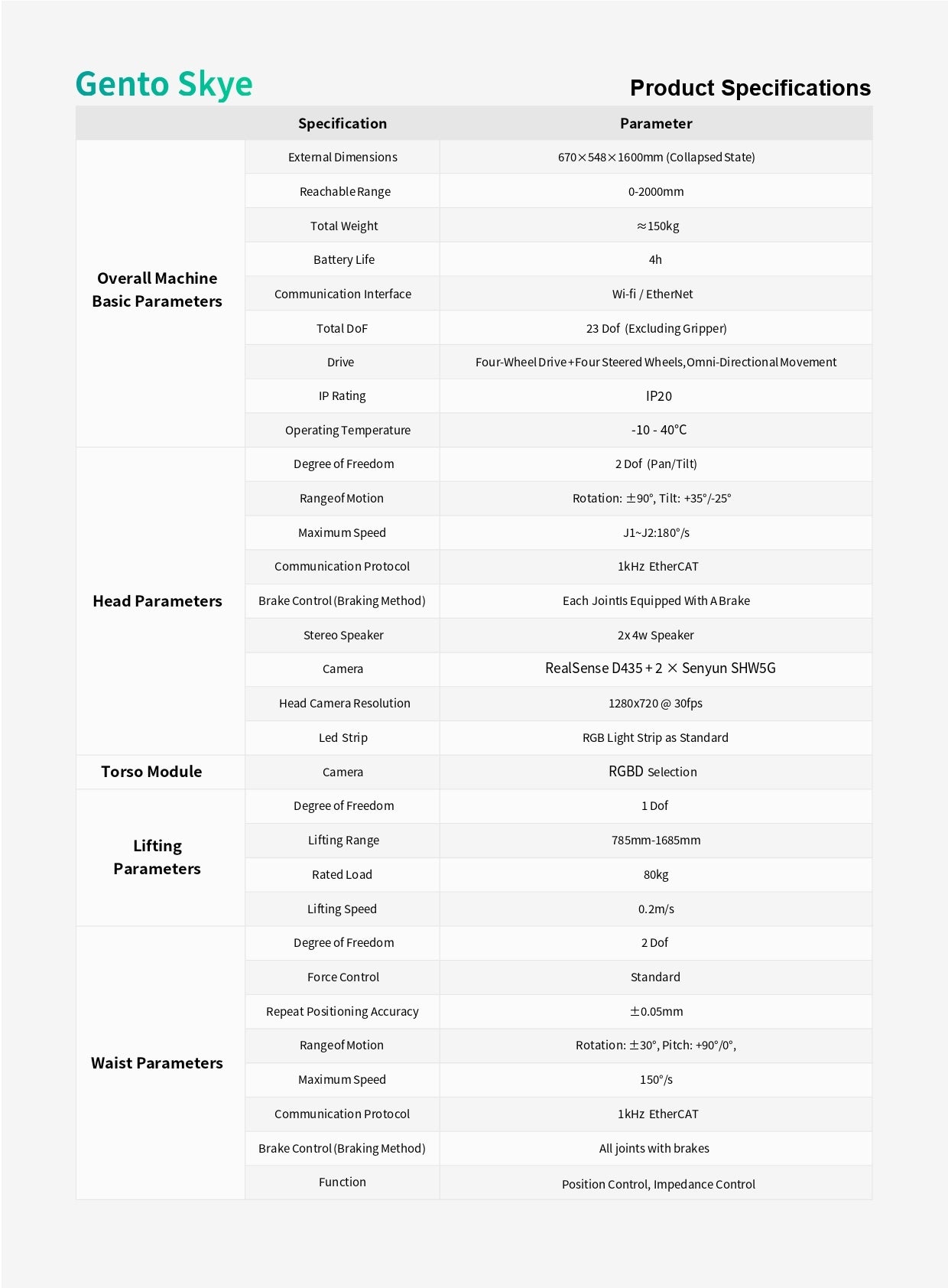

▤ Technical Specifications ⌃
Category Specification Parameter
Overall Machine Basic Parameters External Dimensions 670×548×1600mm (Collapsed State)
Reachable Range 0-2000mm
Total Weight ≈150kg
Battery Life 4h
Communication Interface Wi-Fi / EtherNet
Total DoF 23 DoF (Excluding Gripper)
Drive Four-Wheel Drive + Four Steered Wheels, Omni-Directional Movement
IP Rating IP20
Operating Temperature -10~40°C
Head Parameters Degree of Freedom 2 DoF (Pan/Tilt)
Range of Motion Rotation: ±90°, Tilt: +35°/-25°
Maximum Speed J1~J2:180°/s
Communication Protocol 1kHz EtherCAT
Brake Control (Braking Method) Each Joint Equipped With A Brake
Stereo Speaker 2×4W Speaker
Camera RealSense D435 + 2 × Senyun SHW5G
Head Camera Resolution 1280×720 @ 30fps
Torso Module Camera RGBD Selection
Lifting Parameters Degree of Freedom 1 DoF
Lifting Range 785mm-1685mm
Rated Load 80kg
Lifting Speed 0.2m/s
Waist Parameters Degree of Freedom 2 DoF
Force Control Standard
Repeat Positioning Accuracy ±0.05mm
Range of Motion Rotation: ±30°, Pitch: +90°/0°
Maximum Speed 150°/s
Communication Protocol 1kHz EtherCAT

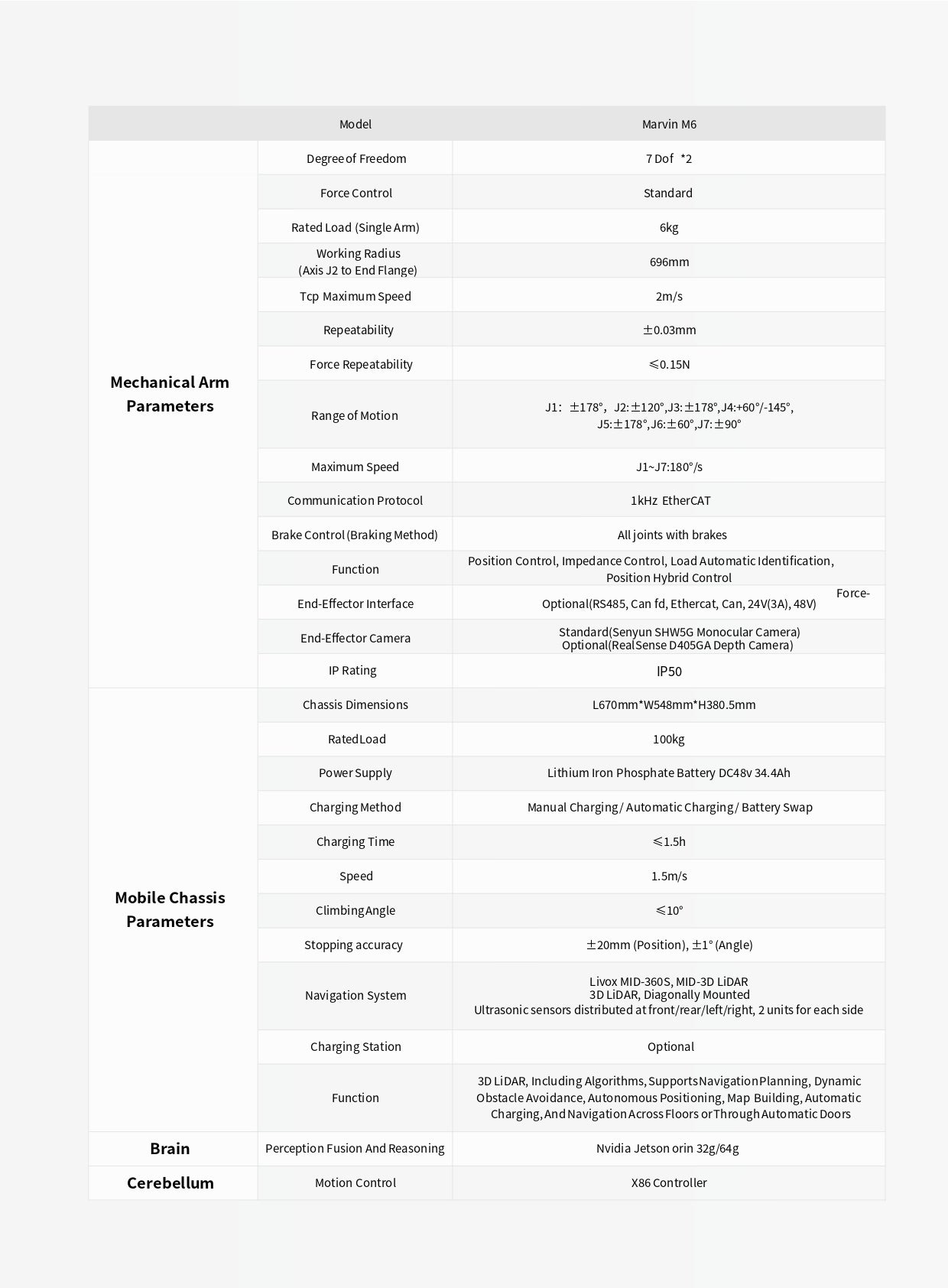

Mechanical Arm Parameters Model Marvin M6
Degree of Freedom 7 DoF ×2
Force Control Standard
Rated Load (Single Arm) 6kg
Working Radius (Axis J2 to End Flange) 696mm
TCP Maximum Speed 2m/s
Repeatability ±0.03mm
Force Repeatability ≤0.15N
Range of Motion J1: ±178°, J2: ±120°, J3: ±178°, J4:+60°/-145°, J5:±178°, J6:±60°, J7:±90°
Maximum Speed J1~J7:180°/s
Communication Protocol 1kHz EtherCAT
Brake Control (Braking Method) All joints with brakes
Function Position Control, Impedance Control, Load Automatic Identification, Position Hybrid Control
End-Effector Interface Optional (RS485, CAN FD, EtherCAT, CAN, 24V(3A), 48V)
End-Effector Camera Standard (Senyun SHW5G Monocular Camera), Optional (RealSense D405GA Depth Camera)
IP Rating IP50
Mobile Chassis Parameters Chassis Dimensions L670mm×W548mm×H380.5mm
Rated Load 100kg
Power Supply Lithium Iron Phosphate Battery DC48V 34.4Ah
Charging Method Manual Charging / Automatic Charging / Battery Swap
Charging Time ≤1.5h
Speed 1.5m/s
Climbing Angle ≤10°
Stopping Accuracy ±20mm (Position), ±1° (Angle)
Navigation System Livox MID-360S, MID-3D LiDAR, 3D LiDAR, Diagonally Mounted Ultrasonic Sensors
Charging Station Optional
Function 3D LiDAR, Navigation Planning, Dynamic Obstacle Avoidance, Autonomous Positioning, Map Building, Automatic Charging, Navigation Across Floors or Through Automatic Doors
Brain NVIDIA Jetson Orin 32GB / 64GB
Cerebellum Motion Control X86 Controller
