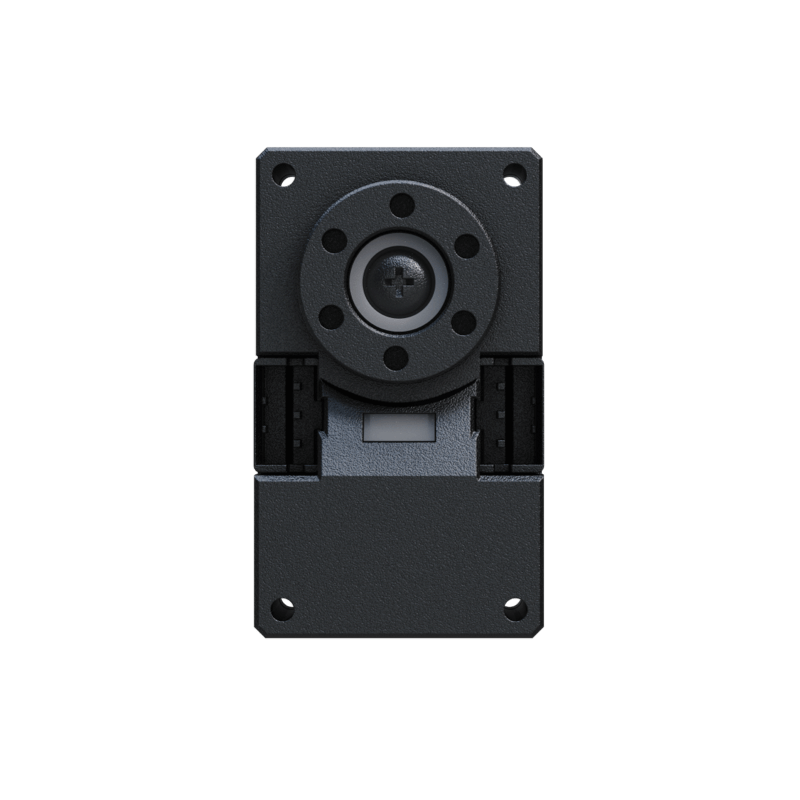

Unitree YS-342026 Digital Servo (J288 / S288) – Robot Servo Motor & Actuator Module

The Unitree YS-342026 digital servo series includes S288 and upgraded J288 models. This robot servo motor and actuator module integrates motor, reducer, and control board, delivering high precision and fast response for robotic arms, joints, and dexterous hands. J288 features metal gears and an aluminum housing for enhanced durability and heat dissipation.
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

YS-342026 Digital Servo Series Features

Built for Robotics Applications

Ideal for robotic arms, joint modules, dexterous hands, competitions, research, education, and DIY robotics projects.

Dual Model Options (S288 & J288)

Includes S288 standard model and upgraded J288 with metal gears and aluminum housing for enhanced durability, heat dissipation, and impact resistance.

Modular Integrated Design

Combines brushless motor, gear reducer, and control board into a compact servo module, simplifying system integration and reducing assembly complexity.

High Precision & Fast Response

Delivers accurate motion control with improved response speed, ideal for robotic joints, dexterous hands, and precision automation tasks.
▤ PARAMETER ⌃
Input Voltage
YS-342026-S288
YS-342026-J288
Minimum Voltage
6.4V
6.4V
Recommended Voltage
12.6V
25.2V
Maximum Voltage
12.6V
25.2V
Nominal Voltage
12.6V
25.2V
Performance Characteristics
YS-342026-S288
YS-342026-J288
No-load Current
0.27A@12V
0.45A@25.2V / 0.27A@12V
Maximum Line Current
0.32A
1.92A
Maximum (No-load) Speed
16.5rad/s
35rad/s@25.2V / 16.5rad/s@12V
Torque Constant
0.554Nm/A
0.554Nm/A
Maximum (Stalled) Torque
Same direction: 0.07Nm / Opposite direction: 0.2Nm
Same direction: 0.5Nm / Opposite direction: 1.5Nm
Operating Temperature
YS-342026-S288
YS-342026-J288
Minimum Operating Temperature
-20°C
-20°C
Overheat Protection
Driver stops at >90°C, winding overheat at >120°C
Driver stops at >90°C, winding overheat at >120°C
Other Parameters
YS-342026-S288
YS-342026-J288
Position Sensor
Dual absolute encoder (rotor & output)
Dual absolute encoder (rotor & output)
Motor Type
Brushless motor
Brushless motor
Baud Rate
6,000,000bps
6,000,000bps
Control Algorithm
Hybrid control
Hybrid control
Gear Type
Straight teeth
Straight teeth
Gear Material
Engineering plastics
Steel
Shell Material
Engineering plastics
Aluminum alloy
Dimensions (W x H x D)
20 x 34 x 26mm
20 x 34 x 26mm
Weight
19.5g
35g
Gear Ratio
288.35:1
288.35:1
Command Signal
Digital data packets
Digital data packets
Rotor End Encoder Resolution
15bit
15bit
Protocol Type
Half-duplex async serial (8bit, 1stop, No Parity)
Half-duplex async serial (8bit, 1stop, No Parity)
Link (Physics)
TTL level multipoint bus
TTL level multipoint bus
ID Range
0-14
0-14
Motor Sensing Feedback
Torque, angle, velocity, temperature, voltage, error conditions
Torque, angle, velocity, temperature, voltage, error conditions
Protocol Version
Unitree Custom Protocol
Unitree Custom Protocol
Operating Mode/Angle
Hybrid mode: torque, angle, velocity, stiffness, damping
Hybrid mode: torque, angle, velocity, stiffness, damping
Standby Current
0.05A@12V
0.026A@25.2V / 0.05A@12V
