Intel RealSense

Intel RealSense D435f IR Pass Stereo Depth Camera for Robotics

• Factory-installed 750nm IR pass filter for improved depth quality
• Reduced noise and false object detection in reflective environments
• Wide field of view for mobile robots and navigation systems
• Global shutter stereo sensors for dynamic robotic applications
• Compatible with Intel RealSense SDK 2.0 and ROS ecosystems
$522

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

Free shipping. 12-Day delivery.

Developer Support

Intel RealSense D435f Guide ▶

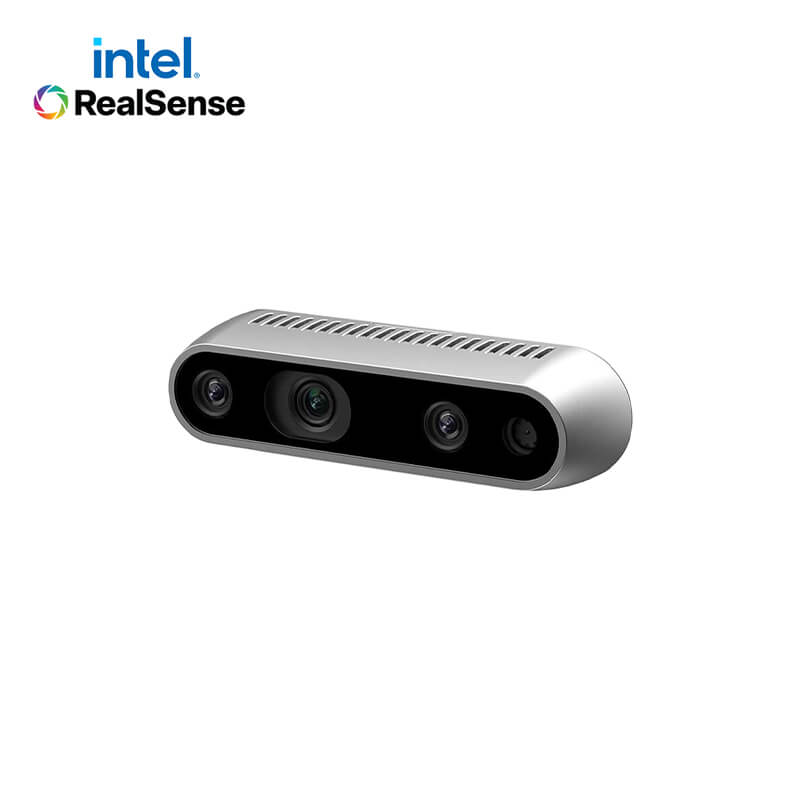

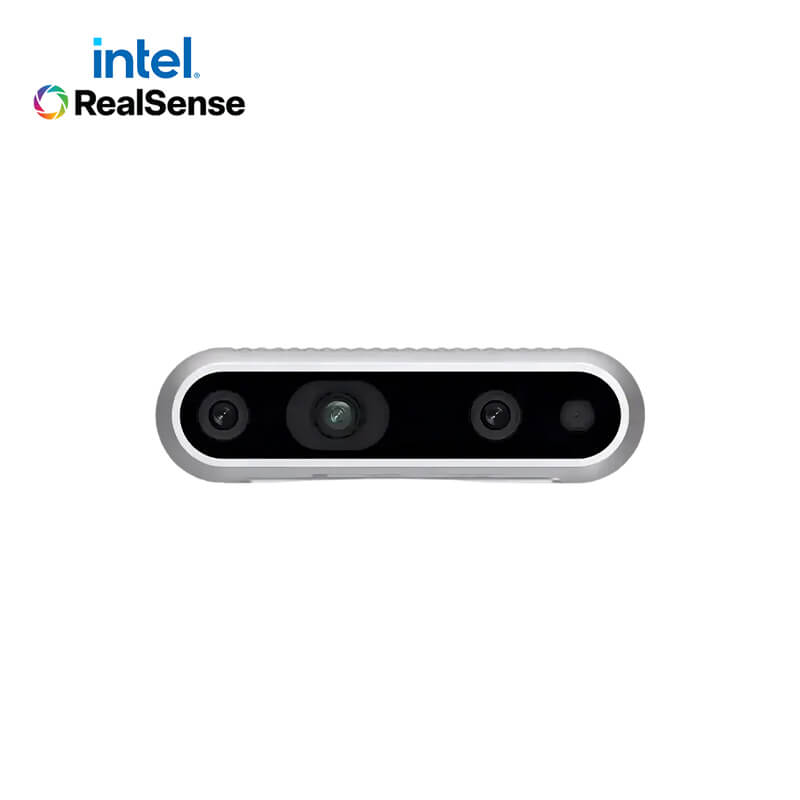

Intel RealSense D435f IR Pass Depth Camera

The Intel RealSense D435f is an enhanced version of the D435 stereo depth camera, specifically designed for autonomous mobile robots and robotic perception systems operating in challenging lighting conditions.

By integrating a factory-installed 750nm infrared pass filter, the D435f significantly reduces repetitive pattern interference and false object detection caused by reflections and ambient light sources. This results in cleaner depth maps, improved depth noise performance, and more reliable perception in real-world robotic environments.

Built on the proven D435 platform, the D435f combines a wide field of view, global shutter stereo sensors, and Intel's RealSense SDK 2.0 for seamless integration into robotics, AI vision, SLAM, navigation, and industrial automation systems.

Features

  • Integrated 750nm IR Pass Filter for improved depth quality in reflective environments.
  • Reduced Depth Noise and fewer false detections caused by infrared interference.
  • Wide Field of View ideal for AMR, AGV, SLAM, and robot navigation.
  • Global Shutter Stereo Sensors for fast-moving robotic applications.
  • Ready for Deployment with factory-installed filtering and RealSense SDK 2.0 support.
Intel RealSense D435f IR Pass Stereo Depth Camera for Robotics
▤ PARAMETER ⌃
Use Environment
Indoor / Outdoor
Image Sensor Technology
Global Shutter
Ideal Range
0.3 m to 3 m
Depth Technology
Stereoscopic
Minimum Depth Distance
~28 cm
Depth Accuracy
<2% at 2 m
Depth Field of View (FOV)
87° × 58°
Depth Output Resolution
Up to 1280 × 720
Depth Frame Rate
Up to 90 fps
Depth Filter
IR Pass
RGB Filter
IR Cut
RGB Frame Rate
30 fps
RGB Frame Resolution
Up to 1920 × 1080
RGB Sensor Technology
Rolling Shutter
RGB Resolution and Frame Rate
1920 × 1080 at 30 fps
RGB Sensor FOV (H × V)
69° × 42°
RGB Sensor Resolution
2 MP
Camera Module
RealSense Module D430 + RGB Camera
Vision Processor Board
RealSense Vision Processor D4
Form Factor
Camera Peripheral
Dimensions
90 mm × 25.8 mm × 25 mm
Connectors
USB-C 3.1 Gen 1
Mounting Mechanism
One 1/4-20 UNC thread mounting point; Two M3 thread mounting points
