MRDVS

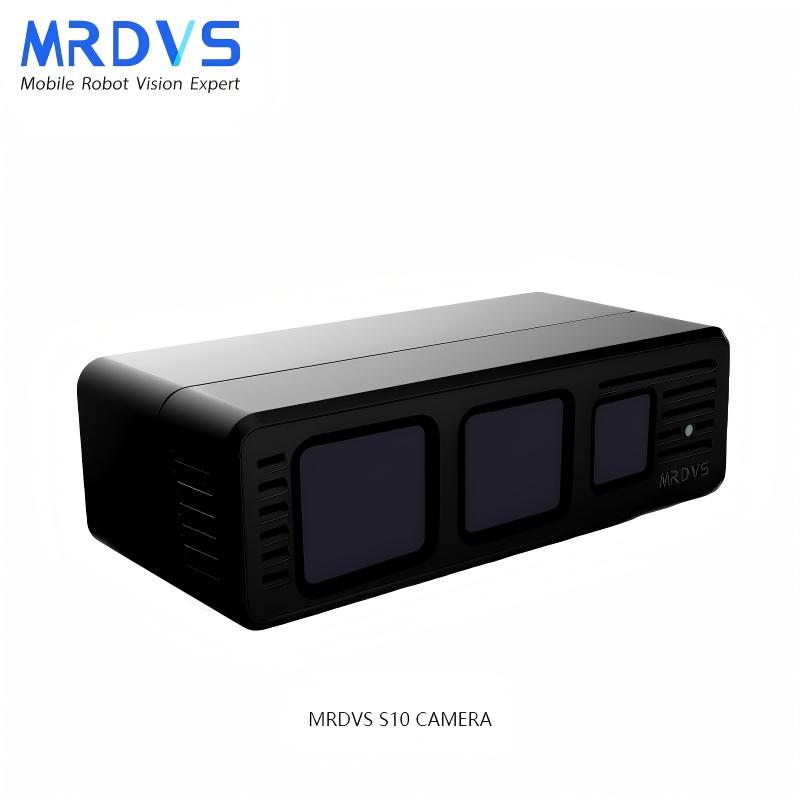

MRDVS S10 Camera

  • MRDVS S10 Camera for robot vision, depth sensing, machine vision, and automation development.
  • Suitable for robotics developers, AI vision teams, inspection systems, and perception hardware integration.
  • Designed for practical camera integration in robot platforms, sensing systems, and vision prototypes.
  • Useful for engineering teams building 3D sensing, robot perception, and applied automation workflows.
$380
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

MRDVS S10 V1.0 Camera CAD model for mechanical integration.stp ▶ MRDVS S10 V1.1 Camera CAD model for mechanical integration.stp ▶ MRDVS S10 Pro Camera CAD model for mechanical integration.stp ▶ MRDVS S10 Camera dimension drawing for installation reference.pdf ▶ MRDVS S10 Pro Camera dimension drawing for installation reference.pdf ▶
MRDVS S10 Camera detail image 1
▤ Technical Specifications ⌃
Parameter Value Value
Model S10 S10 Pro
Working Principle DTOF Depth Camera DTOF Depth Camera
Output Format Depth & RGB & Amplitude Map Depth & RGB & Amplitude Map
TOF Resolution & Frame Rate 240×160@Max.20fps, Typical 15fps 240×160@Max.10fps, Typical 10fps
TOF Field of View 90°×61° 120°×80° 61°(H) × 90°(V)
RGB Resolution & Frame Rate 1632×1224@Max.20fps, Typical 15fps 1920×1080@Max.10fps, Typical 10fps
RGB Field of View 90°×61° 120°×90° 61°(H) × 90°(V)
Distance Range 0.3-8m (@90% reflectivity) 0.3-3m (@10% reflectivity) 0 ~ 30m (at 90% reflectivity) 0 ~ 15m (at 10% reflectivity)
Accuracy 1σ < 3cm At room temperature (25℃), 70% reflectivity, <50kLux illumination 1σ < 3cm At room temperature (25℃), 70% reflectivity, <50kLux illumination
Power Consumption ≤4W & 28W ≤7W & 40W
Laser 940nm 940nm
Dimensions (W×D×H) 80mm×25mm×37mm 92mm × 47mm × 51mm
Weight 190g 460g
Power Supply 12V-28V 24V
Communication Interface Ethernet / IO Ethernet / IO
Protection Rating IP54 IP67
Operating Temperature -20℃~60℃ -20℃~60℃
Storage Temperature -40℃~85℃ -40℃~85℃
Software Environment C / C++ / ROS SDK C / C++ / ROS SDK
Supported Operating Systems Windows 7/8/10/11, Linux, Arm Linux/ROS Windows 7/8/10/11, Linux, Arm Linux/ROS
Heat Dissipation Passive Cooling (No fan) Passive Cooling (No fan)
