Benewake

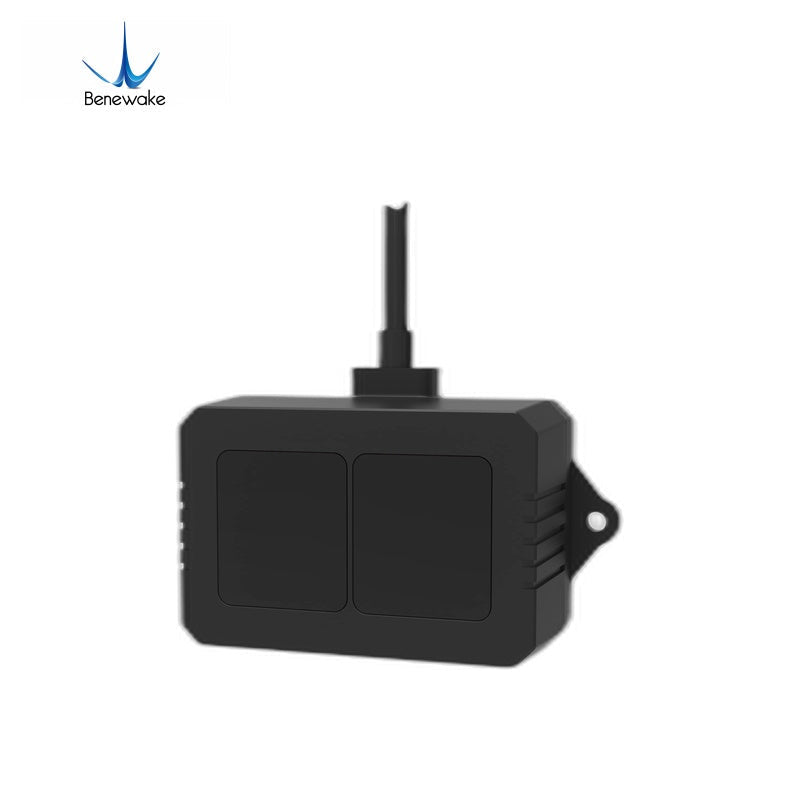

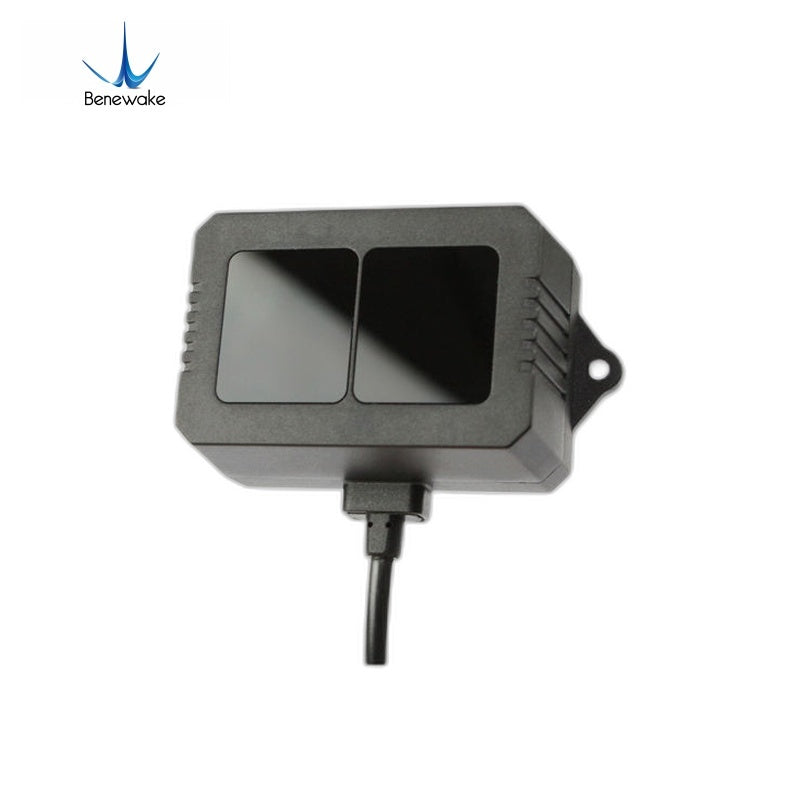

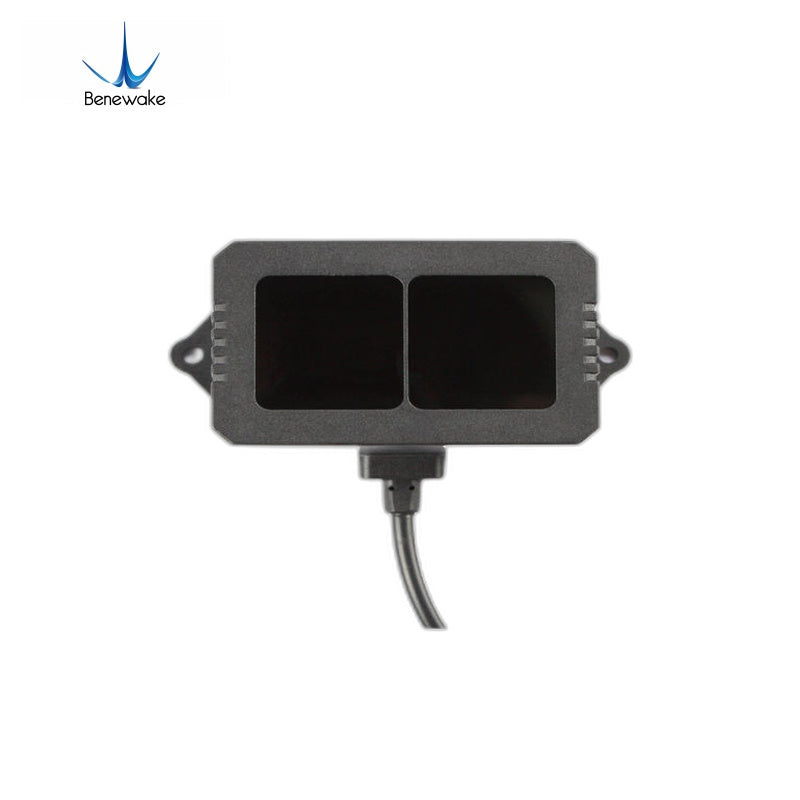

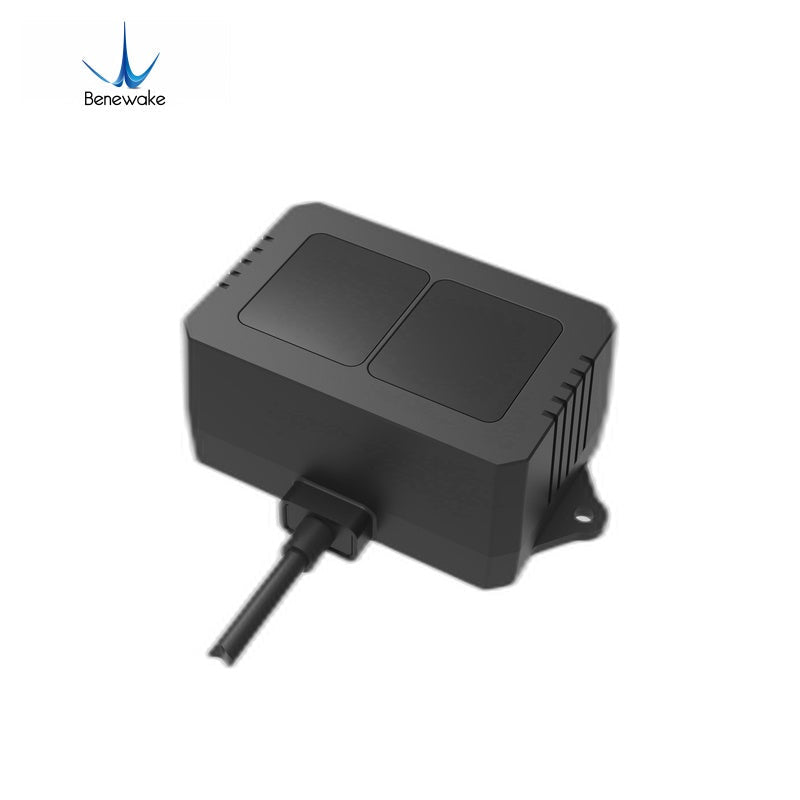

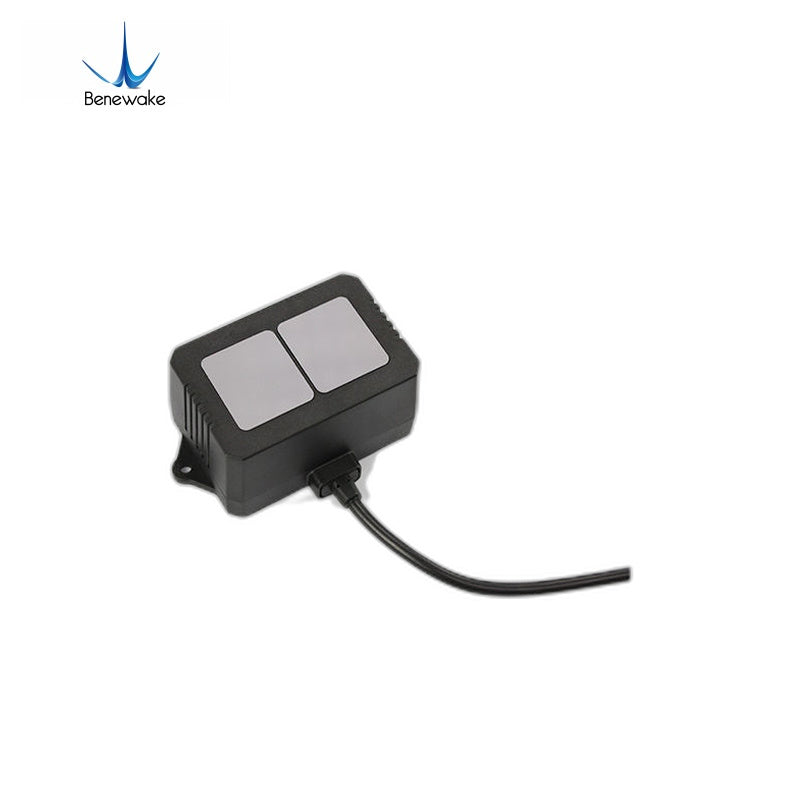

Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Operating range (indoor 0Klux / outdoor 100Klux): 0.1m~40m @90% reflectivity 0.1m~13.5m @10% reflectivity
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$145
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake TF02-Pro LiDAR datasheet with technical specifications.pdf ▶ Benewake TF02-Pro LiDAR user manual for setup and integration.pdf ▶ Benewake TF02-Pro LiDAR dimension drawing for installation reference.pdf ▶

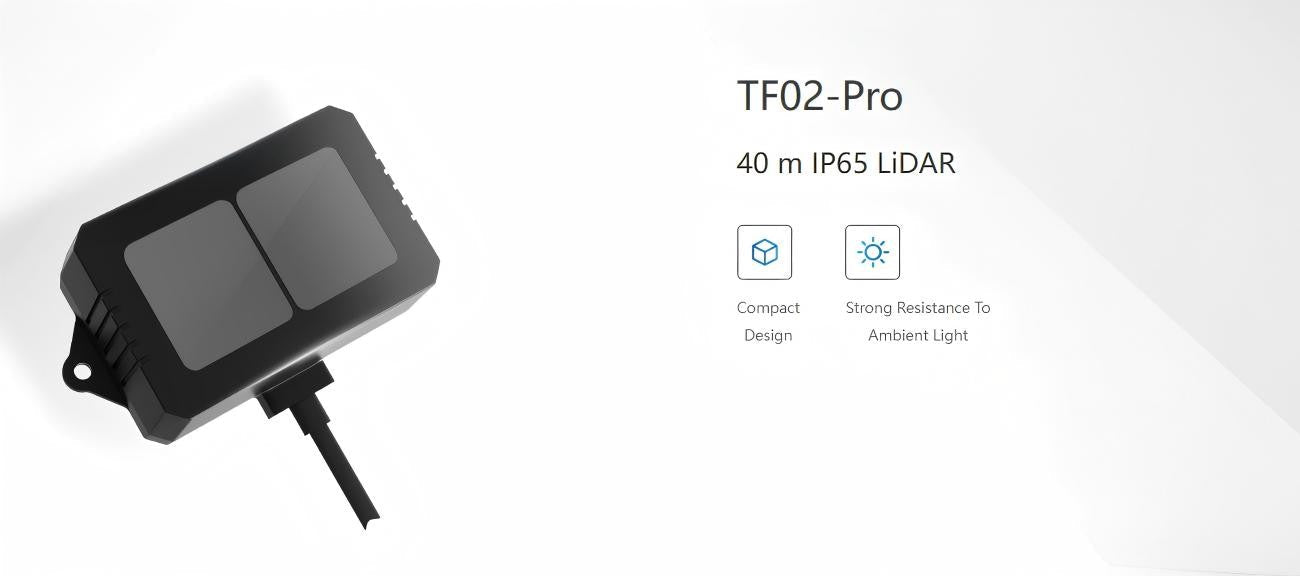

Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

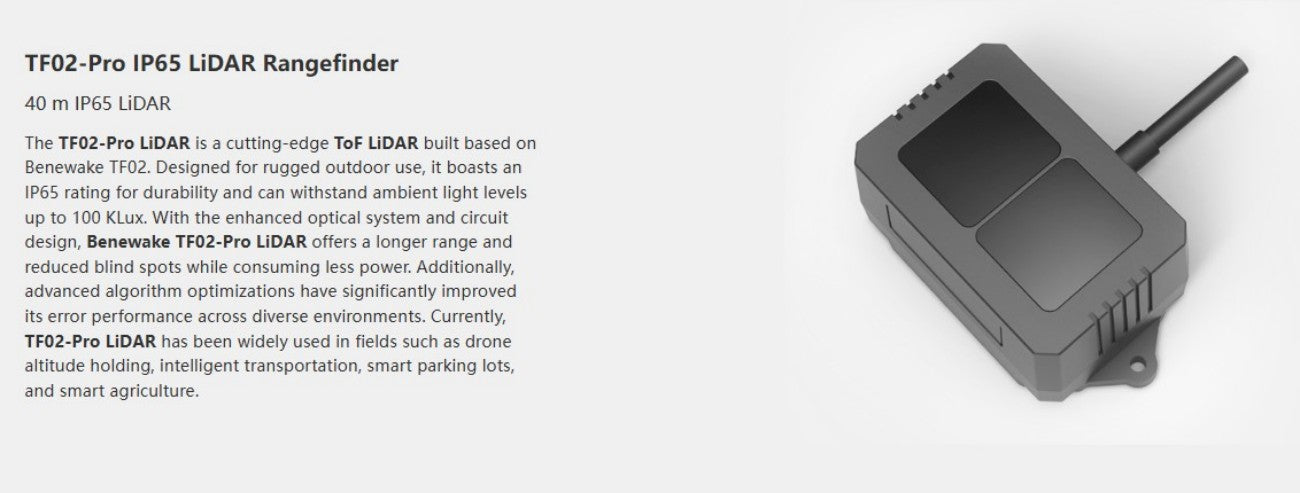

Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3

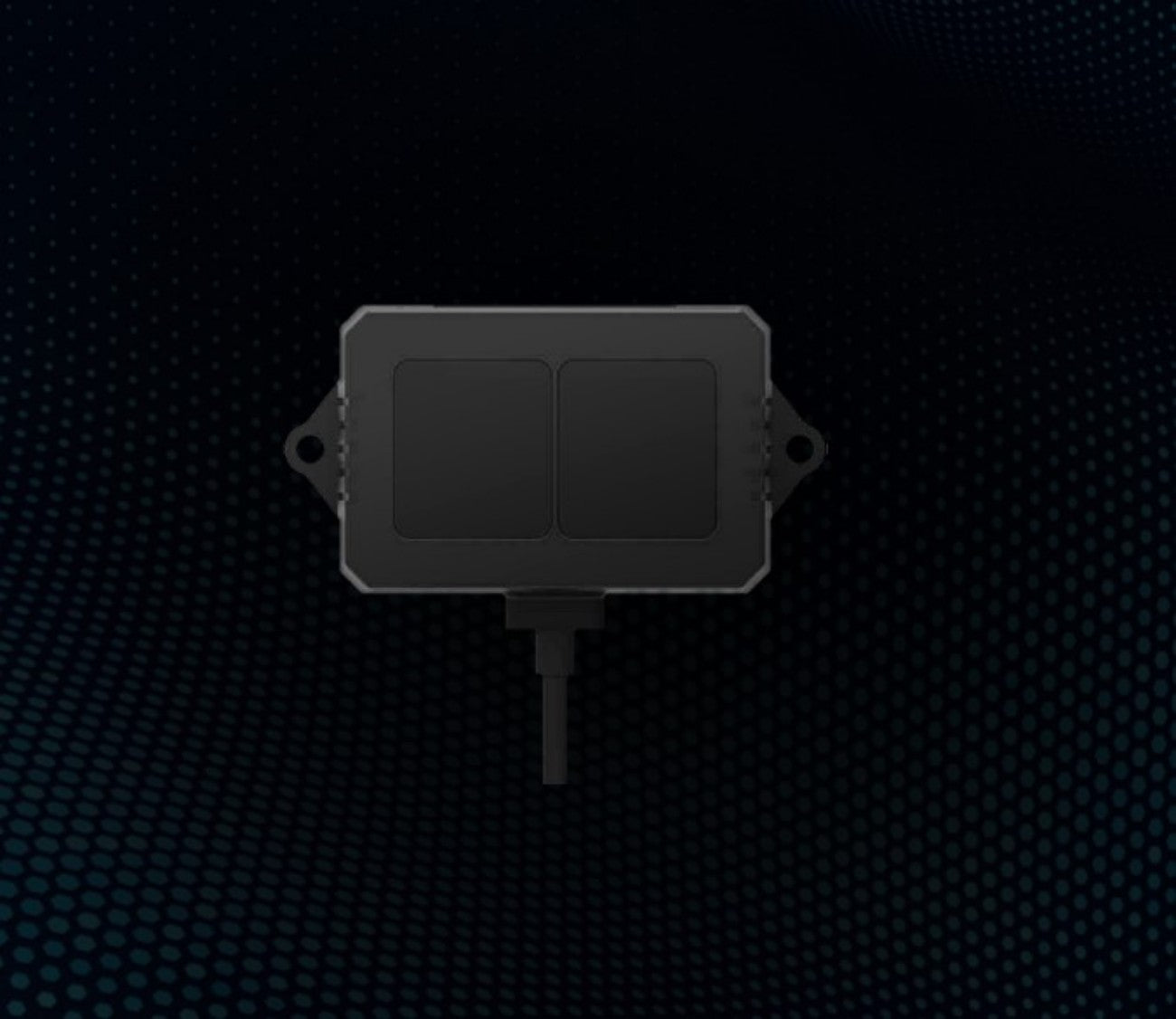

Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4
Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

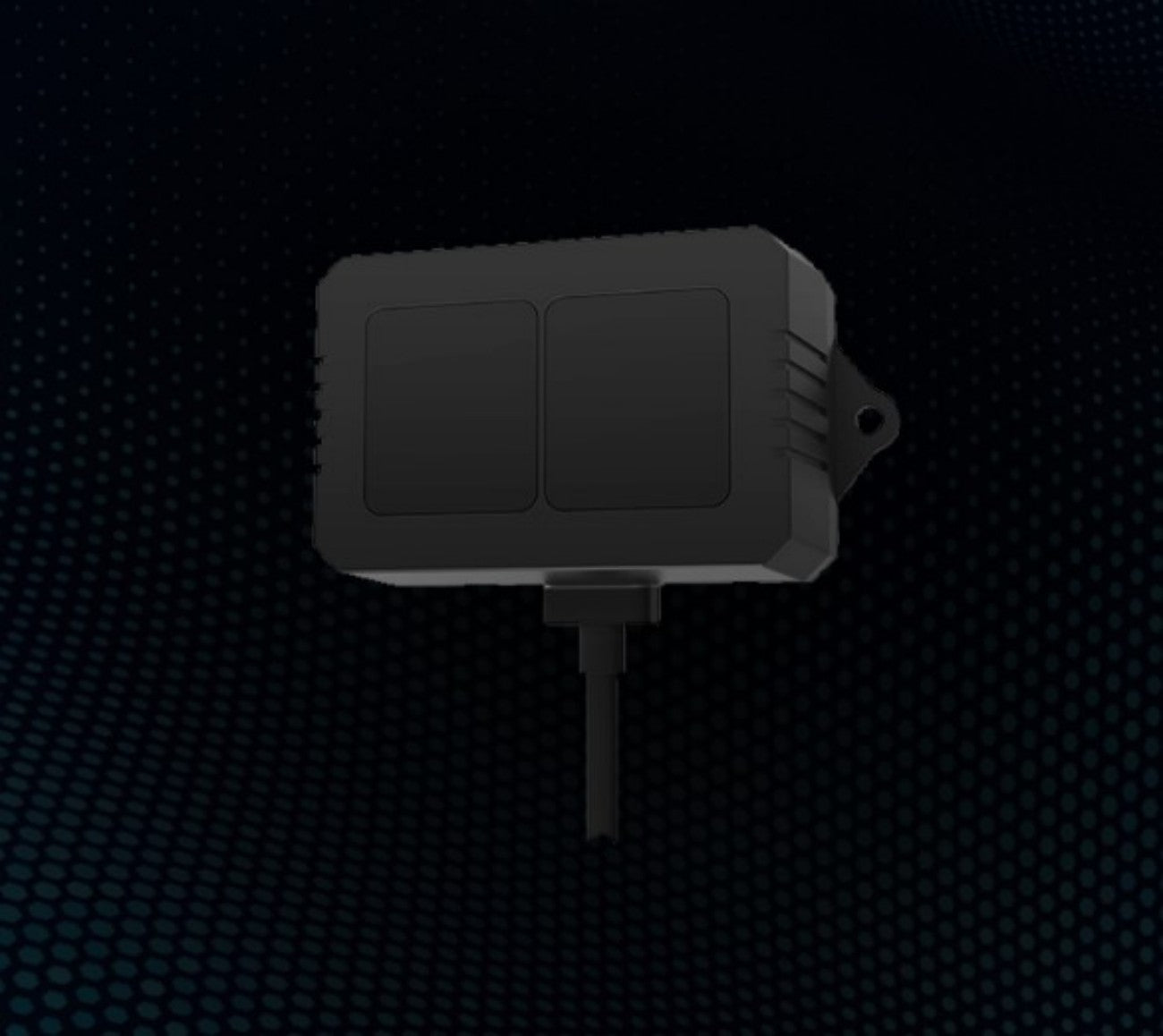

Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7

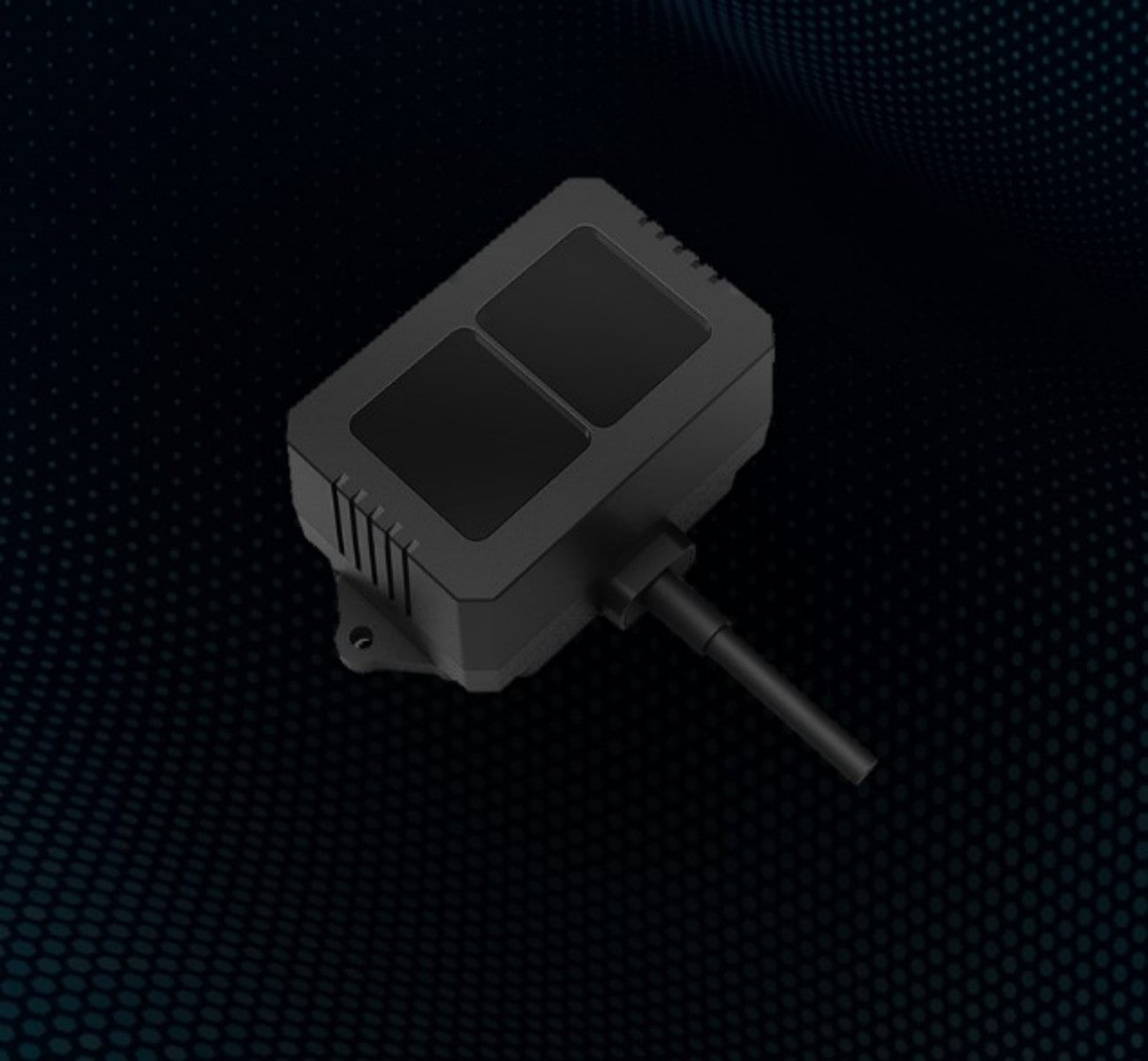

Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8
Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9

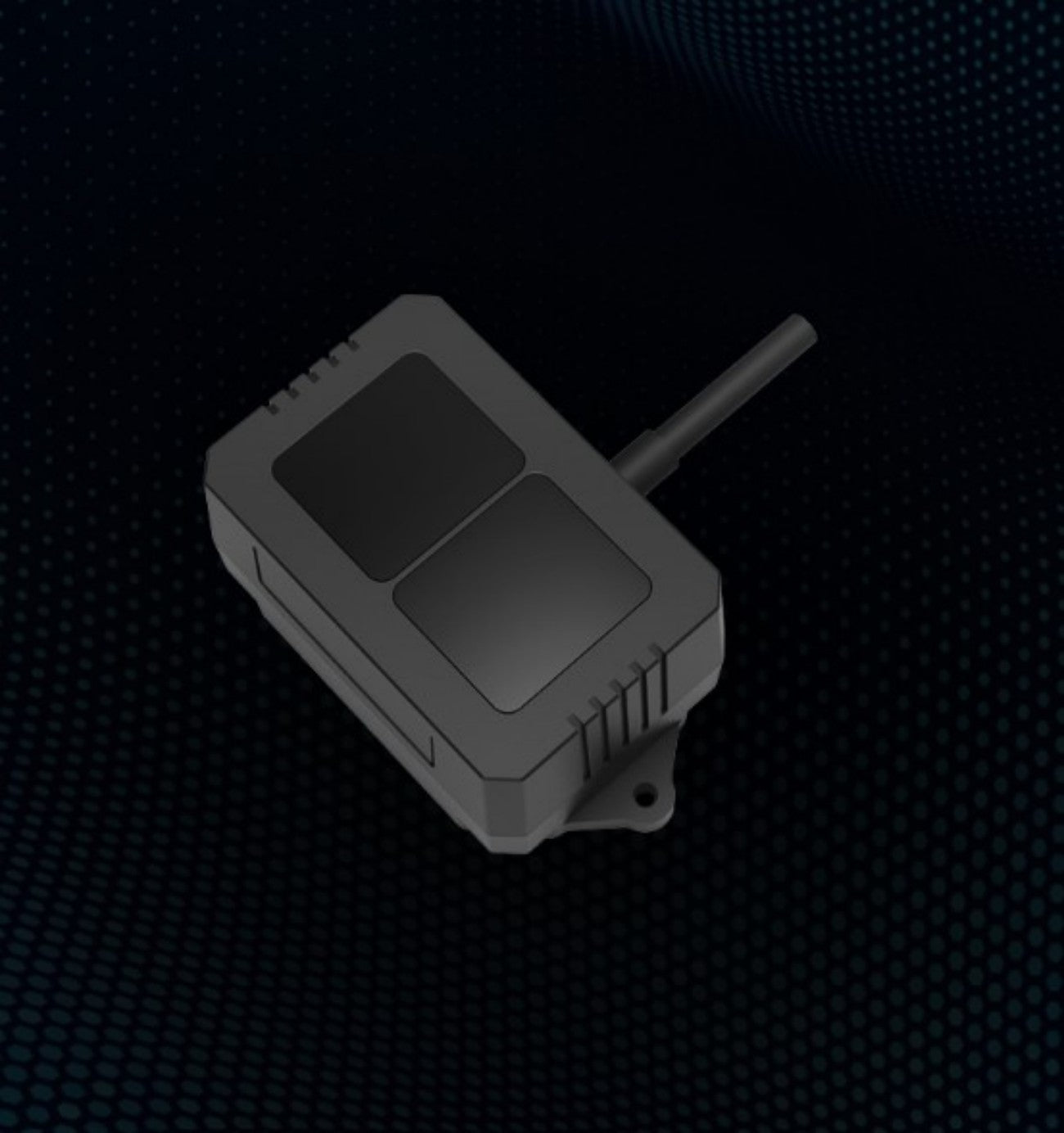

Benewake TF02-Pro LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10
▤ PARAMETER ⌃
Operating range (indoor 0Klux / outdoor 100Klux)
0.1m~40m @90% reflectivity 0.1m~13.5m @10% reflectivity
Accuracy
±5cm @ (0.1m~5m) ; ±1% @ (5m~40m)
Distance resolution
1cm
Frame rate
1Hz~1000Hz (adjustable, default 100Hz)
Repeatability
1σ：<2cm (0.1m~35m @90% reflectivity)
Ambient light immunity
100 Klux
Enclosure rating
IP65
Photobiological safety
Class 1 (IEC60825)
Central wavelength
850nm
Light source
VCSEL
Field of View (FoV)
3°
Supply voltage
DC 5V~12V
Average current
≤200mA
Power consumption
≤1W
Peak current
300mA
Communication level
LVTTL (3.3V)
Dimension (L×H×W)
69mm × 41.5mm × 26mm
Enclosure material
ABS/PC
Operating temperature
-20°C ~ 60°C
Storage temperature
-30°C ~ 80°C
Weight (with cables)
50g
Cable length
80 cm
Communication interface
UART / I²C
UART default baud rate
115200
UART data bit
8
UART stop bit
1
UART parity
None
I²C max transmission rate
400kbps
I²C master/slave mode
Slave
I²C default address
0x10
I²C address range
0x10 ~ 0x7F
