Benewake

Benewake AD2-S-X3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Detection range: 300m @10% reflectivity
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$8,800
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Benewake AD2-S-X3 LiDAR datasheet with technical specifications.pdf ▶ Benewake AD2-S-X3 LiDAR user manual for setup and integration.pdf ▶ Benewake AD2-S-X3 LiDAR dimension drawing for installation reference.pdf ▶
Benewake AD2-S-X3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1

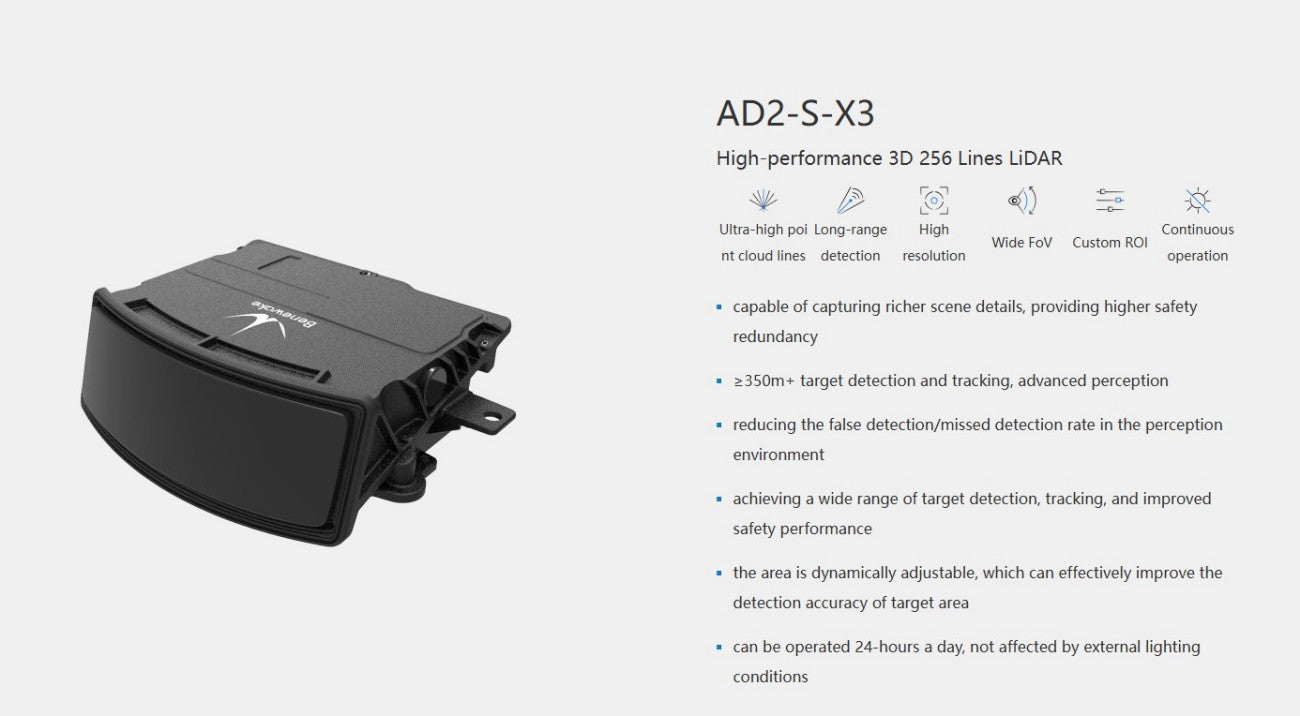

Benewake AD2-S-X3 LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
▤ PARAMETER ⌃
Detection range
300m @10% reflectivity
Minimum range
≤1.2m
FoV (H × V) - ROI Region
120° × 8.6°
FoV (H × V) - Non-ROI Region
120° × 28°
Resolution (H × V) - ROI Region
0.1° × 0.22°
Resolution (H × V) - Non-ROI Region
0.2° × 0.22°
Point cloud data-rate
798Kpts/s (without ROI) / 1.02Mpts/s (with ROI)
Precision
3cm @1σ
Frame rate
10Hz
Echo mode
Single & Dual Echo
Number of equivalent lines
128
Laser wavelength
905nm
Laser safety
Class 1 Eye-safe [IEC60825-1:2014]
Data interface
1000Base-TX Ethernet
Transmission protocol
UDP
Supported platforms
Windows, Linux (Ubuntu) & ROS drive
Time synchronization
gPTP, PTP, NTP
Average power consumption
≤15W
Operating voltage
9~32V
Operating temperature
-40℃ ~ +85℃
Storage temperature
-40℃ ~ +105℃
Dimensions (W×D×H)
206.5 × 156.1 × 61.4mm
Weight
1.2kg
Device interface (Power supply)
M12 A-code 4PIN
Device interface (Data)
M12 X-code 8PIN
Protection level
IP67 & IP6K9K
