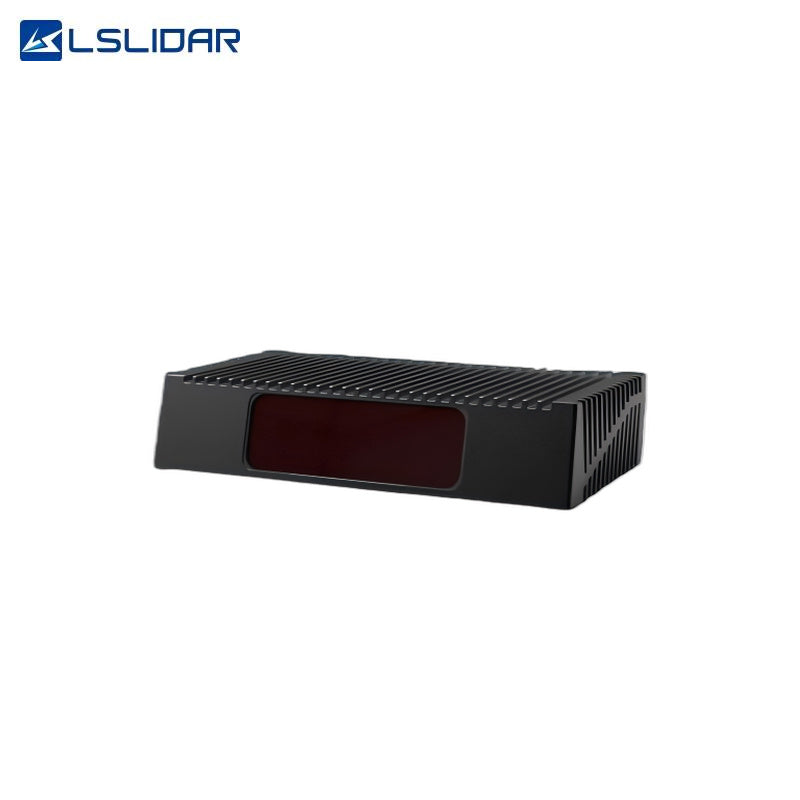

LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping

  • Model: LS128S2
  • Suitable for mobile robots, autonomous platforms, robotics research, education labs, and automation systems.
  • Designed for robot sensing workflows that require reliable ranging and environmental perception.
  • Useful for developers building SLAM, localization, obstacle detection, and autonomous robotics applications.
$4,450
Model

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

LSLIDAR LS-S2 Series LiDAR product documentation for robotics integration.pdf ▶ LSLIDAR LS-S2 Series LiDAR product documentation for robotics integration.pdf ▶

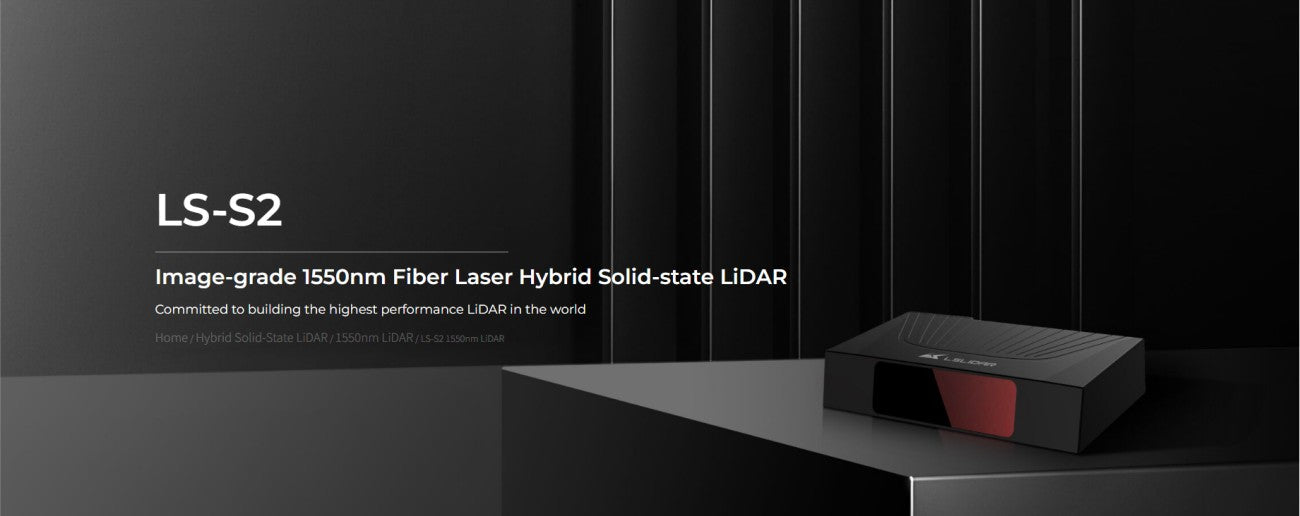

LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 1
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 2
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 3
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 4

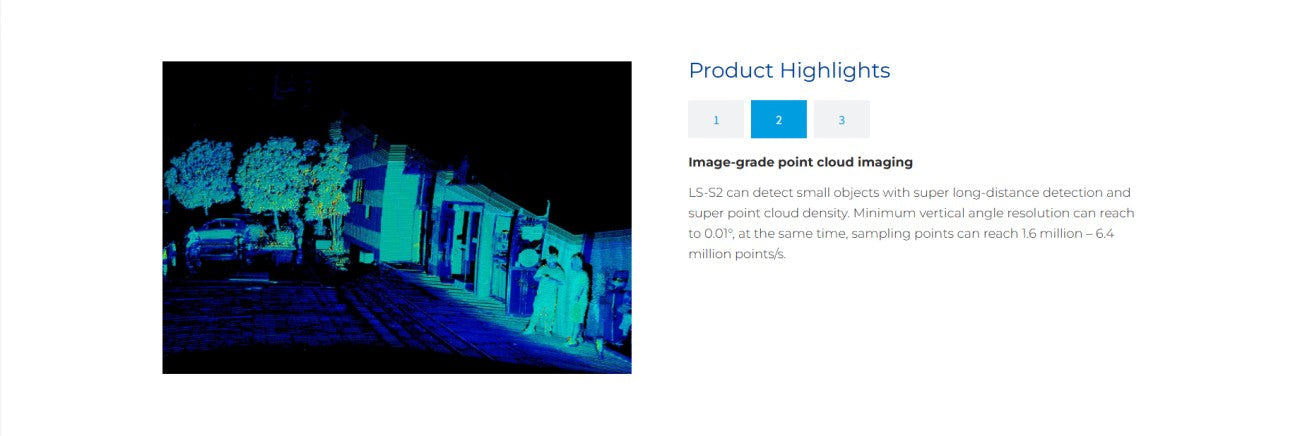

LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 5

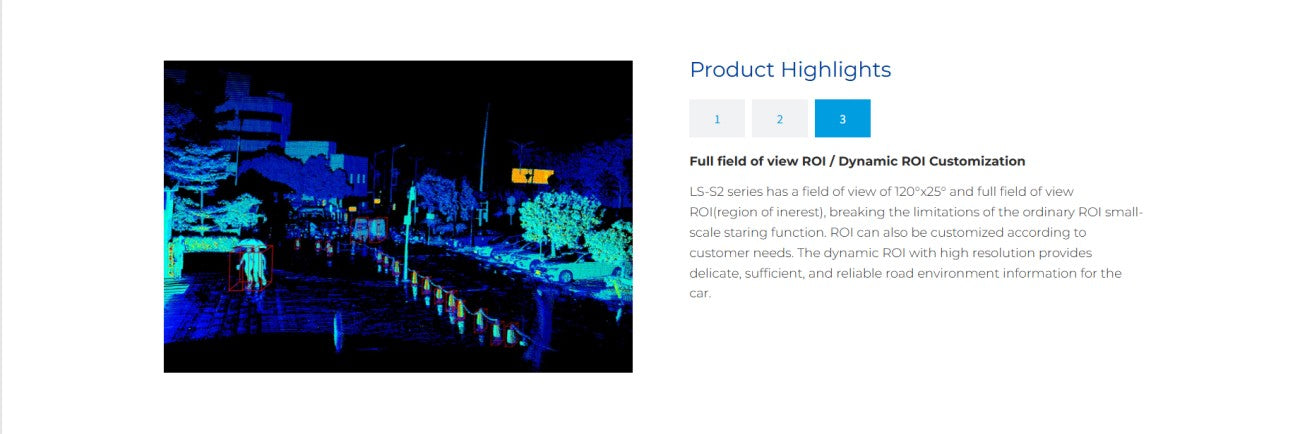

LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 6
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 7
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 8

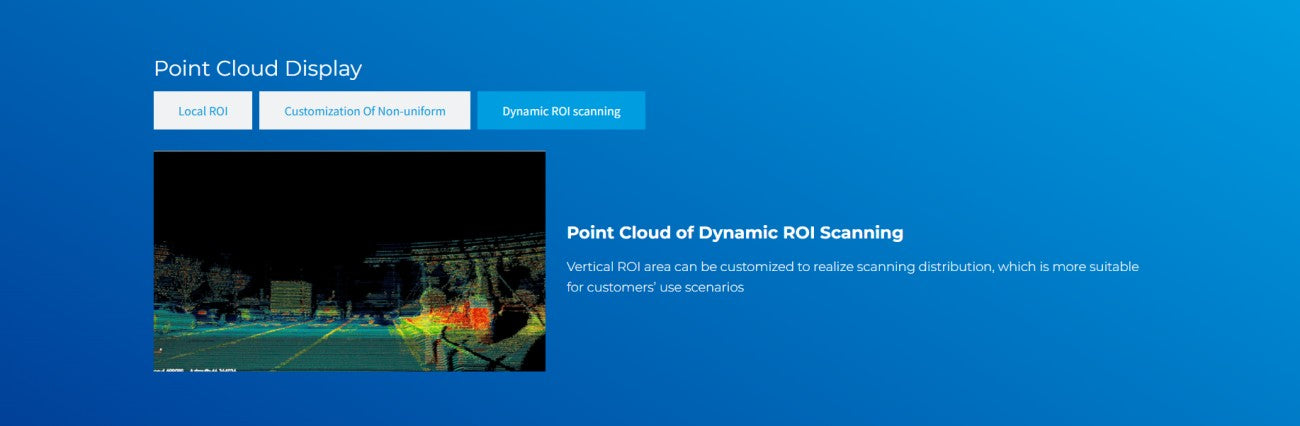

LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 9
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 10

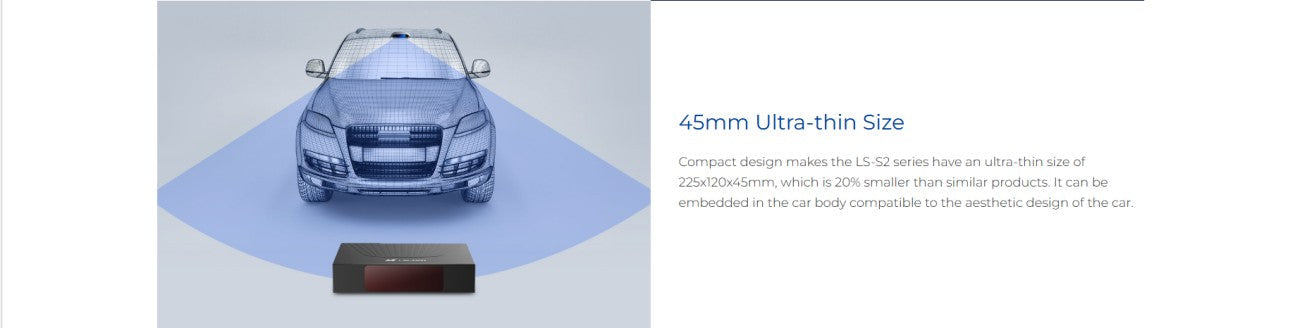

LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 11
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 12
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 13
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 14
LSLIDAR LS-S2 Series LiDAR | Robot LiDAR Sensor for Robotics & Mapping detail image 15

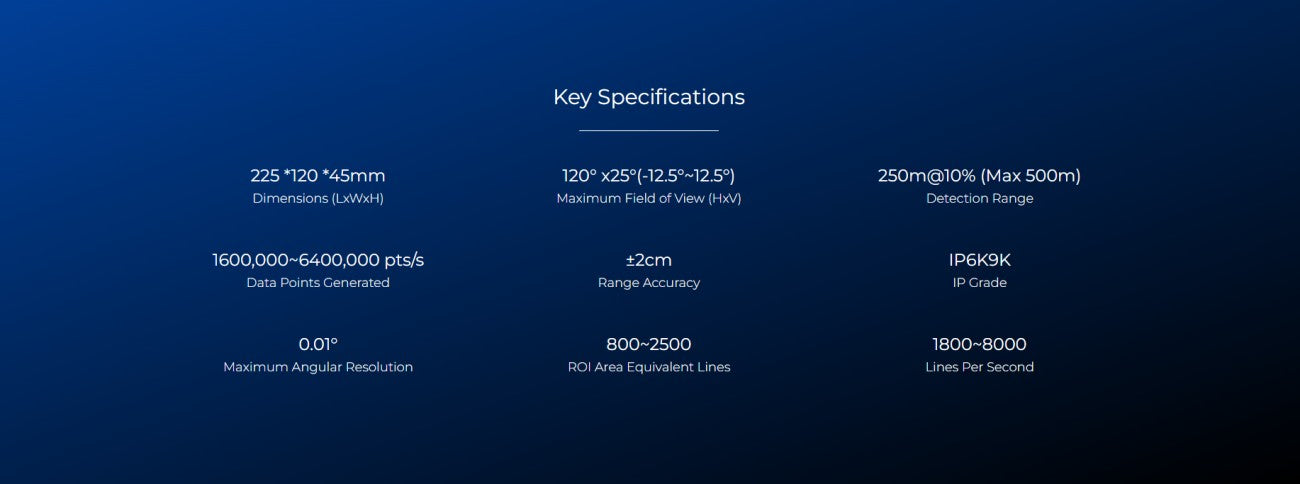

▤ Technical Specifications ⌃
Parameter Value Value Value Value
Model LS128S2 LS180S2 LS320S2 LS400S2
Scanning Channels 128 channels 180 channels 320 channels 400 channels
Scan Lines per Second 1280 lines 1800 lines 3200 lines 4000 lines
Horizontal FOV 120° 120° 120° 120°
Vertical FOV 25° (±12.5°) 25° (±12.5°) 25° (±12.5°) 25° (±12.5°)
Horizontal Angular Resolution B: 0.103° B: 0.13° B: 0.0518° A: 0.0646°
Vertical Angular Resolution B: 0.076° (ROI), 0.33° (non-ROI) B: 0.1° (ROI) B: 0.09° (ROI), 0.2° (full field) A: 0.05° (non-full field)
Point Rate 1.48 million points/sec 1.65 million points/sec 1.85 million points/sec 1.85 million points/sec
Laser Wavelength 1550 nm 1550 nm 1550 nm 1550 nm
Safety Class Class I (Eye-safe) Class I (Eye-safe) Class I (Eye-safe) Class I (Eye-safe)
Ranging Principle TOF (Time-of-Flight) TOF (Time-of-Flight) TOF (Time-of-Flight) TOF (Time-of-Flight)
Detection Range 1.5 m ~ 250 m @ 10% reflectivity 1.5 m ~ 250 m @ 10% reflectivity 1.5 m ~ 250 m @ 10% reflectivity 1.5 m ~ 250 m @ 10% reflectivity
Ranging Accuracy ±2 cm ±2 cm ±2 cm ±2 cm
Frame Rate 10 FPS 10 FPS 10 FPS 10 FPS
Communication Interface Automotive Ethernet Automotive Ethernet Automotive Ethernet Automotive Ethernet
Power Supply Range 12–36 V DC 12–36 V DC 12–36 V DC 12–36 V DC
Power Consumption ≤28 W ≤28 W ≤28 W ≤28 W
IP Rating IP6K9K IP6K9K IP6K9K IP6K9K
Operating Temperature -40°C ~ +75°C -40°C ~ +75°C -40°C ~ +75°C -40°C ~ +75°C
Storage Temperature -40°C ~ +105°C -40°C ~ +105°C -40°C ~ +105°C -40°C ~ +105°C
Vibration 5 Hz ~ 2000 Hz, 3G rms 5 Hz ~ 2000 Hz, 3G rms 5 Hz ~ 2000 Hz, 3G rms 5 Hz ~ 2000 Hz, 3G rms
Shock 500 m/sec², 11 ms duration 500 m/sec², 11 ms duration 500 m/sec², 11 ms duration 500 m/sec², 11 ms duration
Weight Base: ≤1800 g Lightweight: ≤1500 g Base: ≤1800 g Lightweight: ≤1500 g Base: ≤1800 g Lightweight: ≤1500 g Base: ≤1800 g Lightweight: ≤1500 g
Dimensions (L×W×H) Base: 236×125×49 mm Lightweight: 228×125×45 mm Base: 236×125×49 mm Lightweight: 228×125×45 mm Base: 236×125×49 mm Lightweight: 228×125×45 mm Base: 236×125×49 mm Lightweight: 228×125×45 mm
