HIGH TORQUE

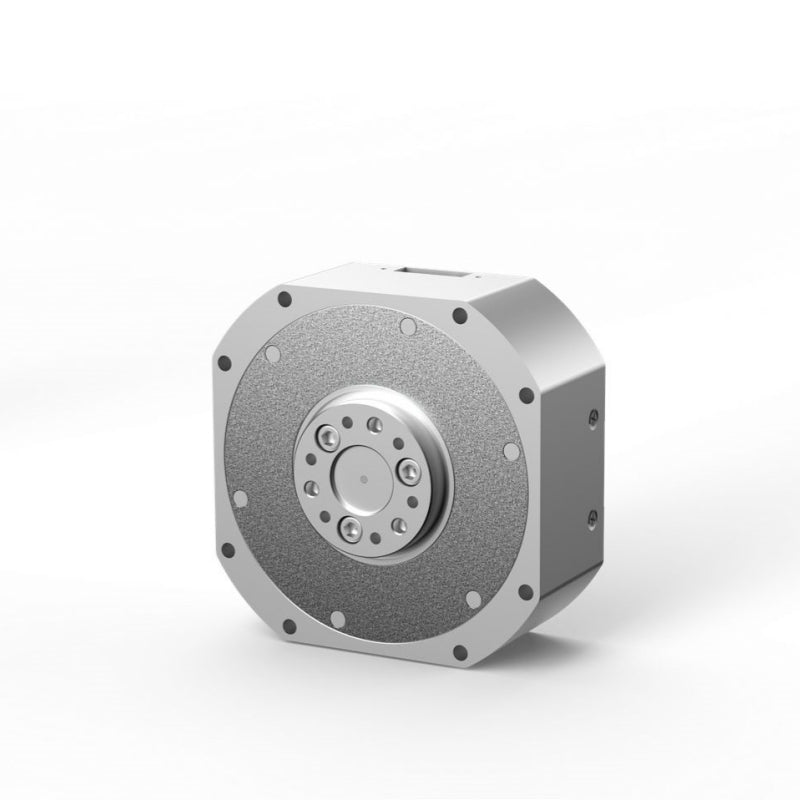

HIGH TORQUE HTPW-7507-02-DNE Planetary Joint Module

  • Designed for humanoid robots, robotic arms, and high-performance robotics platforms.
  • Compact planetary joint module with integrated motor and gearbox design.
  • 7:1 reduction ratio delivers high-speed robotic motion with stable torque output.
  • Dual encoder feedback enables precise joint control and responsive operation.
  • CANFD/CAN communication supports flexible integration with robotic systems.

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

HIGH TORQUE HTPW-7507-02-DNE Planetary Joint Module

The HIGH TORQUE HTPW-7507-02-DNE is a compact planetary joint module designed for humanoid robots, robotic arms, and advanced robotics platforms. It integrates a motor, planetary gearbox, encoder feedback system, and communication interface into a complete robotic actuator solution, providing efficient motion control and reliable performance for robotics development and research applications.

Compact Integrated Joint Design

The HTPW-7507-02-DNE features a compact 75 × 35 mm structure with an integrated motor and gearbox design. Its lightweight construction helps reduce robotic system complexity while providing a practical actuator solution for applications requiring compact and efficient joint integration.

High-Speed Planetary Reduction System

Equipped with a 7:1 reduction ratio, the module is optimized for fast robotic motion while maintaining stable torque output. It provides 4 Nm rated torque and 12 Nm locked-rotor torque, making it suitable for dynamic robotic joints requiring responsive movement.

High-Precision Encoder Feedback

The integrated encoder system provides 14-bit input and output encoder resolution, enabling accurate position feedback and precise motion control. It supports stable operation for robotic platforms requiring repeatable and responsive joint movement.

CANFD/CAN Communication Integration

Supporting CANFD/CAN communication with up to 3 kHz control frequency, the HTPW-7507-02-DNE enables flexible integration with robotic controllers and embedded systems. It is suitable for humanoid robots, robotic arms, educational robotics, and advanced robotics research platforms.

Robotics Development Applications

With its compact structure, high-speed performance, and integrated control features, the HTPW-7507-02-DNE provides an efficient actuator solution for robotics engineers developing lightweight robotic systems, research prototypes, and next-generation automation platforms.

HIGH TORQUE HTPW-7507-02-DNE Planetary Joint Module
▤ PARAMETER ⌃

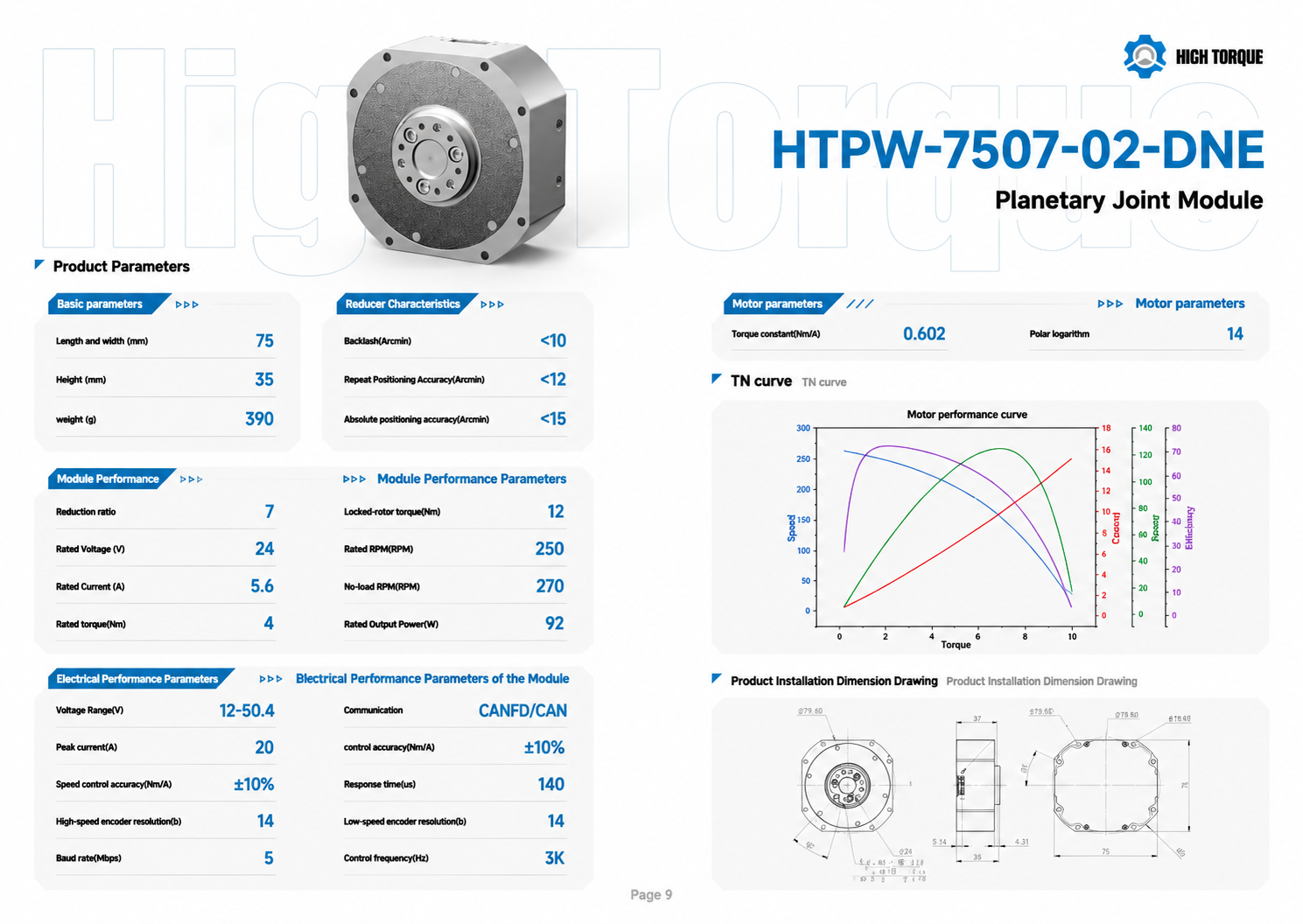

Product Parameters
Parameter Category Parameter Value
Basic Parameters Length and Width 75 mm
Height 35 mm
Weight 390 g
Reducer Characteristics Backlash <10 Arcmin
Repeat Positioning Accuracy <12 Arcmin
Absolute Positioning Accuracy <15 Arcmin
Module Performance Parameters Reduction Ratio 7
Rated Voltage 24 V
Rated Current 5.6 A
Rated Torque 4 Nm
Locked-Rotor Torque 12 Nm
Rated RPM 250 RPM
No-Load RPM 270 RPM
Rated Output Power 92 W
Electrical Performance Parameters of the Module Voltage Range 12–50.4 V
Peak Current 20 A
Speed Control Accuracy ±10%
High-Speed Encoder Resolution 14 bit
Baud Rate 5 Mbps
Communication CAN FD/CAN
Torque Control Accuracy ±10%
Response Time 140 μs
Low-Speed Encoder Resolution 14 bit
Control Frequency 3 kHz
