OCServo

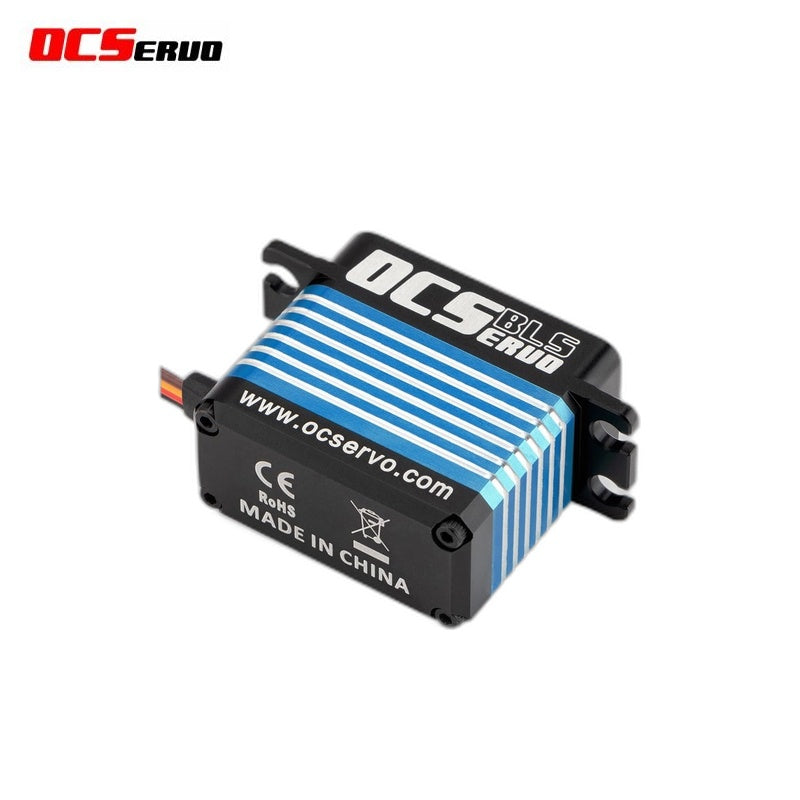

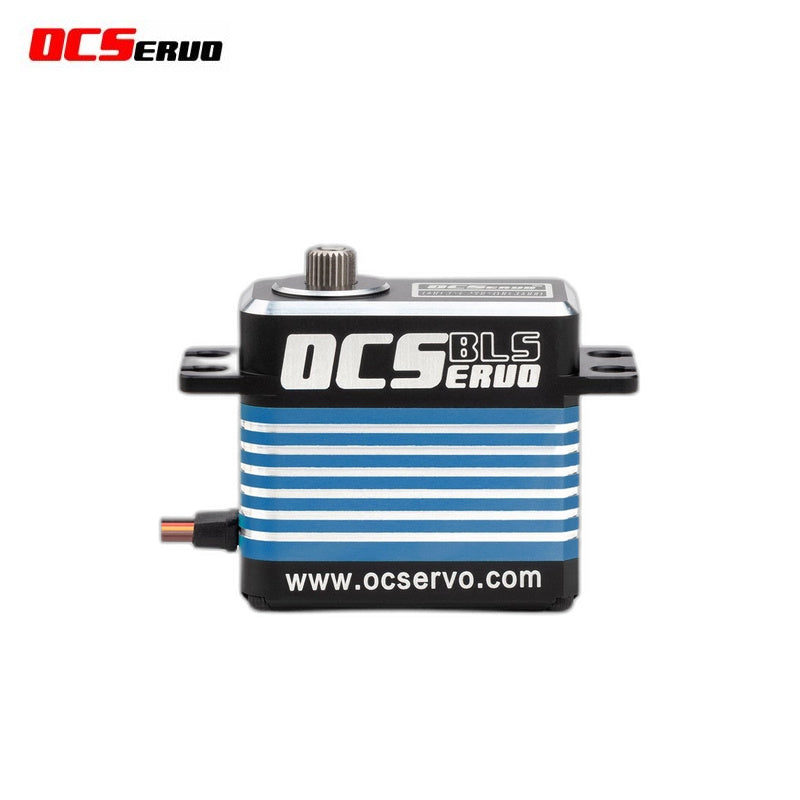

OCServo OCS-351 Servo Motor

  • Peak stall torque (kg·cm): 6.0V: 24; 7.4V: 30; 8.4V: 35
  • Operating Voltage: 6.0V / 7.4V / 8.4V
  • No load speed (sec/60°): 6.0V: 0.12; 7.4V: 0.09; 8.4V: 0.07; 7.4V: 0.10; 8.4V: 0.08
  • Motor Type: Brushless motor
  • Gear Type: Stainless Steel
$115
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-351 dimensional drawing.pdf ▶ OCServo OCS-351 dimensional drawing.pdf ▶ OCServo OCS-351 dimensional drawing.pdf ▶ OCServo OCS-351 technical specifications.pdf ▶

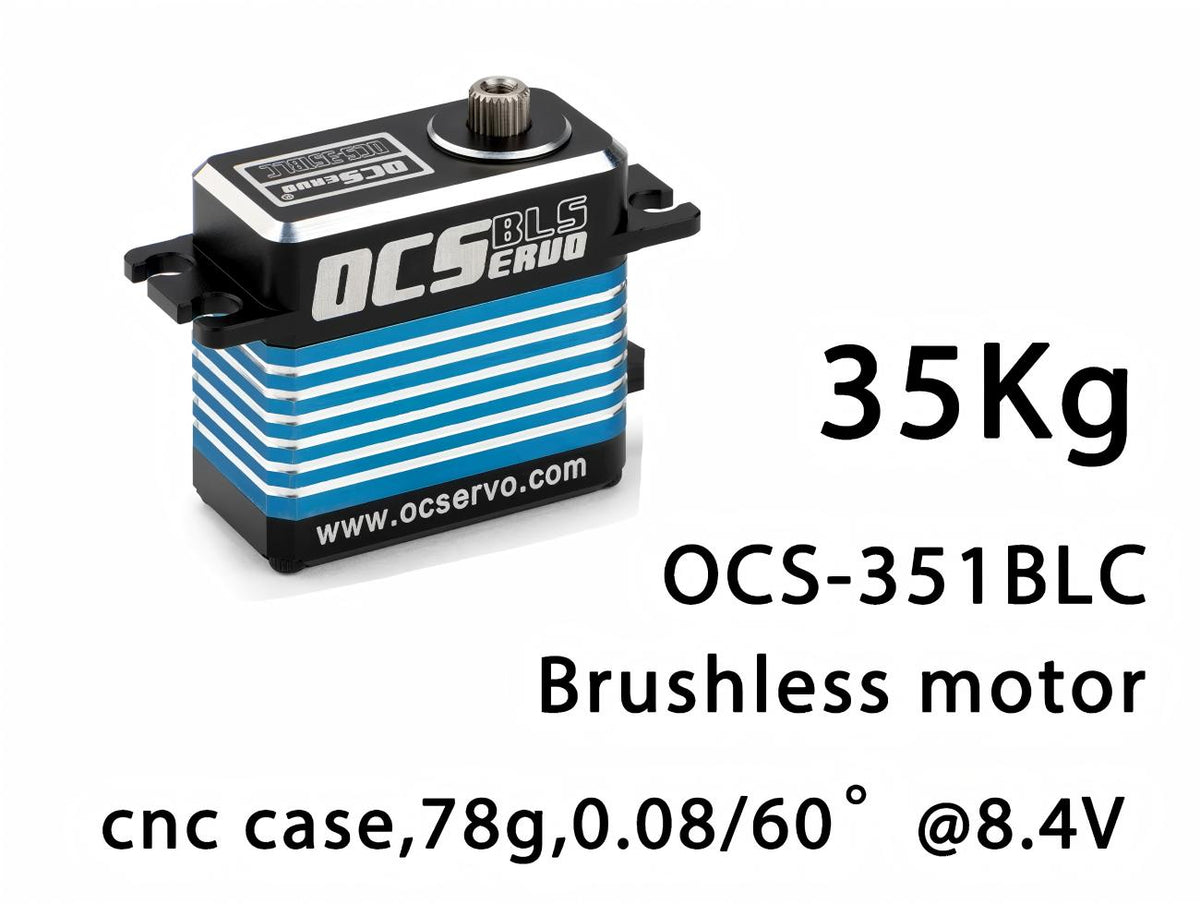

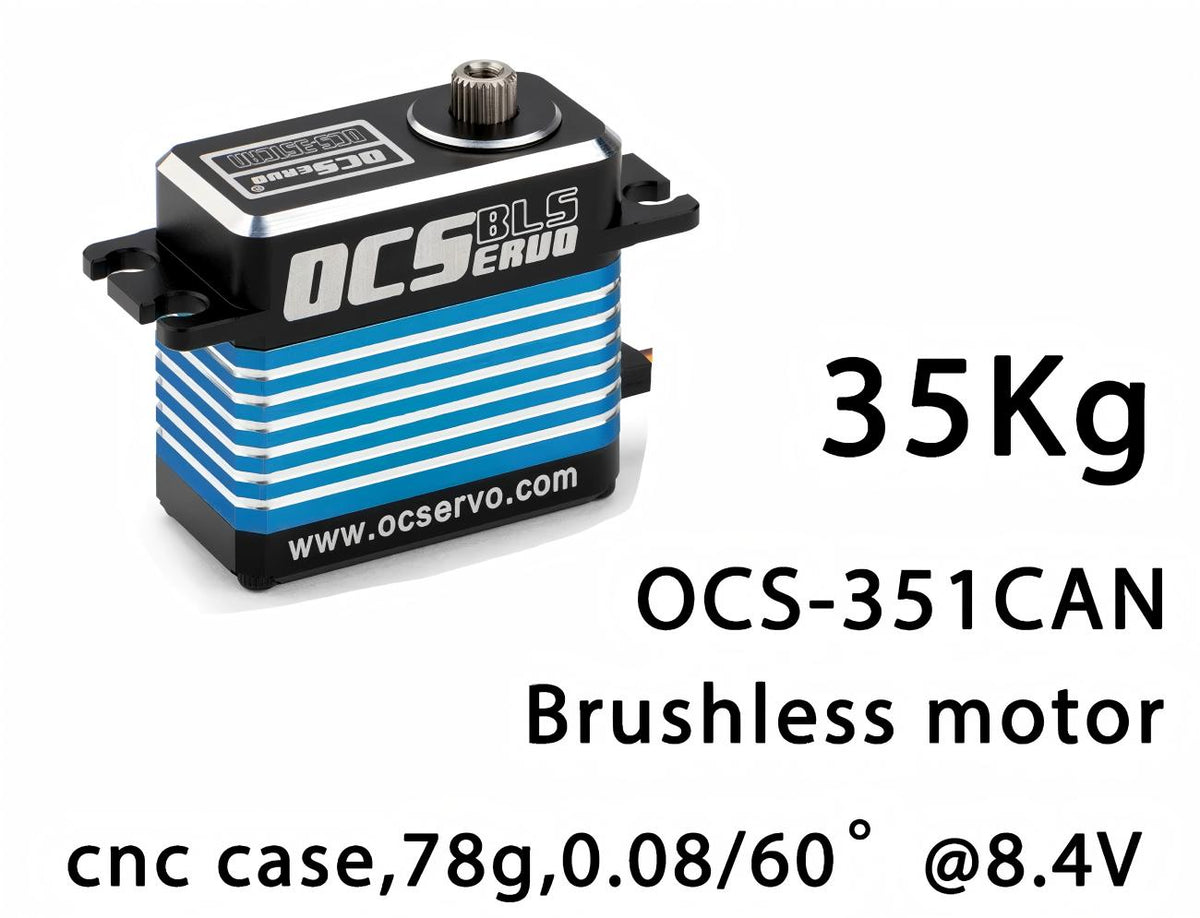

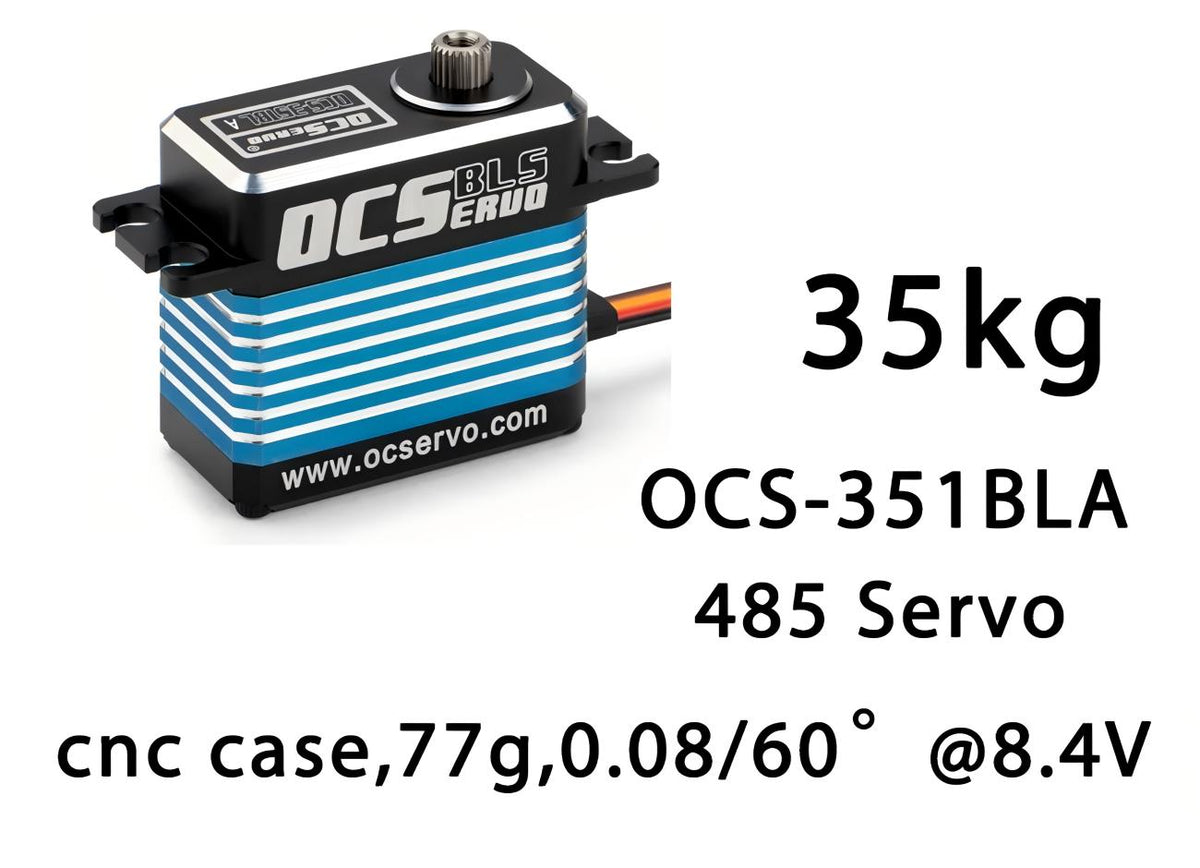

OCServo OCS-351 Servo Motor detail image
OCServo OCS-351 Servo Motor detail image
OCServo OCS-351 Servo Motor detail image
OCServo OCS-351 Servo Motor detail image
▤ Technical Specifications ⌃
Parameter OCS-351BLA OCS-351BLA OCS-351BLA OCS-351BLC OCS-351BLC OCS-351BLC OCS-351CAN OCS-351CAN OCS-351CAN
Product Name 8.4V35kg-cm Waterproof High Voltage BLS Digital Servo 485 Communication Protocol 8.4V35kg-cm BLS Digital Servo TTL and PWM Control Multi-turn Operation 8.4V35kg-cm Waterproof High Voltage BLS Digital Servo CAN Communication Protocol
Item No. OCS-351BLA OCS-351BLC OCS-351CAN
Storage Temperature Range -20°C ~ 70°C -20°C ~ 70°C -20°C ~ 70°C
Operating Temperature Range -15°C ~ 65°C -15°C ~ 65°C -15°C ~ 65°C
Test Temperature 25°C ± 5°C 25°C ± 5°C 25°C ± 5°C
Test Humidity 65% ± 10% 65% ± 10% 65% ± 10%
Size (mm) 20 × 40 × 38 20 × 40 × 38 20 × 40 × 38
Weight (g) 77 (excluding accessory) 77 (excluding accessory) 77 (excluding accessory)
Gear Type Stainless Steel Stainless Steel Stainless Steel
Limit Angle - No -
Bearings 2 Ball bearings 2 Ball bearings 2 Ball bearings
Output Spline 25T - Φ5.94mm 25T - φ5.94mm 25T - Φ5.94mm
Horn Type Plastic POM Plastic POM Plastic POM
Case Material Aluminium CNC Aluminium CNC Aluminium CNC
Connector Wire 300 mm 300 mm 300 mm
Motor Type Brushless motor Brushless motor Brushless motor
Waterproof Performance yes Yes yes
Operating Voltage 6.0V 7.4V 8.4V 6.0V 7.4V 8.4V 6.0V 7.4V 8.4V
No load speed (sec/60°) 0.12 0.09 0.07 0.12 0.10 0.08 0.12 0.09 0.07
Running current (at no load) (mA) 300 350 410 300 350 410 300 350 410
Peak stall torque (kg·cm) 24 30 35 24 30 35 24 30 35
Stall current (A) 2.8 3.5 4.0 2.8 3.5 4.0 2.8 3.5 4.0
Command Signal 485 Communication Protocol PWM & TTL (TTL protocol Email contact) CAN Communication Protocol
Amplifier Type Digital Controller Digital Controller Digital Controller
Pulse Width Range - 500~2500 μsec (Customisable) -
Neutral Position - 1500 μsec -
Running Degree Reference Communication Protocol 360° (when 500~2500 μsec) (Customisable) Reference Communication Protocol
Dead Band Width - 2 μsec -
Rotating Direction - CCW (when 500~2500 μsec) (Customisable) -
