EYOU

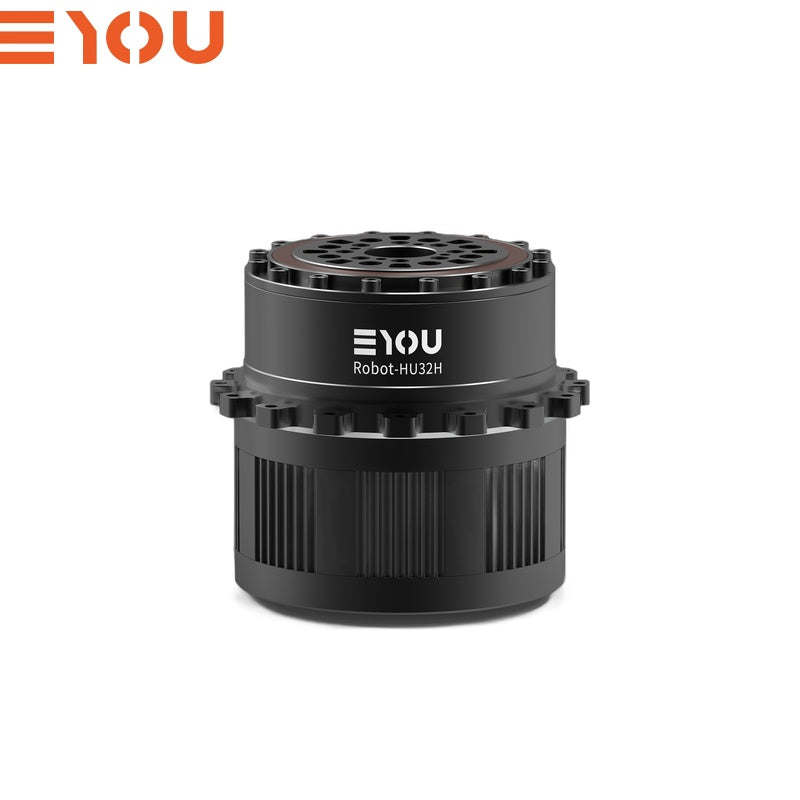

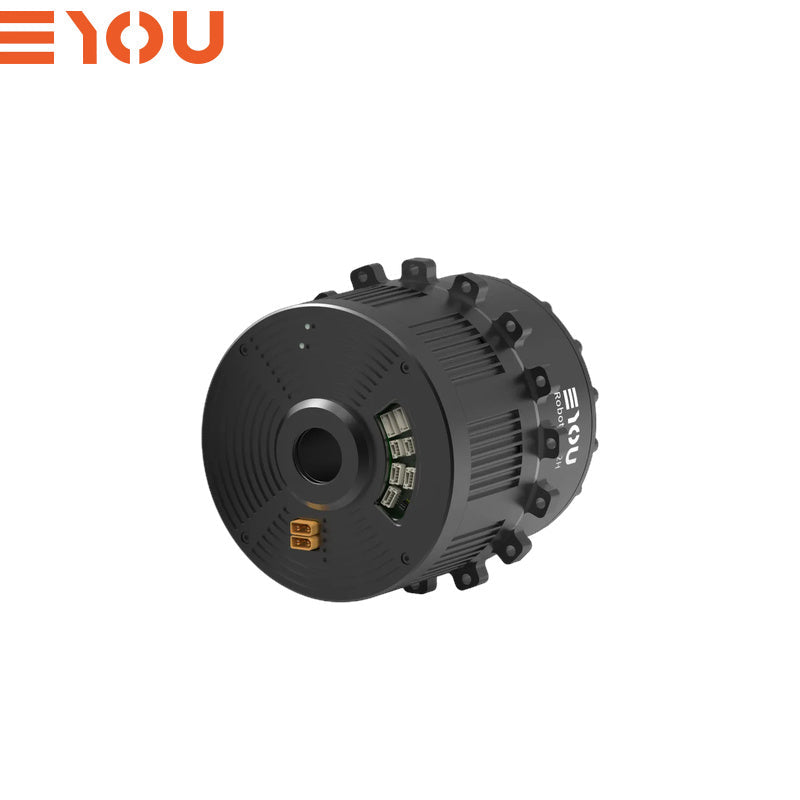

EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development

  • EYOU robot servo motor for robot joints, motion-control systems, automation hardware, and robotics development.
  • Suitable for engineering teams building research robots, education platforms, prototype mechanisms, and embedded motion systems.
  • Designed for practical integration in robot servo assemblies, compact actuators, and motion-control hardware.
  • Useful for robotics labs, automation projects, and robot hardware development where reliable components are required.
$1,000
Version
Brake
Ratio

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

EYOU RHU40H-130 Motor dimension drawing for installation reference.pdf ▶ EYOU RHU40H-130 Motor user manual for setup and integration.pdf ▶ EYOU RHU40H-130 Motor product documentation for robotics integration.pdf ▶ EYOU RHU40H-130 Motor user manual for setup and integration.pdf ▶

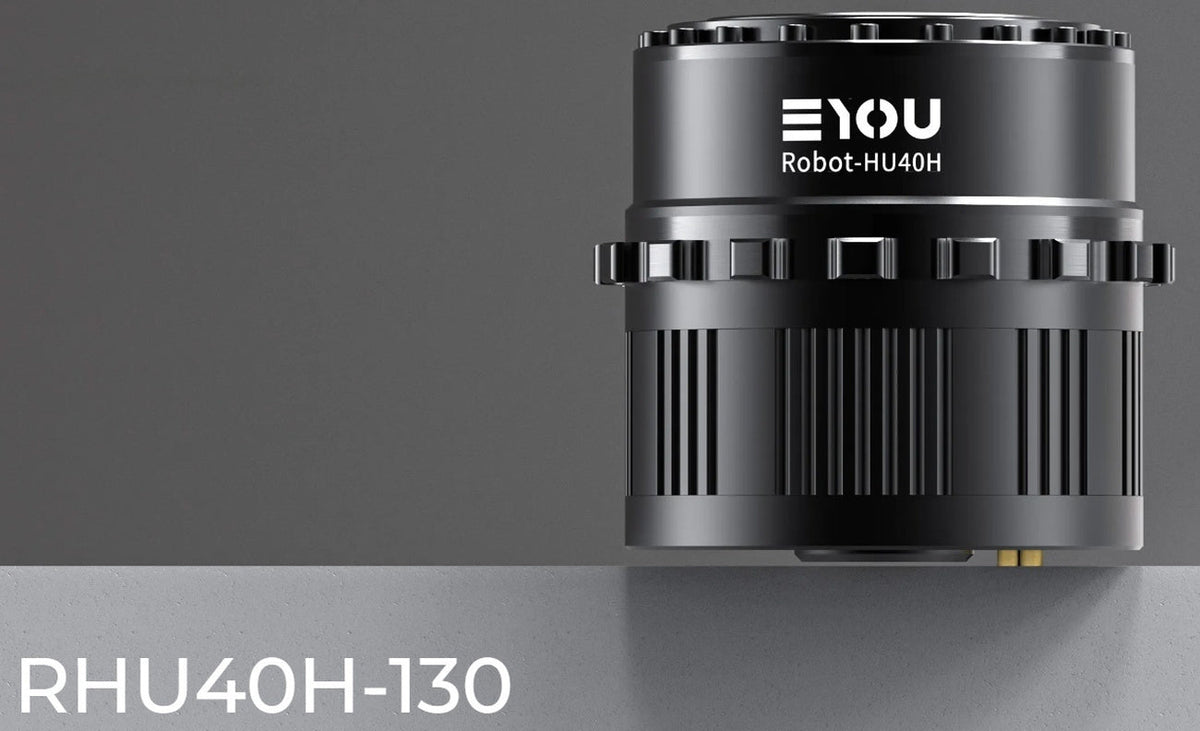

EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 1

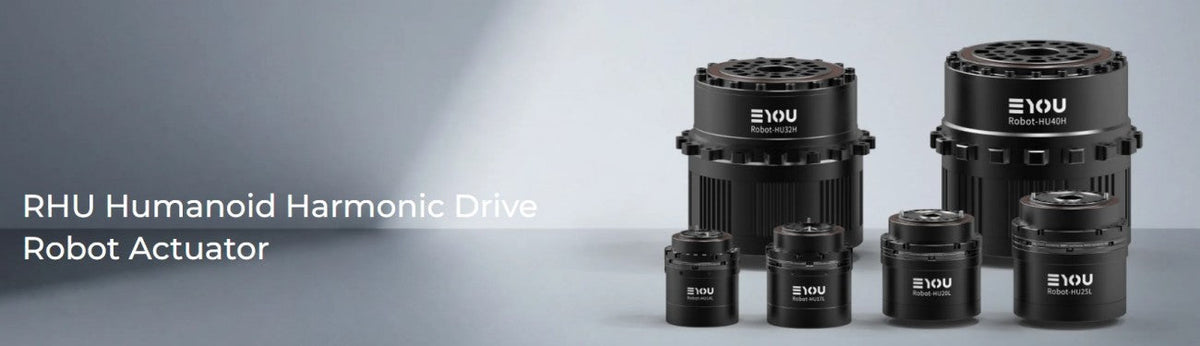

EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 2
EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 3

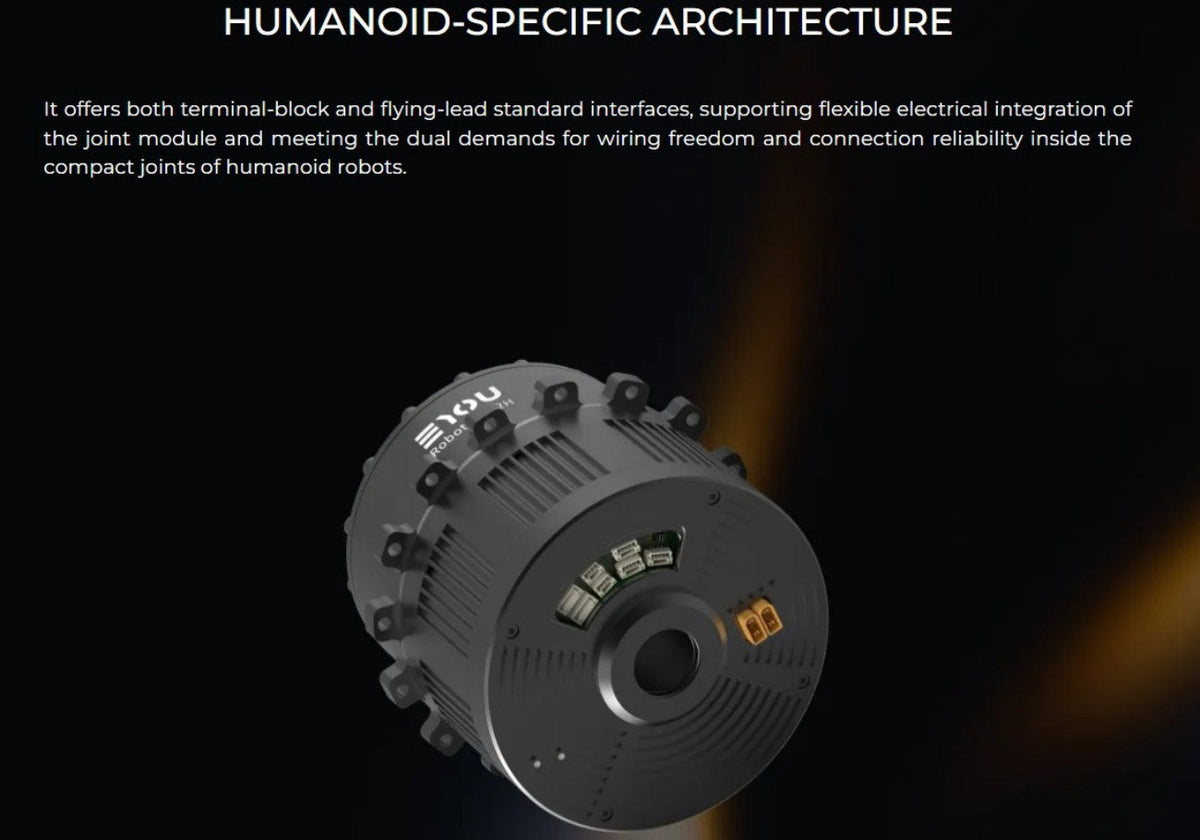

EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 4

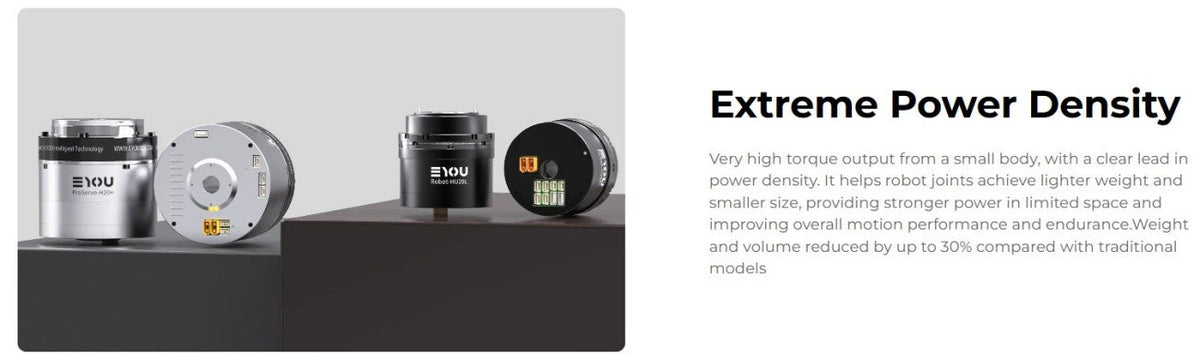

EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 5

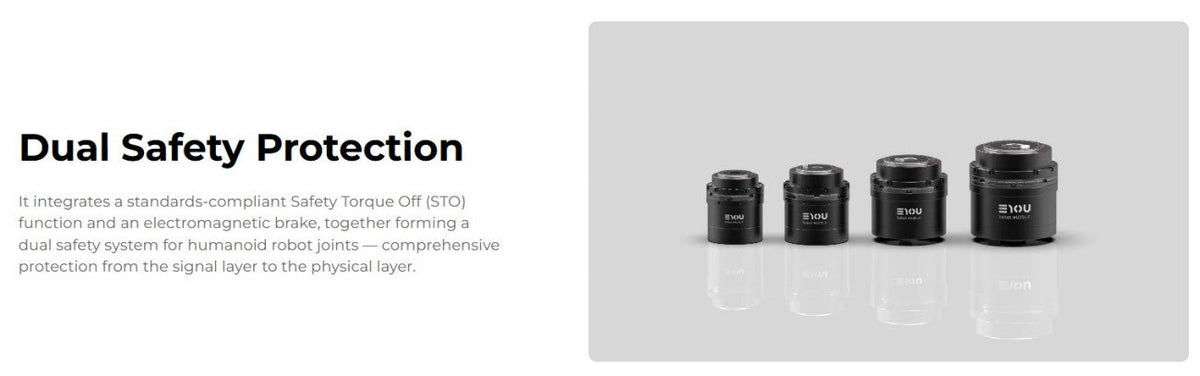

EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 6
EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 7
EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 8
EYOU RHU40H-130 Motor | Robot Servo Motor for Robotics Development detail image 9
▤ PARAMETER ⌃
Module Model
RHU40H-130
Reducer Type
Harmonic
Motor Rated Power (W)
879
Motor Rated Torque (N·m)
3.6
Motor Peak Torque (N·m)
10.8
Reduction Ratio
120 / 160
Joint Rated Power (W) - Life Constraint
433 / 475
Rated Torque at 2000rpm Input (N·m)
248 / 363
Average Load Torque at Output (N·m)
448 / 557
Peak Torque at Output (N·m)
648 / 800
Max Allowable External Torque at Output (Instantaneous) (N·m)
1458 / 1458
Backlash (Arcsec)
≤20 / ≤20
Rated Speed at Output (rpm) - Life Constraint
17 / 12.5
Peak Speed at Output (rpm)
22 / 16.25
Brake (B/N)
B/N
Dimensions (Outer Diameter × Axial) (mm)
Φ130×136
Weight (kg) (B/N)
6.15 / 5.82
Hollow Diameter (mm)
22
Housing Appearance (Process Color)
Anodized (Non-sandblasted)
Reducer Appearance (Process Color)
Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output (N)
2000
Axial (dynamic/static) Allowable Load at Output (N)
2000
Output Bending Moment (N·m)
600
Reducer Torsional Stiffness (N·m/rad)
186000
Reducer Input Inertia (kg·mm²) (B)
961 / 961
Equivalent Joint Output Inertia (kg·mm²) (B)
13838400 / 24601600
Rated Operating Voltage (VDC)
48
Operating Voltage Range (VDC)
24~48
Driver
Built-in
Encoder/Bit (bit)
Dual Absolute / Motor side 17Bit & Reducer side 19Bit
Driver Interface (see terminal model description)
Power (DC in DC out), CAN FD (In,Out), EtherCAT (In,Out), STO (1,2)
Communication Protocol (see communication description)
EtherCAT / CANopen
Control Modes
Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc.
Operating Ambient Temperature (°C)
-20~60
Housing Temperature Rise (°C)
≤60
Noise (dB)
≤60
Life (h)
>10000
