MRDVS

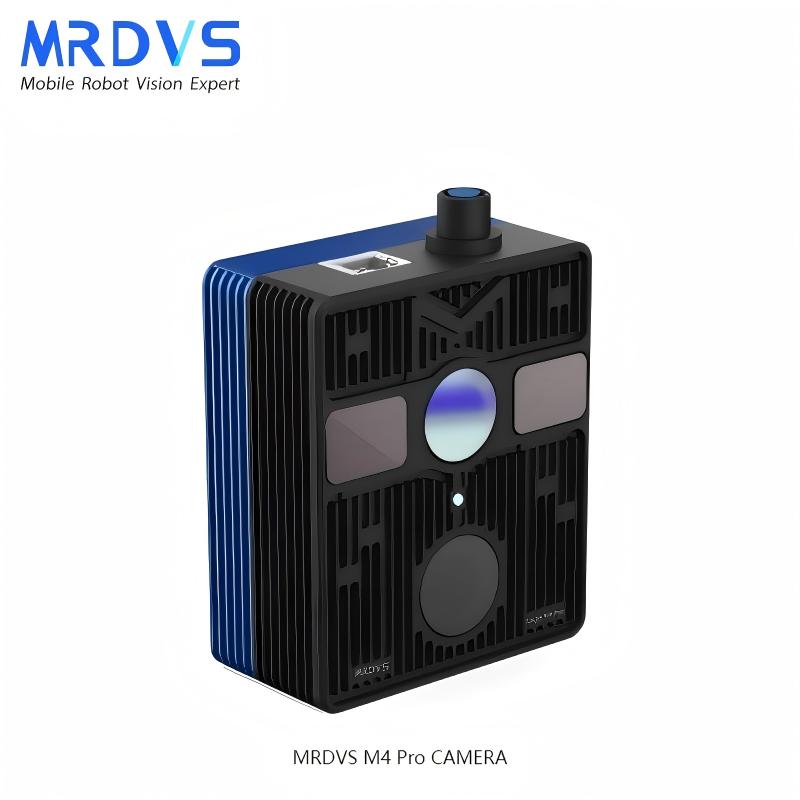

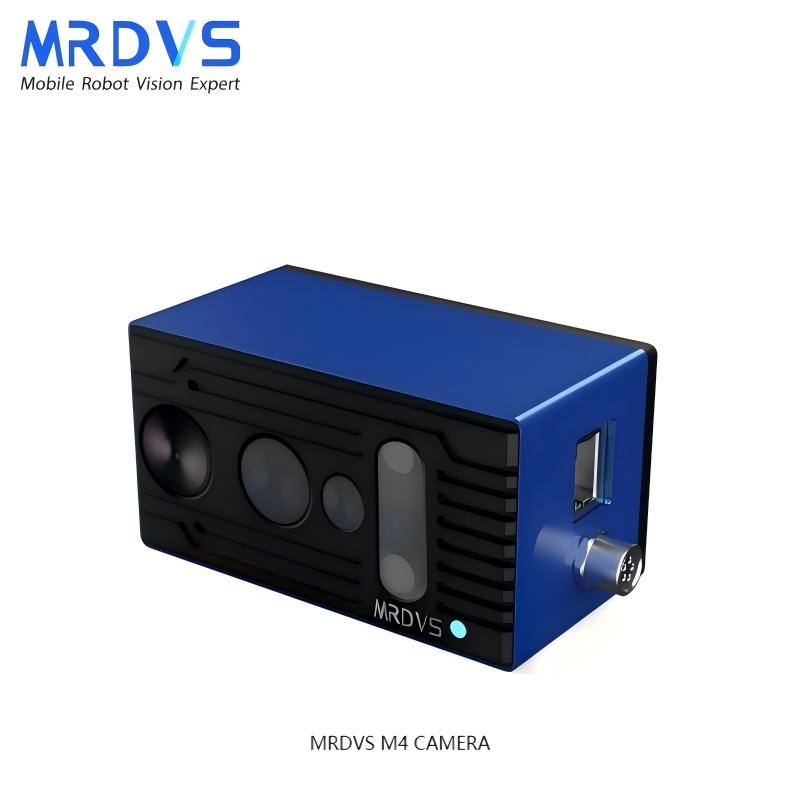

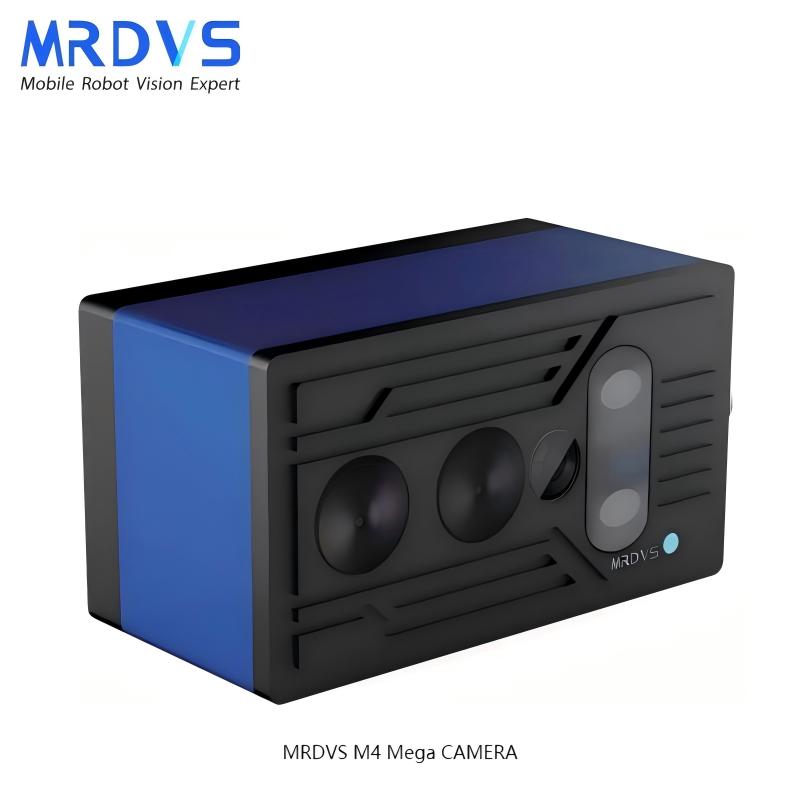

MRDVS M4 Camera

  • MRDVS M4 Camera for robot vision, depth sensing, machine vision, and automation development.
  • Suitable for robotics developers, AI vision teams, inspection systems, and perception hardware integration.
  • Designed for practical camera integration in robot platforms, sensing systems, and vision prototypes.
  • Useful for engineering teams building 3D sensing, robot perception, and applied automation workflows.
$800
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

MRDVS M4 Camera CAD model for mechanical integration.stp ▶ MRDVS M4 Pro Camera CAD model for mechanical integration.stp ▶ MRDVS M4 Mega Camera CAD model for mechanical integration.stp ▶ MRDVS M4 Camera user manual for setup and integration.pdf ▶ MRDVS M4 Pro Camera user manual for setup and integration.pdf ▶ MRDVS M4 Mega Camera user manual for setup and integration.pdf ▶ MRDVS M4 Camera dimension drawing for installation reference.pdf ▶ MRDVS M4 Pro Camera dimension drawing for installation reference.pdf ▶ MRDVS M4 Mega Camera dimension drawing for installation reference.pdf ▶
▤ Technical Specifications ⌃
Parameter Value Value Value
Model M4 Mega M4 M4 Pro
Chipset Sony Chipset Sony Chipset Sony Chipset
Ranging Method Time of Flight (ToF) Time of Flight (ToF) Time of Flight (ToF)
Operating Wavelength 940nm 940nm 940nm
TOF Resolution & Frame Rate 640×480 (Typical 15fps, Max 25fps) 640×480 (Typical 12fps) 640×480 (Typical 12fps)
TOF Field of View 81°×61° 81°×61° 81°×61°
RGB Resolution & Frame Rate 1280×960 (Typical 15fps, Max 25fps) 1920×1080 (Typical 12fps) 1920×1080 (Typical 12fps)
RGB Field of View 86°×55° 88°×56° 88°×56°
Measurement Distance 0.2~5m (at 90% reflectivity); 0.2~2.5m (at 10% reflectivity) 0.3~5m (at 90% reflectivity); 0.3~2.5m (at 10% reflectivity) 0.3~5m (at 90% reflectivity) 0.3~2.5m (at 10% reflectivity)
Measurement Accuracy ±3mm + 0.25%×depth ±4mm + 0.25%×depth ±4mm + 0.25%×depth
Communication Interface Ethernet / CAN / IO Ethernet / CAN Ethernet / RS485
Power Interface Industrial Connector, 5Pin Industrial Connector, 5Pin Industrial Connector, 5PIN
Power Supply 24V DC / 2A 24V DC / 2A 24V DC / 2A
Average Power Consumption 6.8W 6.2W 8.7W
Dimensions 92mm×47mm×51mm 88mm×47mm×47mm 95mm×80mm×41mm
Weight 449g 333g 428g
Power IP Rating IP67 IP42 IP50
Operating Temperature -20℃~60℃ -20℃~60℃ -20℃~60℃
Storage Temperature -40℃~85℃ -40℃~85℃ -40℃~85℃
Humidity 10%~90%RH, non-condensing 10%~90%RH, non-condensing 10%~90%RH, non-condensing
Light Interference Resistance Up to 100Klux sunlight adaptation Up to 100Klux sunlight adaptation Up to 100Klux sunlight adaptation
Shadow-Light Resistance Variation < 1cm at 100Klux shadow-light interface Variation < 1cm at 100Klux shadow-light interface Variation < 1cm at 100Klux shadow-light interface
Software Environment C / C++ / ROS SDK C / C++ / ROS SDK C / C++ / ROS SDK
Supported Operating Systems Windows 7/8/10/11, Linux, Arm Linux/ROS Windows 7/8/10/11, Linux, Arm Linux/ROS Windows 7/8/10/11, Linux, Arm Linux/ROS
Heat Dissipation Passive Cooling Passive Cooling Passive Cooling
