Fashion Star

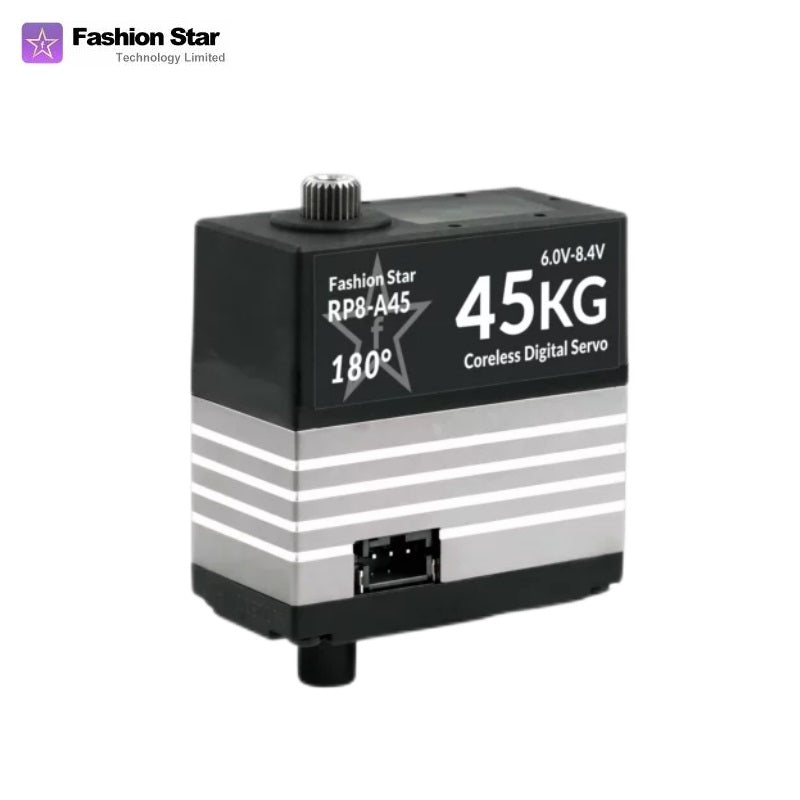

Fashion Star RP8-A45 Digital Servo

  • Fashion Star servo for robot joints, compact mechanisms, and motion-control development.
  • Suitable for robotics developers, education labs, automation prototypes, and embedded hardware projects.
  • Designed for practical integration in robot actuators, pan-tilt units, grippers, and test platforms.
  • Supports servo selection for robotics builds where compact control and reliable motion matter.
$55
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Fashion Star RP8-A45 Digital Servo CAD model for mechanical integration.stp ▶ Fashion Star RP8-A45 Digital Servo dimension drawing for installation reference.pdf ▶ Fashion Star RP8-A45 Digital Servo CAD model for mechanical integration.stp ▶ Fashion Star RP8-A45 Digital Servo dimension drawing for installation reference.pdf ▶

Fashion Star RP8-A45 Digital Servo

The Fashion Star RP8-A45 Digital Servo is a Fashion Star servo for robotics development, compact automation hardware, education labs, and motion-control prototypes.

Features

  • **Servo integration:** Suitable for robot joints, compact mechanisms, grippers, and pan-tilt hardware.
  • **Robotics development:** Useful for engineering teams, makers, labs, and automation projects.
  • **Motion-control component:** Supports practical servo selection across Fashion Star configurations.
  • **Component-focused design:** Built for compact robot hardware and embedded motion applications.

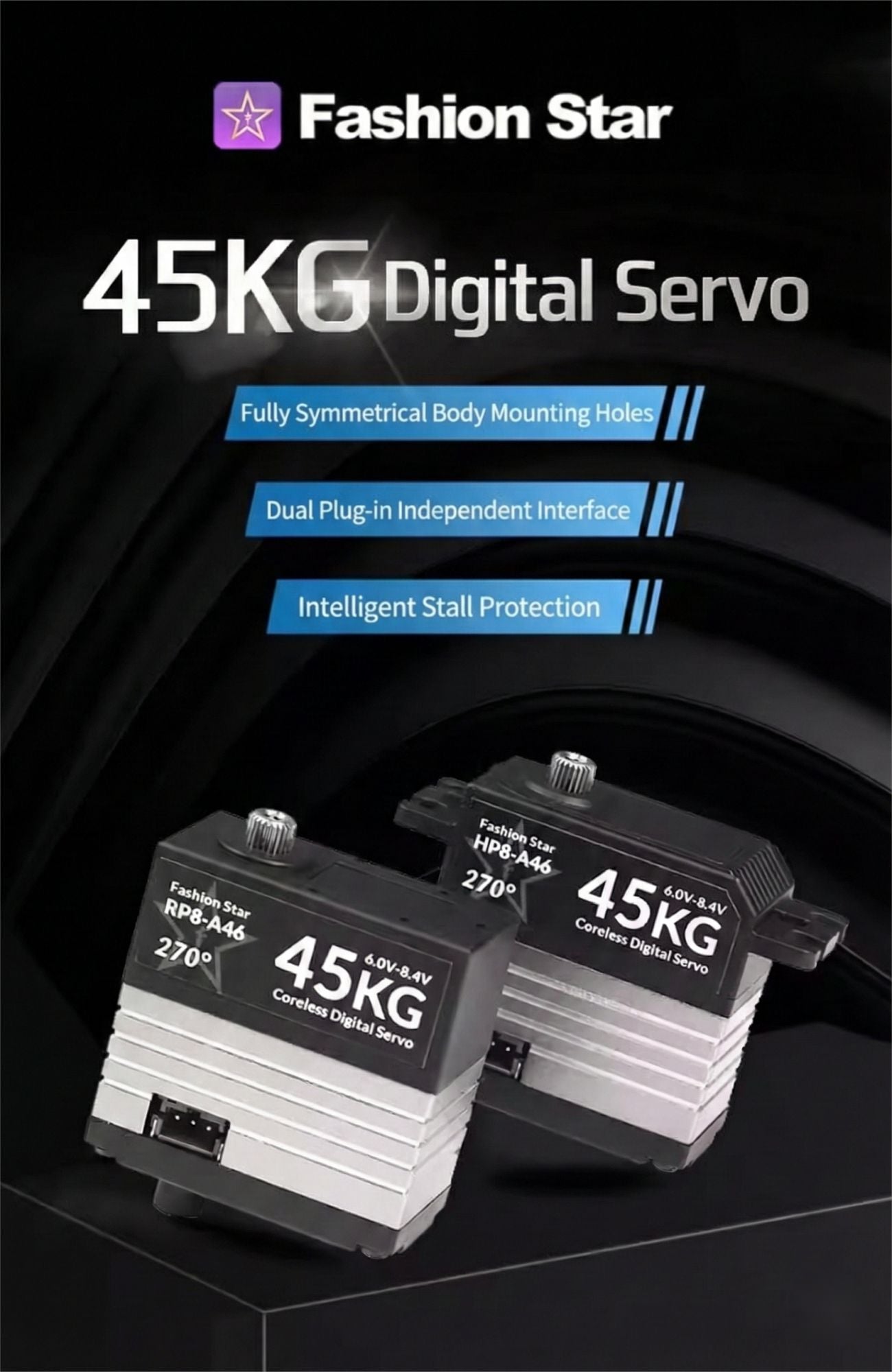

Fashion Star RP8-A45 Digital Servo detail image 1
Fashion Star RP8-A45 Digital Servo detail image 2

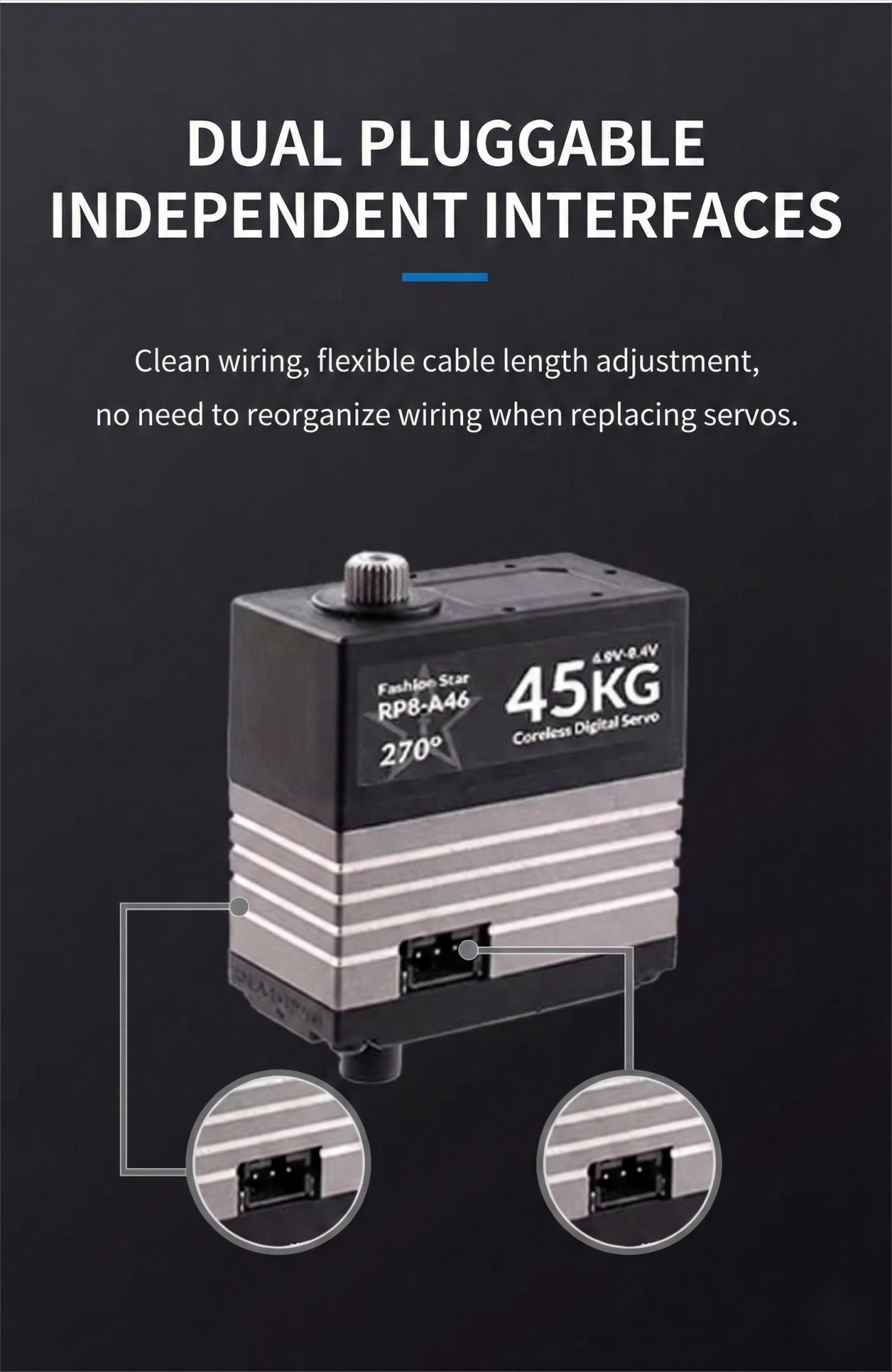

Fashion Star RP8-A45 Digital Servo detail image 3

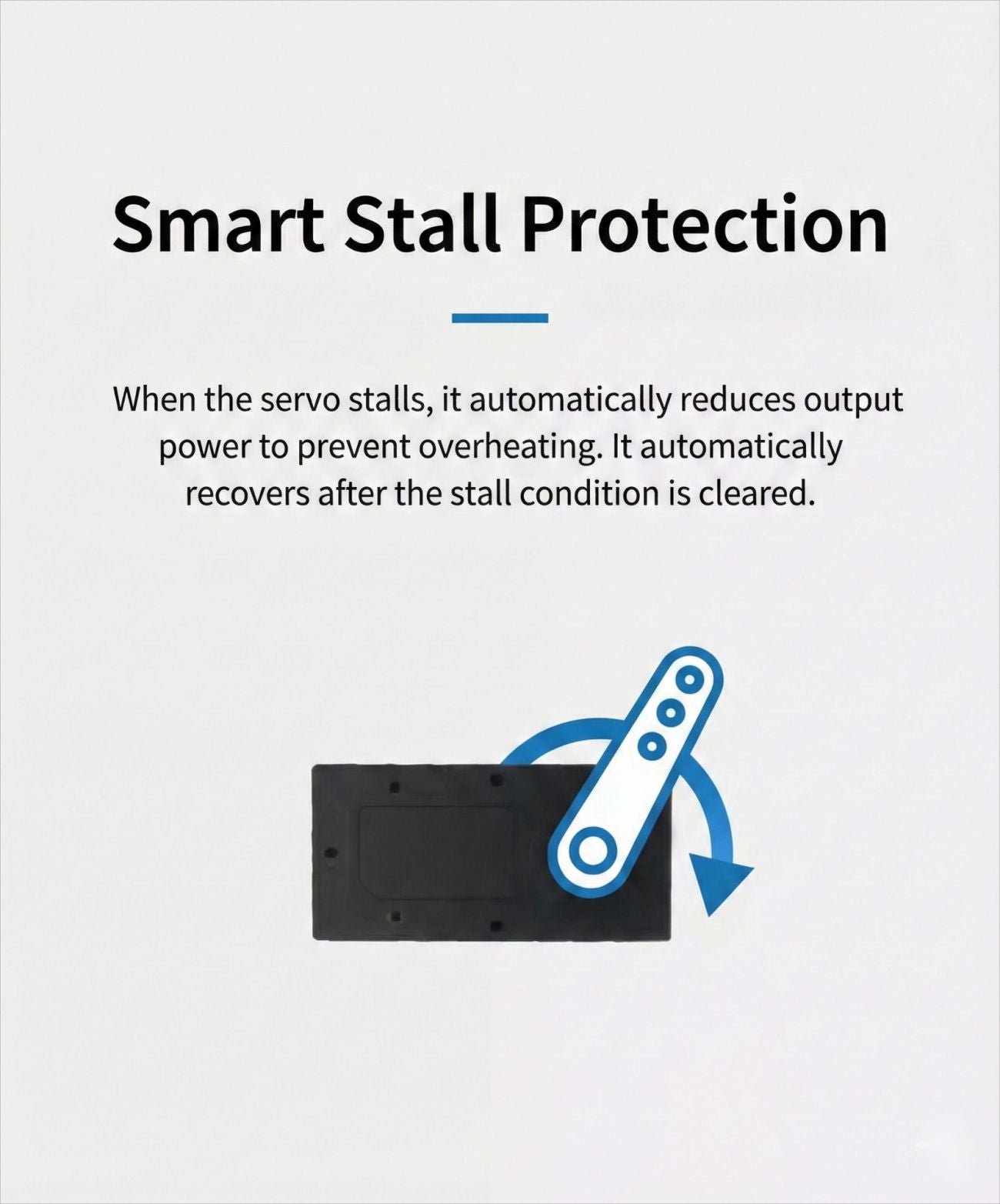

Fashion Star RP8-A45 Digital Servo detail image 4

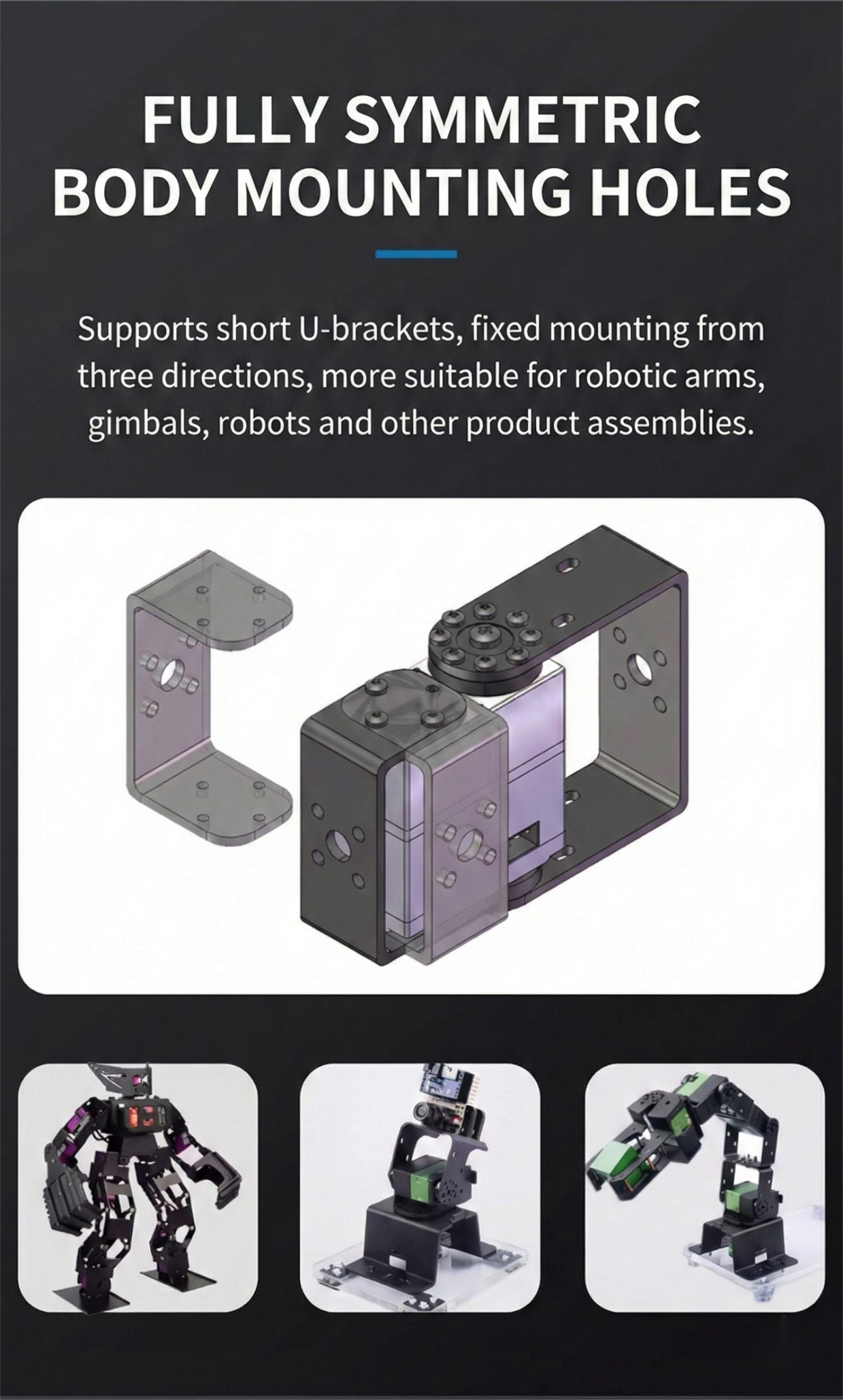

Fashion Star RP8-A45 Digital Servo detail image 5

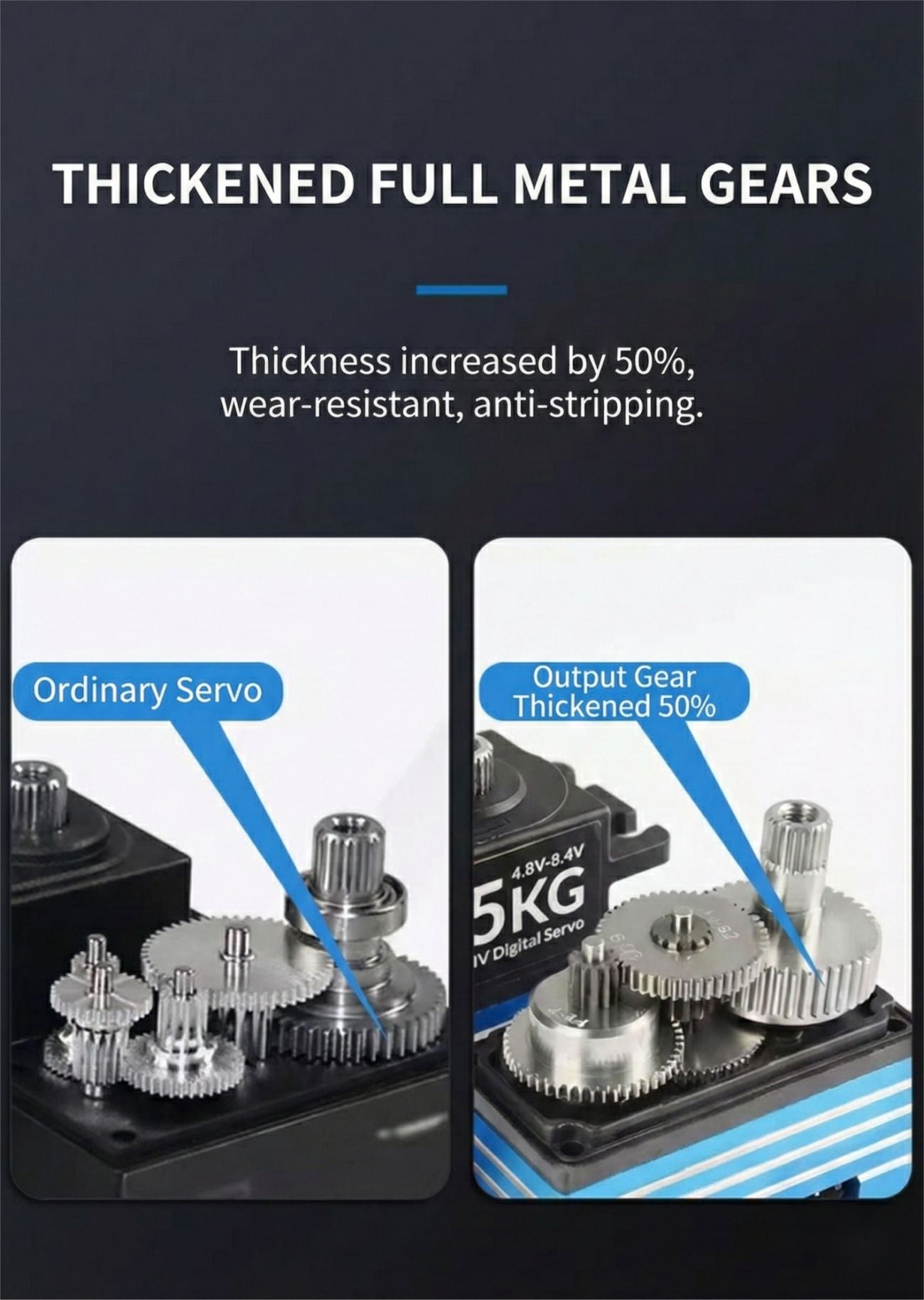

Fashion Star RP8-A45 Digital Servo detail image 6

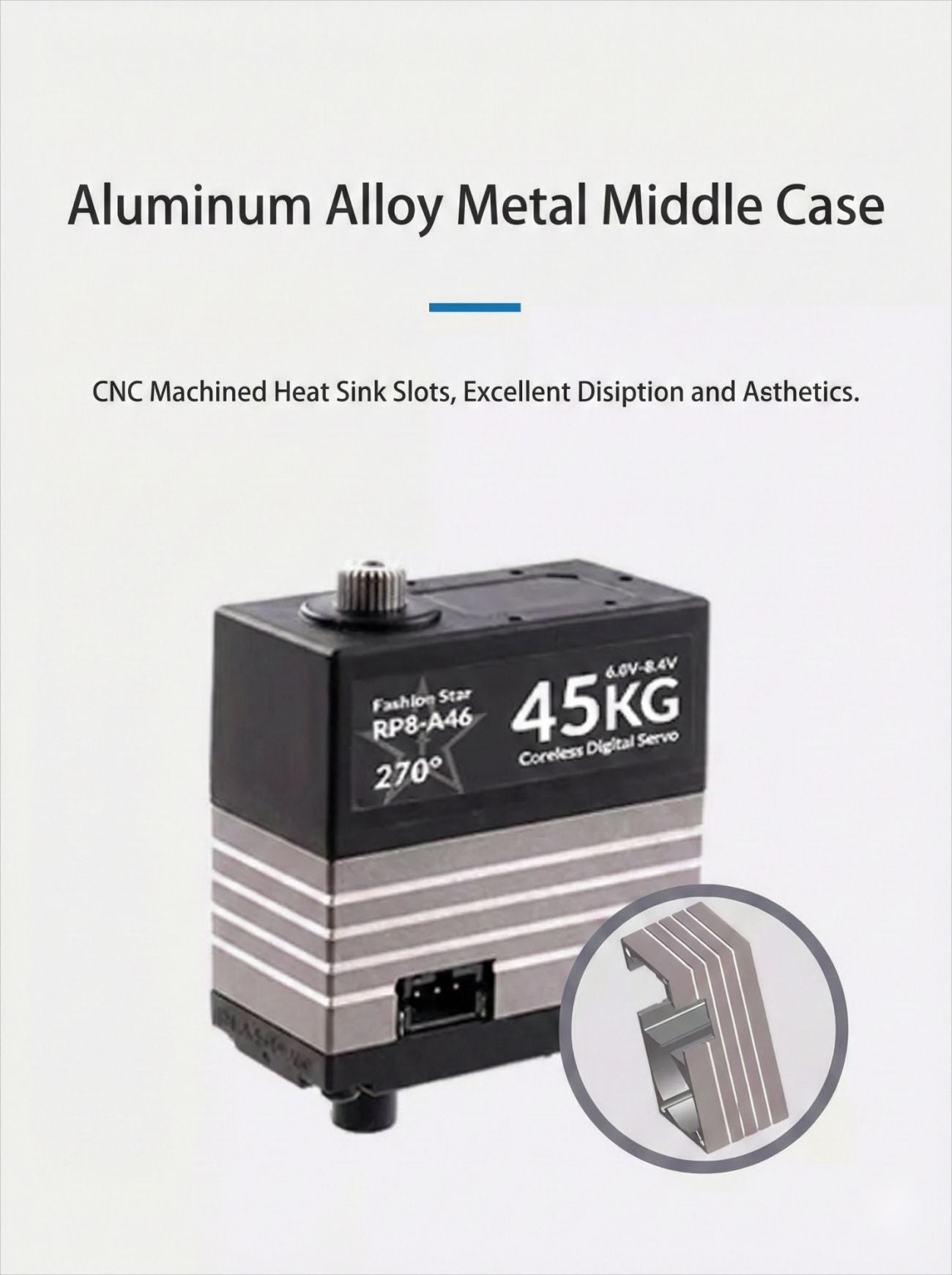

Fashion Star RP8-A45 Digital Servo detail image 7

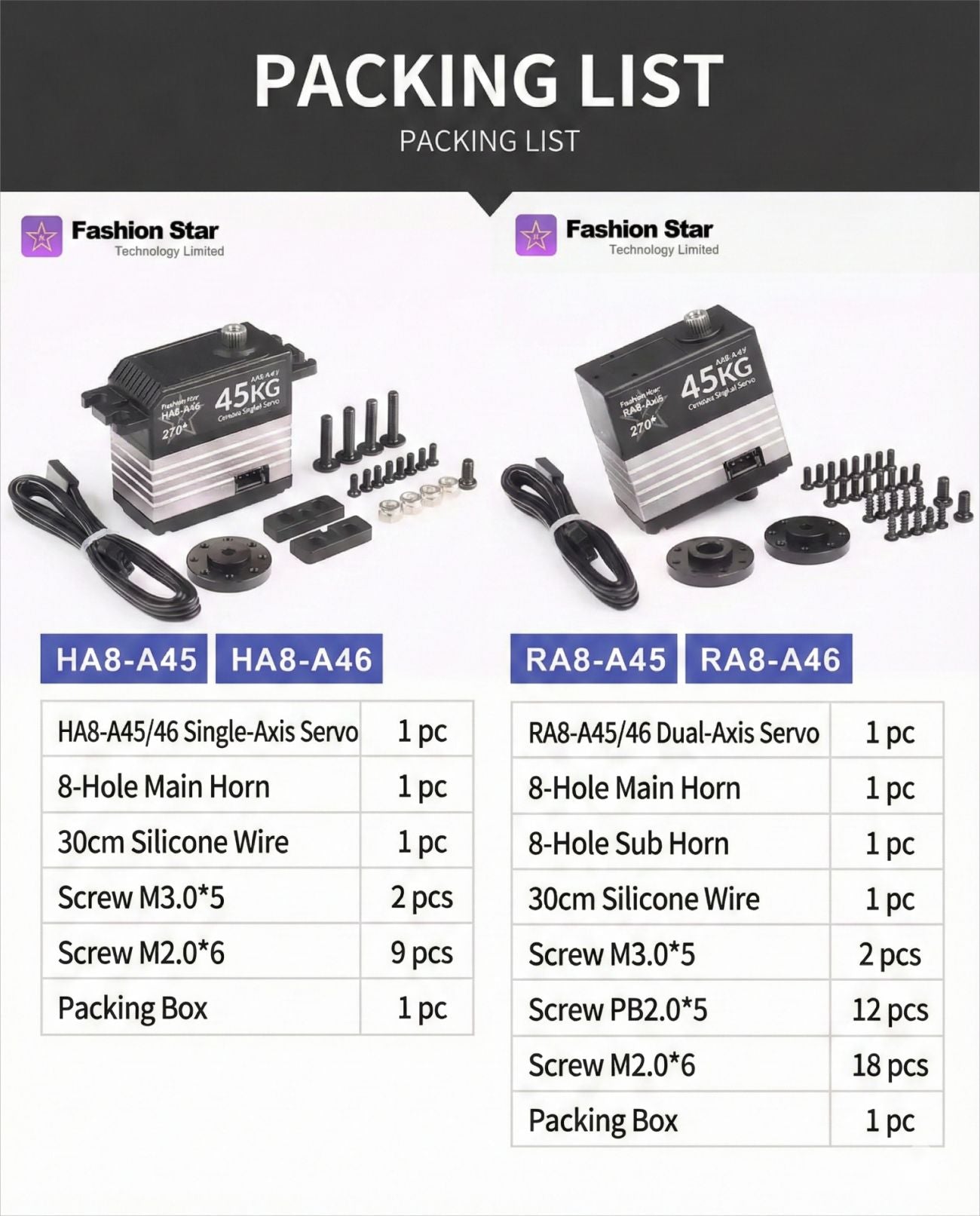

Fashion Star RP8-A45 Digital Servo detail image 8
▤ Technical Specifications ⌃

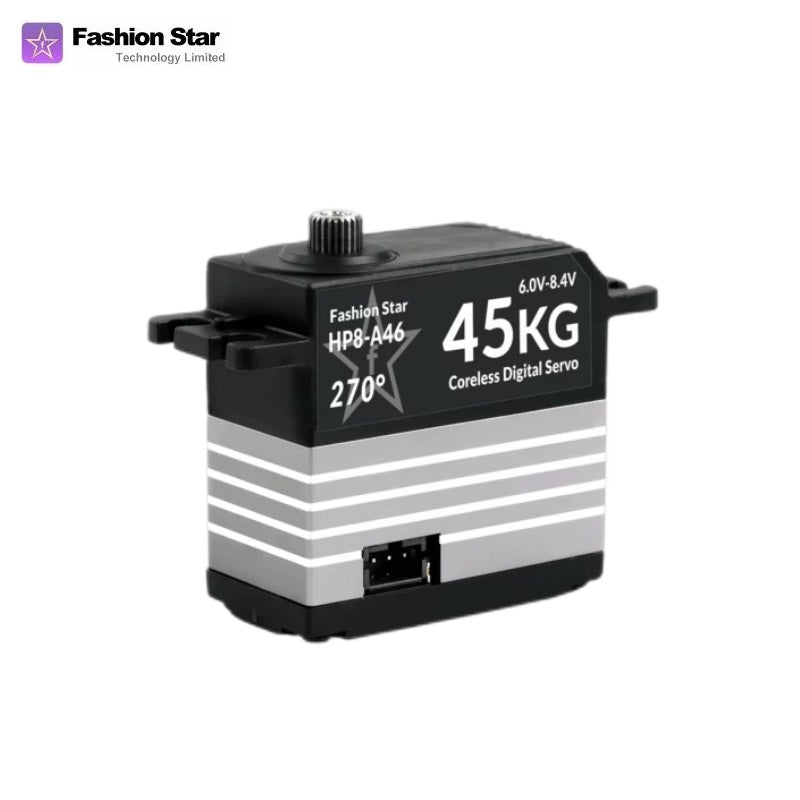

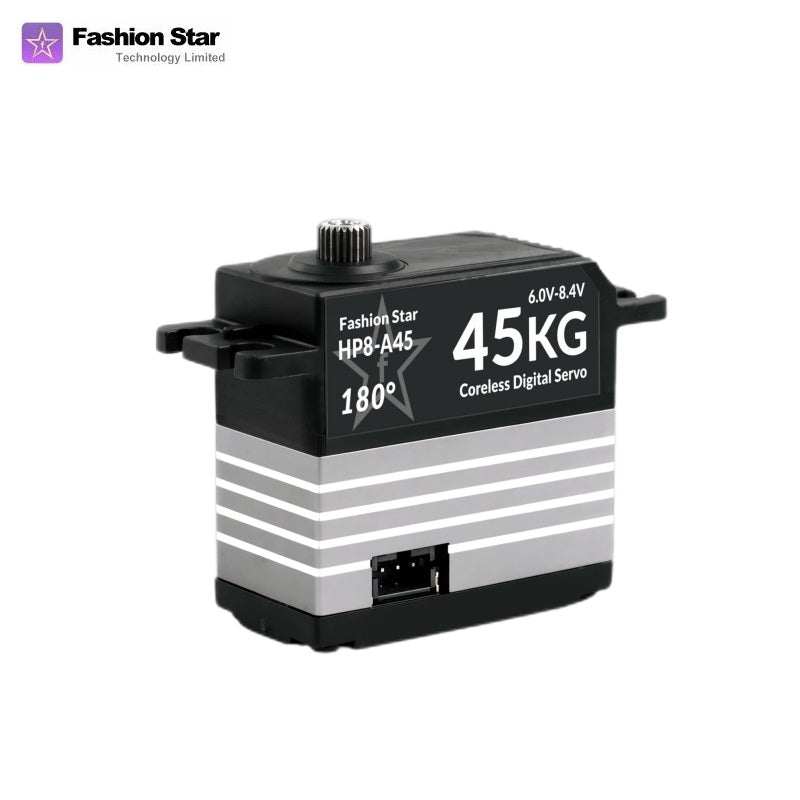

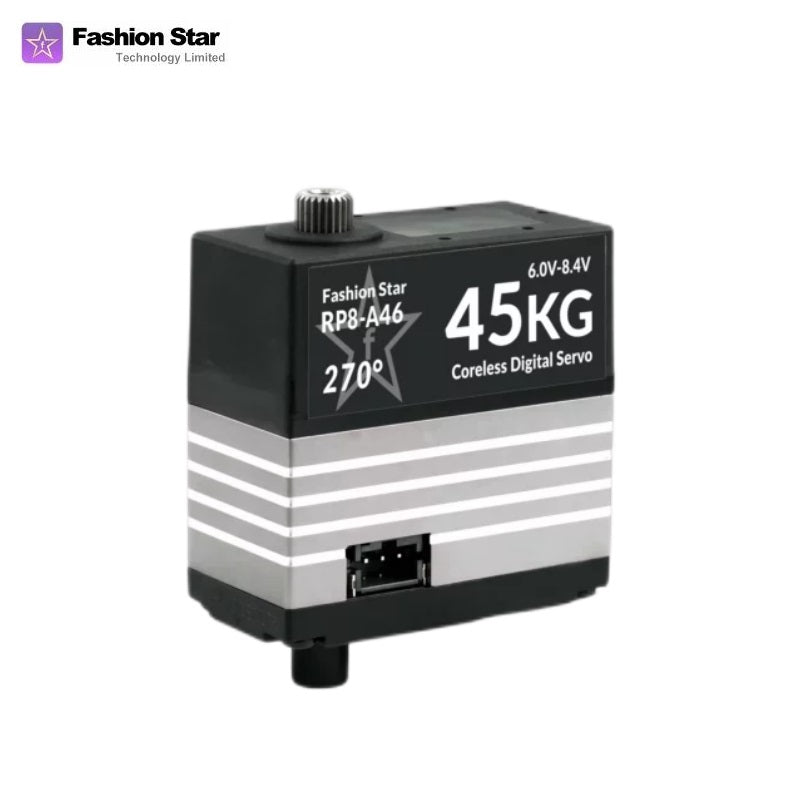

Parameter HP8-A45 / RP8-A45 HP8-A46 / RP8-A46
Operating Voltage 4.8-8.4V 4.8-8.4V
Motor Type Iron Core Iron Core
Position Sensor Potentiometer Potentiometer
Effective Angle 180° 270°
Stall Torque 45Kg-cm@7.4V 45Kg-cm@7.4V
No-load Speed 0.098sec/60°@7.4V 0.098sec/60°@7.4V
Stall Current 6A 6A
No-load Current 300mA 300mA
Standby Current 50mA 50mA
Drive Method PWM PWM
Pulse Width Range 500-2500μs 500-2500μs
Dead Band 2μs 2μs
Frequency Range 50-333Hz 50-333Hz
Gear Ratio 273:1 273:1
Output Gear Spline Stainless Steel/Φ6mm/25T Stainless Steel/Φ6mm/25T
Appearance Single/Dual Shaft Single/Dual Shaft
Interface Type PH2.0×2 PH2.0×2
Case Material Aluminum Middle / Plastic Top&Bottom Aluminum Middle / Plastic Top&Bottom
Dimensions 40×40×20mm 40×40×20mm
Weight 73g / 72g 73g / 72g
