Vizum

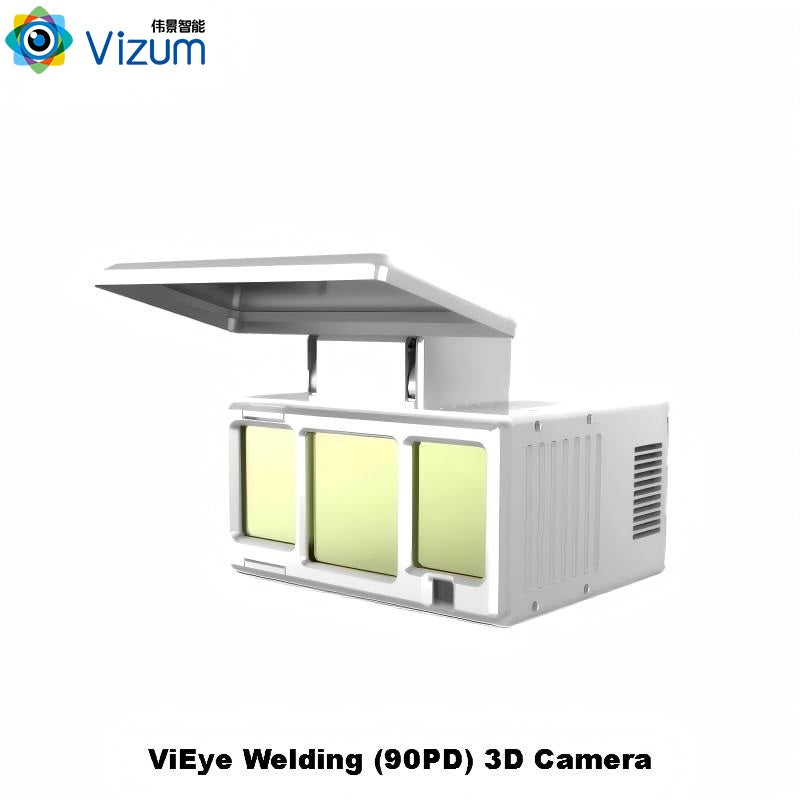

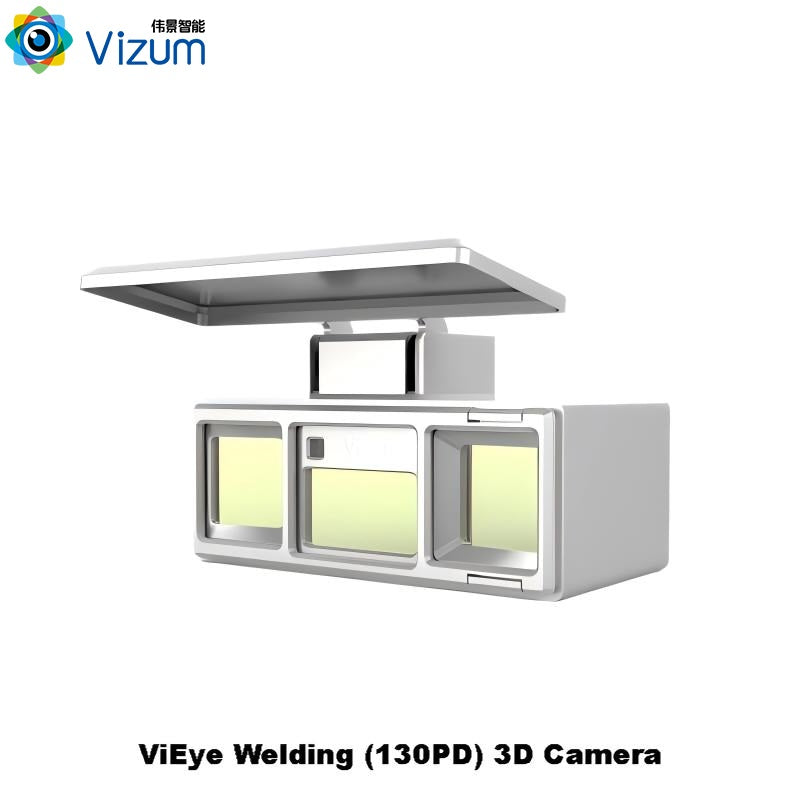

Vizum ViEye Welding 3D Camera

  • Vizum ViEye Welding 3D Camera for robot vision, 3D sensing, machine vision, and automation development.
  • Suitable for robotics developers, AI vision teams, inspection systems, and perception hardware integration.
  • Designed for practical 3D camera integration in robot platforms, sensing systems, and vision prototypes.
  • Useful for engineering teams building depth perception, 3D inspection, and applied automation workflows.
$3,000
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

Vizum ViEye Welding 90PD 3D Camera datasheet with technical specifications.pdf ▶ Vizum ViEye Welding 130PD 3D Camera datasheet with technical specifications.pdf ▶ Vizum ViEye Quick Guide for setup and integration.pdf ▶

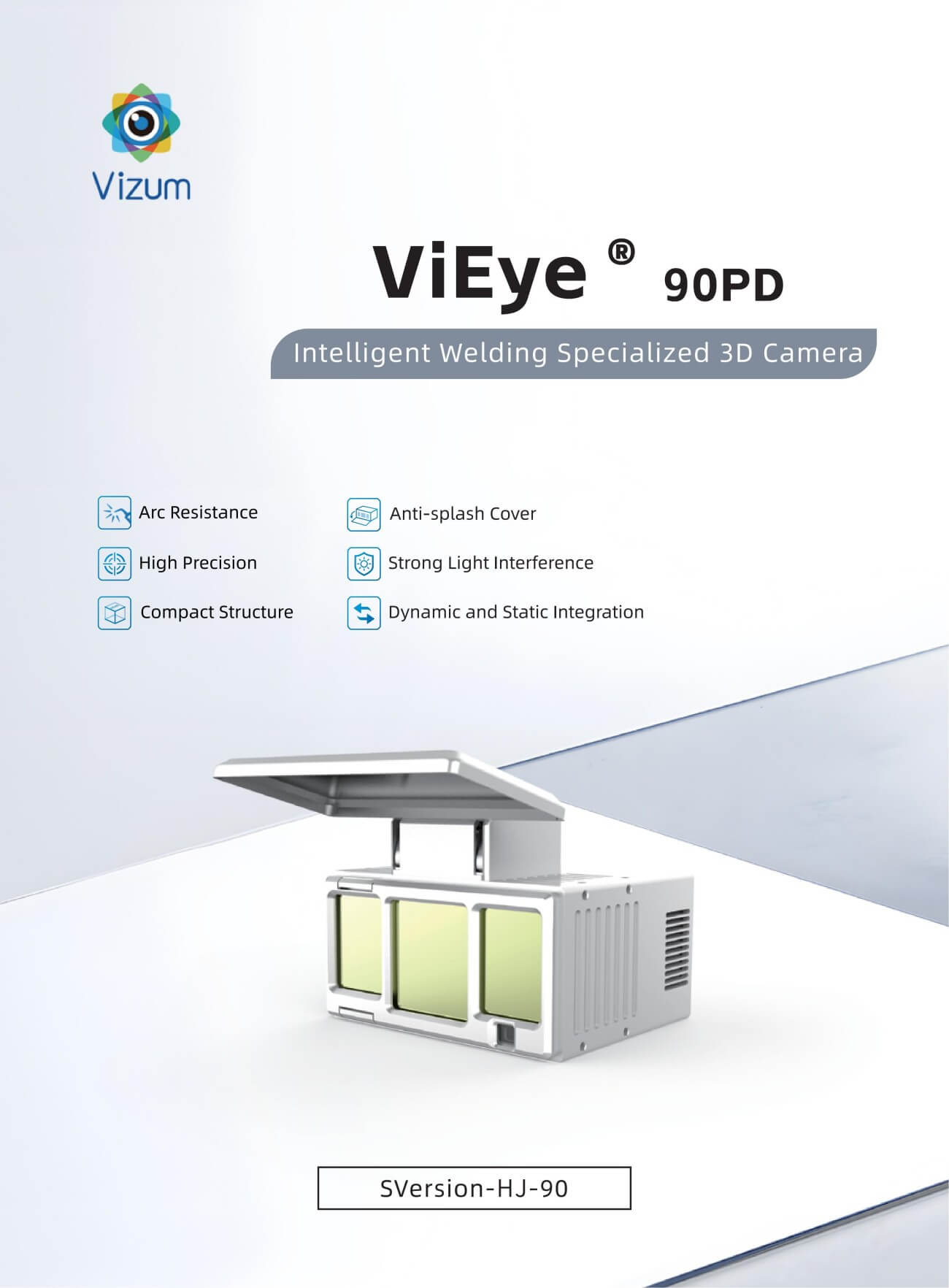

Vizum ViEye Welding 3D Camera detail image 1

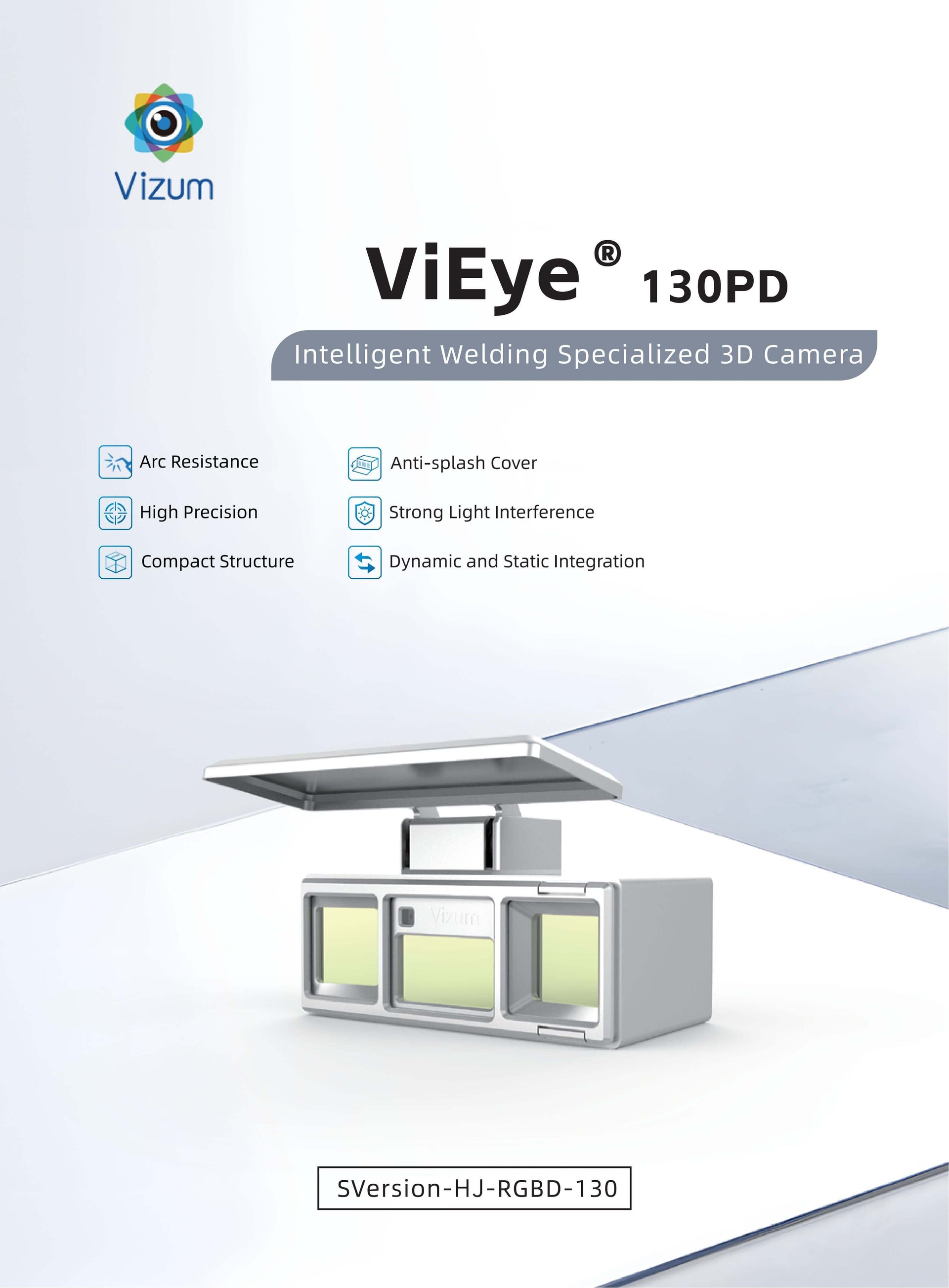

Vizum ViEye Welding 3D Camera detail image 2

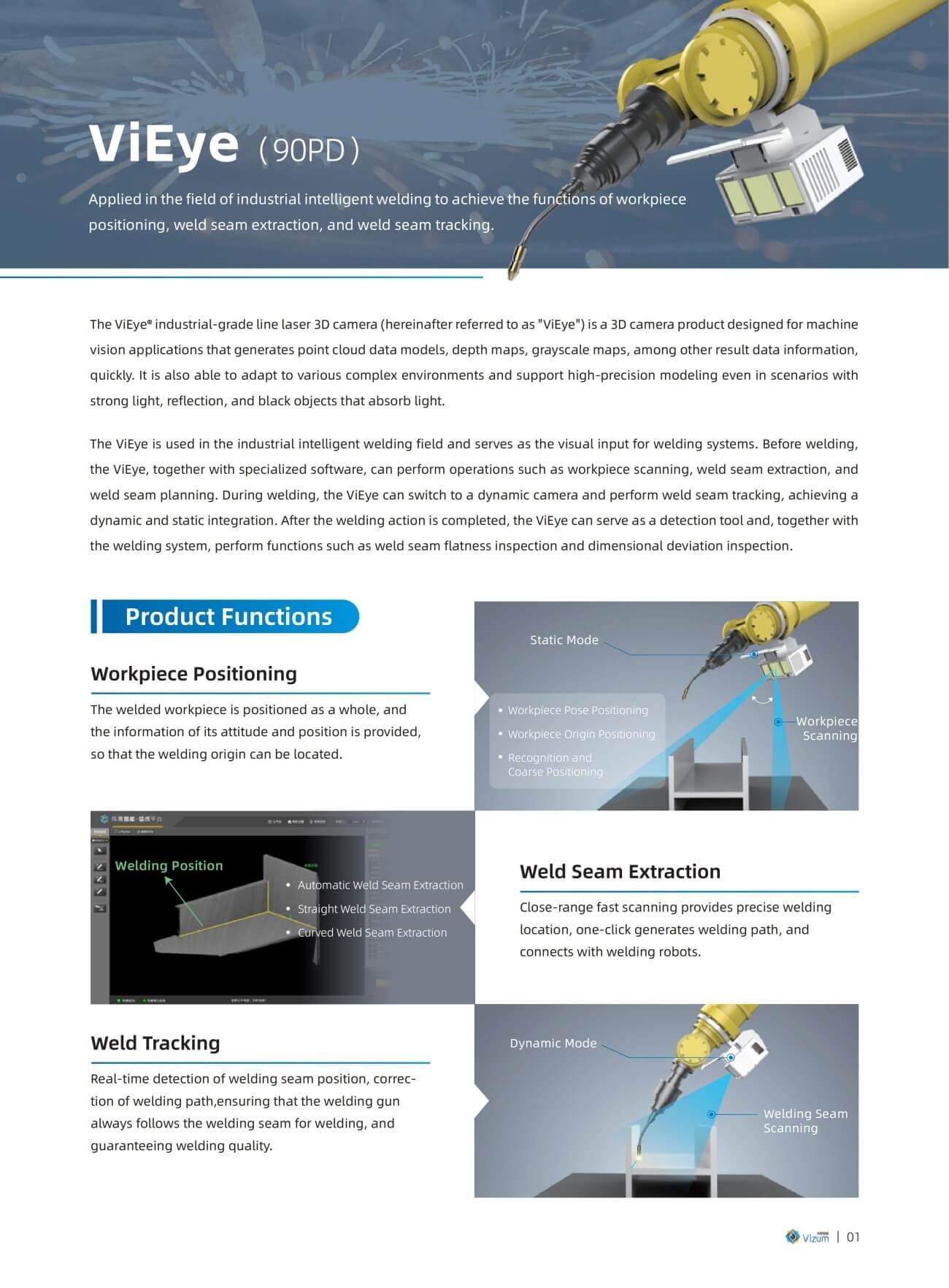

Vizum ViEye Welding 3D Camera detail image 3

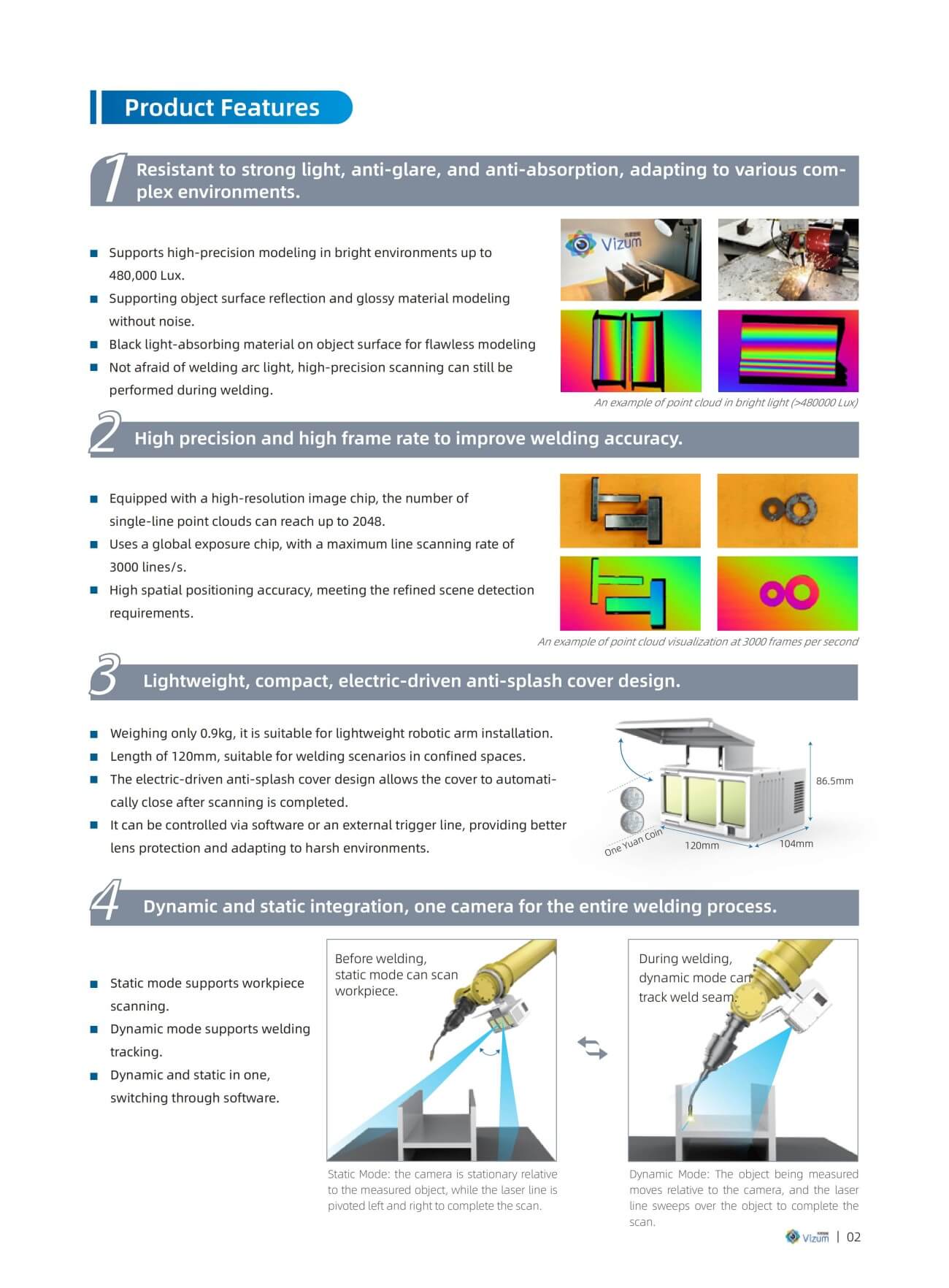

Vizum ViEye Welding 3D Camera detail image 4

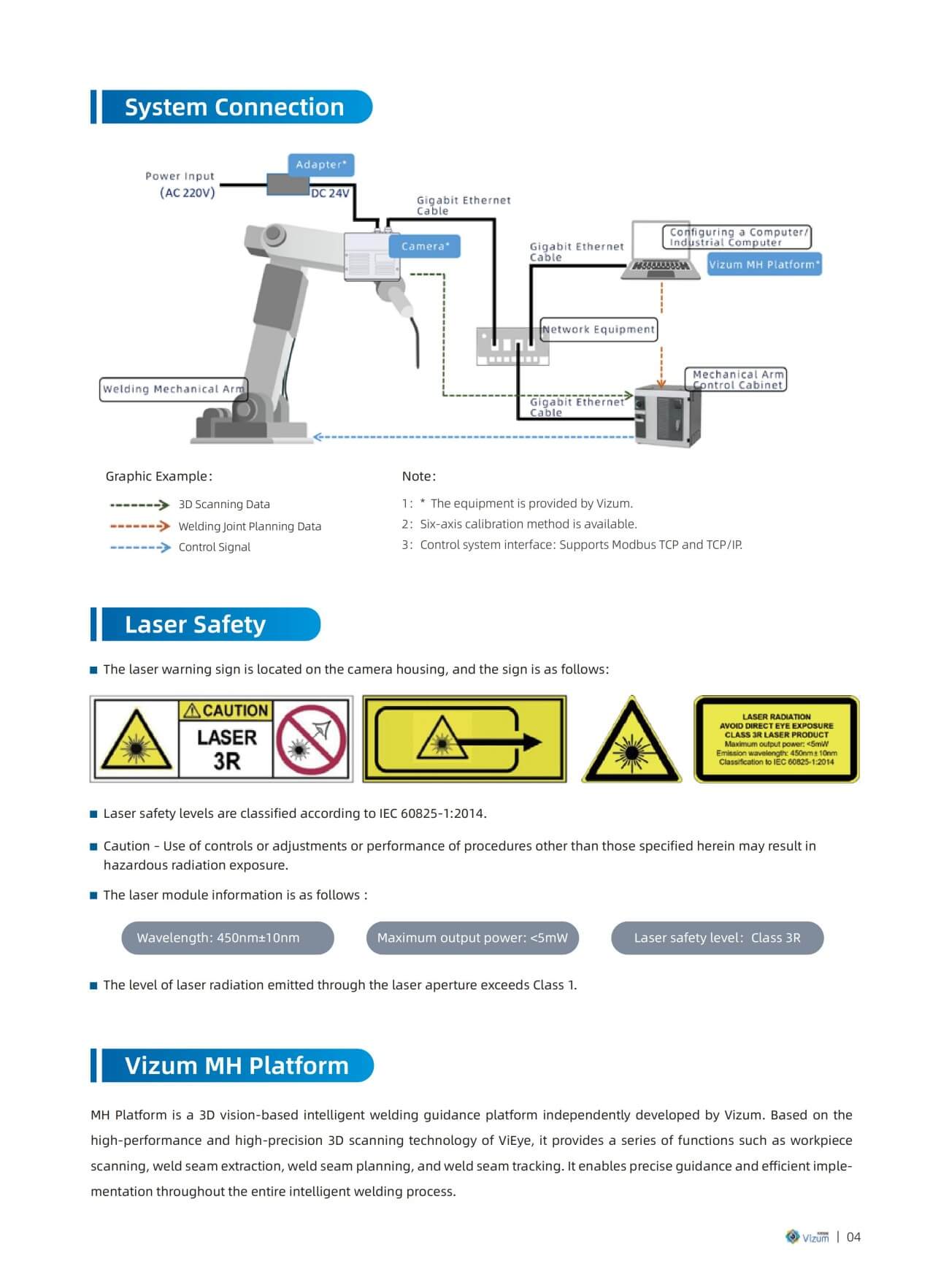

Vizum ViEye Welding 3D Camera detail image 5

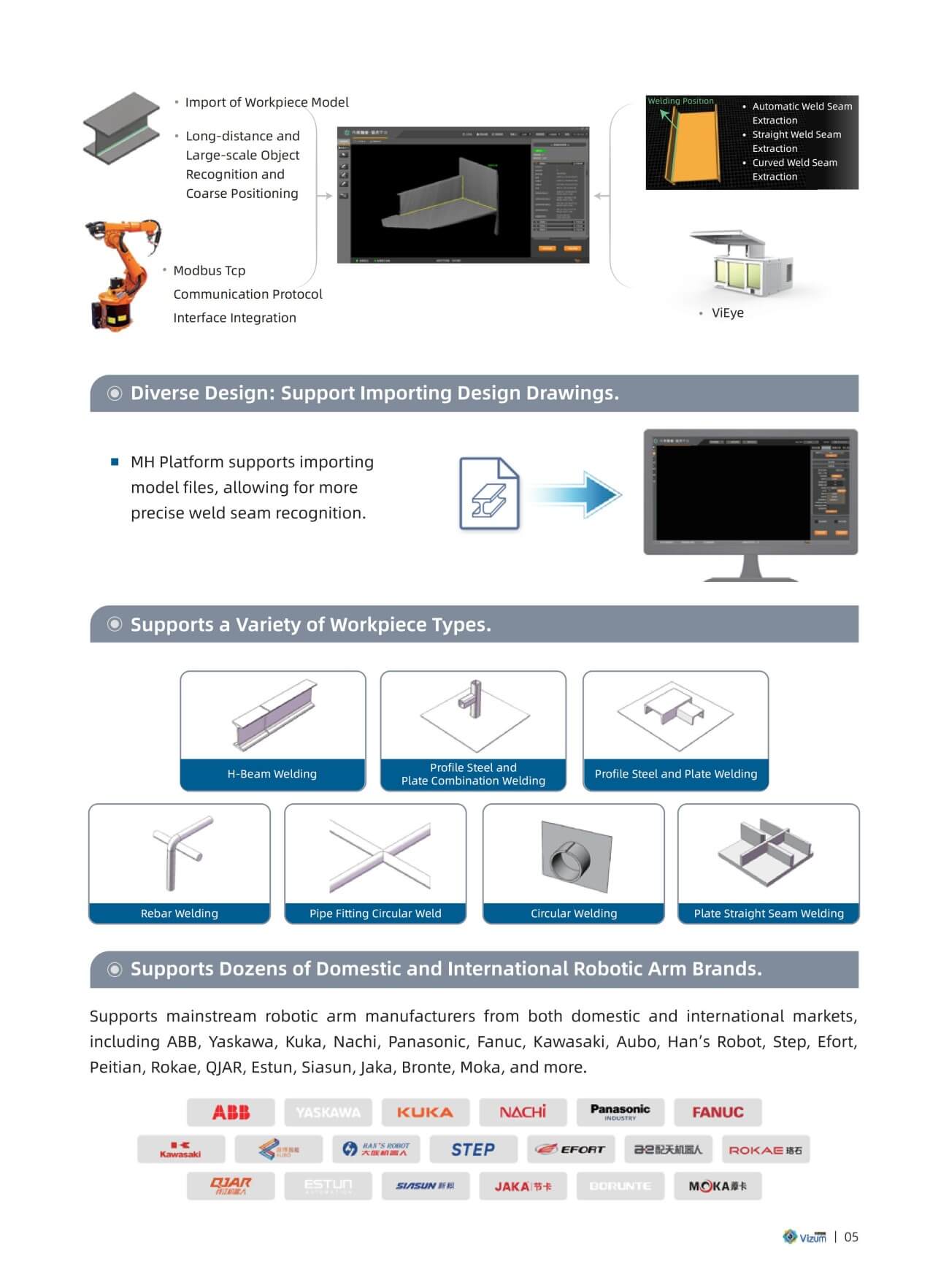

Vizum ViEye Welding 3D Camera detail image 6
▤ Technical Specifications ⌃
Parameter Value Value
Model SVersion-HJ-90 SVersion-HJ-RGBD-130
Camera Size 120×104×86.5mm 160×89×87mm
Baseline Length 90mm 130mm
Camera Weight 0.9kg 1.165kg
Camera Funcation Weld Seam Extraction + Weld Seam Tracking Weld Seam Extraction + Weld Seam Tracking
Work Distance Range 300~1200mm 300~1200mm
Work Distance 300mm/500mm/800mm/1200mm 300mm/500mm/800mm/1200mm
Field of View（mm） 256×436/383×725/599×1161/854×1688 143×433/326×720/598×1151/964×1726
Z-axis Single Point Repeatability*¹ 0.03mm/0.03mm/0.06mm/0.19mm 0.03mm/0.03mm/0.06mm/0.15mm
VDI/VDE Measuring Accuracy *² 0.29mm/0.40mm/1.08mm/2.51mm 0.29mm/0.40mm/1.08mm/2.36mm
Typical Full Frame Capture Time 0.2~0.8s（Full-frame Frame Rate Max：6FPS） 0.2~0.8s（Full-frame Frame Rate Max：6FPS）
Maximum Line Scan Rate 3000Line/s 3000Line/s
Output Data Format Point Cloud Data（Pcd、Las、Txt） Point Cloud Data（Pcd、Las、Txt）
Front-end Processing Output the results directly, without the need for additional hardware platforms for calculation Output the results directly, without the need for additional hardware platforms for calculation
Intelligent Development Platform Vizum MH®Platform Vizum MH®Platform
Resistance to Environmental Light Intensity 480000Lux 480000Lux
Working Temperature -20℃~70℃ -20℃~70℃
Communication Interface Gigabit Ethernet Gigabit Ethernet
Light Source Blue laser (450nm) and infrared laser (808, 850nm) are optional Blue laser (450nm) and infrared laser (808, 850nm) are optional
Power Input 24V DC，1.1A 24V DC，1.1A
Protection Rating IP65 IP65
