OCServo

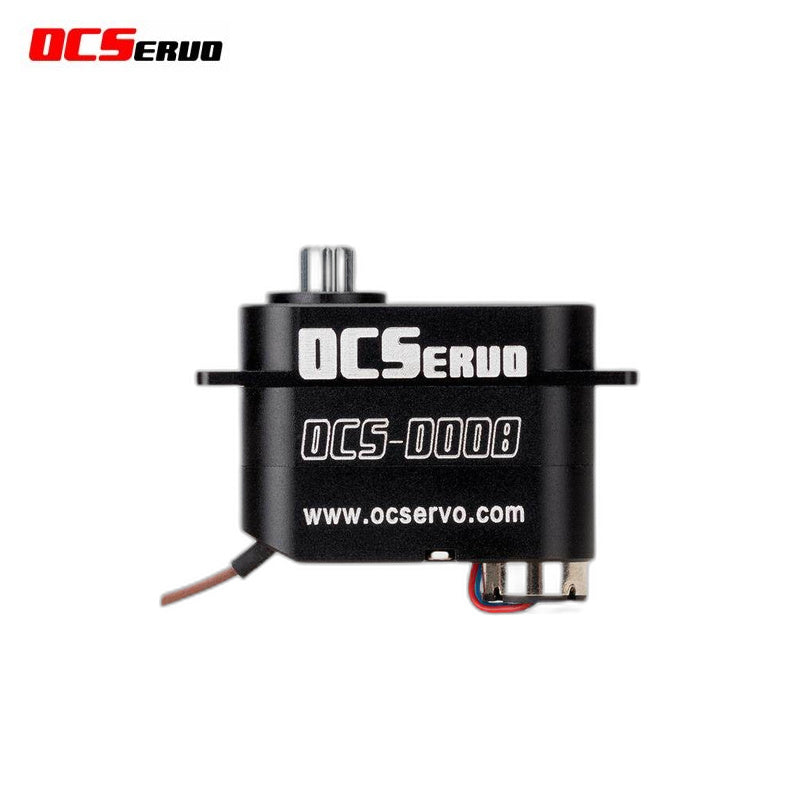

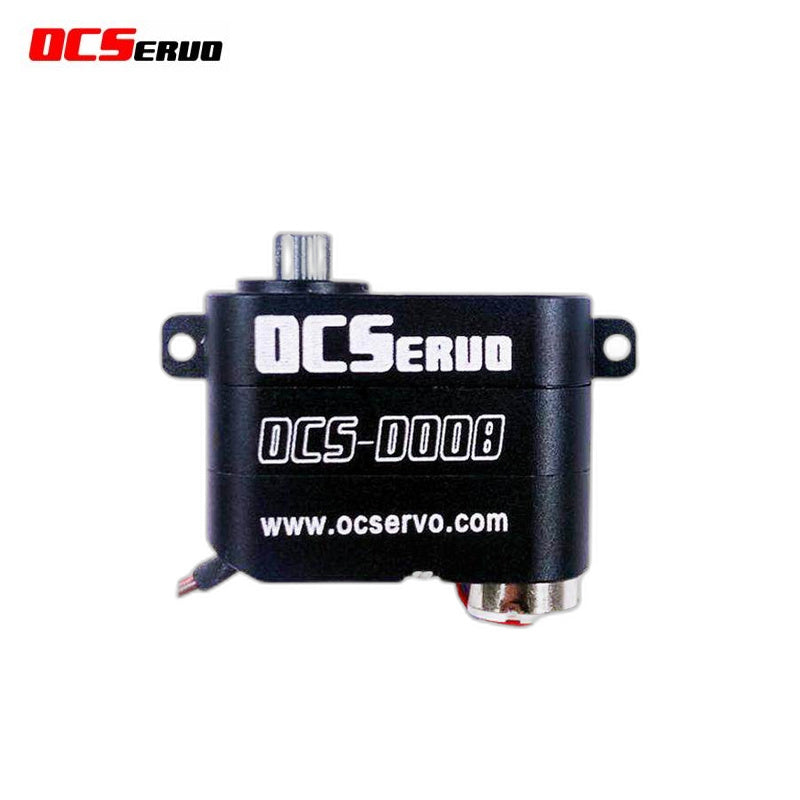

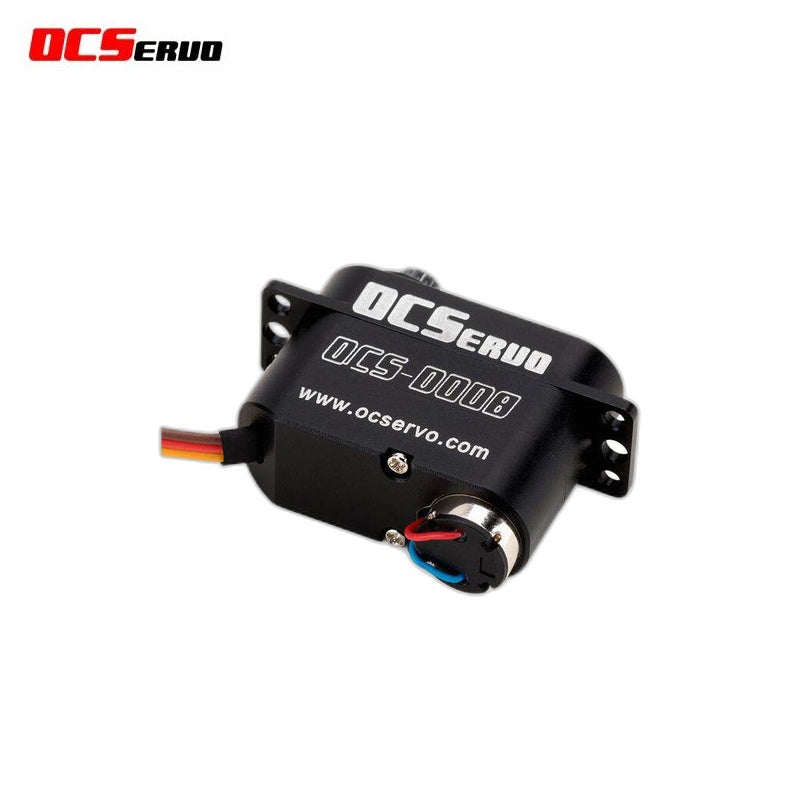

OCServo OCS-D008 Servo Motor

  • Peak stall torque (kg·cm): 6V: 1.8; 7.4V: 2.6
  • Operating Voltage: 6.0V / 7.4V
  • No load speed (sec/60°): 6V: 0.14; 7.4V: 0.09
  • Motor Type: Coreless motor
  • Gear Type: Aluminium
$40
Version

Warranty
  • 1-year limited warranty for the main unit.
  • 6-month limited warranty for the battery.
  • For service support, please contact customer care with proof of purchase.

Shipping

• Free shipping on qualifying orders. Eligibility and exact rates are calculated at checkout.
• Typical delivery 9 – 15 business days.
• Need it faster or shipping something large? Contact us for expedited options and a freight quote.

Developer Support

OCServo OCS-D008 dimensional drawing.pdf ▶ OCServo OCS-D008 technical specifications.pdf ▶

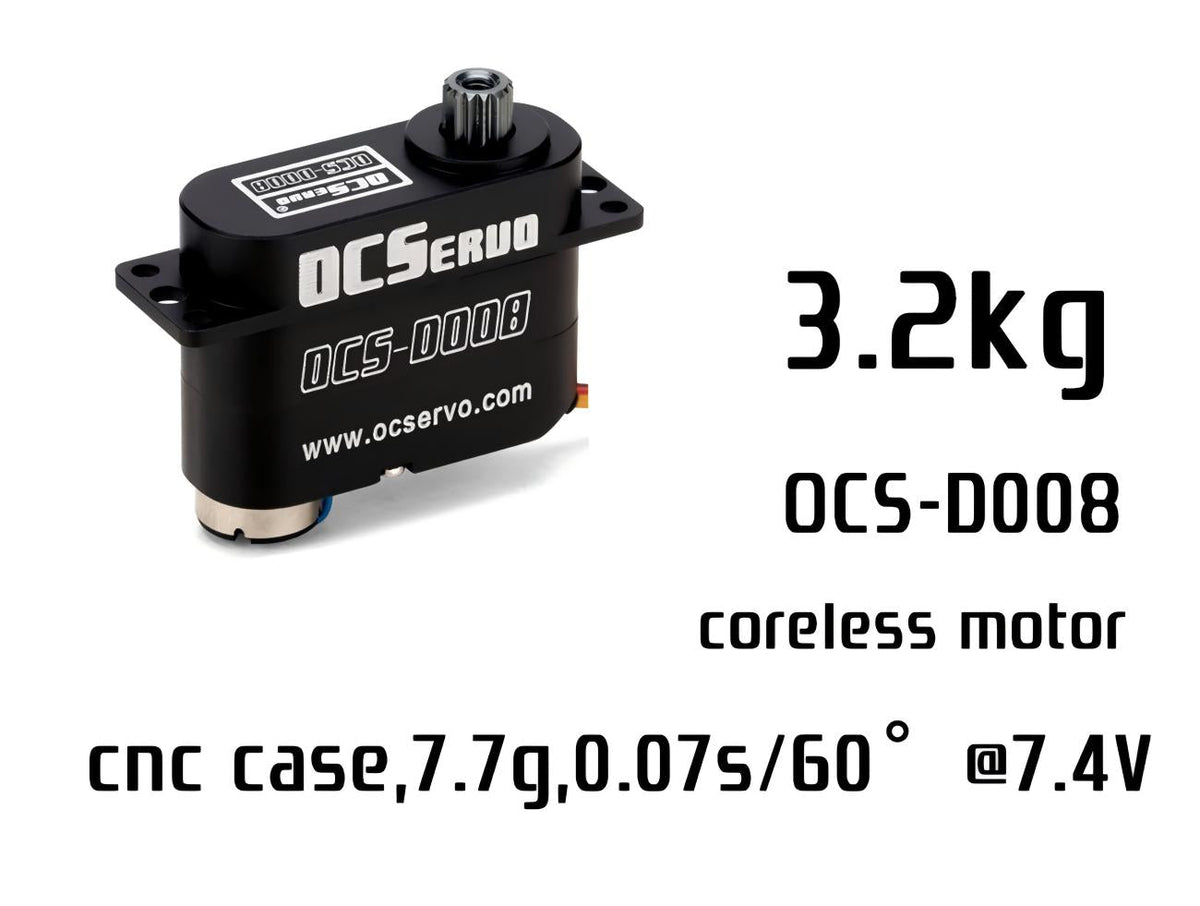

OCServo OCS-D008 Servo Motor detail image
OCServo OCS-D008 Servo Motor detail image
▤ PARAMETER ⌃
Product Name
7.4V3.2kg-cm Micro Digital Servo
Item No.
OCS-D008
Storage Temperature Range
-20°C ~ 70°C
Operating Temperature Range
-15°C ~ 65°C
Test Temperature
25°C ± 5°C
Test Humidity
65% ± 10%
Size (mm)
23.5 × 9 × 19.5
Weight (g)
7.7 (excluding accessory)
Gear Type
Aluminium
Limit Angle
360°
Bearings
2 Ball bearings
Output Spline
15T - Φ3.85mm
Horn Type
Plastic POM
Case Material
Aluminium CNC
Connector Wire
145mm ±5mm
Motor Type
Coreless motor
Waterproof Performance
No
Operating Voltage
6.0V / 7.4V
No load speed (sec/60°)
6V: 0.14; 7.4V: 0.09
Running current (at no load) (mA)
6V: 100; 7.4V: 150
Peak stall torque (kg·cm)
6V: 1.8; 7.4V: 2.6
Stall current (A)
6V: 0.6; 7.4V: 0.8
Command Signal
PWM
Amplifier Type
Digital Controller
Pulse Width Range
500 ~ 2500 μsec
Neutral Position
1500 μsec
Running Degree
90° (when 1000~2000 μsec)
Dead Band Width
2 μsec
Rotating Direction
CCW (when 1000~2000 μsec)
